Key specifications
- Amps
- 8 Amps
- Phase
- 1-Phase
- Dimensions
- 31.81"W × 30.75"D × 34.13"H
- Type
- Cold Pan Table
- Style
- Enclosed Base
- Installation Type
- Floor Model
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description

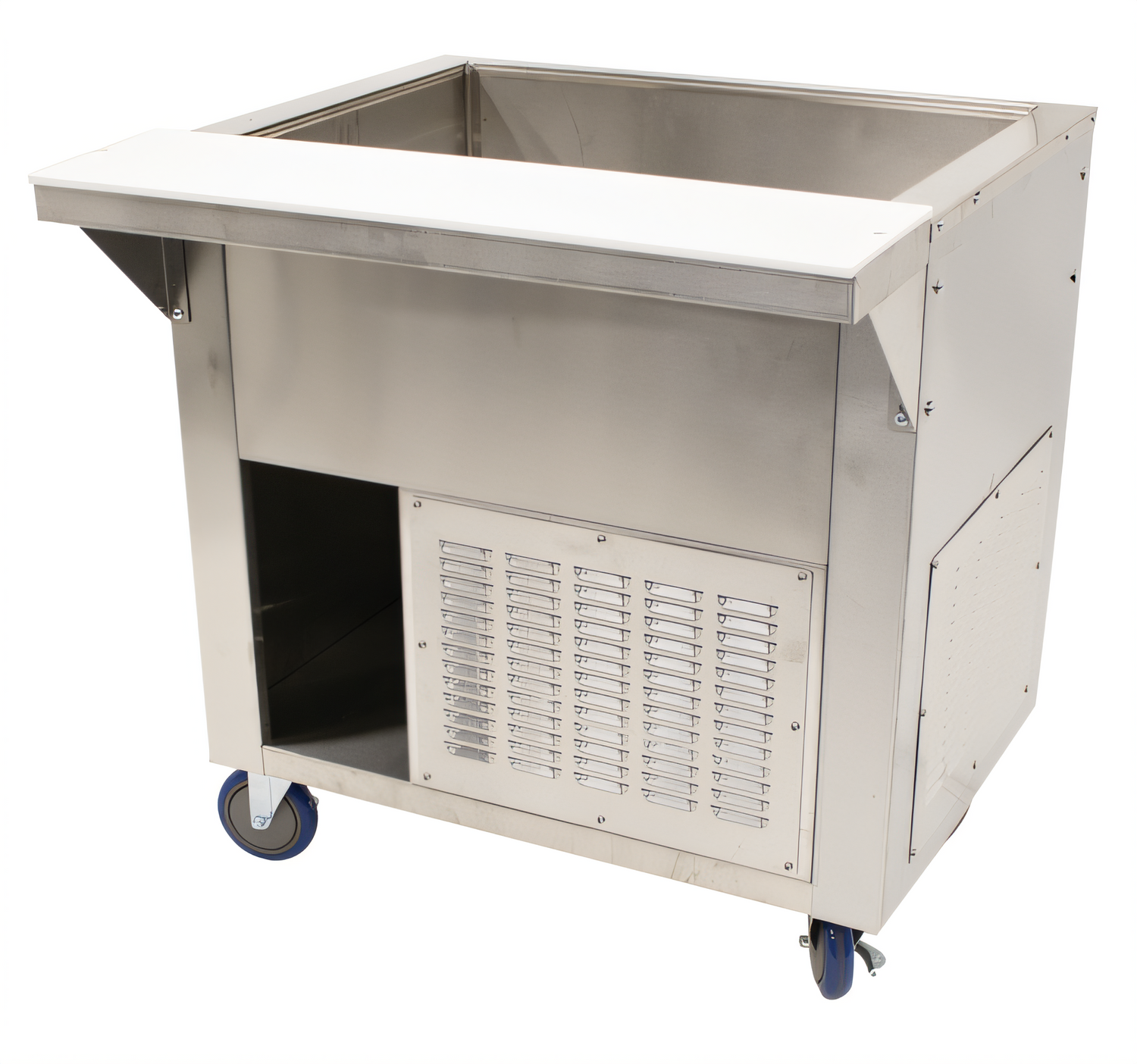

The Advance Tabco MACP-2-BS is a refrigerated cold pan table with a fully insulated well sized for two 12-inch x 20-inch pans up to 6-1/4 inches deep. Additional space below the pans supports cold air circulation.
The table has an enclosed stainless steel front and sides with rear open storage. Its self-contained refrigeration system uses a digital programmable thermostat, expansion valve, and R290 refrigerant.
- Cutting board: White thermoplastic board measuring 8 inches deep and 3/8 inch thick.
- Construction: Stainless steel table, liner, and base with an understructure housing the refrigeration system.
- Utility features: Includes a 1-inch drain, adjustable plastic bullet feet, 8-foot cord, and NEMA 5-15P plug.
Use note: This refrigerated unit is designed to maintain properly chilled food and is not intended to cool food that was originally warm.
Overall Dimensions:
31.81"W x 30.75"D x 34.13"HProduct Weight:
230.0 lbTwo-Pan Refrigerated Well

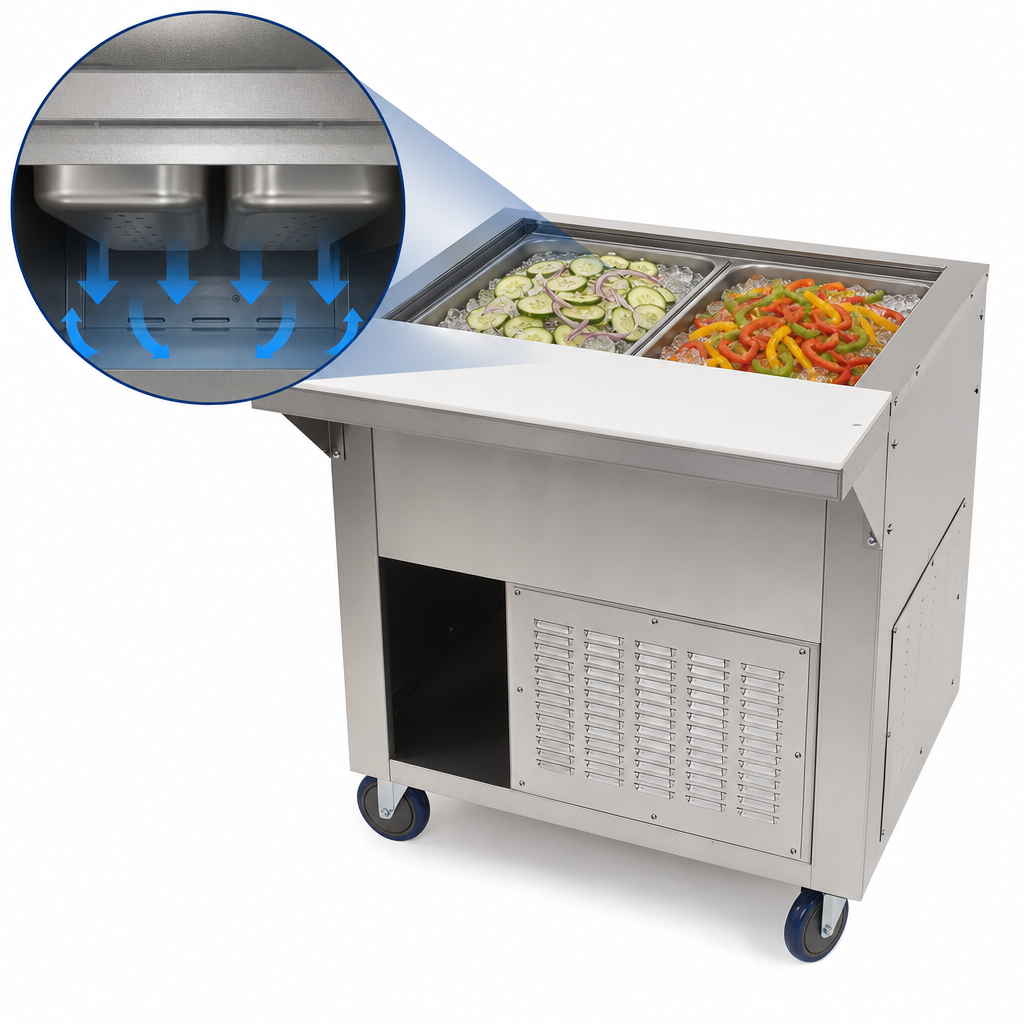

The cold pan well accommodates two 12-inch x 20-inch pans up to 6-1/4 inches deep.
Fully Insulated Well
The well measures 27-5/16 inches wide x 20 inches deep x 8 inches deep and provides additional space below for cold air circulation.
Digital Programmable Thermostat
Provides programmable temperature control for the self-contained refrigeration system.
Self-Contained Refrigeration
The condensing unit is housed in the understructure and uses a hermetically sealed compressor.
R290 Refrigerant
The refrigeration system is charged with R290 refrigerant.
Expansion Valve
An expansion valve supports refrigeration system operation.
Enclosed Base
The front and sides are enclosed, with rear open storage below the work surface.
Stainless Steel Construction
The table includes stainless steel construction with a stainless steel liner and top.
Integrated Cutting Board
Includes a removable white thermoplastic cutting board measuring 8 inches deep and 3/8 inch thick.
1-Inch Drain
The refrigerated well includes a 1-inch drain.
Adjustable Bullet Feet
Adjustable plastic bullet feet support stationary placement.
Electrical Connection
The unit is specified for 115-volt, 8-amp, 60 Hz, single-phase operation with an 8-foot, 3-wire cord and NEMA 5-15P plug.
