Advance Tabco KTMS-309 Stainless Steel Prep Tables
Description

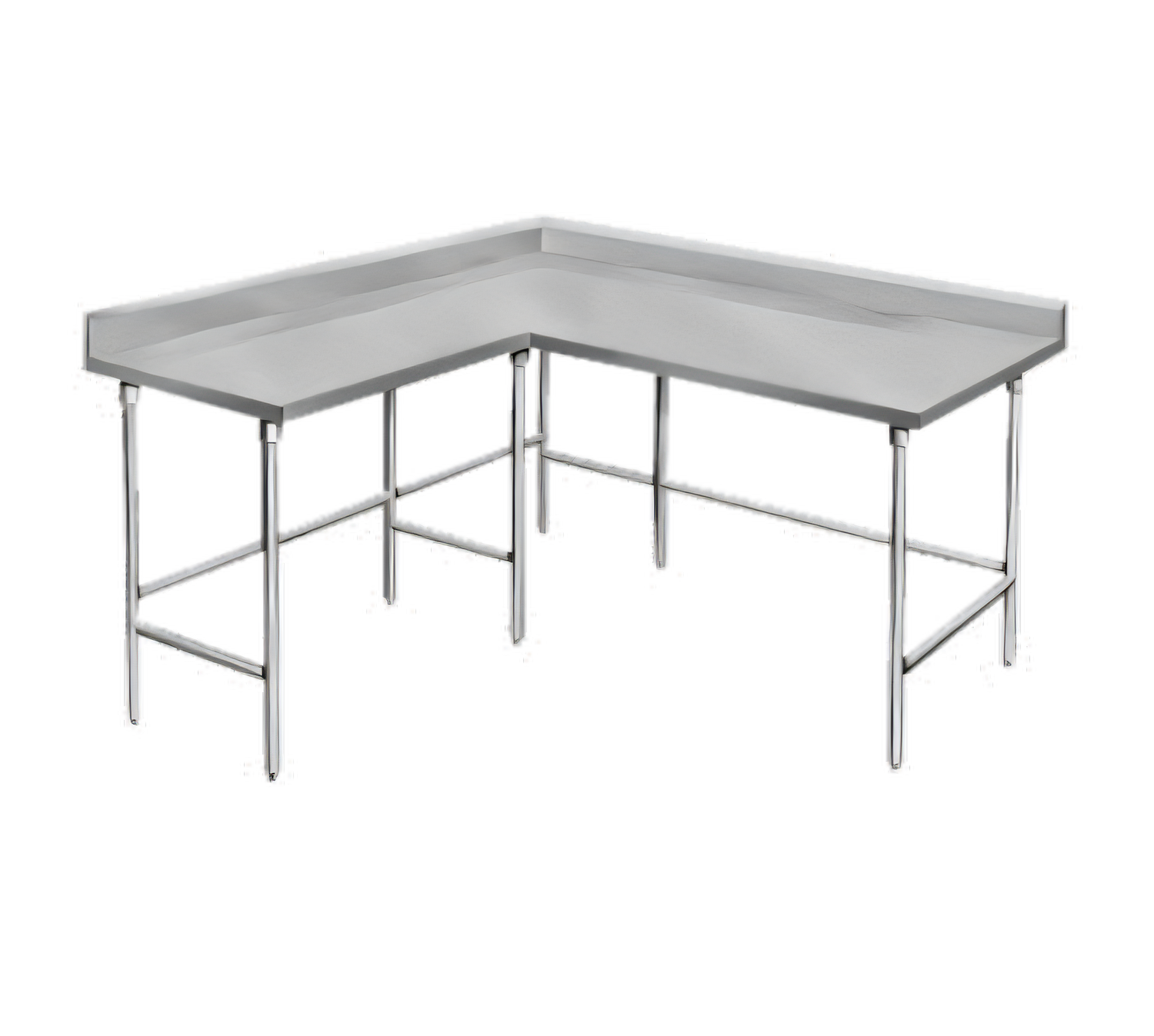

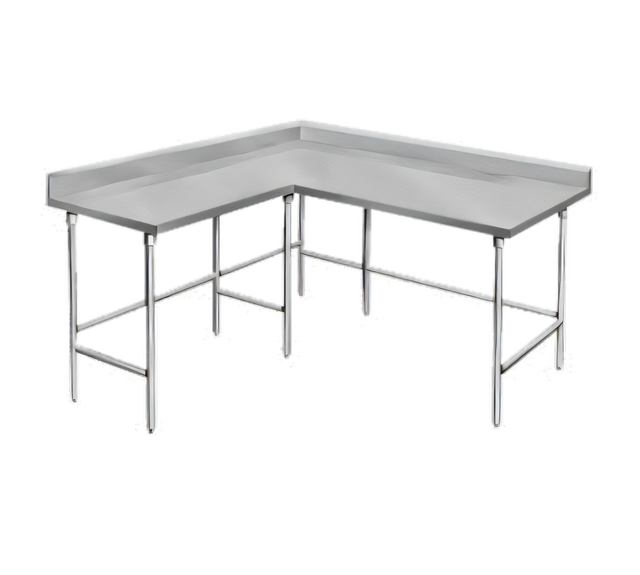

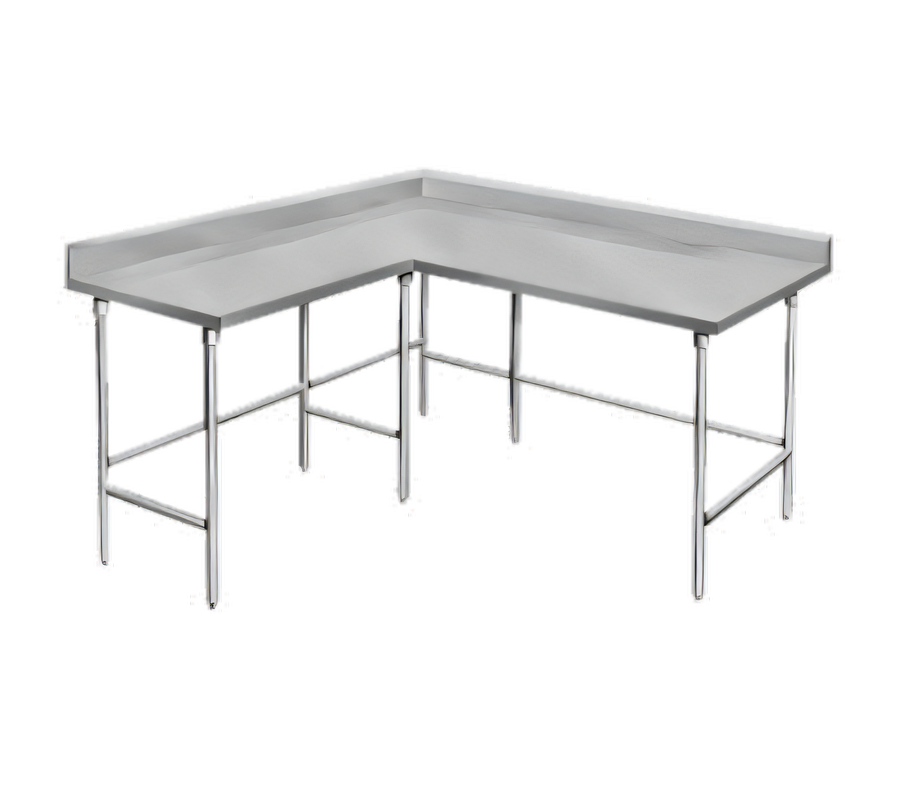

Advance Tabco 108" x 60" L-Shaped Work Table
Model KTMS-309 | 30" Working Depth | 5" Rear Backsplash | NSF ListedEngineered for demanding commercial kitchens, this Advance Tabco L-shaped “Korner” table delivers a massive, easy–to-sanitize work surface while making the most of corner space. The heavy-duty 14 ga. type 304 stainless steel top, full TIG-welded frame, and reinforced crossrails provide rock-solid support for prep equipment, smallwares, and ingredients.
Key Features
- Generous 108" x 60" footprint (specify long & short sides at time of order).
- 30" working depth provides ample room for large cutting boards, mixers, or hotel pans.
- 14 ga. 304 stainless steel top with satin finish – corrosion-resistant & NSF food-zone approved.
- 5" high rear backsplash with 1" return keeps spills off adjacent walls.
- 1 5/8" square-bend edges on front & ends for a clean, snag-free profile.
- Stud-welded galvanized hat channels & welded gussets silence vibration and keep the top dead-flat.
- 1 5/8" Ø stainless steel legs with side & rear tubular crossrails for unwavering stability.
- Front-to-back leg stretchers ship loose & bolt in place for easy on-site assembly.
- Height-adjustable stainless steel bullet feet level the table on uneven floors.
- Fully TIG-welded, exposed welds ground & polished to match adjacent surfaces.
- NSF listed for use in all food-service applications.
Specifications
| Model | KTMS-309 (30" wide series) |
|---|---|
| Overall Dimensions | 108" (long side) x 60" (short side) x 30" D × 40 1/2" H (to top of backsplash) |
| Top Material / Gauge | 14 ga. Type 304 stainless steel, sound-deadened |
| Backsplash | 5" H with 1" return |
| Edge Profile | 1 5/8" square-bend front & ends |
| Legs & Crossrails | 1 5/8" Ø stainless steel tubing, welded side/rear rails, bolted F–B stretchers |
| Feet | 1" dia. adjustable stainless steel bullet feet |
| Load Capacity (distributed) | Up to 1,500 lb. (per Advance Tabco 14 ga. table rating with center support) |
| Certifications | NSF |
| Shipping Weight | ≈ 480 lb. |
Popular Options & Accessories (sold separately)
- Stainless steel undershelf (model KT-103) or enclosed cabinet base (KT-104).
- Fabricated drop-in sinks – 16" × 20" × 12" (TA-11B), 20" × 20" × 12" (TA-11D), 20" × 24" × 12" (TA-11E).
- Additional length on either leg (KT-101) – up to 7’ maximum per wall.
- Custom sizing & reinforced understructure for extra-heavy equipment loads.
Need something unique? Advance Tabco’s Smart Fabrication™ team can add cutouts, sinks, shelving, or custom lengths. Contact our food-service specialists for a fast quote.
