Advance Tabco K7-CS-32 Compartment Sinks
Description

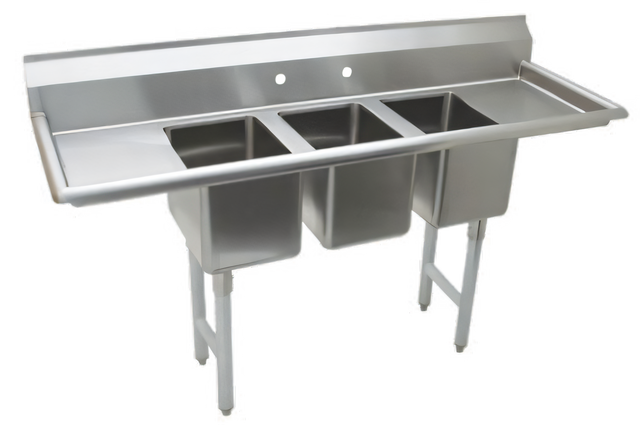

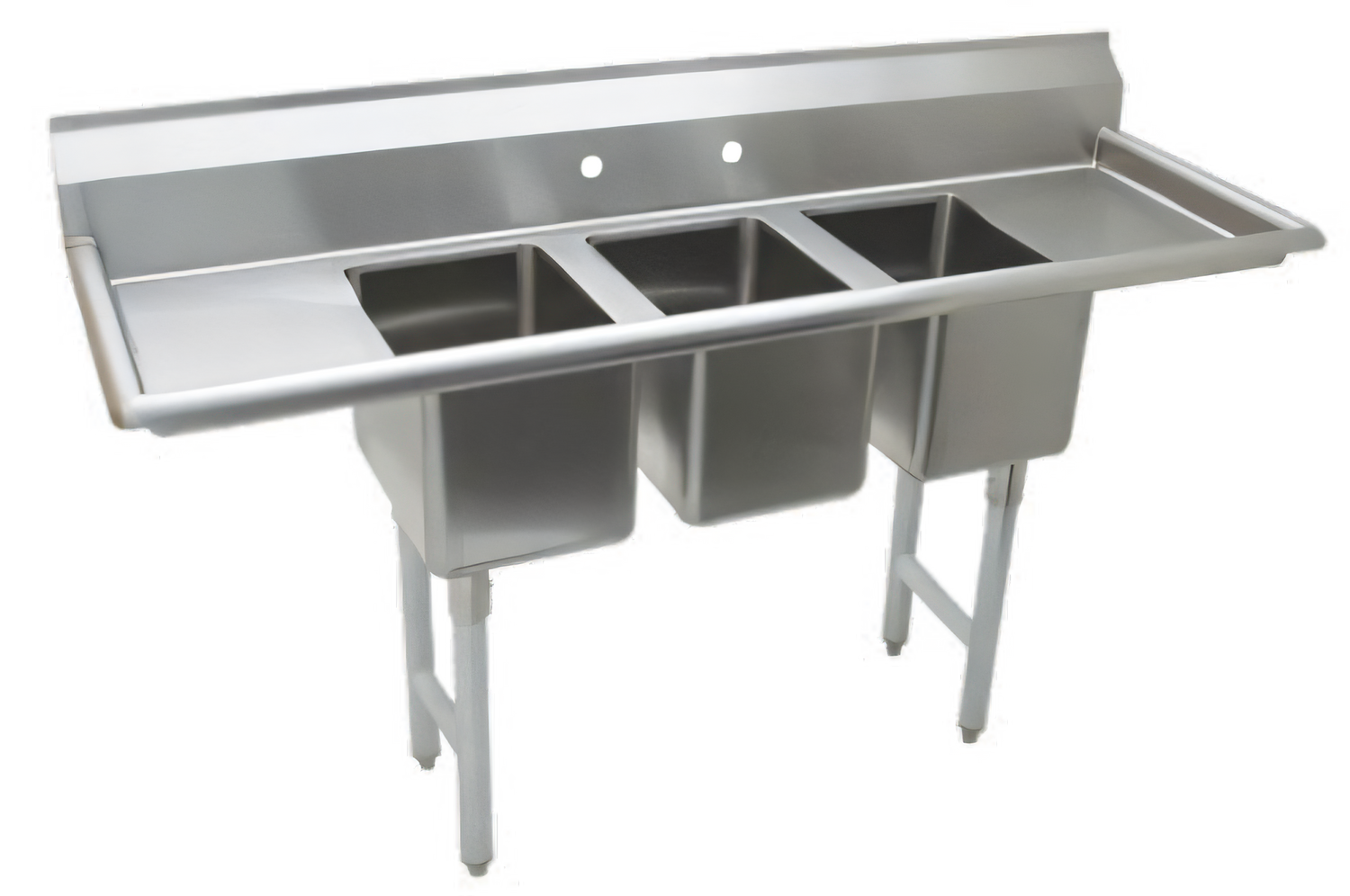

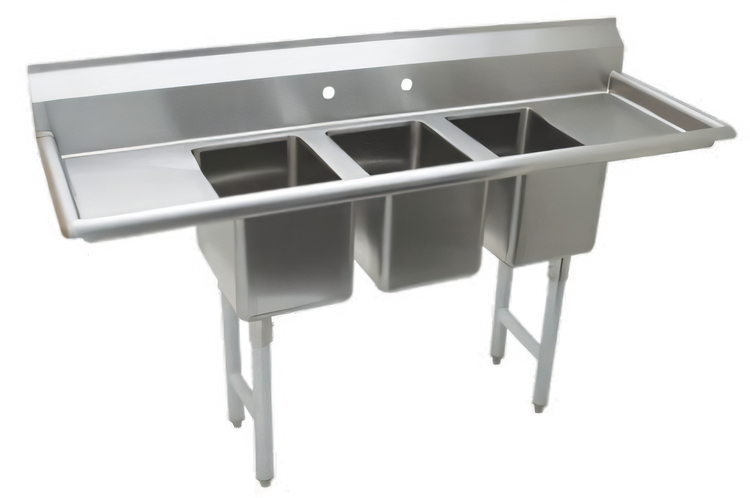

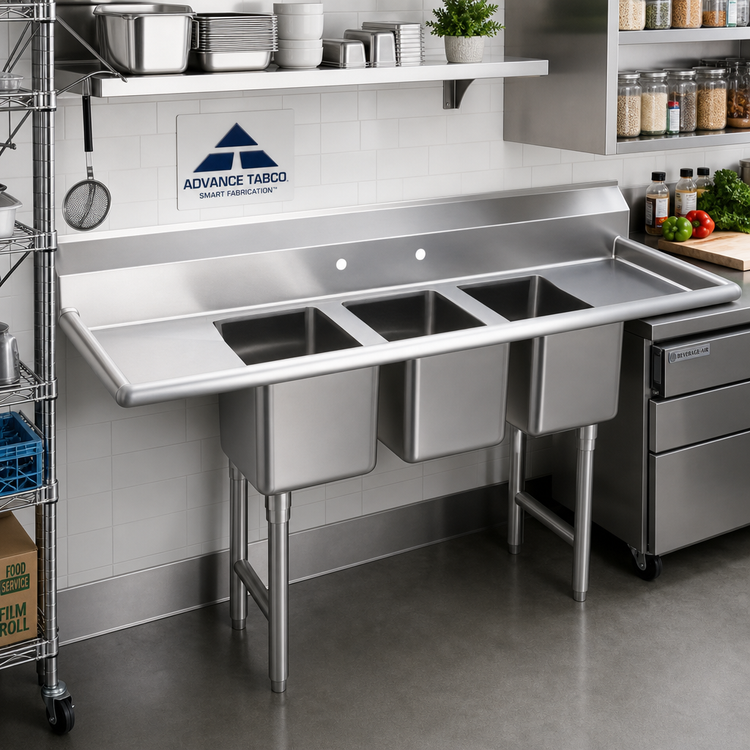

Advance Tabco K7-CS-32 3-Compartment Convenience Store Sink
64" L x 25 ½" F/B • Dual 12" Drainboards • 18-Gauge 304 Stainless SteelMaximize a tight footprint without compromising code compliance. The K7-CS-32 packs full wash, rinse and sanitize capability—plus left- and right-hand drainboards—into less than six feet of space, making it the perfect sanitation center for convenience stores, cafés, food trucks and satellite kitchens.
Key Benefits

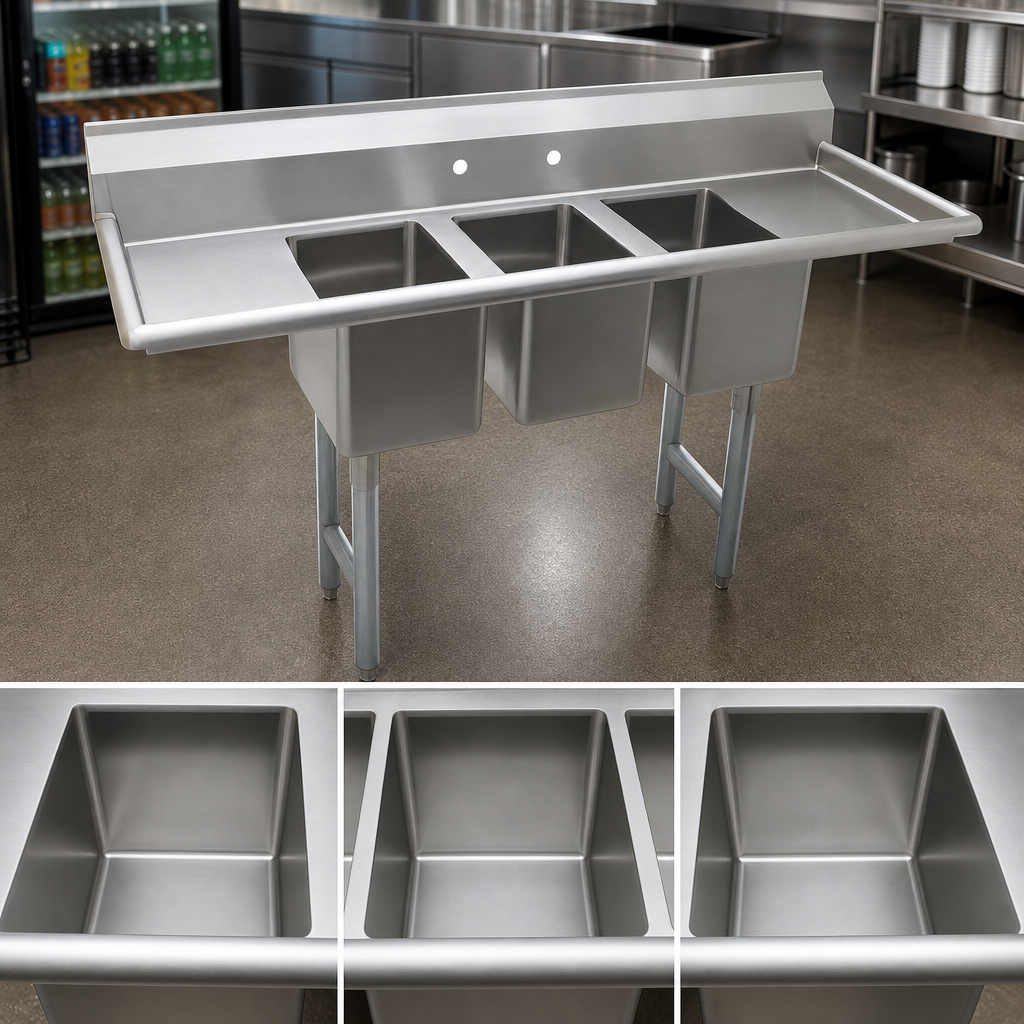

- Three fabricated 12" × 20" × 12" deep bowls—welded & blended for a seamless, leak-proof interior.
- 8 ½" high backsplash with tile edge simplifies wall mounting and helps contain splashes.
- Dual 12" drainboards (left & right) slope toward the sink for fast drying and easy pan staging.
- 18-gauge Type 304 stainless steel throughout delivers superior corrosion resistance.
- Open-frame base with 1 ⅝" Ø tubular stainless legs, side crossrails & welded gussets for rock-solid stability.
- 1" adjustable stainless bullet feet level the sink on uneven floors.
- (3) 1 ½" IPS stainless basket drains included—centered in each bowl.
- Pre-punched 8"-on-center faucet holes; ½" IPS hot & cold supply inlets.
- NSF Listed & fully TIG-welded with a satin finish for an easy-to-clean professional appearance.
At-a-Glance Specs
| Model | K7-CS-32 |
|---|---|
| Compartments | 3 |
| Compartment Size (W × F/B × D) | 12" × 20" × 12" |
| Drainboards | 2 × 12" (left & right) |
| Backsplash Height | 8 ½" |
| Overall Dimensions | 64" L × 25 ½" F/B × 42 ½" H (36 ½" working height) |
| Material / Gauge | 18-gauge Type 304 stainless steel |
| Legs | 1 ⅝" Ø tubular stainless with side crossrails |
| Adjustability | 1" stainless bullet feet |
| Drain Connection | (3) 1 ½" IPS basket drains (included) |
| Faucet Holes | (3) sets on 8" centers — 1 ⅛" diameter |
| Shipping Weight | ≈ 110 lb |
| Certifications | NSF |
Need a different bowl size or corner configuration? Ask about additional Advance Tabco Convenience Store Sink models and custom Smart Fabrication ® options.
