Advance Tabco K7-CS-22 Compartment Sinks
Description

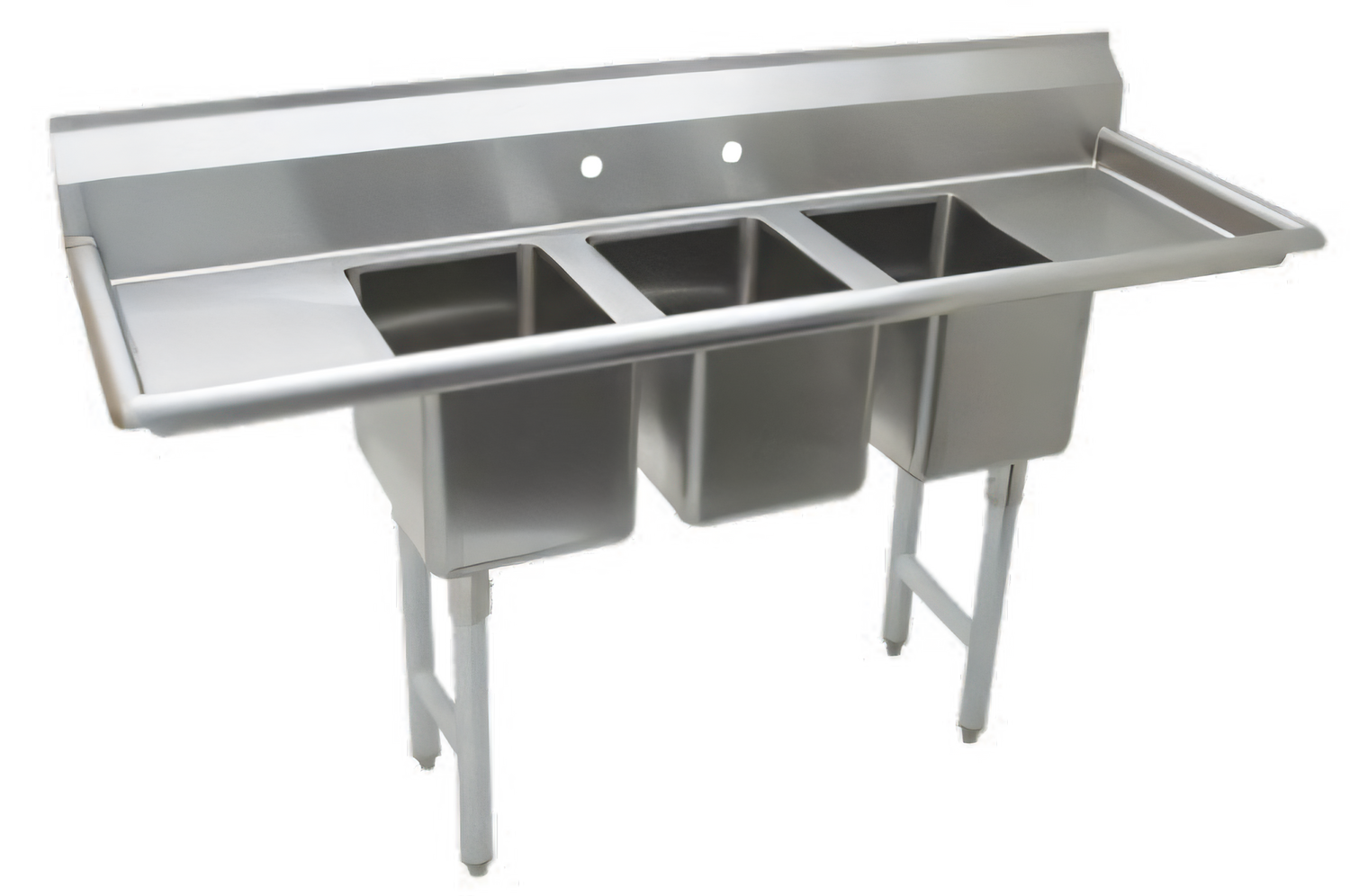

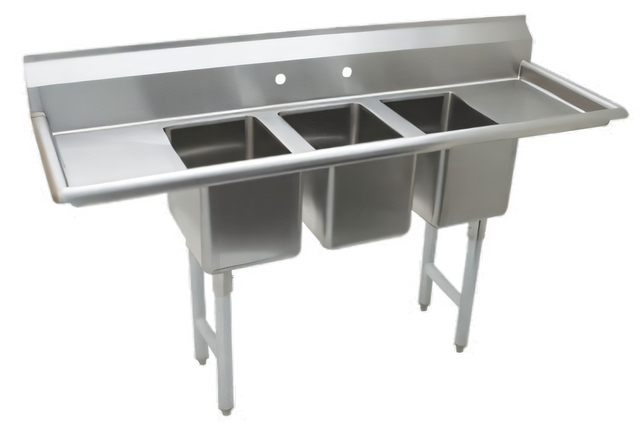

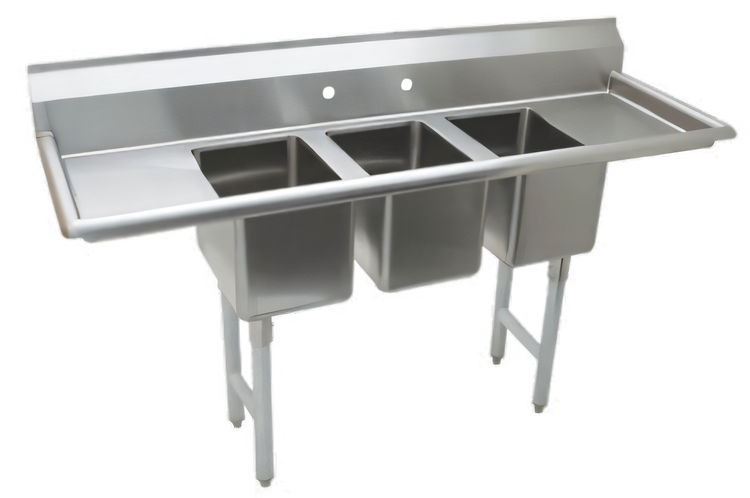

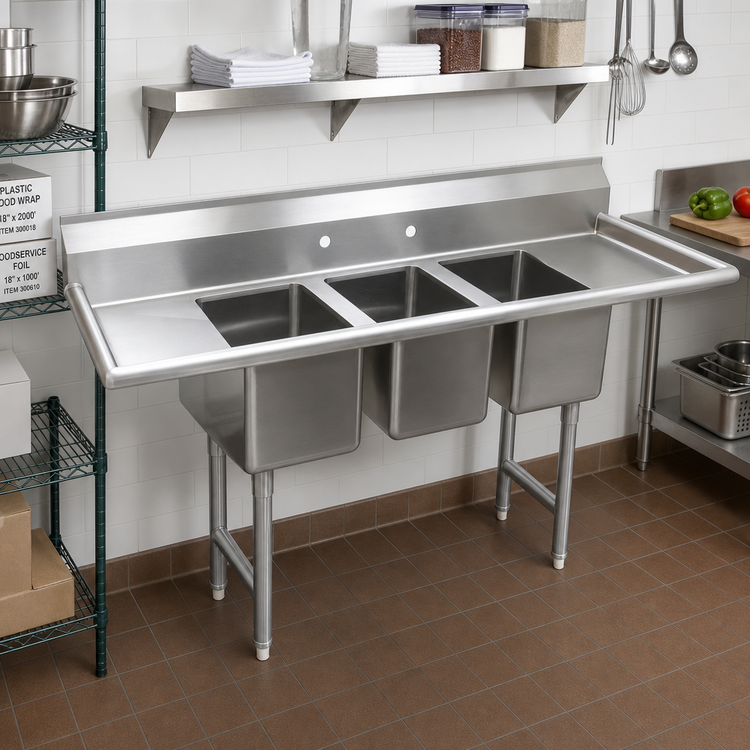

Advance Tabco K7-CS-22 3-Compartment Convenience Store Sink
70" L • Dual 18" Drainboards • 18 ga Type 304 Stainless SteelDesigned for tight back-of-house footprints, the K7-CS-22 packs a full wash, rinse and sanitize station into less than six feet of linear space. TIG-welded 18 ga 304 stainless steel, rock-solid tubular leg frame and NSF certification make it a durable, code-ready solution for c-stores, coffee kiosks, food trucks and satellite bars.
Key Features

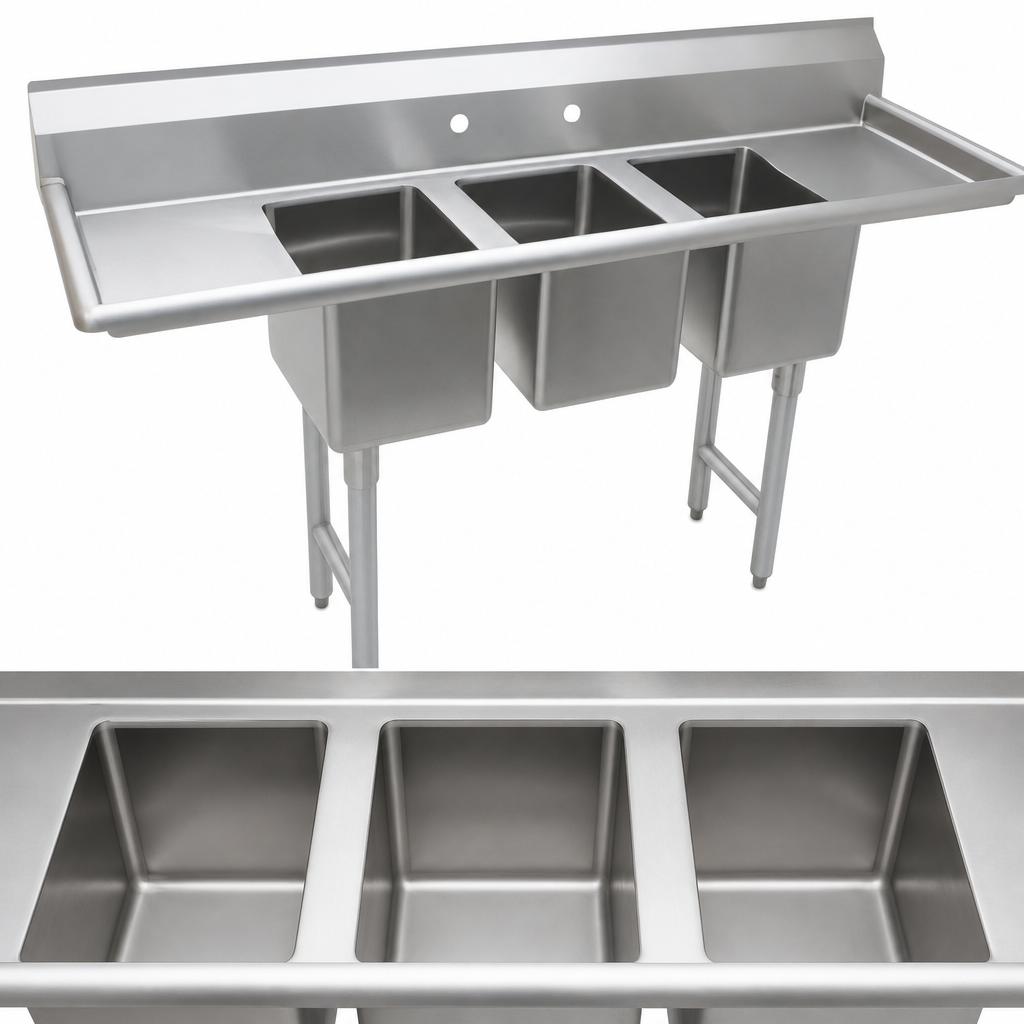

- Three equal bowls – each 14" front-to-back x 10" wide x 10" deep
- Left & right drainboards (18" L) with raised marine edge and tile edge for quick, sanitary wall installation
- 8-1/2" high backsplash pre-punched for 8" O.C. faucet (faucet sold separately)
- All-welded 18 ga type 304 stainless steel with satin finish
- 1 5/8" Ø tubular stainless steel legs, welded gussets & side crossrails for maximum rigidity
- 1" adjustable stainless steel bullet feet level the sink on uneven floors
- Includes three 1-1/2" IPS stainless steel basket drains (centered in each bowl)
- NSF listed for foodservice compliance
Specifications
| Model | K7-CS-22 |
|---|---|
| Overall Dimensions | 70" L x 19-1/2" F/B x 42-1/2" H (to top of backsplash) |
| Working Height | 36-1/2" |
| Compartments | 3 |
| Bowl Size (each) | 14" F/B x 10" W x 10" D |
| Drainboard Length | 18" (left) • 18" (right) |
| Backsplash Height | 8-1/2" |
| Faucet Mount | 8" on-center holes (⌀1-1/8") |
| Material & Gauge | 18 ga Type 304 stainless steel |
| Legs / Base | 1 5/8" Ø stainless steel legs with side crossrails & 1" adjustable bullet feet |
| Drains | 1-1/2" IPS stainless basket drains (included) |
| Approx. Shipping Weight | 100 lb |
| Certifications | NSF |
Faucet, trap and supply lines are shown for illustration and are not included. Compatible deck-mount faucets can be found in the Faucets collection.
