Advance Tabco

Advance Tabco K7-3-3030-24RL Regaline Compartment Sinks

SKU: K7-3-3030-24RL
GTIN: 747545139085
$8,294.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
Note: Conforms to NSF 61/9 lead free requirements. Notice for use or sale in California: Proposition 65 this faucet may expose you to chemicals, including lead, that are known to the State of California to cause cancer, or birth defects or other reproductive harm. For more information visit www.p65warnings.ca.gov.

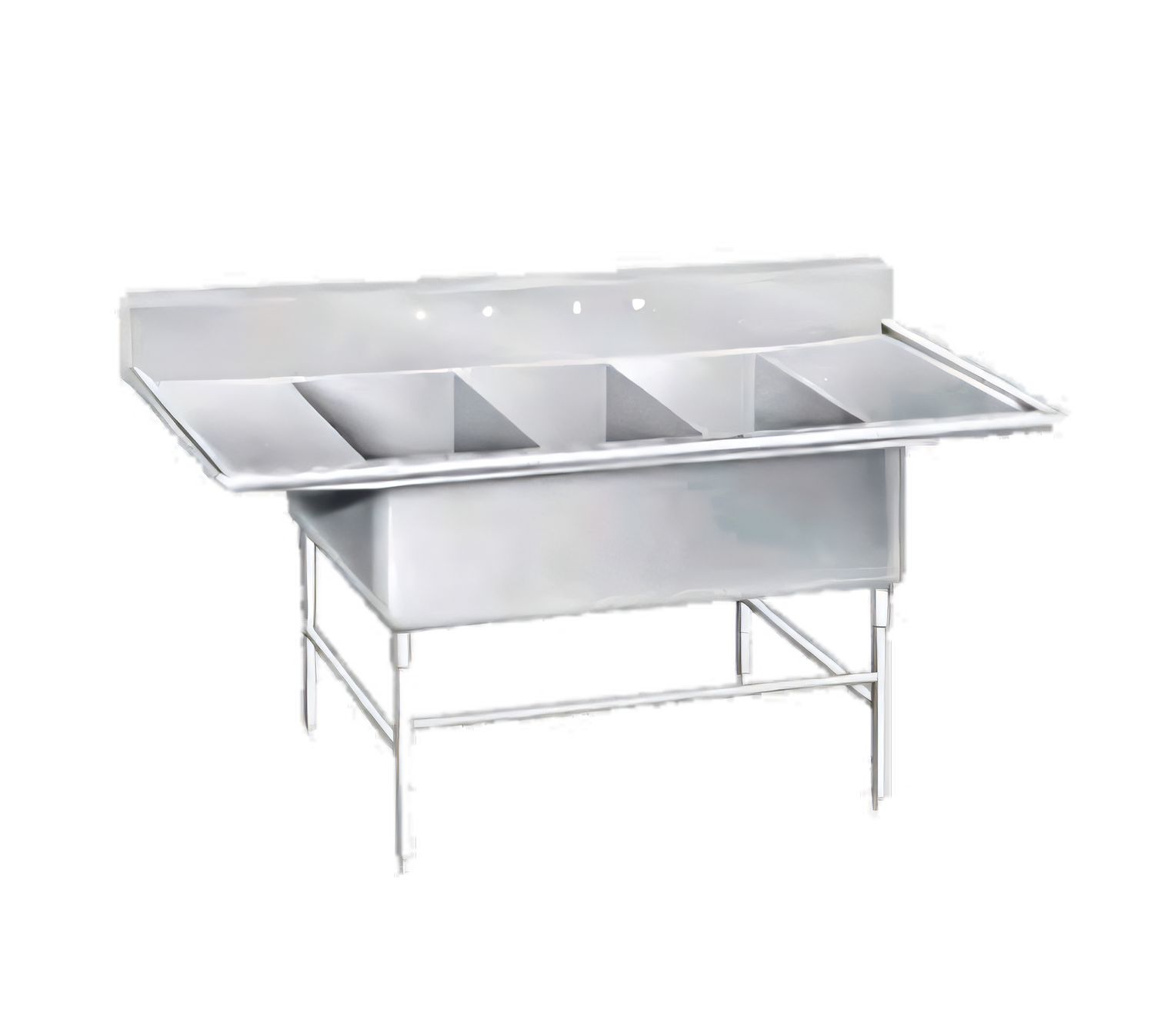

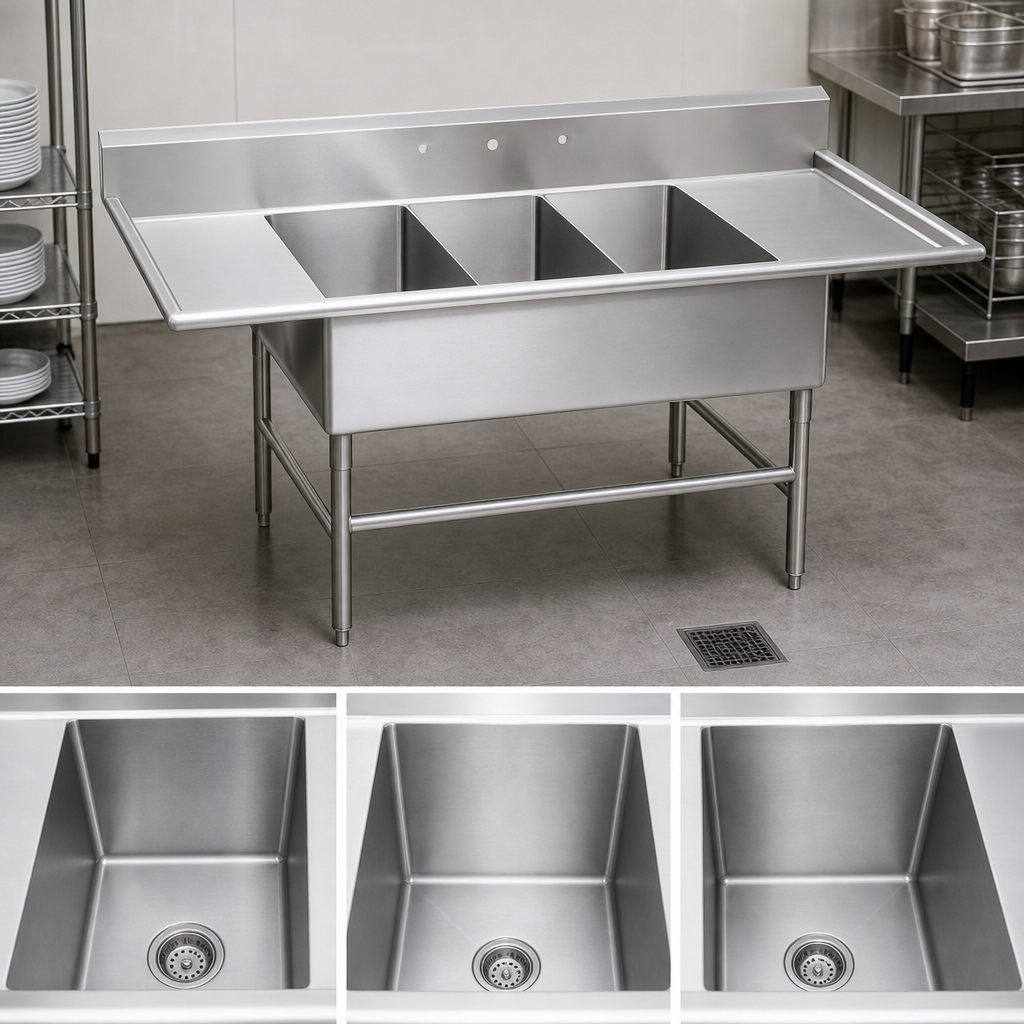

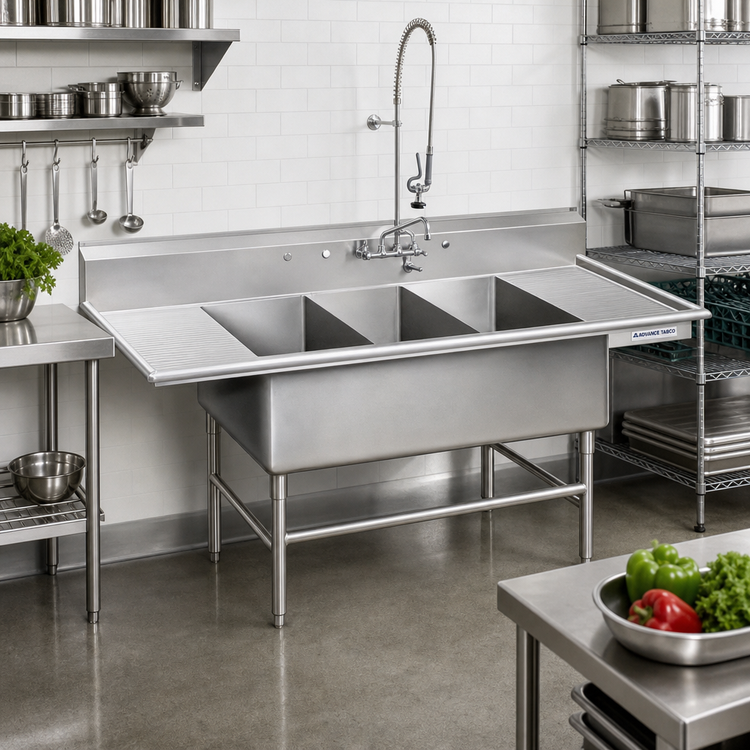

Regaline K7-3-3030-24RL Super-Size 3-Compartment Sink

30" × 30" × 14" bowls • 24" left & right drainboards • 16 ga 304 stainless steel

Built for the busiest prep and pot-washing lines, the Advance Tabco Regaline K7-3-3030-24RL delivers maximum capacity, rock-solid stability and NSF-listed hygiene in one supersized, easy-to-install package. Three extra-large 30" x 30" x 14" compartments sit between full-length 24" drainboards, all supported by a rugged skirted frame with bullet feet leveling to almost any floor.

Why You’ll Love It
  • 16 ga, type 304 stainless steel—our most corrosion-resistant workhorse material.
  • Tile-edge 1" splash lets you set the sink tight to a tiled wall for a sanitary seal.
  • Three 14" deep fabricated bowls with ¾" radius corners meet NSF water-level specs for easy cleaning.
  • Full-length left & right 24" drainboards keep clean and soiled items organized.
  • TIG-welded seams blended to a satin finish for a smooth, snag-free workspace.
  • Heavy-duty 1 5⁄8" O.D. tubular stainless legs with cross-bracing and die-embossed gussets.
  • 1" adjustable stainless bullet feet make quick work of leveling on uneven floors.
  • Faucet holes pre-punched on 8" centers; 1 ½" IPS basket drains included.
  • NSF listed for foodservice peace of mind.
Technical Specs
Model No. K7-3-3030-24RL
Series Regaline Fabricated Super-Size Sinks
Compartments 3
Bowl Size (each) 30" front-to-back × 30" wide × 14" deep
Drainboards 24" left & 24" right
Overall Dimensions 138" length × 36" front-to-back
Material & Gauge 16 ga type 304 stainless steel
Legs 1 5⁄8" O.D. stainless tubing w/ cross-bracing & 1" adjustable bullet feet
Faucet Mounting Two sets of 1 ¹⁄₈" dia. holes on 8" centers
Drain Connection 1 ½" IPS basket-type (included)
Weight 420 lb
NSF Listing Yes

Need a heavier 14 ga version? Add “-14” to the model number when ordering.
Looking for faucets? Check out our compatible swing-spout and pre-rinse assemblies in the Accessories tab.

Heads up: Faucets are sold separately. This sink ships with basket drains and mounting hardware only.
Manufacturer Advance Tabco
Brand name Regaline
Height 42.0in
Width 138.0in
Depth 36.0in
Shipping Weight 420.0lbs
Splash Height 8"
Top Gauge 16 gauge
Sink Depth (rim - drain) 14"
Base Construction stainless steel
Compartment Width (side - side) 30"
Top Stainless Series 300 series
Compartment (front - back) 30"
Drainboards with left & right-hand drainboards
Base Type legs with side crossrails
Overall Length 109" - 170"
Specifications Super Size Fabricated Sink, 3-compartment, with left & right-hand drainboards, 30" front-to-back x 30"W sink compartment, 14" deep, with tile edge splash, full skirt, stainless steel bullet feet, 16 gauge 300 series stainless steel, 24" drainboards, overall 36" F/B x 138" L/R
