Advance Tabco  |  Regaline  |  SKU: K7-3-3024-24RL  |  UPC: 747545139078

Advance Tabco K7-3-3024-24RL Regaline Compartment Sinks

$7,542.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation manual
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

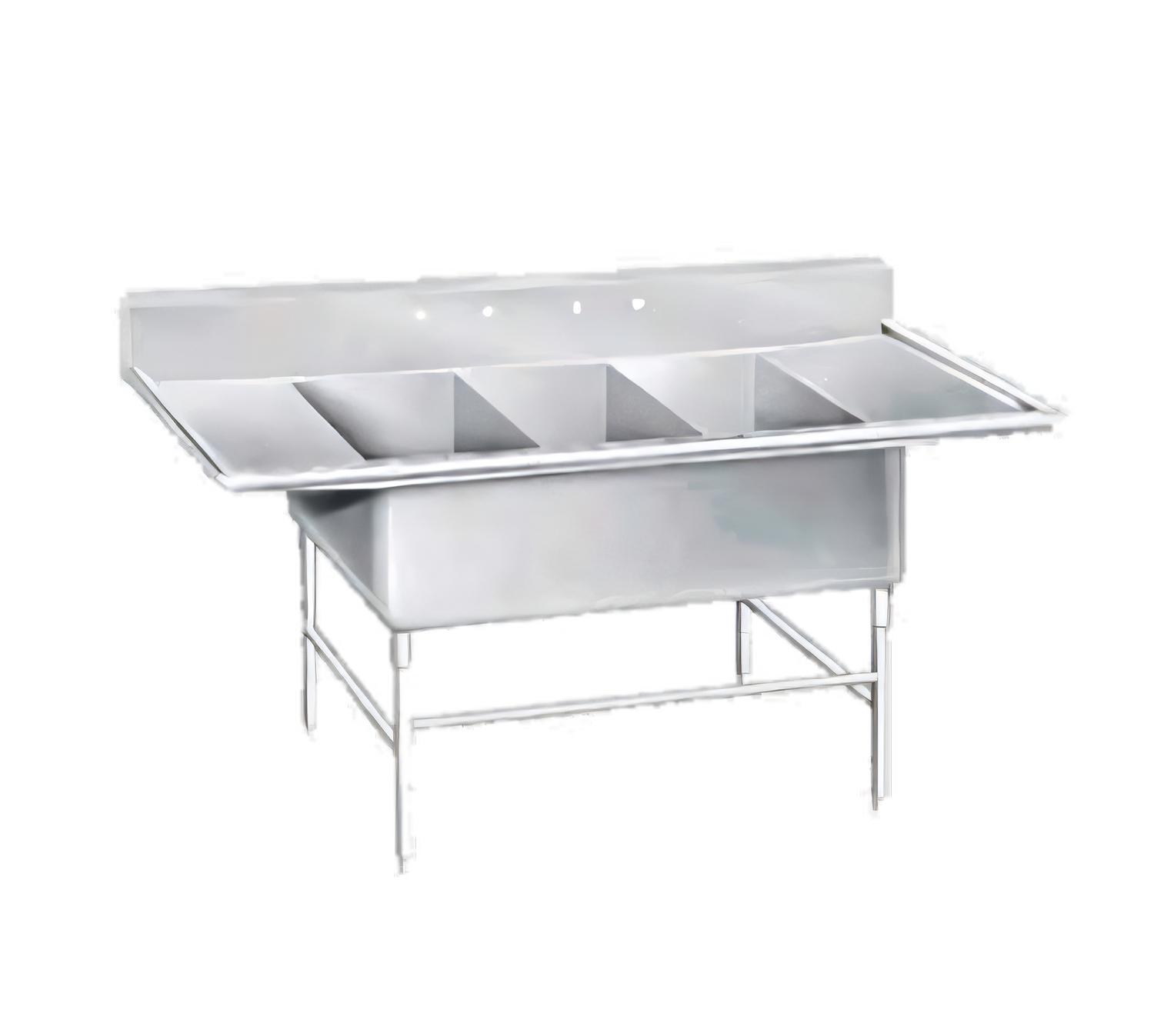

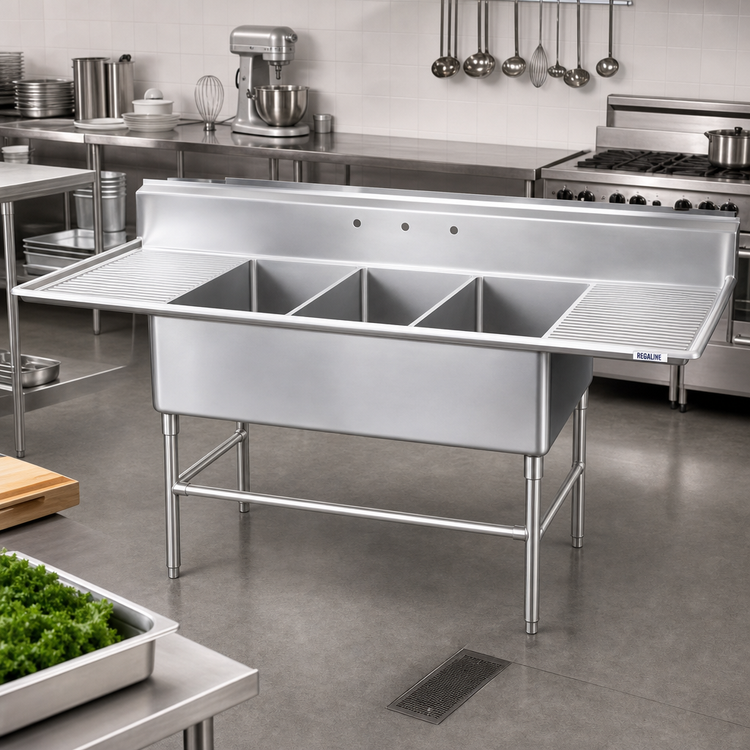

Advance Tabco Regaline K7-3-3024-24RL Super-Size 3-Compartment Sink

With left & right 24 in. drainboards • 138 in. overall length

Built for the busiest prep rooms, the Regaline super-size sink delivers industrial-strength durability, generous work space and NSF-approved sanitation in one sleek, fully fabricated package.

Key Features

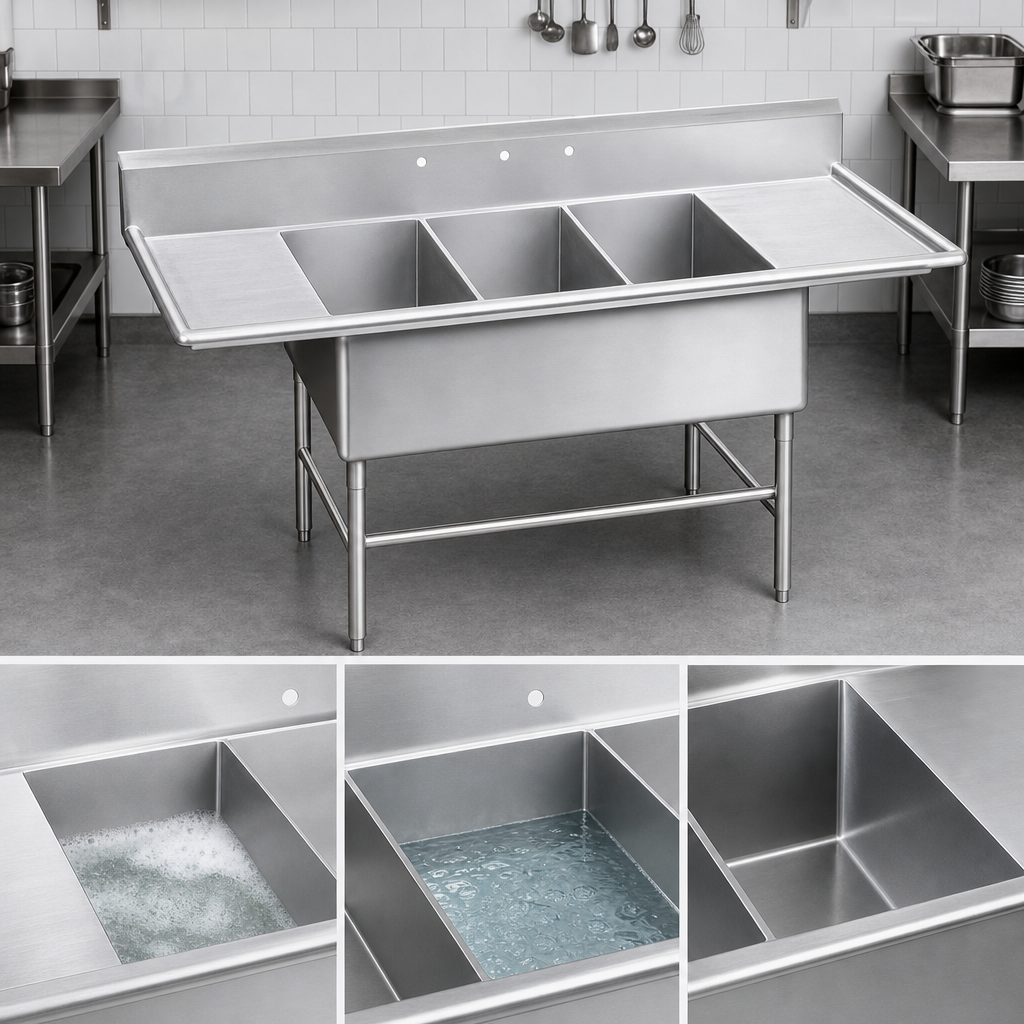

  • Three extra-large sink bowls (30 in. W × 24 in. F/B × 14 in. D) for high-volume warewashing.
  • Dual 24 in. drainboards (left & right) speed up loading and drying.
  • Rugged 16 ga, 304 series stainless steel—resists corrosion, acids and harsh detergents.
  • 1 in. adjustable stainless steel bullet feet and 1 ⅝ in. tubular legs with cross-bracing for rock-solid stability.
  • Tile-edge backsplash simplifies flush, watertight installation against walls.
  • Full skirt conceals plumbing and lends a clean, professional appearance.
  • All TIG-welded seams, blended to a satin finish for easy cleaning and lasting aesthetics.
  • NSF compliant ¾ in. inside bowl radius for quick, sanitary wipe-downs.

Included & Ready to Install

  • 1 ½ in. IPS basket-type drains (3 pcs)
  • Faucet holes pre-punched on 8 in. centers (faucets sold separately)
  • Reinforced die-embossed gussets for direct leg-to-bowl support

Specifications

Model / Series Regaline K7-3-3024-24RL
Number of Compartments 3
Bowl Dimensions (W × F/B × D) 30 in. × 24 in. × 14 in.
Drainboard Length 24 in. (each side)
Overall Dimensions (L × F/B) 138 in. × 30 in.
Material / Gauge 304 stainless steel / 16 ga
Legs & Feet 1 ⅝ in. tubular S/S legs with 1 in. adjustable bullet feet
Finish Satin polish, TIG-welded seams blended smooth
Weight ≈ 395 lb
Certifications NSF, Made in USA
Note: Faucets are not included. Choose a compatible 8 in. center wall-mount faucet from our accessories collection to complete your installation.

Advance Tabco continuously improves products; specifications are subject to change without notice.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Height

42.0in

Width

138.0in

Depth

30.0in

Shipping Weight

395.0lbs

Splash Height

8"

Compartment (front - back)

24"

Sink Depth (rim - drain)

14"

Top Stainless Series

300 series

Top Gauge

16 gauge

Base Type

legs with side crossrails

Compartment Width (side - side)

30"

Overall Length

109" - 170"

Base Construction

stainless steel

Drainboards

with left & right-hand drainboards

Specifications

Super Size Fabricated Sink, 3-compartment, with left & right-hand drainboards, 24" front-to-back x 30"W sink compartment, 14" deep, with tile edge splash, full skirt, stainless steel bullet feet, 16 gauge 300 series stainless steel, 24" drainboards, overall 30" F/B x 138" L/R
