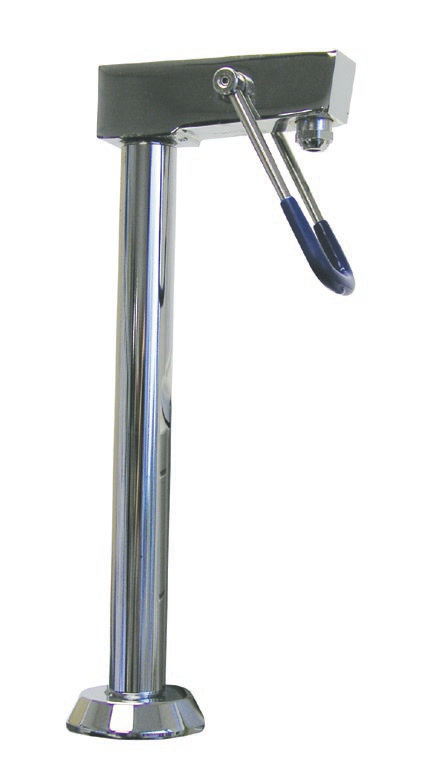

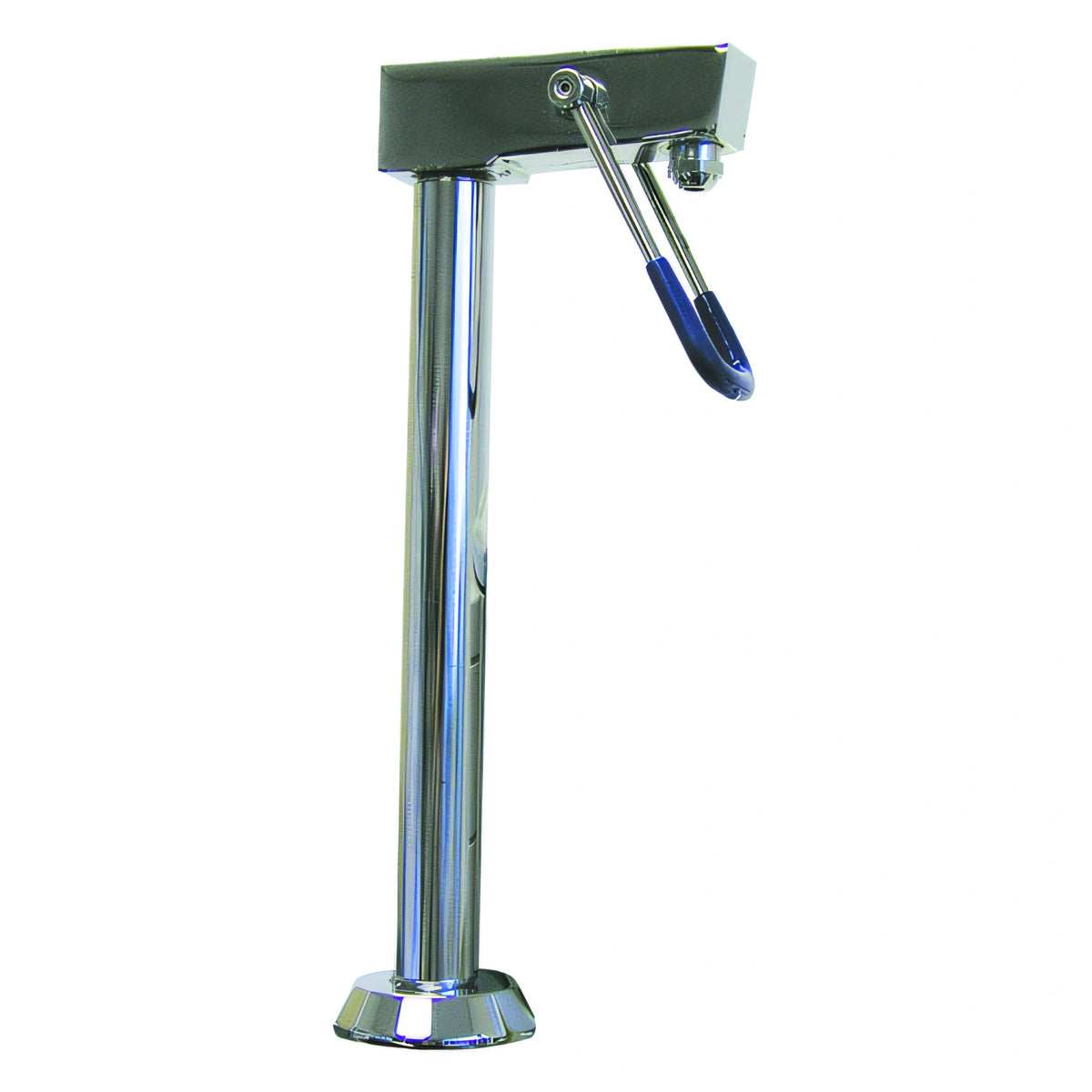

Advance Tabco K-54 Deck-Mount Single-Hole Glass Filler Faucet, Push-Back Valve, Lead-Free, 9-1/2-Inch Height
$369.00
/each
Ships in 4–7 business days
- Mounting
- Deck mount
- Hole configuration
- Single hole
- Valve type
- Push-back valve
- Water supply
- Single water supply
- Overall height
- 9 1/2 in
- Glass clearance
- 8 in
Specifications
Mounting
Deck mount
Hole configuration
Single hole
Valve type
Push-back valve
Water supply
Single water supply
Overall height
9 1/2 in
Glass clearance
8 in
Width
4 1/8 in
Inlet connection
1/2 in NPSM male inlet
Flow rate
0.5–2.3 GPM at 60 psi
Operating pressure
20–125 psi
Operating temperature
40–180 °F
Body and spout material
Polished chrome-plated brass
Riser material
Stainless steel Type 304
Description
The Advance Tabco K-54 is a heavy-duty, deck-mounted single-hole water filler faucet for drop-in and table-mounted sinks.
- 9 1/2-inch overall height with 8-inch glass clearance
- Push-back valve and single water supply
- Chrome-plated brass body and spout with chrome-plated handles
- 1/2-inch NPSM male inlet and adjustable 0.5–2.3 GPM flow rate at 60 psi
- Conforms to NSF/ANSI Standard 61 Section 9 lead-free requirements
Product Weight:
4.0 lbDeck mount

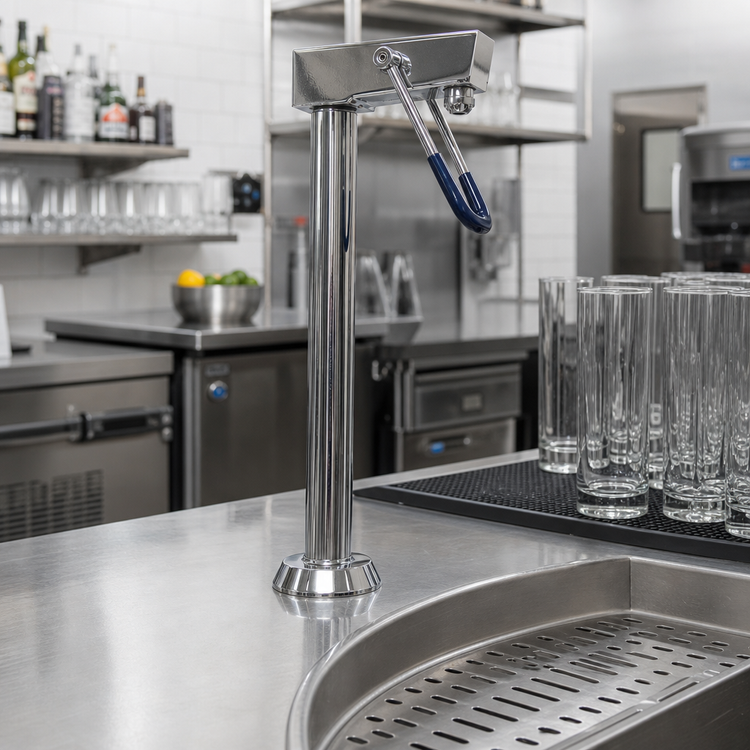

Designed for deck mounting through a single hole on drop-in and table-mounted sinks.
Push-back valve
Uses a push-back valve for water activation.
Lead-free compliance
Conforms to NSF/ANSI Standard 61 Section 9 lead-free requirements.
Chrome-plated construction
Features a chrome-plated brass body and spout with chrome-plated handles.
Adjustable flow
Provides an adjustable 0.5–2.3 GPM flow rate at 60 psi.

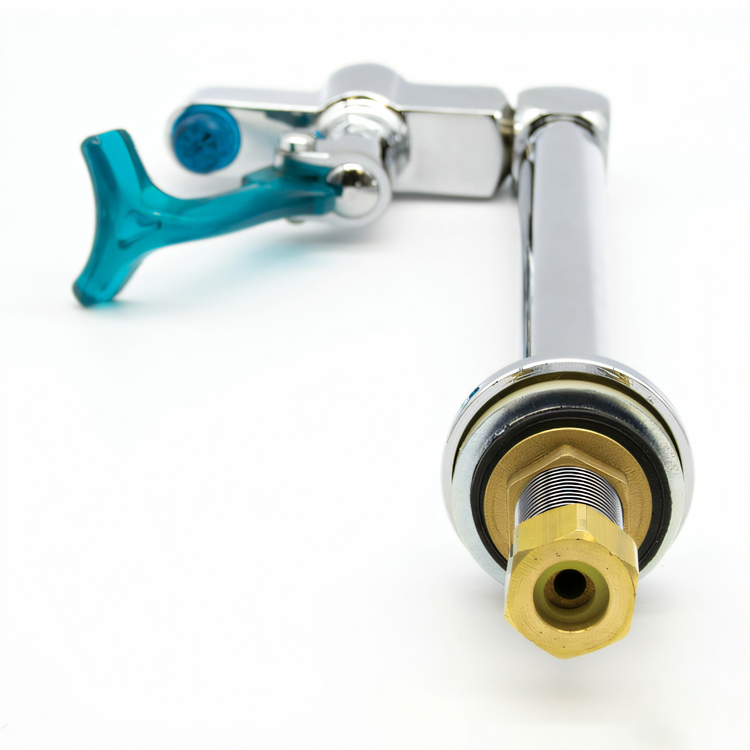

Mounting connection
Uses a 1/2-inch NPSM male inlet.
Mounting hardware
Mounting hardware is included.
Documentation
Certifications & Compliance
Frequently Asked Questions
Yes. The K-54 is a deck-mounted, single-hole water filler faucet.
The overall height is 9 1/2 inches, and the glass clearance is 8 inches.
It uses a 1/2-inch NPSM male inlet.
The adjustable flow rate is 0.5–2.3 GPM at 60 psi.
