Advance Tabco

Replacement Knee-Actuated Pedal Valve

SKU: K-104
GTIN: 747545136824
$417.00
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Advance Tabco Best Sellers Faucet Components New Arrivals Pedal Valves Restaurant Equipment Restaurant Equipment Parts

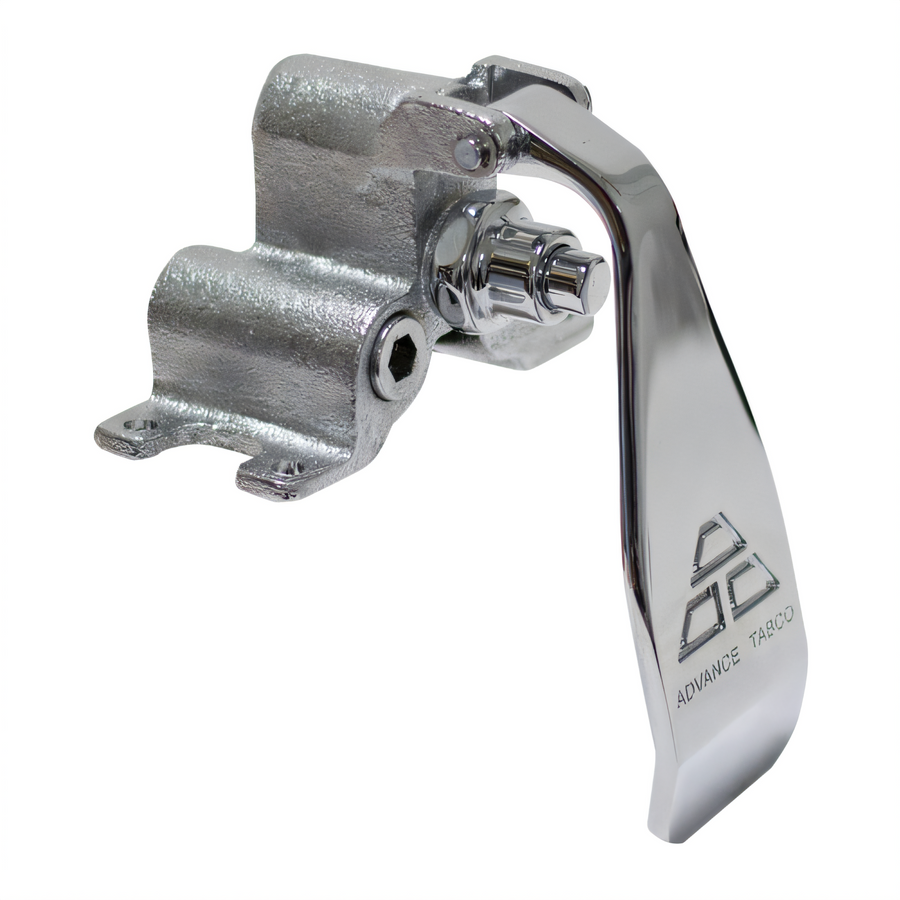

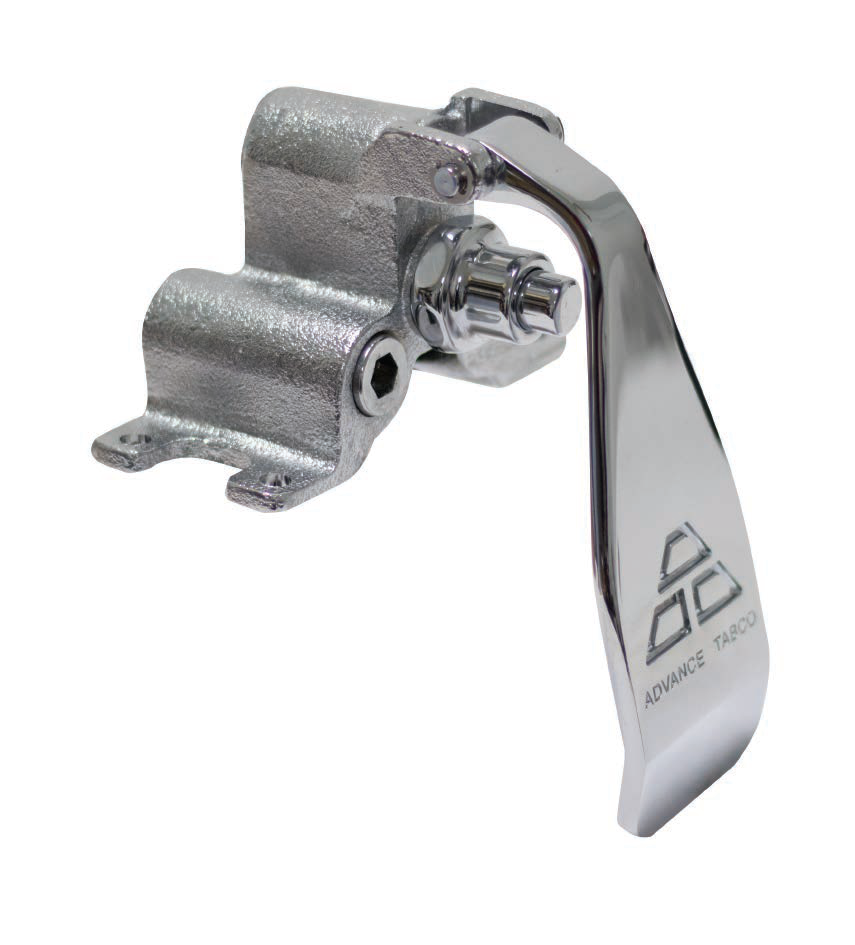

Replacement Knee-Actuated Pedal Valve

Replacement Only, No Bracket

Designed for hands-free sink control, this replacement knee valve combines built-in check valves with adjustable temperature mixing.

  • Replacement knee valve for water operation in commercial sink installations.
  • Built-in check valves help prevent cross-flow between hot and cold water lines.
  • Tempering mixing valve allows outlet water temperature adjustment at the fixture.
  • Chrome-plated brass construction is built for service use.
  • 3/8 inch NPT female hot, cold, and outlet connections simplify hookup.

Product Weight:

5.0 lb

Knee Actuated Operation

Hands-free control lets the user operate the valve with the knee for cleaner sink use.

Replacement Only Design

Supplied without a bracket for replacement applications.

Built-In Check Valves

Helps prevent cross-flow between hot and cold water supply lines.

Tempering Mixing Valve

Allows water temperature adjustment at the valve; the document notes it is a tempering valve only and does not meet ASSE 1070 specs.

Chrome-Plated Construction

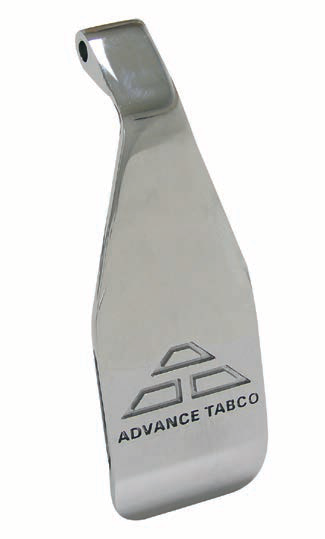

Chrome-plated brass body with a chrome-plated pedal for durability and easy cleaning.

3/8 Inch NPT Female Connections

Uses 3/8 inch NPT female connections at the hot inlet, cold inlet, and outlet to faucet.

Lead Free Requirements

Conforms to NSF 61/9 lead free requirements.

Type Replacement Knee Valve
Style Knee Actuated
Material Brass
Finish Chrome Plated
Connection Size 3/8 Inch NPT Female
Shipping Weight 5 Pounds
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Optional mixing valve PDF Download

Frequently Asked Questions

It is a replacement knee-actuated pedal valve used for water operation at a sink.
No. The document states this is replacement only and does not include a bracket.
It uses 3/8 inch NPT female connections for the hot inlet, cold inlet, and outlet to the faucet.
Yes, built-in check valves are included.
Yes, it includes a tempering mixing valve. The document also notes that it is a tempering valve only and does not meet ASSE 1070 specs.
It conforms to NSF 61/9 lead free requirements.
