Description

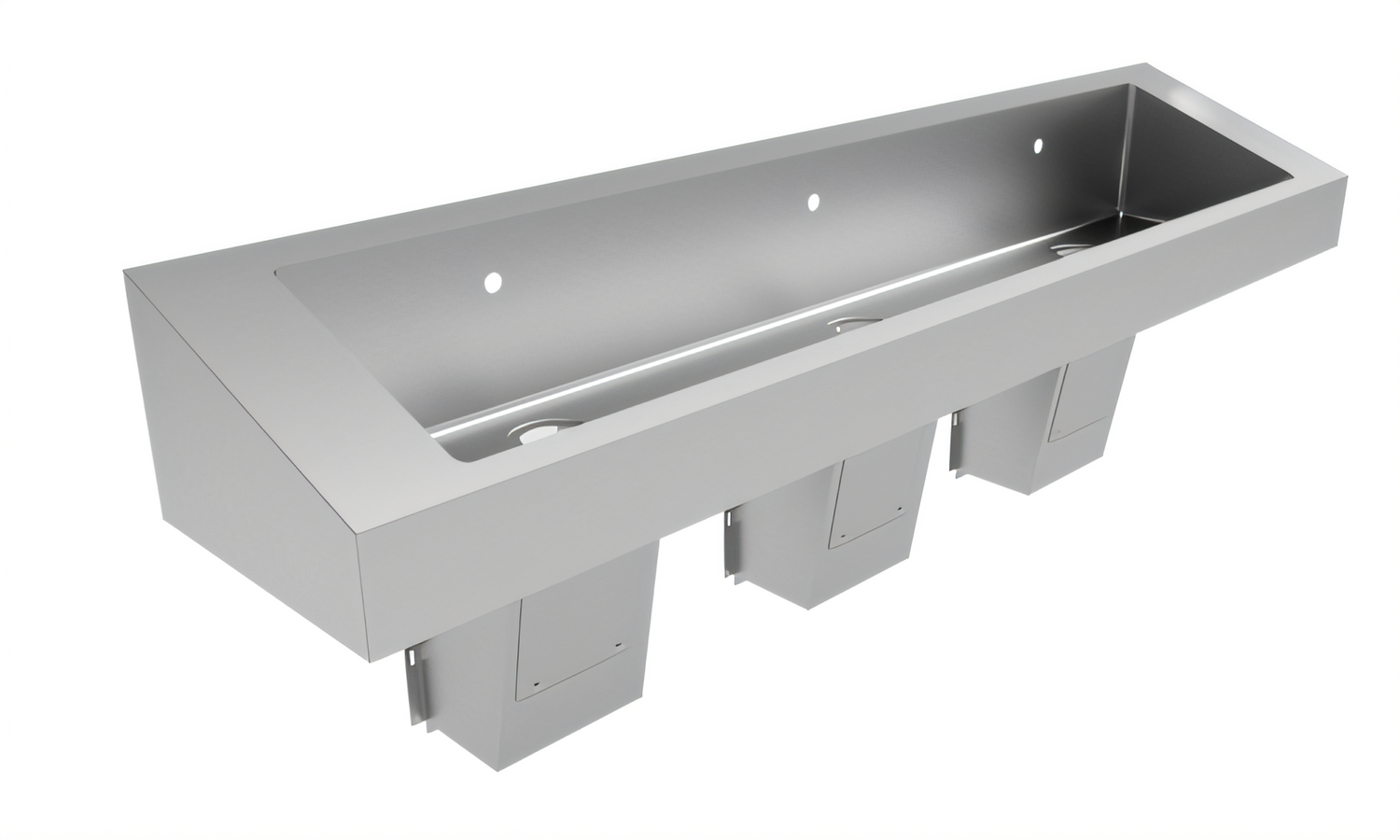

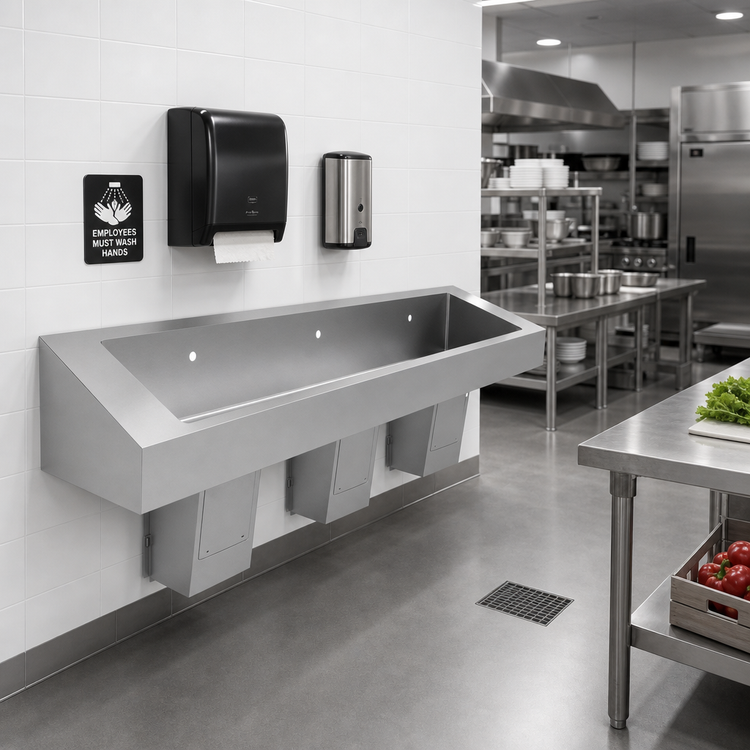

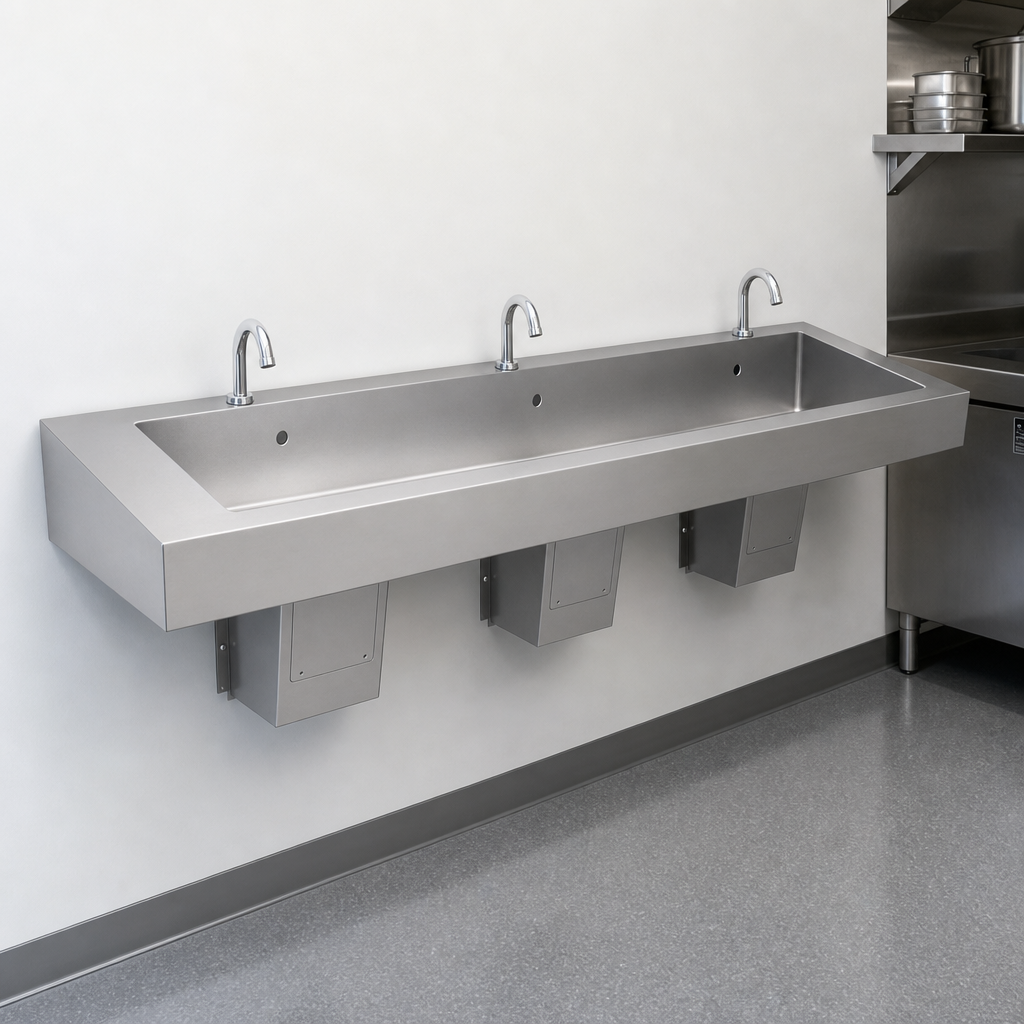

HSS-ADA-3 Stainless Steel 3-Station Wall-Mounted Scrub Sink – 90"

Advance Tabco | ADA Compliant Surgical/Hand-Wash Sink

Purpose-built for healthcare, laboratory and food-processing environments, the HSS-ADA-3 delivers three independent scrub stations in one seamless, wall-mounted unit. Heavy-gauge type 304 stainless steel, coved-corner bowls, and concealed plumbing combine to create a sink that is as hygienic as it is durable.

Key Features

  • Fully ADA compliant knee clearance and reach zones.
  • One-piece TIG-welded construction with ¾" radius coved corners for effortless sanitation.
  • Spacious 90" L × 19" D footprint with three 11 ⅜" deep compartments.
  • Pre-punched (3) single 1 ⅛" holes accept standard splash-mount faucets (faucets not included).
  • Rear-center concealed drains—includes (3) K-6 drains and (3) K-410 stainless strainer plates.
  • Lockable wrap-around plumbing cover with removable front access panel keeps supply & waste lines protected and out of sight.
  • Includes (3) stainless steel “Z” wall brackets for secure, code-compliant installation.
  • Medical-grade polished finish resists corrosion and harsh sanitizers.

Ideal Applications

  • Surgical suites & clean rooms
  • Veterinary and dental clinics
  • Biotech & pharmaceutical laboratories
  • Food & beverage processing lines

Specifications

Model HSS-ADA-3
Overall length 90" (2286 mm)
Overall depth 19" (483 mm)
Bowl depth 11 ⅜" (289 mm)
Stations 3
Drain location Rear center (one per bowl)
Drain / strainer K-6 drain with K-410 strainer plate, 1 ½" IPS outlet
Material 16 ga type 304 stainless steel (14 ga optional)
Construction All TIG-welded; blended & polished to medical finish
Shipping weight 150 lbs (68 kg)
Mounting hardware (3) stainless wall “Z” brackets (included)
Faucet holes (3) × 1 ⅛" dia. single holes
Compliance ADA; NSF when installed per local code

Recommended Accessories (sold separately)

  • K-175 hands-free electronic sensor faucet (A/C or battery)
  • K-187 thermostatic mixing valve with checks
  • HSS-3 acrylic bowl dividers (factory-installed)
Important: Faucets, mixing valves and acrylic dividers are not included and must be ordered separately. Verify ADA mounting heights and local plumbing codes prior to installation.

Features & Specs

Manufacturer

Advance Tabco

Certifications

ADA Compliant

Height

32.06in

Width

90.0in

Depth

19.0in

Shipping Weight

150.0lbs

Bowl Depth (front to back)

15" - 19" front-to-back

Faucet

faucet not included

Style

wall mounted

Bowl Width (left to right)

20" & up

Specifications

Hand Sink, wall mounted, scrub sink design, 90” left to right, 19” front to back (1) scrub station, prepared for (3) single holes for splash mount faucet (not included), concealed drain with removable front access panel, stainless steel, 3 rear center drains with strainer plate, ADA Compliant
