Advance Tabco  |  Triumph (Supreme)  |  SKU: HF-5G-NAT-X  |  UPC: 747545184757

Advance Tabco HF-5G-NAT-X Triumph (Supreme) Serving Counters

$2,376.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Owner's manual
Related Searches
Commercial Steam Table Food Bars & Buffets Food Wells & Serving Lines Restaurant Equipment Serving & Display Equipment Serving Counters

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

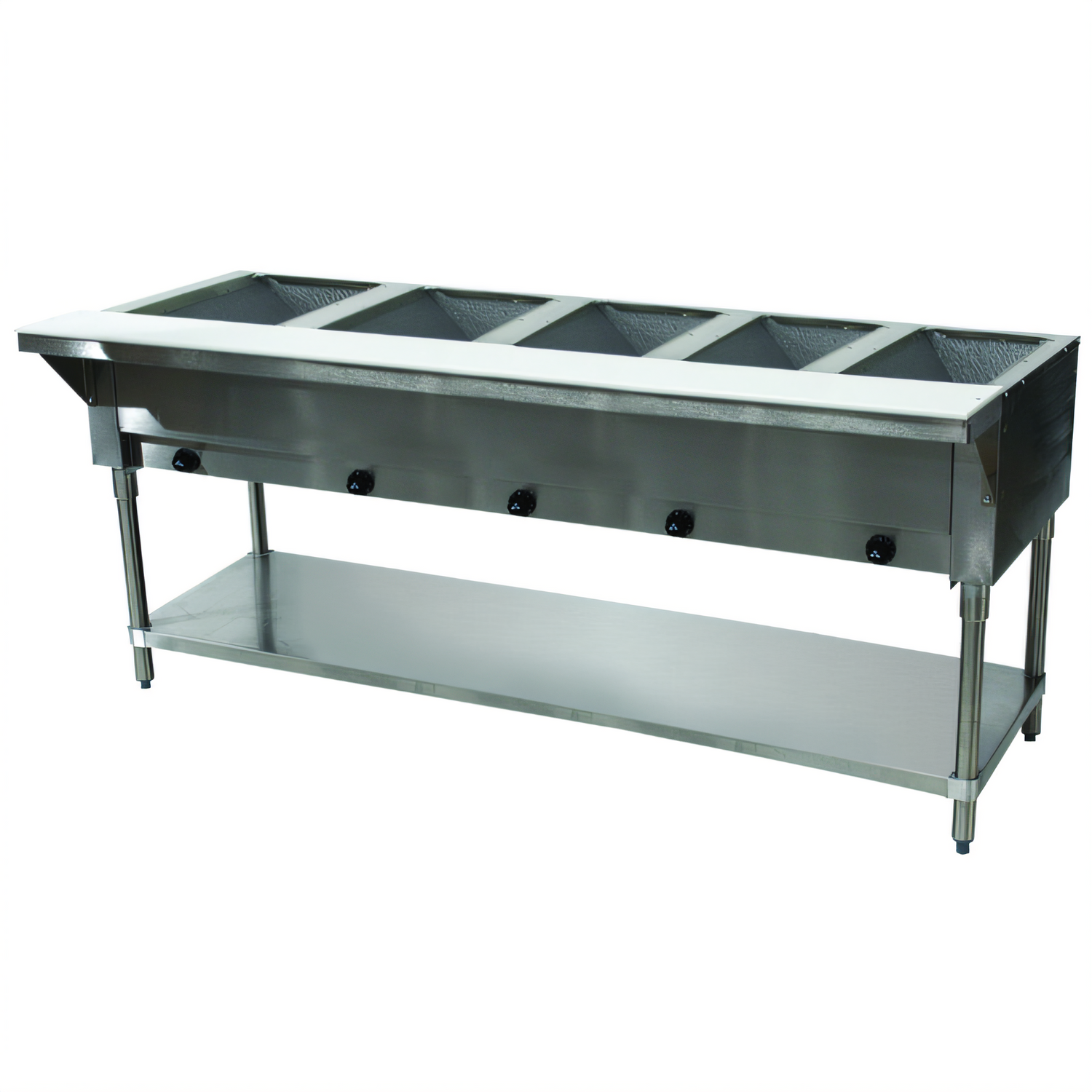

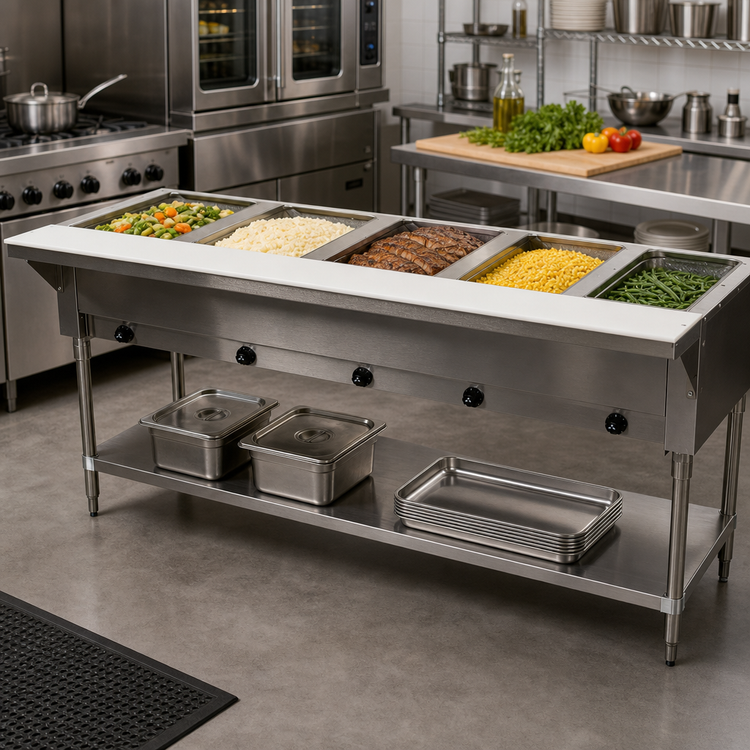

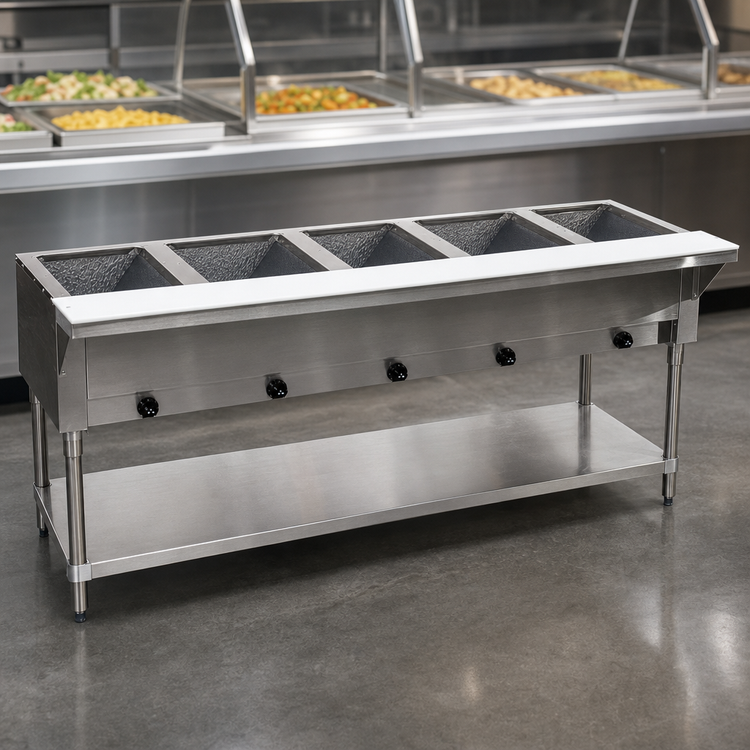

Advance Tabco Triumph (Supreme) 5-Well Gas Hot Food Table

Model HF-5G-NAT • Natural Gas • 77-3/4 in. Length

Keep signature entrées and sides at perfect serving temperatures in even the busiest cafeteria or buffet line. The Triumph (Supreme) delivers dependable, energy-efficient holding power in a durable, all-stainless work station.

Key Features

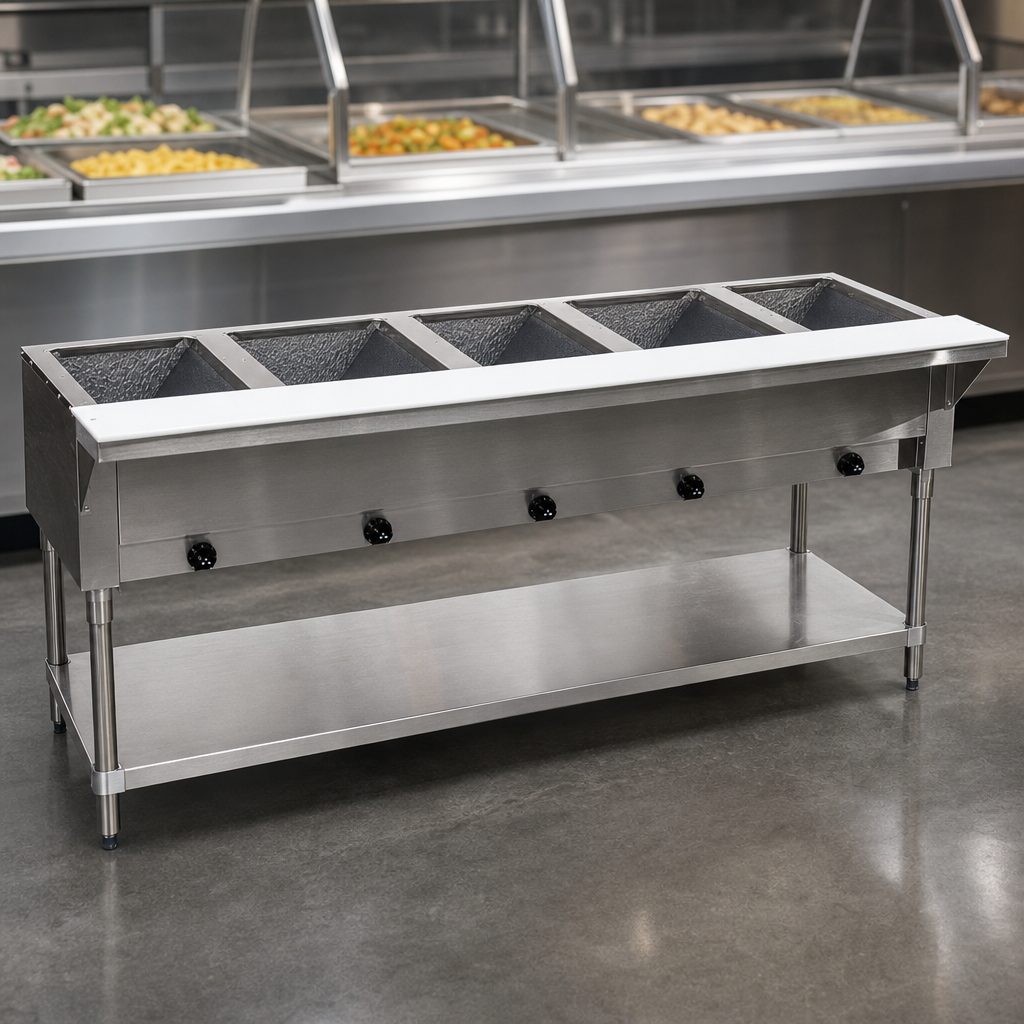

  • Five 12 × 20 in. hot wells with independent Hi/Med/Lo valves (3,500 BTU each).
  • 20-ga. 302 stainless steel top with die-stamped openings for a tight pan fit.
  • Fiberglass insulation between wells limits heat loss and saves energy.
  • Pilot-light access openings for fast ignition checks and servicing.
  • 8 in. deep galvanized well liners accept optional spillage pans for wet-heat holding.
  • Full-length 8 in. D stainless steel support shelf and removable 3/8 in. white poly cutting board for carving and plating.
  • Galvanized undershelf, 1-5/8 in. Ø galvanized legs, and adjustable bullet feet for rock-solid stability.
  • 1/2 in. NPT female gas connection (4 WC in. natural gas) – external regulator required.
  • Ships knocked down to reduce freight costs and ease delivery through tight spaces.
Specifications
Overall dimensions 77-3/4 W × 30-5/8 D × 34-3/8 H (includes cutting board)
Number of wells 5 (12 × 20 in., 8 in. deep)
Total heat input 17,500 BTU/hr (3,500 BTU per well)
Gas type / pressure Natural gas, 4 WC in.
Connection 1/2 in. NPT female (rear-mounted regulator)
Top construction 20-ga. 302 stainless steel
Body construction 22-ga. 430 stainless steel
Shipping weight Approx. 170 lb
Certifications NSF • CSA Gas • ETL Sanitation
Ideal For
  • School & university dining halls
  • Hospital & corporate cafeterias
  • All-you-can-eat buffets & banquet facilities
  • Convenience stores & supermarkets
Popular Accessories (sold separately)
  • Aluminum (SP-A) or stainless steel (SP-S) spillage pans for moist-heat applications.
  • 5 in. locking caster kit (SU-25S) for full mobility without sacrificing working height.
  • 10 in. buffet or serving shelves with acrylic sneeze guards for customer self-service.
  • Stainless steel leg & undershelf upgrade kit (SU-23D) for harsh or outdoor environments.

Important: This equipment is designed to hold pre-heated food. Do not use it to cook or to heat refrigerated or frozen product.

Questions about installation or accessory compatibility? Our food-service experts are ready to help – just ask!

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Triumph (Supreme)

Certifications

NSF, CSAus

Height

34.38in

Width

77.75in

Depth

30.63in

Shipping Weight

170.0lbs

Overall Width (side - side)

73" - 78"

Well Type

open well

Design

open base with undershelf

Working Height

35"

Base Finish

stainless steel

Pan Capacity

(5) pan

Specifications

Hot Food Table, natural gas, 77-3/4"W x 30-5/8"D x 34-3/8"H, (5) 12" x 20" hot food wells, individual controls with 3-setting, pilot indicator opening, stainless steel top, stainless steel 8”D support shelf with removable 3/8” thick poly cutting board, g (Special Value NET Pricing)
