Description

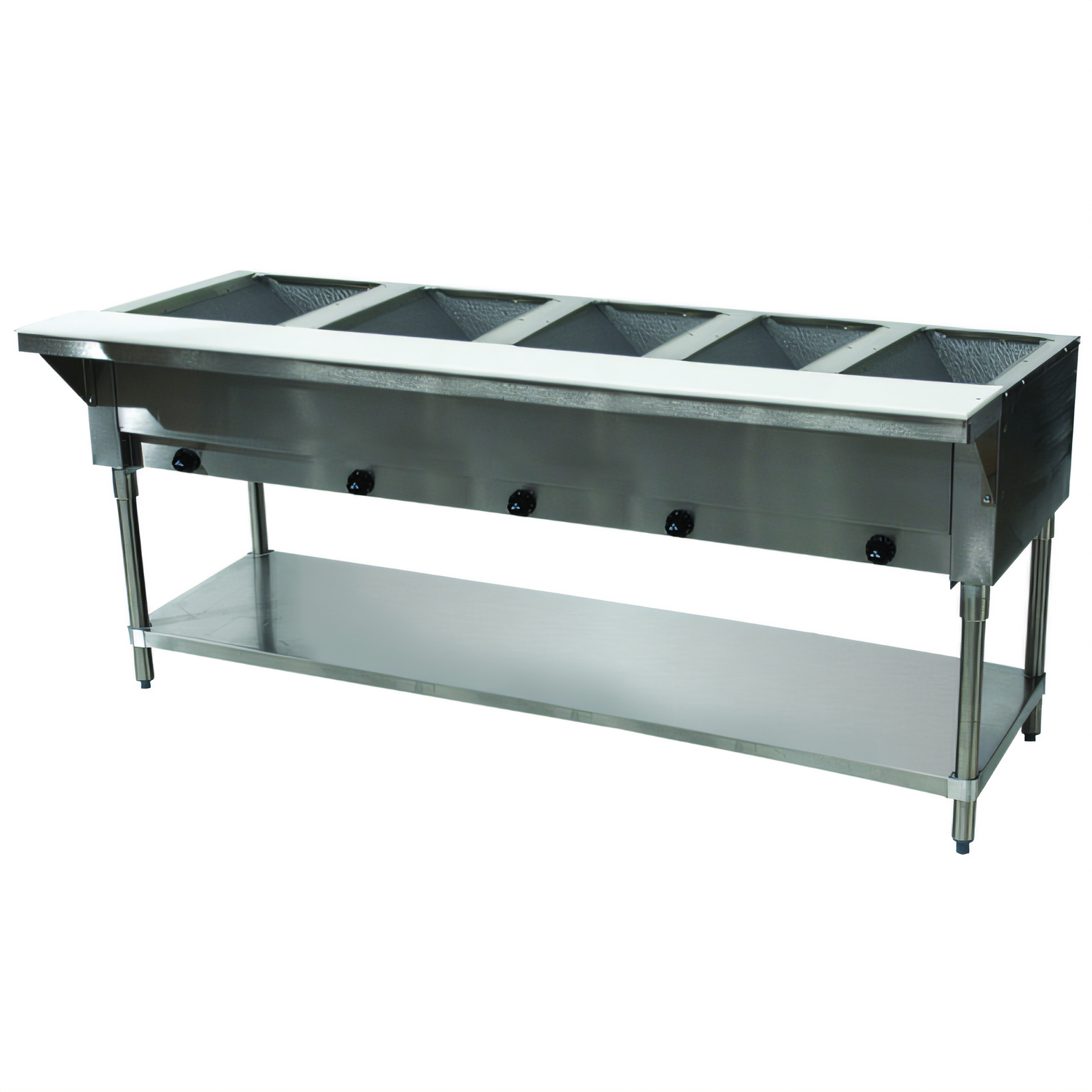

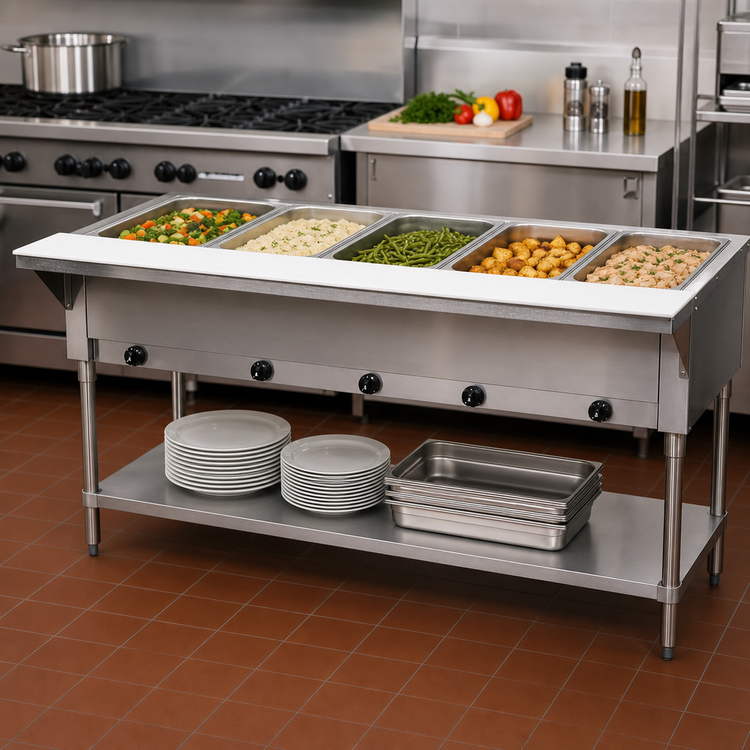

Advance Tabco Triumph (Supreme) 5-Well LP Gas Hot Food Table
Model HF-5G-LP | 77 3⁄4" W x 30 5⁄8" D x 34 3⁄8" HBuilt for high-volume cafeterias, buffets, and catering lines, the Triumph (Supreme) keeps pre-cooked entrées and sides hot, fresh, and ready for service while giving staff a convenient cutting/serving surface and roomy undershelf storage. Advance Tabco’s rugged, all-metal construction and “Proven” adjustable undershelf clamp ensure day-in, day-out reliability.
Key Features

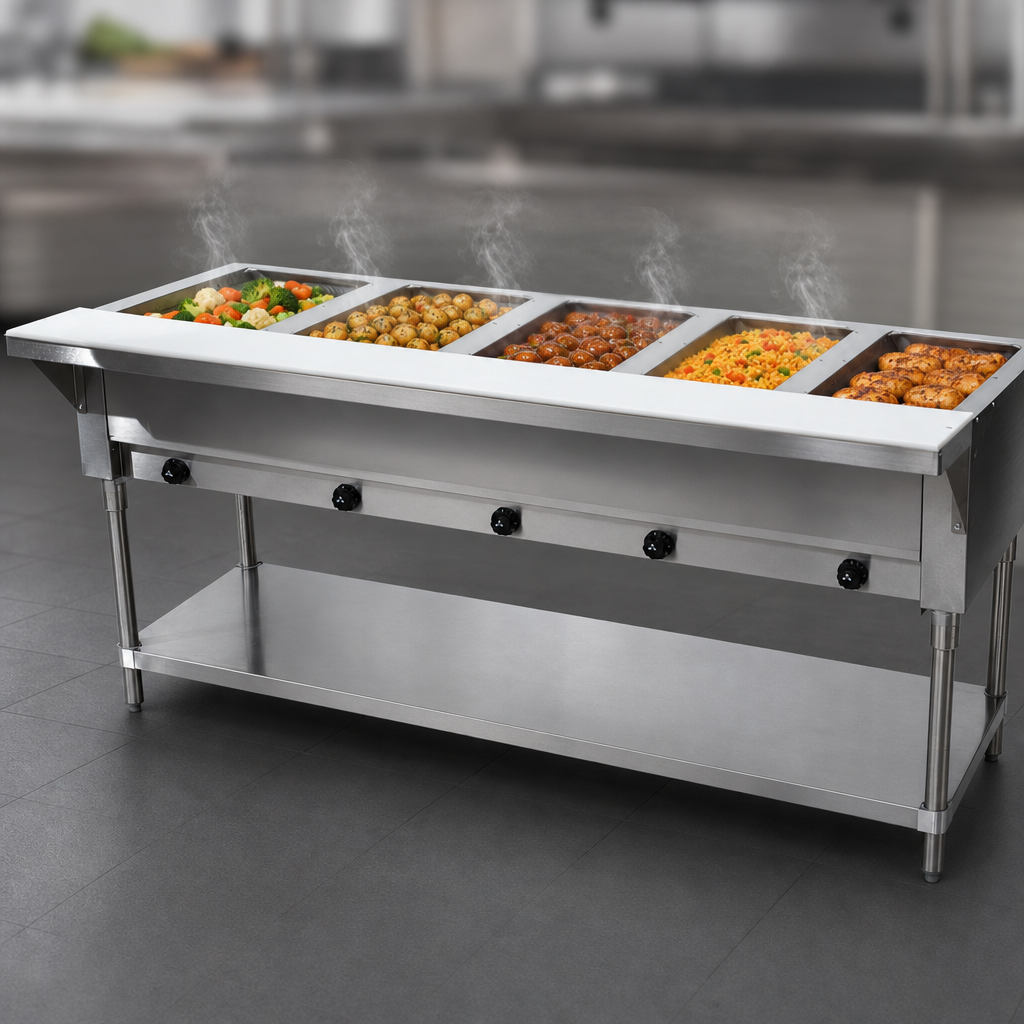

- Five standard 12" x 20" hot wells – each with individual Hi-Med-Low control.
- 3,500 BTU jet burner per well (17,500 BTU total) with easy-access pilot indicator openings.
- 20-ga. type 302 stainless steel top resists scratches, stains, and corrosion.
- Fiberglass insulation between compartments reduces energy loss and keeps outer surfaces cooler.
- 8" deep galvanized liners accommodate full-size or fractional pans.
- Full-length 8" stainless support shelf with removable 3⁄8" white poly cutting board for plating or carving.
- Adjustable galvanized undershelf and 1 5⁄8" O.D. galvanized legs with 1" bullet feet.
- 1⁄2" female NPT rear gas connection (10" WC LP) – external pressure regulator required.
- Ships knocked-down to minimize freight; quick bolt-up assembly with die-cast leg clamps.
- NSF & ETL Sanitation listed – proudly made in the USA.
Recommended Accessories (sold separately)
- SP-A aluminum or SP-S stainless steel spillage pans for moist-heat holding.
- SU-25S 5" locking caster kit for easy mobility without changing working height.
- SU-23D all-stainless leg & undershelf upgrade for extra corrosion resistance.
- TBS-5 buffet or TSS-5 serving shelf with acrylic side panels to meet sneeze-guard requirements.
Specifications
Model | HF-5G-LP (Triumph Supreme) |
---|---|
Gas Type | Liquid Propane (LP) |
Overall Dimensions | 77 3⁄4" W x 30 5⁄8" D* x 34 3⁄8" H |
Well Dimensions (each) | 12" W x 20" L x 8" D |
Number of Wells | 5 |
BTU Rating | 3,500 BTU per well (17,500 BTU total) |
Controls | Individual 3-position valves – Hi / Med / Low |
Top Material | 20-ga. type 302 stainless steel |
Body Material | 22-ga. type 430 stainless steel |
Undershelf | Galvanized steel, adjustable |
Cutting Board | 3⁄8" thick white thermoplastic, removable |
Gas Connection | 1⁄2" NPT (rear) – 10" WC supply pressure |
Shipping Weight | ≈ 170 lb |
*Depth measurement includes the 8" cutting-board shelf.
