Advance Tabco HF-5G-LP-BS Triumph (Supreme) Serving Counters
Description

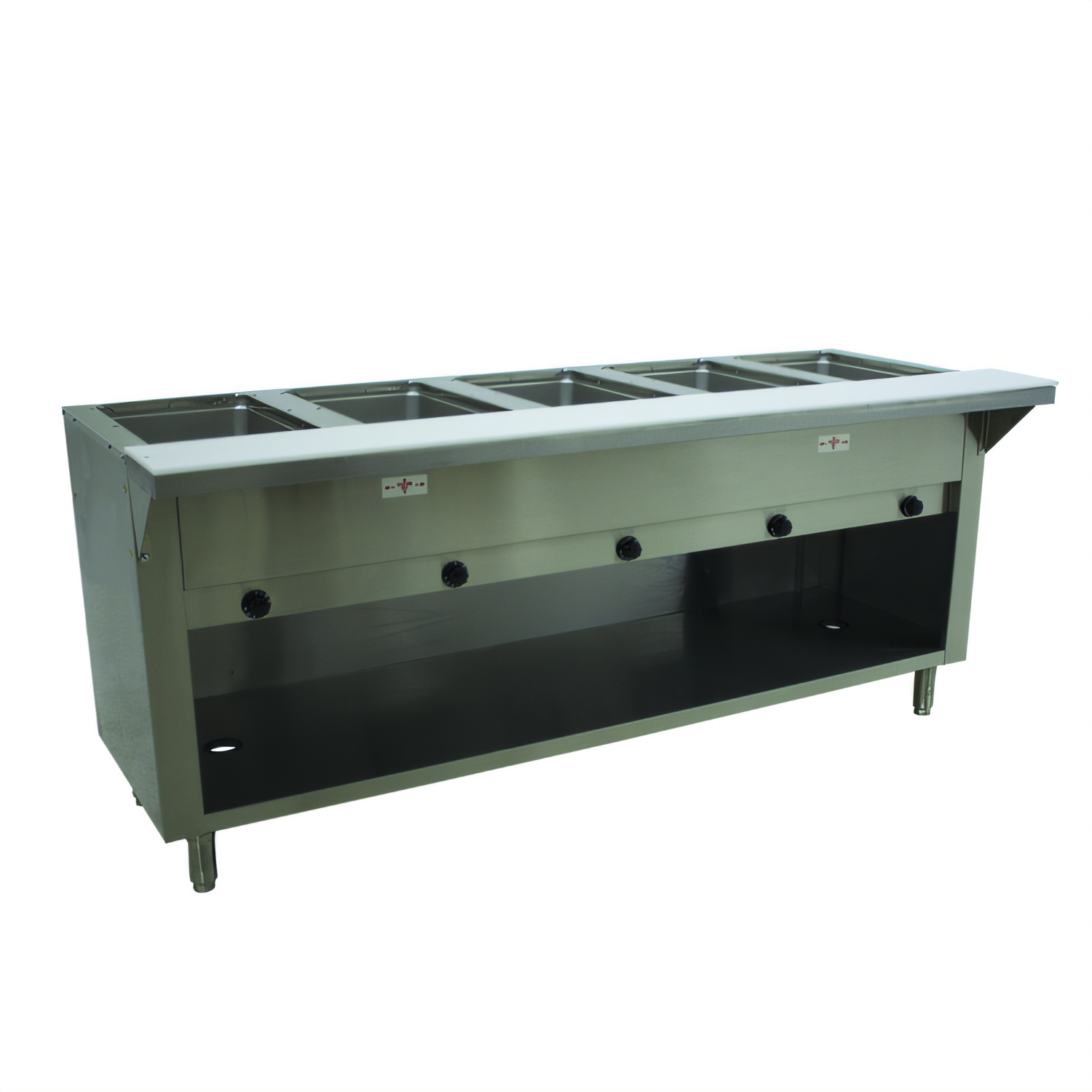

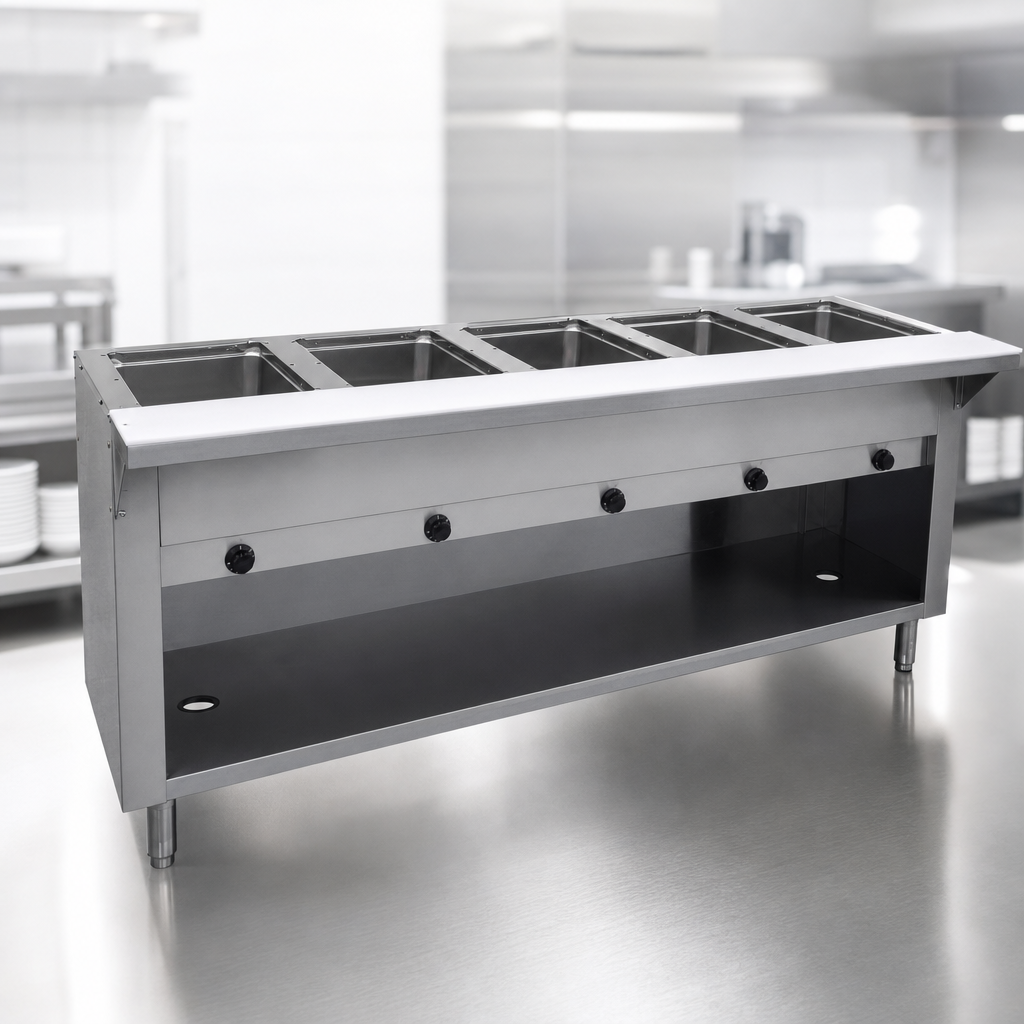

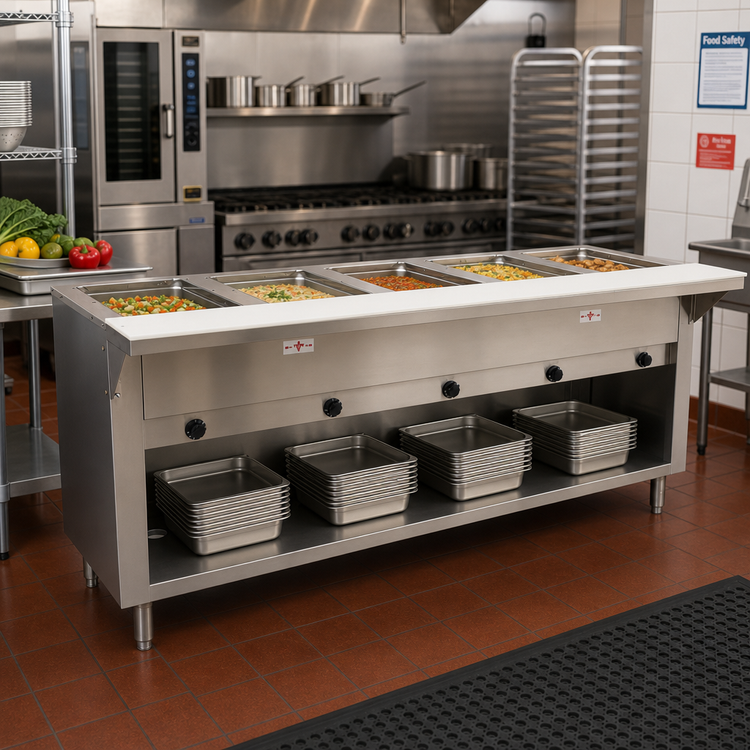

Advance Tabco Triumph (Supreme) 5-Well LP Gas Hot Food Table – Enclosed Base
Model HF-5G-LP-BS | 77-3/4" W x 30-5/8" D x 34-3/8" HKeep pans of pre-cooked entrées, sides and sauces at food-safe temperatures with the Advance Tabco Triumph (Supreme) stainless-steel gas steam table. Built for high-volume cafeterias, buffets and catering lines, this 5-well unit ships ready for LP gas and features an enclosed base for a clean, professional front-of-house appearance.
Key Features
- Five full-size 12" x 20" hot wells—each powered by a 3,500 BTU jet burner.
- Individual Hi / Med / Low control knobs with pilot indicator openings for quick flame checks.
- 20 ga. #302 stainless-steel top with die-stamped openings for a tight pan fit and easy clean-up.
- 8" stainless-steel support shelf with a removable 3/8" white poly cutting board for on-the-line prep.
- Fully enclosed 22 ga. #430 stainless body keeps plumbing hidden and heat contained.
- Fiberglass insulation between wells maximizes temperature consistency and energy efficiency.
- 18 ga. stainless legs with adjustable bullet feet for a sturdy, level setup on any floor.
Specifications
| Gas Type / Connection | Bottled (LP) gas, 1/2" NPT female |
|---|---|
| Total Heat Output | 17,500 BTU / hr (5 × 3,500 BTU) |
| Operating Pressure | 10" W.C. (external regulator required, not included) |
| Well Size (each) | 12" × 20" x 8" deep (11.875" × 20.062" die-stamped opening) |
| Overall Dimensions | 77-3/4" W × 30-5/8" D* × 34-3/8" H |
| Construction |
Top: 20 ga. #302 stainless Body & undershelf: 22 ga. #430 stainless Legs: 18 ga. stainless with adjustable feet |
| Ship Weight | Approx. 250 lb |
| Certifications | NSF, CSA-Gas |
*Depth includes the 8" cutting board.
Recommended Accessories (sold separately)
- SP-A Aluminum or SP-S Stainless spillage pans – add 1"-2" of water for moist-heat holding.
- TA-255P 5" swivel caster kit (2 with brakes) – convert your table into a mobile station.
Need OEM parts? Ask for Advance Tabco items SU-P-100 through SU-P-202 for valves, burners, regulators and knobs.
