Advance Tabco HF-5E-240-X Triumph (Supreme) Serving Counters
Description

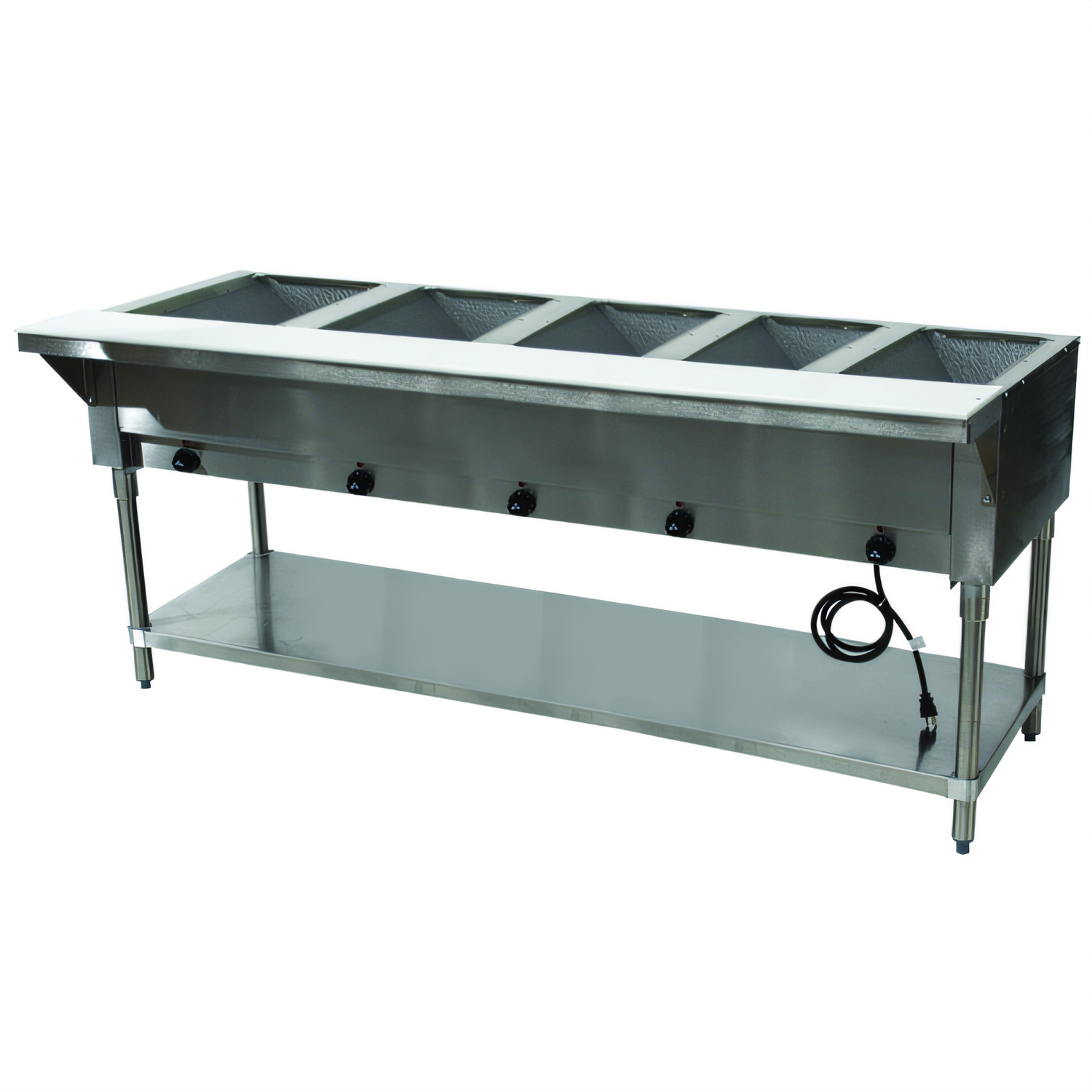

Advance Tabco Triumph (Supreme) 5-Well Electric Hot Food Table – 77-3/4"
Model HF-5E-240 | 208/240 V | NEMA L6-30PHold entrées, sides, and sauces at perfect serving temperature with “The Proven” original Advance Tabco hot food table. Built for demanding commercial kitchens, the Triumph (Supreme) series combines stainless-steel durability with precise, independent heat control for every well.
Key Features

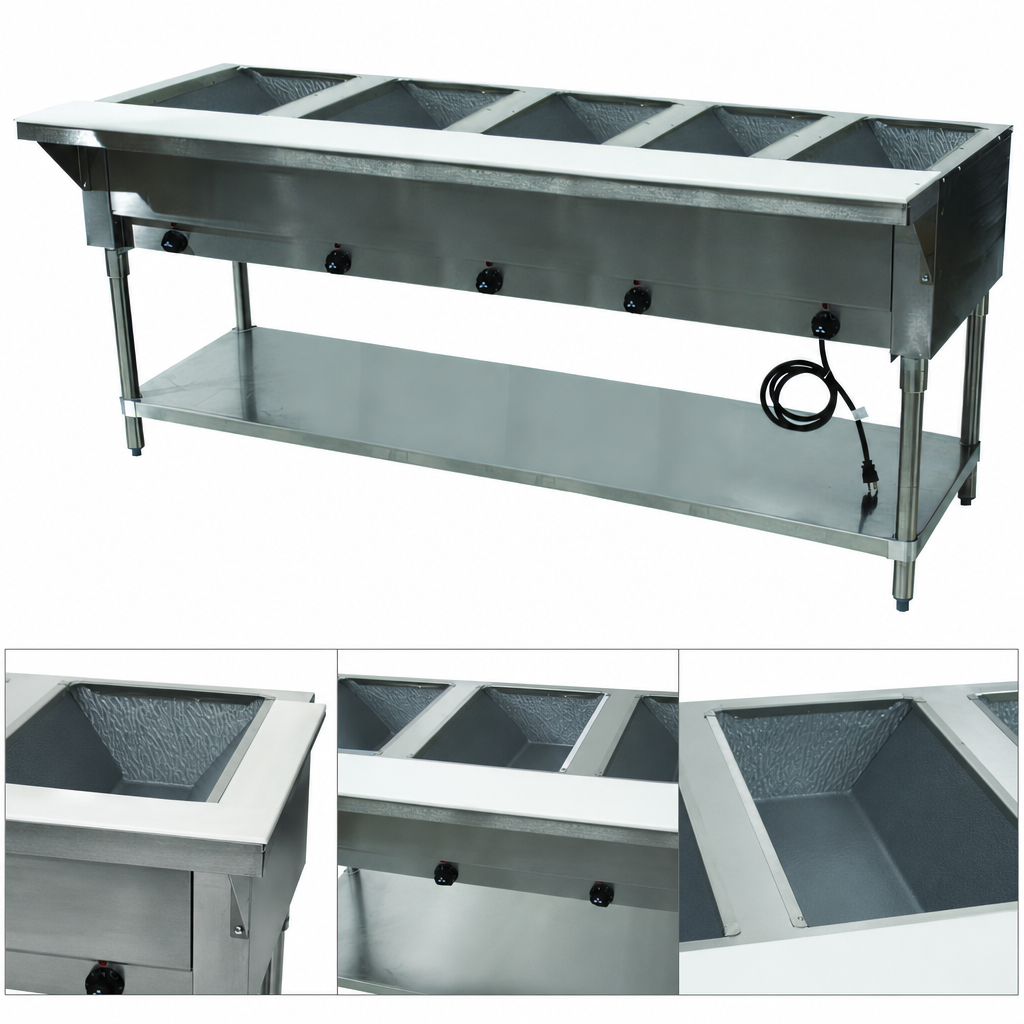

- Five die-stamped 12" × 20" wells fit pans up to 7-3/4" deep.

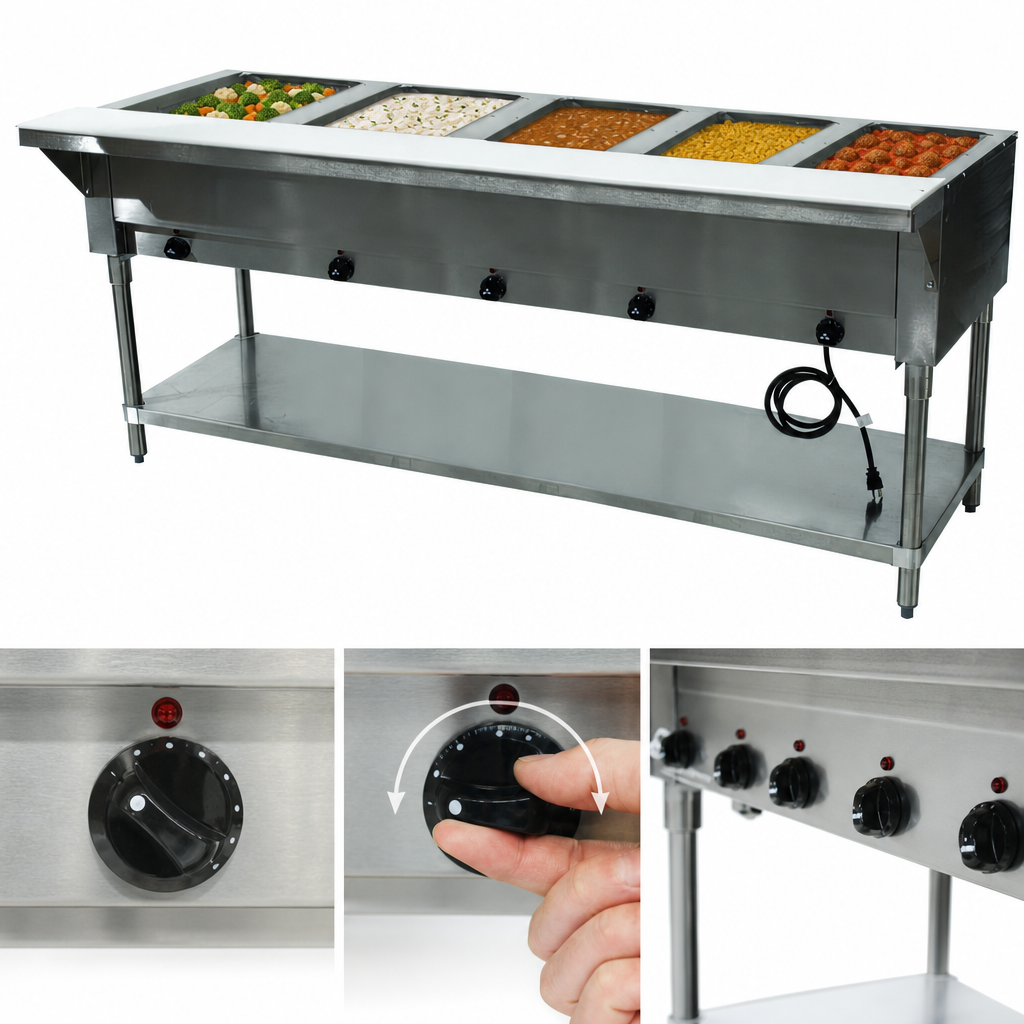

- Individual infinite control knobs with indicator lights for exact temperature holding.
- 20 ga. #302 stainless-steel top and 22 ga. #430 stainless body resist corrosion and daily wear.
- Stainless 8"-deep support shelf with removable 3/8" poly cutting board for plating or prep.
- Fiberglass insulation between wells boosts efficiency and keeps exterior surfaces cooler.
- Adjustable galvanized undershelf and 1-5/8" Ø galvanized legs with bullet feet for rock-solid stability.
- Ships K.D. with 8' cord and factory-installed NEMA L6-30P twist-lock plug.
- NSF compliant and UL Listed for peace of mind.
Specifications
| Number of Wells | 5 (open, dry type) |
|---|---|
| Overall Dimensions | 77-3/4" W × 30-5/8" D × 34-3/8" H* |
| Voltage | 208/240 V, 60 Hz, 1-ph |
| Total Wattage | 3,750 W @ 208 V | 5,000 W @ 240 V |
| Total Amps | 18.03 A @ 208 V | 20.84 A @ 240 V |
| Controls | (5) Infinite switches with pilot lights |
| Plug Type | NEMA L6-30P (8' factory cord) |
| Cutting Board Size | 77-3/4" W × 8" D × 3/8" T (white poly) |
| Shipping Weight | Approx. 170 lb |
| Construction | 302/430 stainless steel & galvanized steel with fiberglass insulation |
*Depth includes the 8" cutting board.
Popular Accessories (sold separately)
- SP-A aluminum or SP-S stainless spillage pans for wet holding.
- SU-25S 5" locking caster kit for mobile operation.
- SU-23D all-stainless leg & undershelf upgrade.
- TBS-5 10" buffet shelf or TSS-5 10" serving shelf with optional acrylic side panels.
- Replacement parts and adapter bars stocked by Advance Tabco for fast service.
From back-of-house steam tables to front-of-house buffets, the HF-5E-240 delivers unbeatable holding performance, rugged reliability, and the signature Advance Tabco quality trusted in commercial kitchens for decades.
