Advance Tabco HDSW-5-240-BS Serving Counters
Description

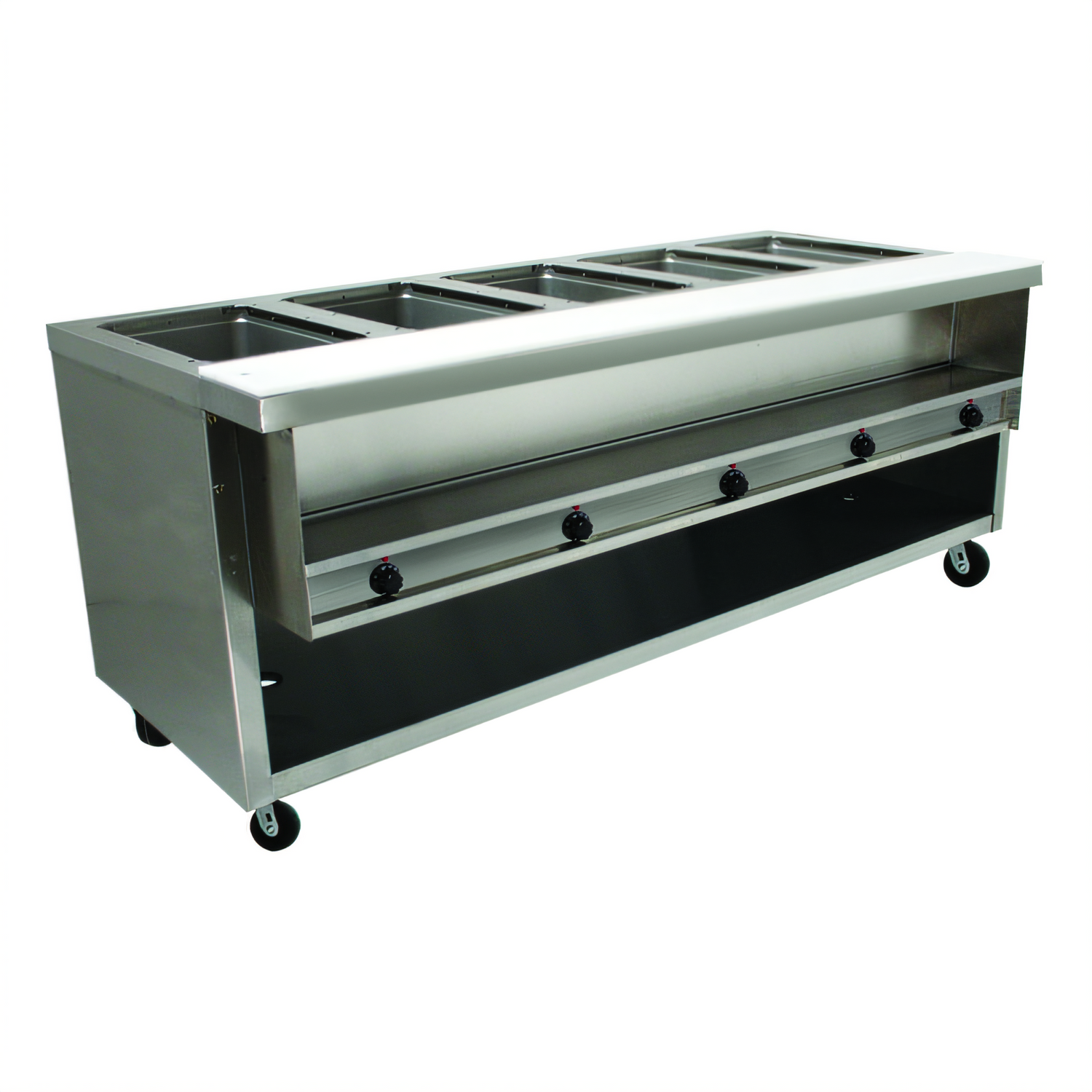

Heavy-Duty 5-Well Sealed Hot Food Table – Advance Tabco HDSW-5-240-BS
77-3/4"W × 35-3/4"D × 35-1/2"H • Enclosed Base • 208/240 V, 5,500 W maxBuilt for the busiest cafeterias, buffets and catering lines, the Advance Tabco HDSW-5-240-BS keeps five full-size pans of pre-heated food at safe, appetizing serving temperatures all day long. A fully welded 300-series stainless steel body, individual thermostatic controls and a built-in manifold drain make this sealed-well table a low-maintenance, high-performance addition to any commercial kitchen.
Key Features
- Five insulated 12" × 20" sealed wells accept pan inserts up to 6-1/4" deep
- Independent thermostatic controls and indicator lights for precise holding temperatures
- Dual-voltage element (208 V / 240 V) delivers 4,125 W – 5,500 W of heating power

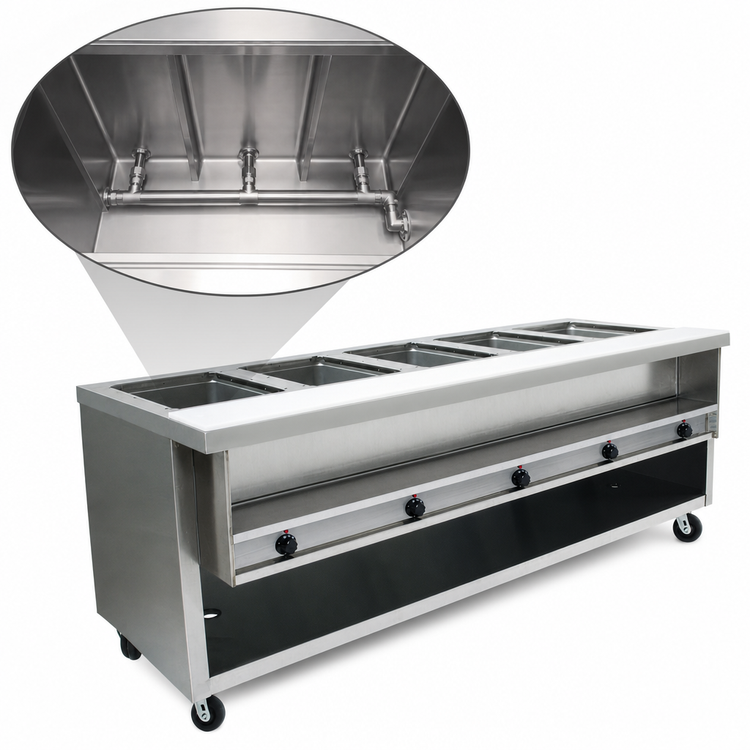

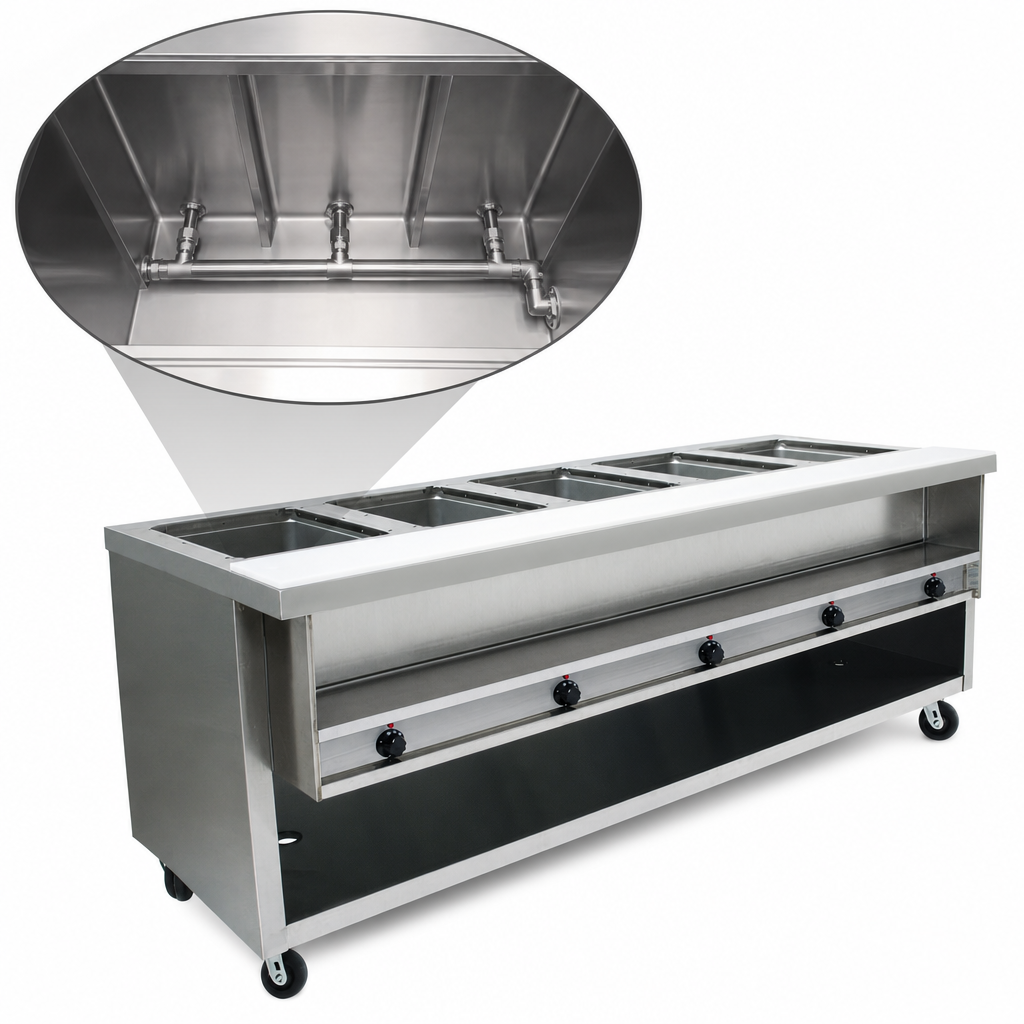

- Integrated manifold drain with common outlet simplifies water removal between wells

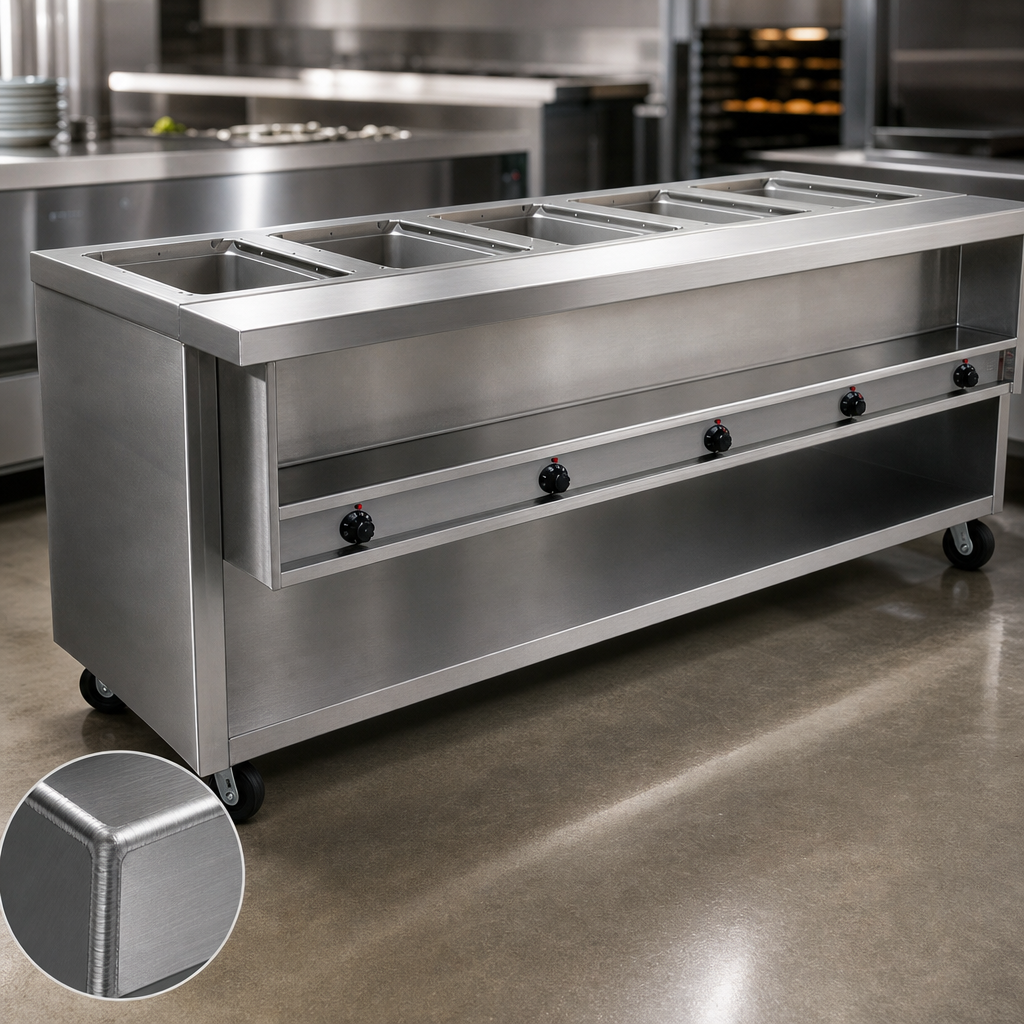

- 18-gauge type 304 stainless steel top, body and dish shelf for superior durability
- Removable 3/8" white poly cutting board spans the entire 77-3/4" length
- Enclosed front & sides; open rear storage keeps extra pans, utensils or chemicals close at hand
- Quick-service access via removable front panel
- Six-foot cord with NEMA L6-30P plug included
- UL & NSF listed for safety and sanitation
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | HDSW-5-240-BS |
| Overall Dimensions | 77-3/4" W × 35-3/4" D × 35-1/2" H |
| Well Configuration | (5) Sealed 12" × 20" wells, 6-1/4" max pan depth |
| Heating Power | 4,125 W @ 208 V • 5,500 W @ 240 V |
| Electrical | 19.85 A @ 208 V • 22.9 A @ 240 V, single-phase |
| Plug Type | NEMA L6-30P (pre-wired, 6 ft cord) |
| Controls | 5 individual thermostatic knobs with pilot lights |
| Drainage | Common manifold drain assembly (hose connection) |
| Work Surface | 18-ga 304 stainless dish shelf with removable 3/8" poly board |
| Legs / Feet | 18-ga stainless legs with adjustable bullet feet |
| Certifications | UL Listed, NSF Certified |
| Shipping Cubic Feet | 74 cu. ft. (ships knocked down) |
Popular Add-Ons (sold separately)
- TA-255P 5" locking casters for full mobility
- TBS-5 self-serve buffet shelf with acrylic sneeze guard
- SU-90 automatic water-fill kit (requires manifold drain)
Need replacement parts or accessories later? Advance Tabco stocks thermostats, elements, knobs and more for fast, hassle-free service.
