Key specifications

Amps
21.33 Amps
Dimensions
62.44"W × 35.75"D × 35.5"H
Type
Hot Food Table
Style
Enclosed Base
Installation Type
Floor Model
Material
Stainless Steel
Spec sheet
Advance Tabco SKU: HDSW-4-120-BS UPC: 747545183644

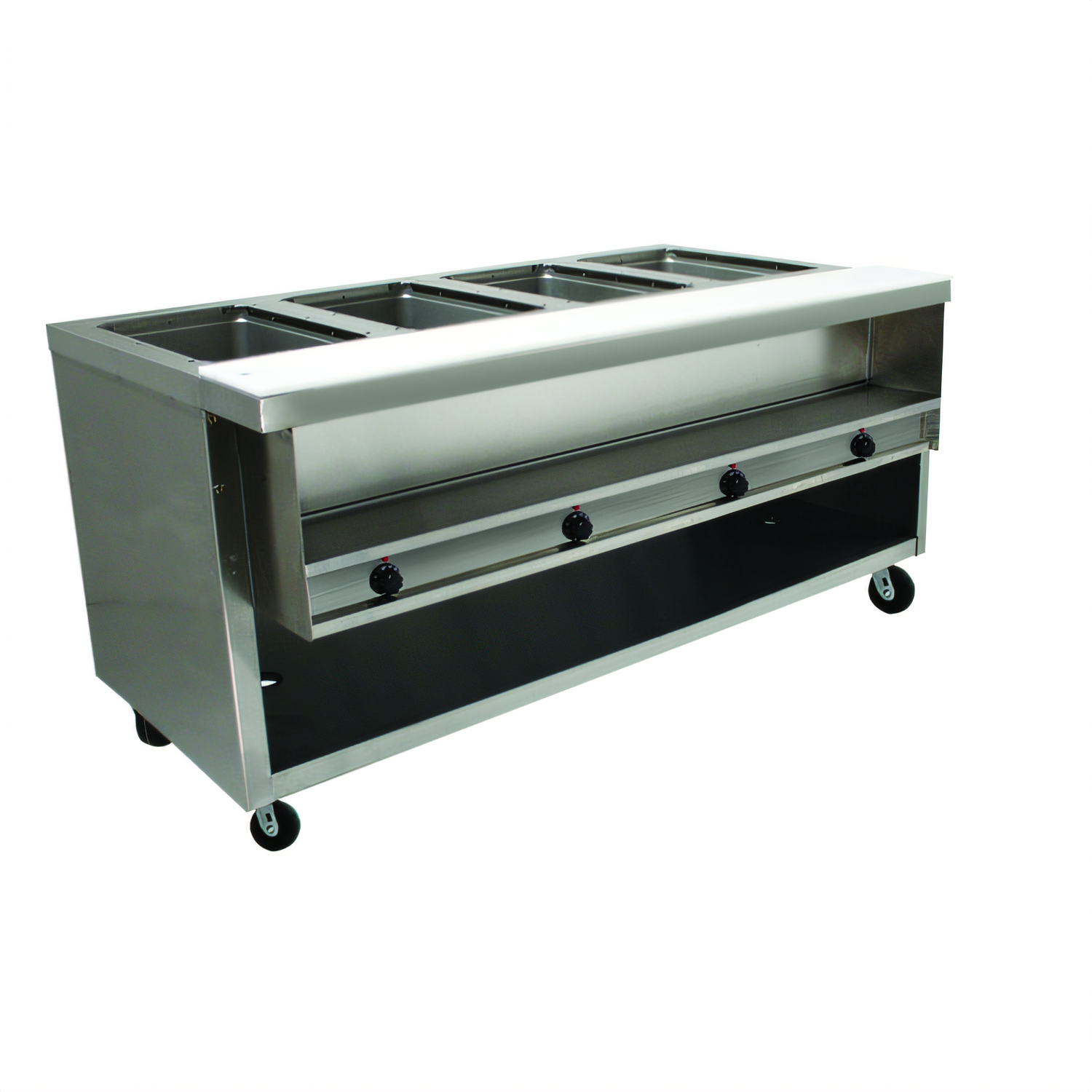

Advance Tabco HDSW-4-120-BS 4-Pan Enclosed Hot Food Table

$8,962.00
/each
Estimated to ship in 16–19 business days Free Shipping
Number of Compartments
Electrical
Serving shelves
Side panels

Need something else? Contact us.

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $829/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Hot Food Table
Style Enclosed Base
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Pan Size 12 x 20 Inches
Pan Capacity 4 Pans
Well Type Sealed Well
Controls Individual Thermostatic
Drain Type Manifold Drain
Working Height 34 Inches
Cutting Board Thickness 3/8 Inch
Voltage 120 Volts
Amps 21.33 Amps
Watts 2.56 kW
Plug Type NEMA L5-30P
Cord Length 8 Feet

Description

The Advance Tabco HDSW-4-120-BS is a heavy-duty electric hot food table with four sealed, insulated wells and an enclosed storage base.

Each 12 x 20-inch well accommodates pan inserts up to 6-1/4 inches deep. Individual thermostatic controls and a manifold drain support hot food holding, while the stainless steel dish shelf includes a removable 3/8-inch poly cutting board.

  • 120-volt electrical configuration with NEMA L5-30P plug
  • Enclosed front and sides with rear open storage
  • Removable front panel for service access

Overall Dimensions:

62.44"W x 35.75"D x 35.5"H

Product Weight:

387.0 lb

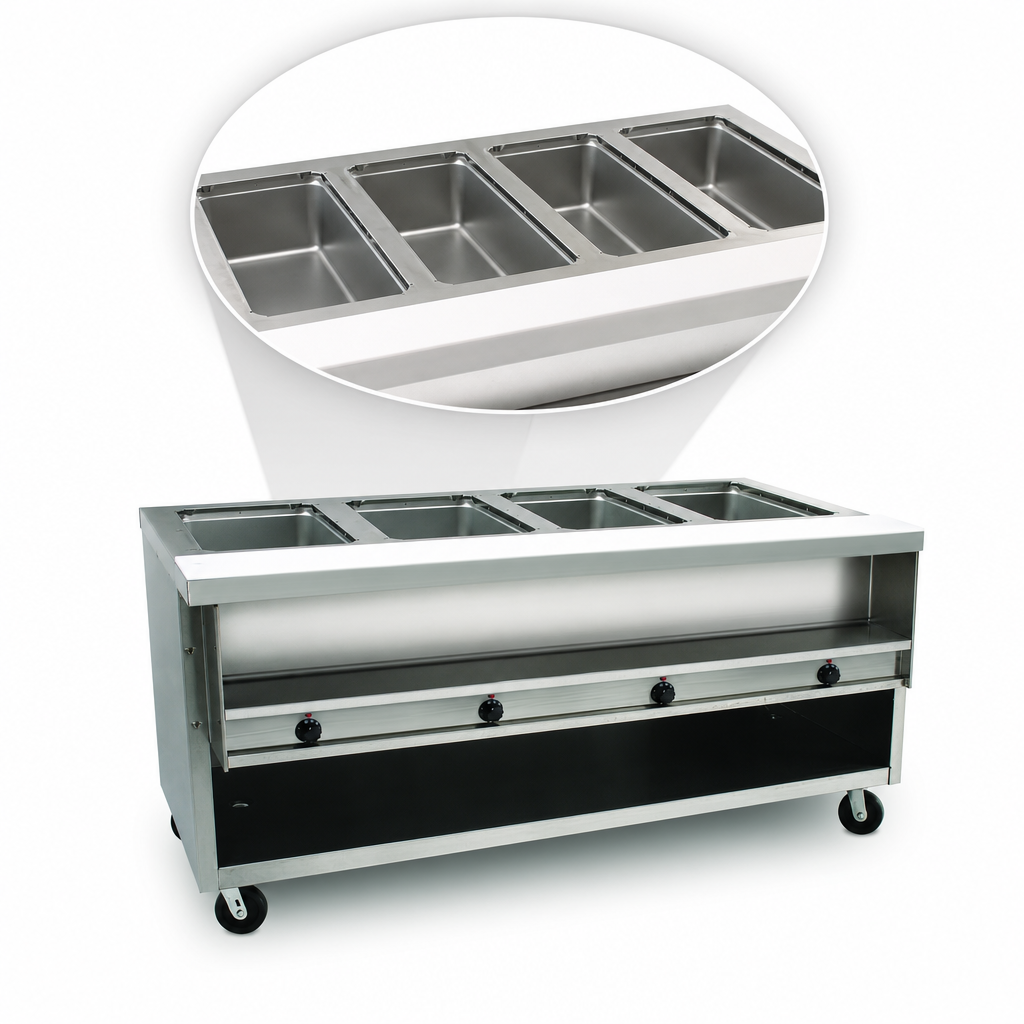

Four Sealed Wells

Four 12 x 20-inch insulated hot food wells accommodate pan inserts up to 6-1/4 inches deep.

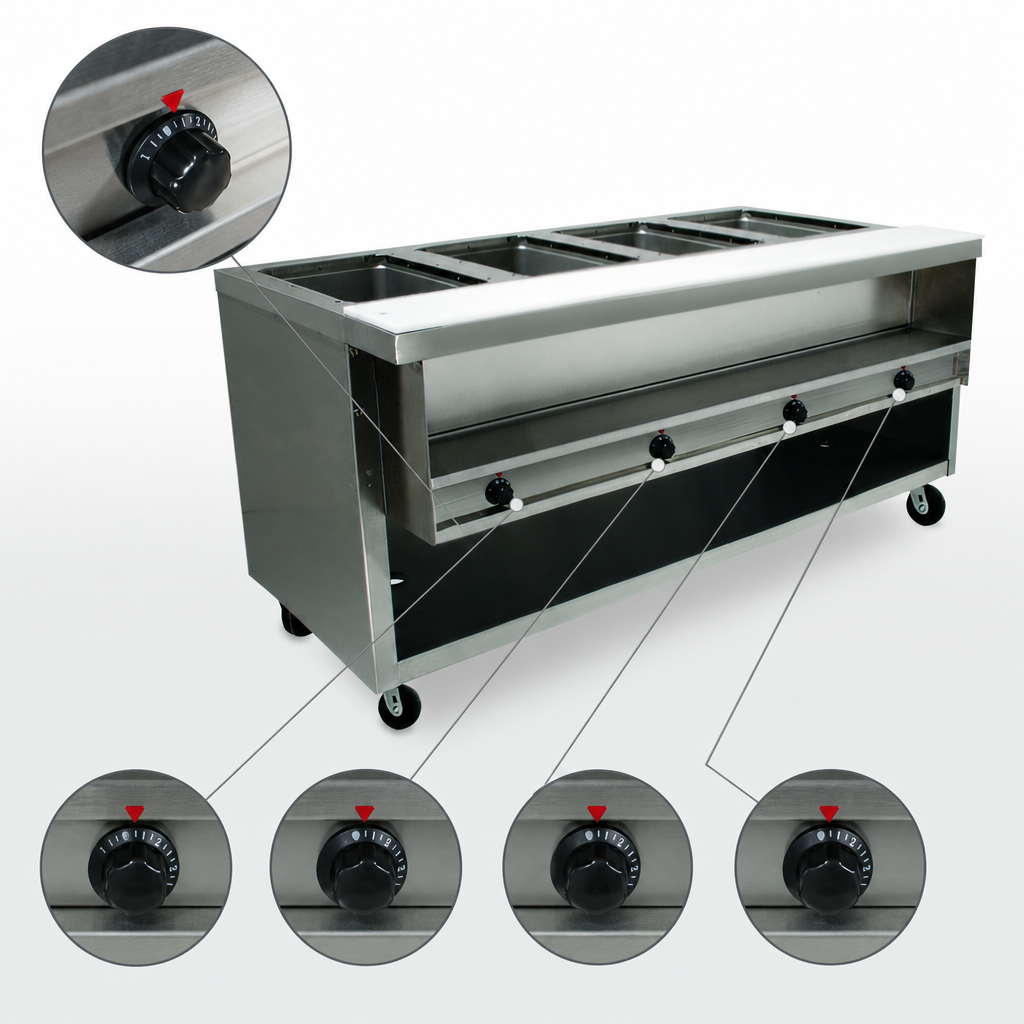

Individual Thermostatic Controls

Each well has individual thermostatic control.

Enclosed Storage Base

The front and sides are enclosed, with rear open storage.

Dish Shelf and Cutting Board

Includes a stainless steel dish shelf with a removable 3/8-inch poly cutting board.

Manifold Drain

A manifold drain is included for the sealed wells.

Removable Front Panel

The removable front panel provides access to the heating elements for service.

Stainless Steel Construction

The hot food table is constructed of stainless steel.

120-Volt Electrical Configuration

The unit uses 120-volt power, includes an 8-foot electrical cord, and has an NEMA L5-30P plug.

Frequently Asked Questions

It has four sealed, insulated hot food wells.
Each well is 12 x 20 inches and accommodates pan inserts up to 6-1/4 inches deep.
It uses individual thermostatic controls for the wells.
Yes. The front and sides are enclosed, and the rear provides open storage.
It is a 120-volt unit rated at 21.33 amps and 2.56 kW, with an NEMA L5-30P plug and an 8-foot electrical cord.
Yes. It includes a stainless steel dish shelf with a removable 3/8-inch poly cutting board.
No. The manufacturer states that these units are not designed to cook or heat frozen or refrigerated foods; food placed in the table should already be hot.
