Advance Tabco HDSW-3-240-BS Serving Counters
Description

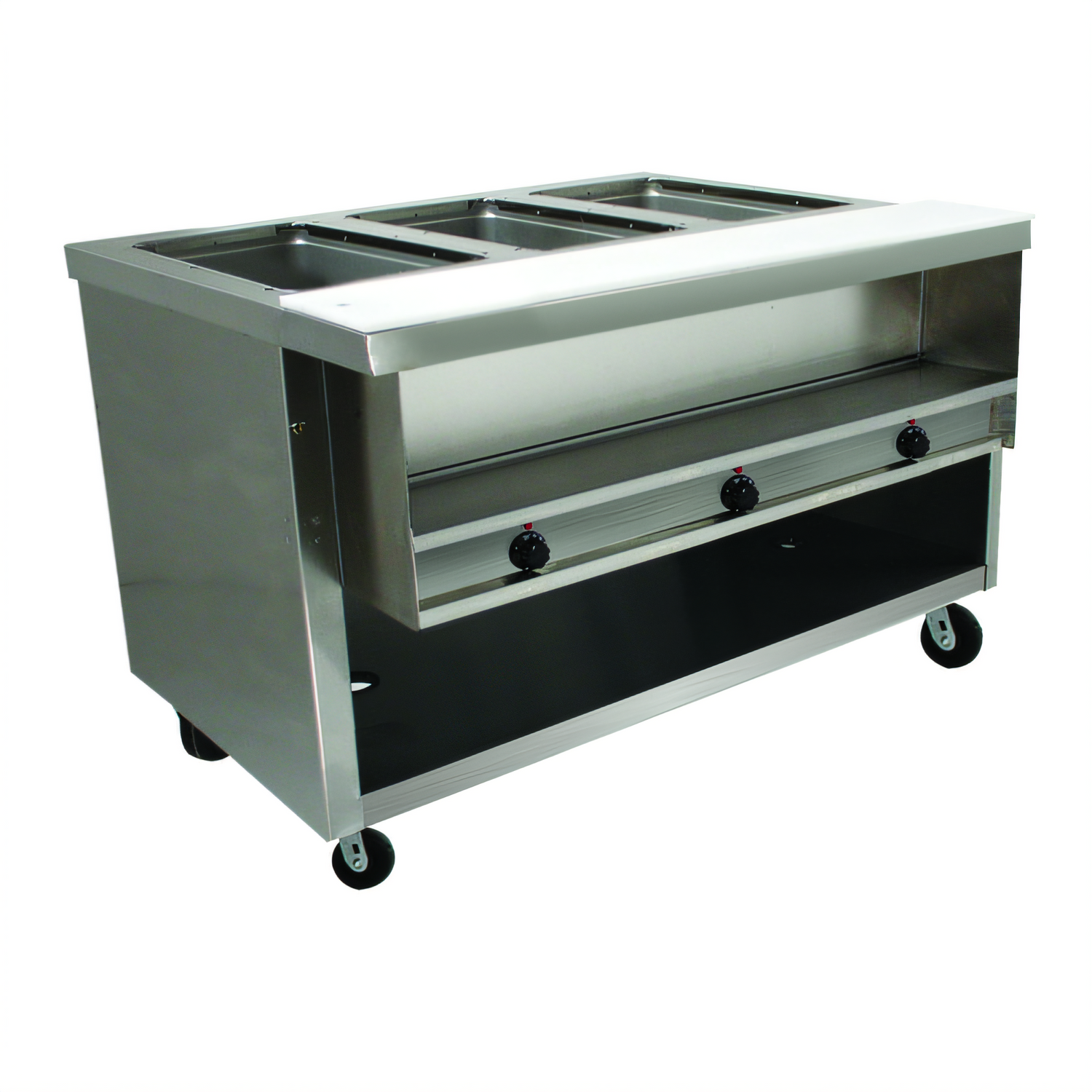

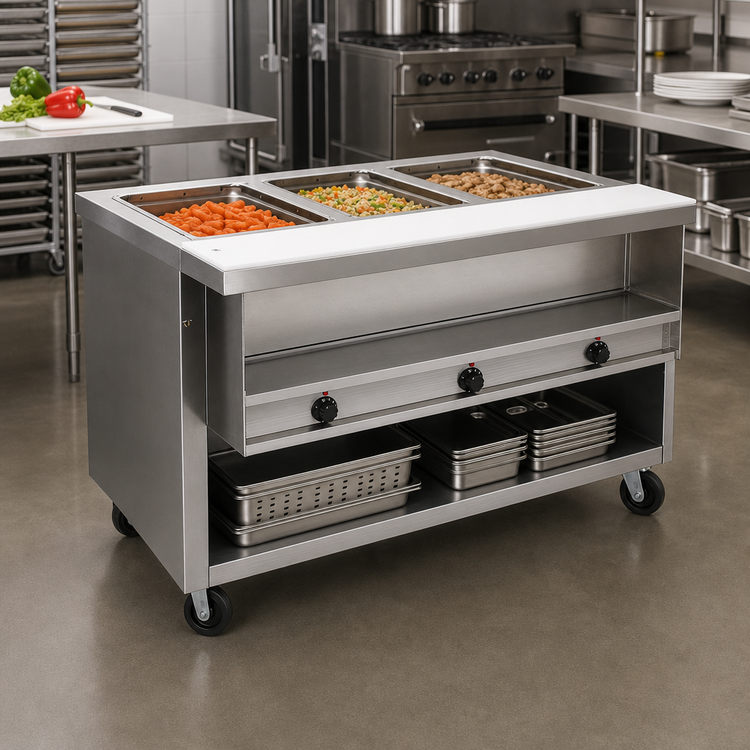

Advance Tabco HDSW-3-240-BS Heavy Duty Sealed-Well Hot Food Table
3-Well · Enclosed Base · 208/240 V ElectricBuilt for the busiest service lines, the Advance Tabco HDSW-3-240-BS keeps three full-size pans of pre-heated food at safe, appetizing temperatures inside a rugged, fully welded stainless-steel cabinet. Individual thermostatic controls, a built-in manifold drain, and an integrated cutting board make this unit a true workhorse for cafeterias, buffets, and catering applications.
Key Features

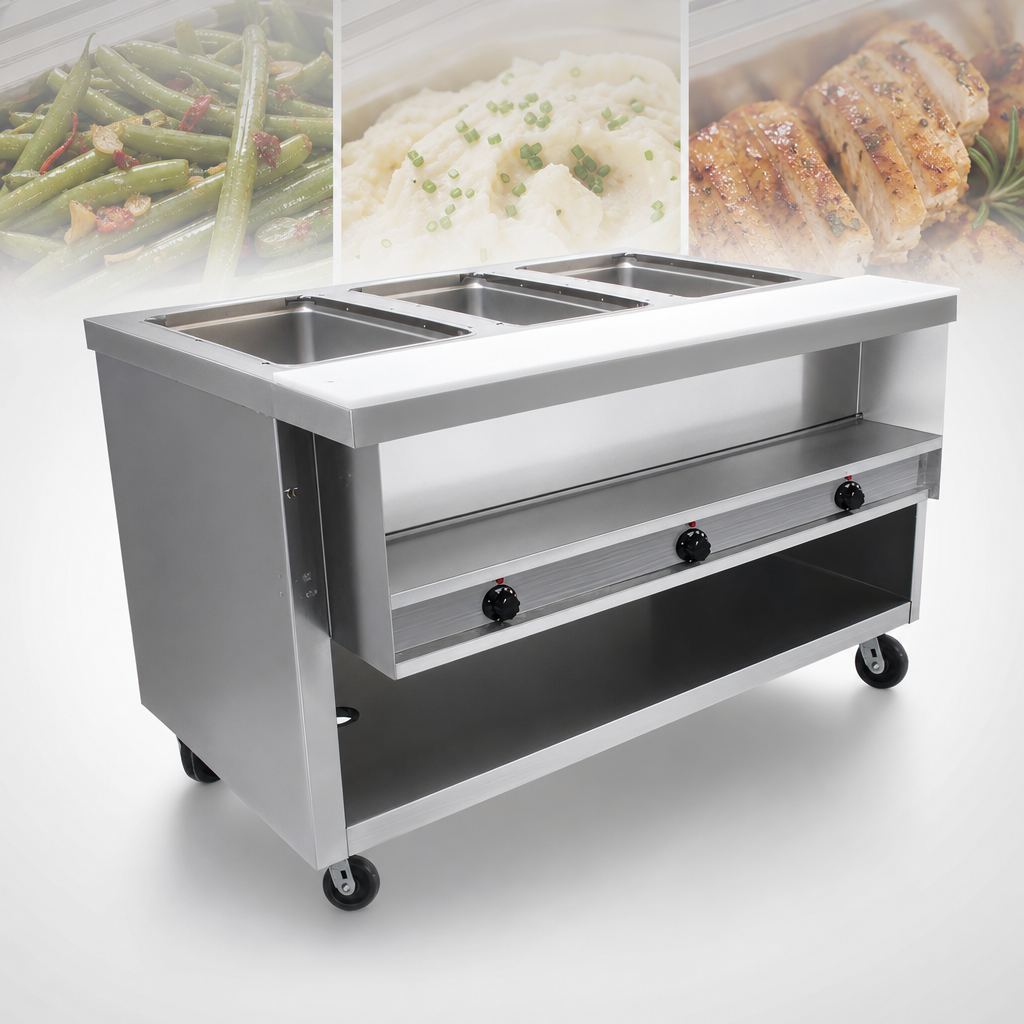

- Three 12" × 20" sealed & insulated wells (accepts pans up to 6-1/4" deep)

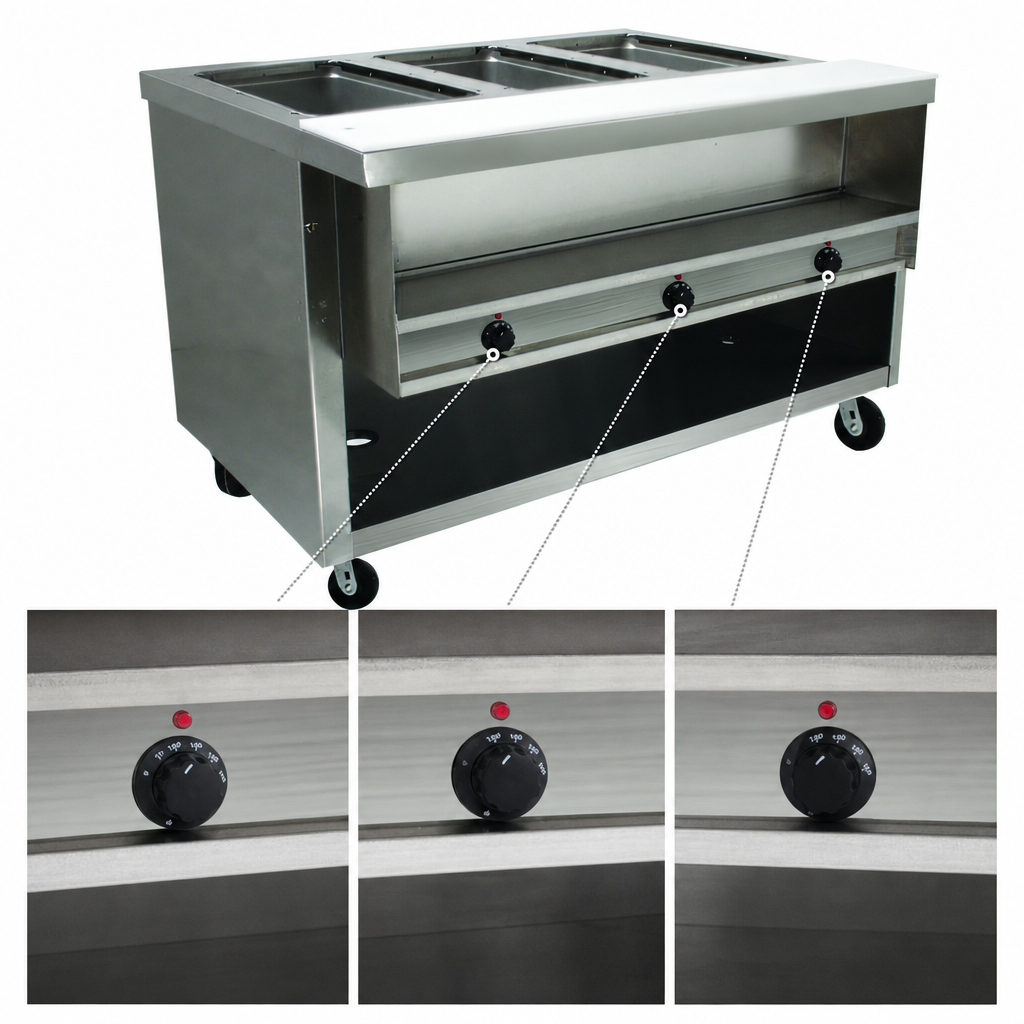

- Independent thermostatic controls with indicator lights for precise holding
- “M”-shaped tubular heating element under each well for even heat distribution
- Common manifold drain with removable screen—empty all wells through one outlet
- 18 ga. type 304 stainless-steel top, body & dish shelf—fully welded for maximum durability
- Stainless dish shelf with removable 3/8" white poly cutting board
- Enclosed front & sides; rear open storage keeps extra pans and utensils within reach
- Removable front panel provides quick access to elements & wiring for service
- Adjustable stainless bullet feet level the table on uneven floors
- 6' factory-wired cord set with NEMA 6-20P plug
- UL listed & NSF certified for food-service safety and sanitation
Technical Specifications
| Model | HDSW-3-240-BS |
|---|---|
| Wells / Size | 3 sealed wells • 12" × 20" openings |
| Pan Capacity | Full-size pans up to 6-1/4" deep (or fractional equivalents, pans sold separately) |
| Exterior Dimensions | 47-1/8" W × 35-3/4" D × 35-3/4" H |
| Electrical | 208/240 V, 1-phase, 11.91 A @ 208 V / 13.74 A @ 240 V |
| Total Wattage | 2,475 W @ 208 V | 3,300 W @ 240 V |
| Power Connection | NEMA 6-20P (6' cord included) |
| Construction | 18 ga. #304 stainless steel; fiberglass insulated wells |
| Drain | Built-in manifold drain assembly, single outlet |
| Certifications | UL Listed, NSF |
| Shipping Cube | Approx. 45 cu. ft. |
Perfect For
- Self-serve buffet lines
- School & corporate cafeterias
- Hospitals & senior-living facilities
- Catering operations and commissaries
Popular Add-Ons *
- TA-255P 5" locking caster set for full mobility
- TBS/TSS series food shields & shelves for buffet or cafeteria service
- SU-90 autofill kit to maintain optimal water levels automatically
*Accessories sold separately; contact us for details.
