Key specifications

Amps
8 Amps
Phase
1-Phase
Dimensions
31.81"W × 36.25"D × 35.0"H
Type
Refrigerated Cold Pan
Style
Open Rear Base
Installation Type
Floor Model
Spec sheet
Advance Tabco SKU: HDRCP-2-BS UPC: 747545200365

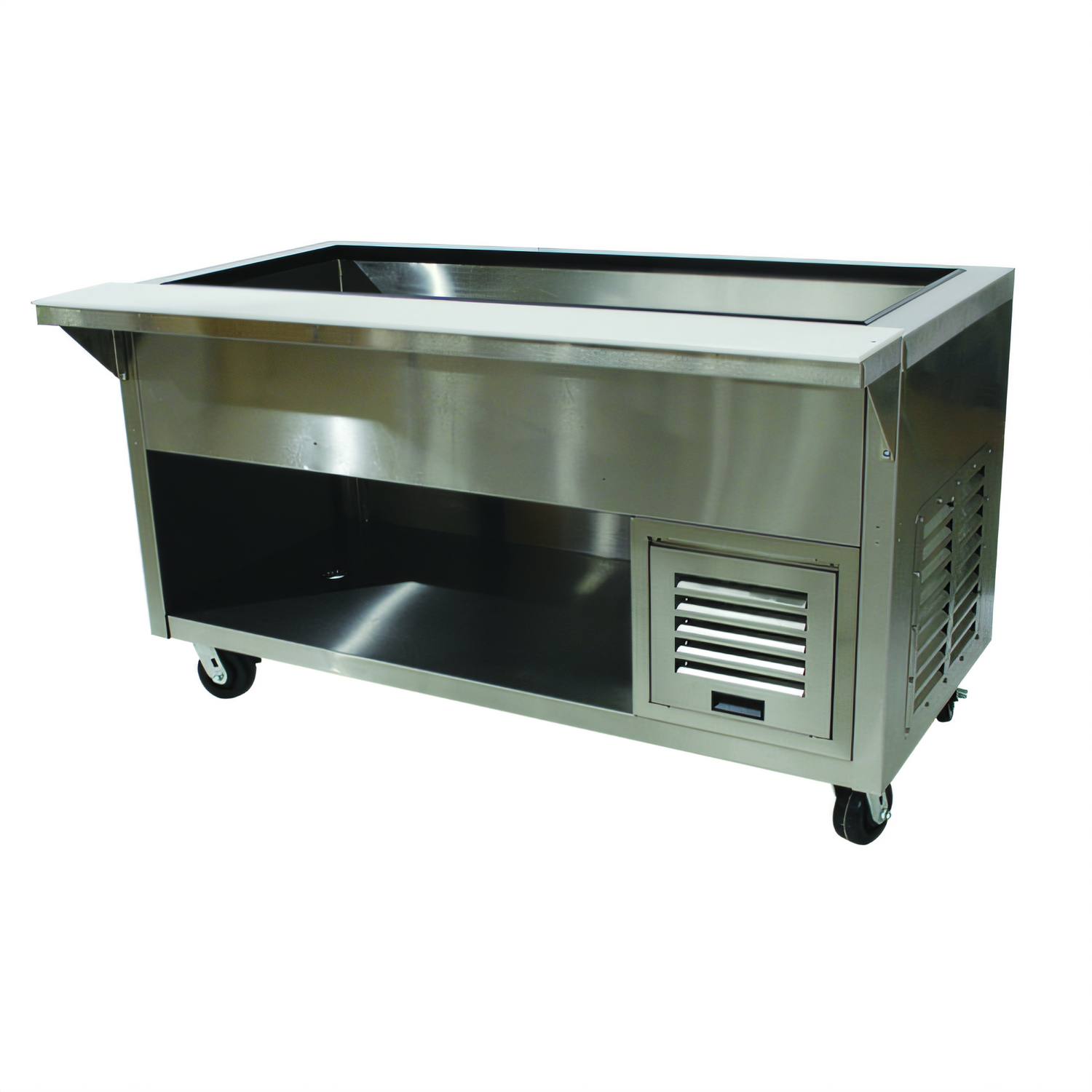

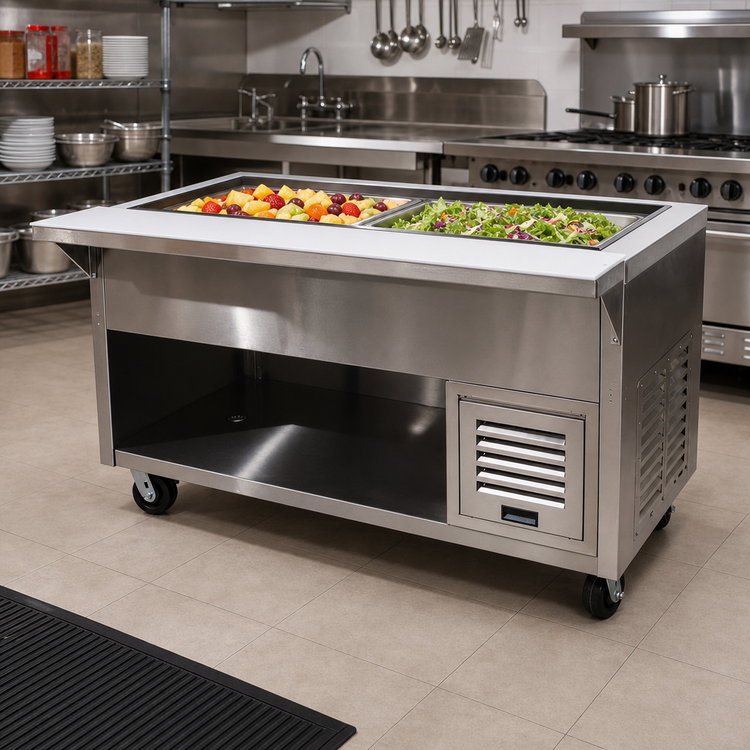

Advance Tabco HDRCP-2-BS 2-Pan Refrigerated Cold Pan

$10,035.00
/each
Estimated to ship in 4–7 business days Free Shipping
Capacity
Casters
Buffet shelves

Need something else? Contact us.

Included: Advance Tabco warranty 90-day parts-only warranty from factory shipment; on refrigerated models, refrigeration components are covered 12 months parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $928/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Refrigerated Cold Pan
Style Open Rear Base
Installation Type Floor Model
Material 304 Stainless Steel
Finish Stainless Steel
Pan Capacity 2 Pans
Pan Size 12 x 20 Inches
Maximum Pan Depth 6.25 Inches
Refrigeration Type Self-Contained
Refrigerant Type R290
Controls Programmable Digital Thermostat
Horsepower 1/5 HP
Voltage 120 Volts
Amps 8 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Body Insulation Fully Insulated
Shelf Count 1
Cutting Board Depth 8 Inches
Cutting Board Thickness 0.375 Inches
Mobility Stationary

Description

The Advance Tabco HDRCP-2-BS is a self-contained refrigerated cold pan with an open rear base. It accommodates two 12 x 20-inch pans up to 6-1/4 inches deep, with additional space below for cold air circulation.

The unit features an 18-gauge 304 stainless steel top with a black polyethylene thermal breaker marine edge, a recessed 304 stainless steel liner, and a fully insulated 304 stainless steel body. A stainless steel shelf includes an 8-inch-deep, 3/8-inch-thick poly cutting board.

Refrigeration is controlled by a programmable digital thermostat. The unit operates at 120 Volts, 60 Hz, single phase, and 8 Amps with a NEMA 5-15P plug.

Usage note: Food should already be chilled; this unit is not designed to cool foods originally warm.

Overall Dimensions:

31.81"W x 36.25"D x 35.0"H

Product Weight:

322.0 lb

Two-Pan Capacity

Accommodates two standard 12 x 20-inch pans up to 6-1/4 inches deep.

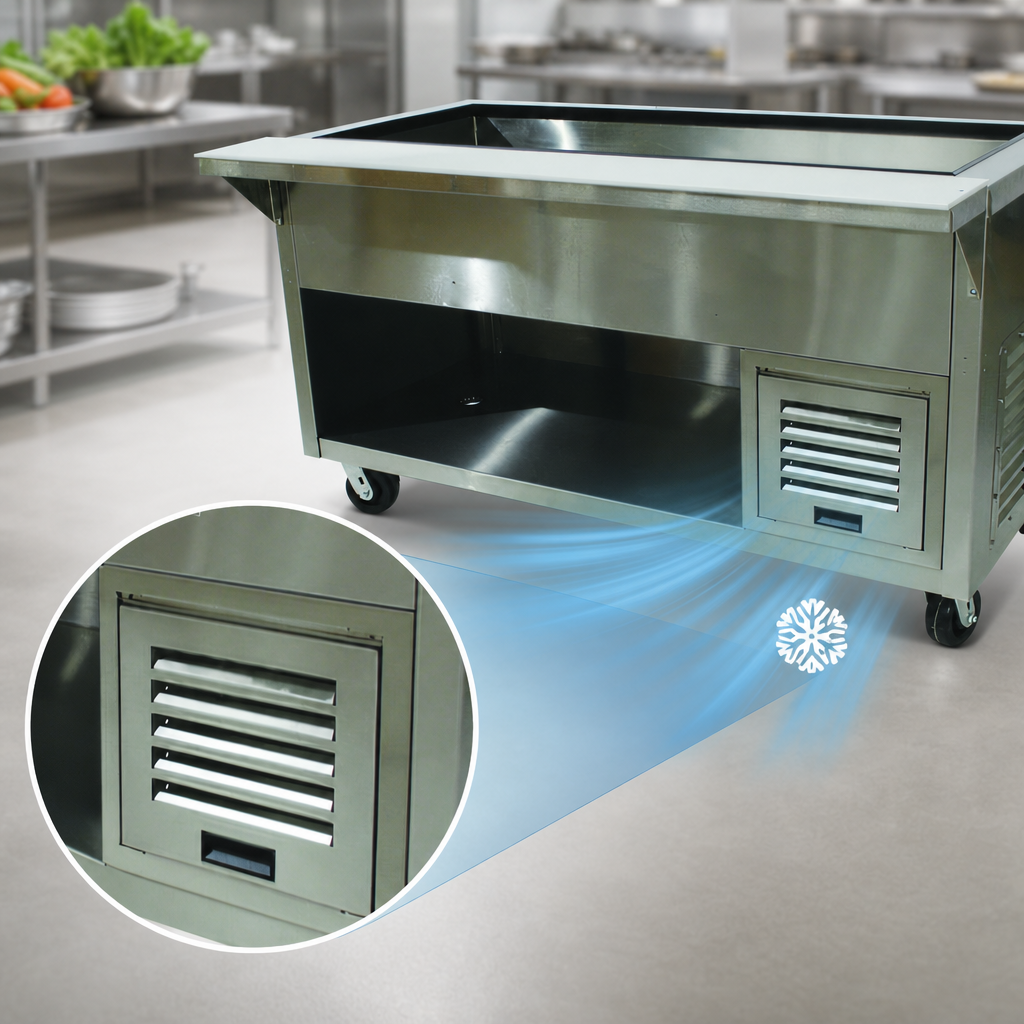

Self-Contained Refrigeration

The refrigeration system is self-contained and uses R290 refrigerant.

Programmable Digital Thermostat

Provides programmable refrigeration control.

304 Stainless Steel Construction

The top, liner, and fully insulated body are constructed from 304 stainless steel.

Open Rear Base

Additional space below the pan area supports cold air circulation.

Cutting Board Shelf

A stainless steel shelf includes an 8-inch-deep, 3/8-inch-thick poly cutting board.

Marine Edge

The top has a black polyethylene thermal breaker marine edge.

Proposition 65: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Frequently Asked Questions

It accommodates two 12 x 20-inch pans up to 6-1/4 inches deep.
It uses self-contained refrigeration with R290 refrigerant.
The unit operates at 120 Volts, 60 Hz, single phase, and 8 Amps, with a NEMA 5-15P plug.
No. Food should already be chilled; the unit is not designed to cool foods originally warm.
The overall dimensions are 31.81 inches wide, 36.25 inches deep, and 35 inches high.
