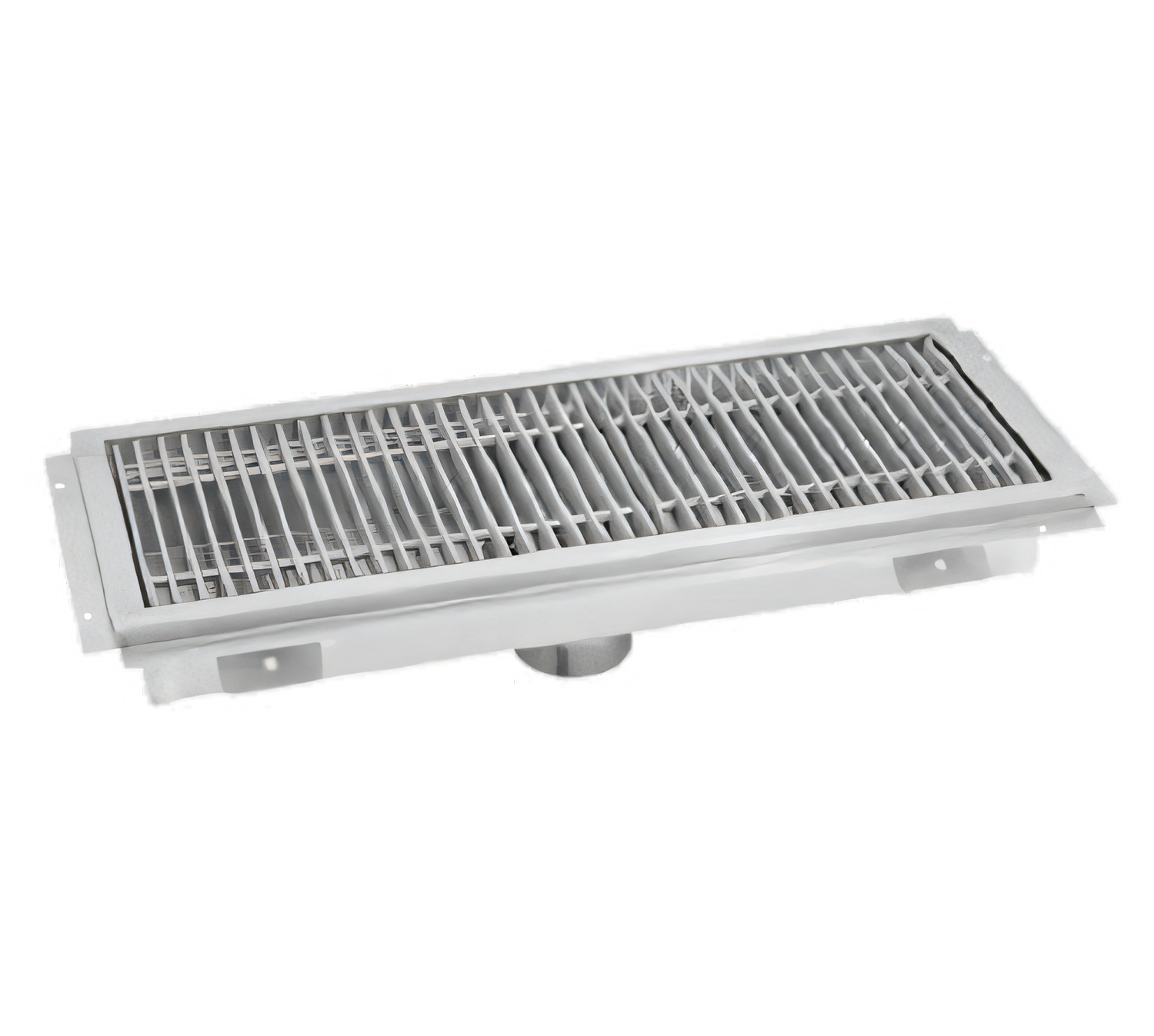

Advance Tabco 96-Inch Floor Trough / Water Receptacle with Stainless Steel Subway Grating

7-1/2-Inch Wide, 4-Inch Deep, Dual Drain Openings

Built for dependable floor drainage, this 8-foot stainless steel trough features subway-style grating, dual drain openings, and a pitched base for efficient runoff.

  • 96-inch floor trough / water receptacle for large-area drainage runs.
  • 7-1/2-inch-wide, 4-inch-deep body with two drain openings.
  • 14 gauge 304 stainless steel construction for durability and corrosion resistance.
  • Stainless steel subway-style grating made from 3/16-inch x 1-inch bars is included.
  • Removable perforated stainless steel strainer basket with handle helps capture debris.
  • Pitched toward waste, TIG welded, and NSF listed for sanitary installation.

Overall Dimensions:

96.0"W x 7.5"D x 4.0"H

Product Weight:

138.0 lb

Dual Drain Openings

96-inch and longer troughs are supplied with two drain openings for better drainage capacity.

14 Gauge 304 Stainless Steel Trough

Durable stainless steel construction provides strength and corrosion resistance in demanding environments.

Subway-Style Stainless Steel Grating

Includes stainless steel grating made from solid 3/16-inch x 1-inch bars with 9/16-inch inside clearance between bars.

Removable Strainer Basket

A perforated stainless steel strainer basket with handle is provided to help catch debris and simplify cleaning.

Pitched Toward Waste

The trough is formed with a pitch toward the outlet to support proper drainage flow.

Tile-Friendly Mounting

Perimeter flange mounts directly to the subfloor, and the 3/4-inch vertical step accommodates floor tile installation.

TIG Welded Construction

All external corners are welded and polished to a satin finish for a clean, durable build.

Plumbing Sleeve Included

Supplied with a 4-inch O.D. x 3-inch long plumbing sleeve and designed to accommodate up to a 4-inch waste pipe.

Type Floor Trough / Water Receptacle
Style Subway-Style Grating
Material 304 Stainless Steel
Trough Construction 14 Gauge Stainless Steel
Pan Type Non Anti-Splash
Drain Openings 2
Drain Connection Size 4 Inch O.D. Waste Pipe
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download

Frequently Asked Questions

The FTG-796 is supplied with two drain openings.
It includes stainless steel subway-style grating made from solid 3/16-inch x 1-inch bars.
Yes. A removable perforated stainless steel strainer basket with handle is included.
It accommodates up to a 4-inch waste pipe and includes a 4-inch O.D. x 3-inch long plumbing sleeve.
Yes. The documentation notes that custom sizes are available; consult the factory.
