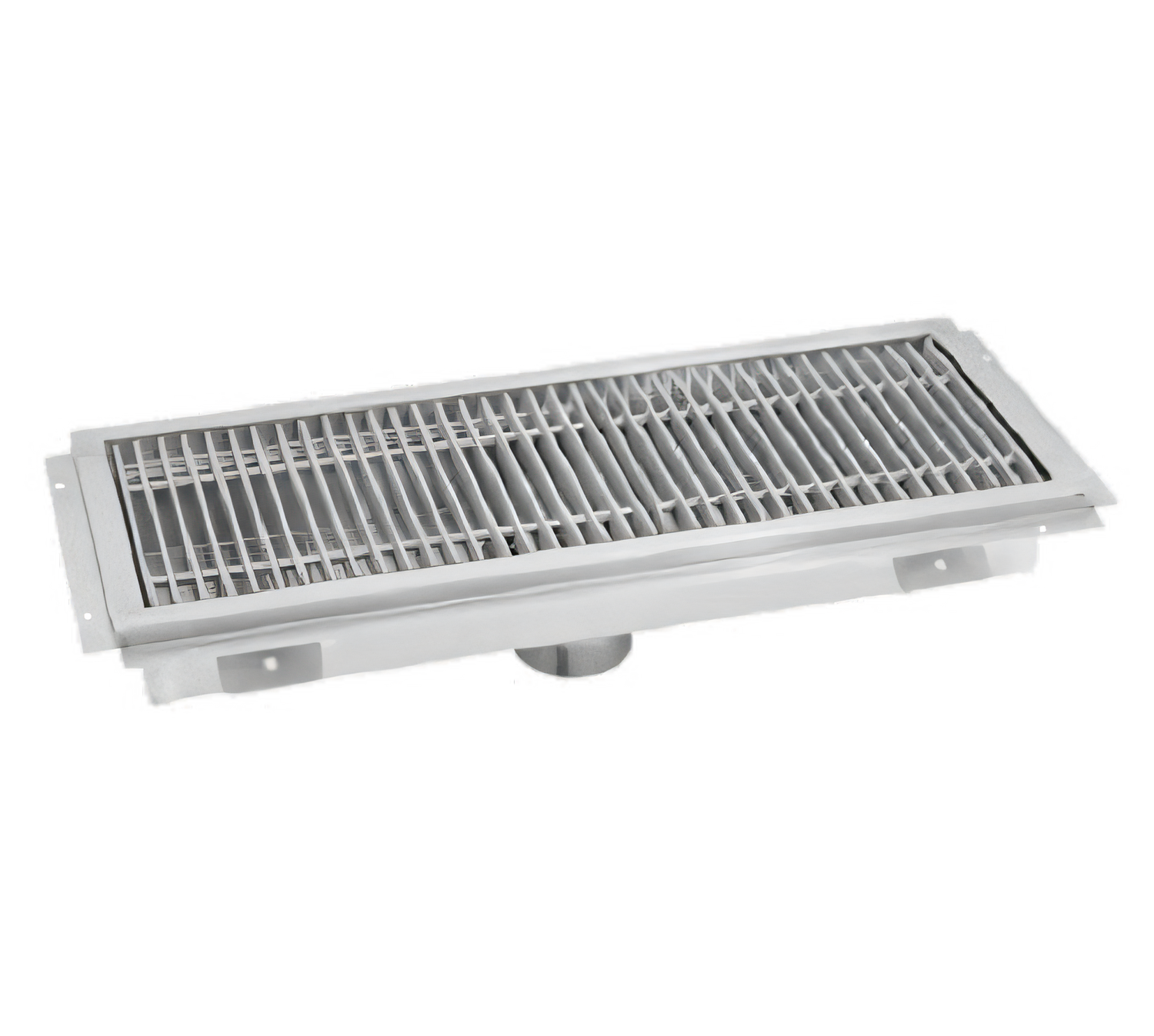

Advance Tabco FTG-2496 96-Inch x 24-Inch Stainless Steel Floor Trough with Subway-Style Grating

4-Inch Deep, 14-Gauge 304 Stainless Steel, Dual-Drain Design

Built for demanding commercial drainage, this rugged floor trough combines 304 stainless steel construction with a subway-style grate and dual drain openings.

  • 96-inch by 24-inch floor trough with a 4-inch depth for commercial drainage applications.
  • 14-gauge 304 stainless steel construction for dependable durability.
  • Stainless steel subway-style grating with solid 304 stainless steel bar construction.
  • Supplied with two drain openings for 96-inch and longer troughs.
  • Includes a removable perforated stainless steel strainer basket with handle.
  • Pitched toward the waste opening and designed for subfloor-mounted installation.

Overall Dimensions:

96.0"W x 24.0"D x 4.0"H

Product Weight:

243.0 lb

Dual Drain Openings

This 96-inch model is supplied with two drain openings to support higher drainage capacity.

14-Gauge 304 Stainless Steel Trough

Heavy-duty stainless steel construction is built for commercial environments.

Subway-Style Stainless Steel Grating

Includes grating made from 3/16-inch x 1-inch solid 304 stainless steel bars with 9/16-inch clear spacing.

4-Inch Waste Pipe Compatibility

Accommodates up to a 4-inch waste pipe and includes a 4-inch O.D. x 3-inch plumbing sleeve.

Pitched Basin Design

The trough is pitched toward the waste opening, with a creased design to help ensure proper drainage.

Tile-Ready Installation

Perimeter flange mounts directly to the subfloor and a 3/4-inch vertical step helps accommodate floor tile installation.

Included Strainer Basket

A removable perforated stainless steel strainer basket with handle is provided.

TIG-Welded Construction

All seams and external corners are TIG welded and polished to a satin finish.

Type Floor Trough
Style Subway Style Grating
Installation Type Built-In
Pan Type Non Anti-Splash
Material 304 Stainless Steel
Finish Satin Finish
Drain Connection Size 4 Inches O.D.
Selling Unit Each
Units Per Case 1
Shipping Width 96 Inches
Shipping Depth 24 Inches
Shipping Height 4 Inches
Shipping Weight 243 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download

Frequently Asked Questions

It measures 96 inches wide, 24 inches deep, and 4 inches high.
This 96-inch model is supplied with two drain openings.
It is made from 14-gauge 304 stainless steel and includes stainless steel subway-style grating.
Yes. A removable perforated stainless steel strainer basket with handle is included.
It accommodates up to a 4-inch waste pipe and includes a 4-inch O.D. x 3-inch plumbing sleeve.
Yes. Optional items include the FT-1 anti-splash guard, FT-2 replacement strainer basket, FT-3 depth modification, FT-4 drain hole outlet size modification, and FT-5 ADA-compliant grate upgrade.
