Advance Tabco  |  SKU: FTG-24120  |  UPC: 747545133151

Advance Tabco FTG-24120 Commercial Faucets & Plumbing

$5,545.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Commercial Faucets & Plumbing Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

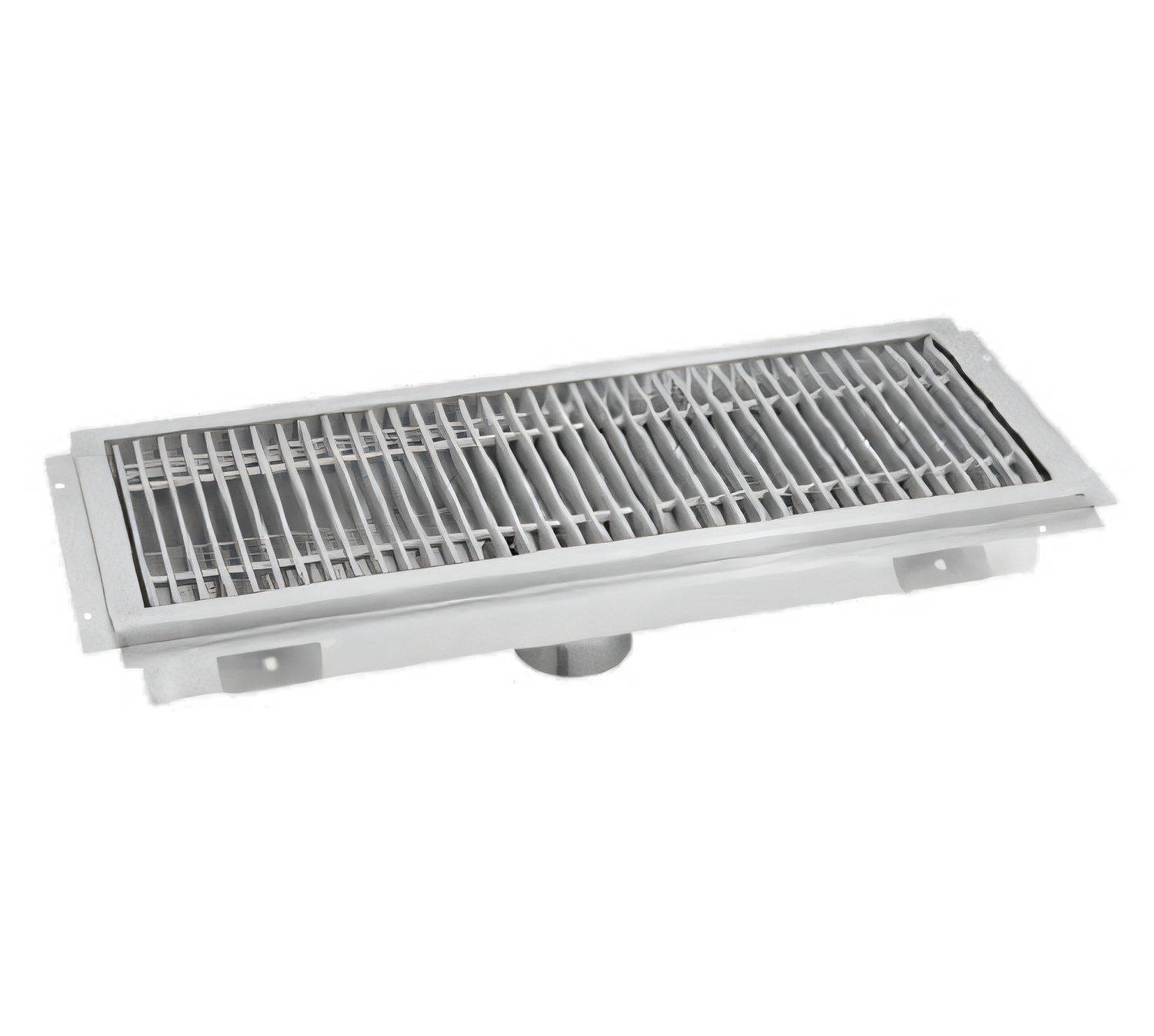

Advance Tabco Stainless Steel Floor Trough – 120" L x 24" W x 4" D

Model FTG-24120  |  Double-Drain  |  NSF Certified

Built for the heaviest wash-down environments, this 10-ft Advance Tabco floor trough pairs rugged 14 gauge type 304 stainless steel with a high-capacity subway-style grate to deliver reliable, sanitary drainage year after year.

Key Features
  • Generous 120" length & 24" width handle large splash zones and equipment traffic.
  • 4" deep TIG-welded trough body in corrosion-resistant 14 ga 304 stainless steel.
  • Includes stainless steel “subway” grate (3/16" × 1" solid bars, 9/16" spacing) for exceptional load capacity and slip resistance.
  • Two 4" O.D. × 3"L waste sleeves; factory-creased floor pitches toward each drain for rapid water removal.
  • Removable perforated stainless steel strainer baskets with handles keep debris out of drain lines.
  • 3/4" integral vertical flange simplifies tile installation and secures trough to subfloor.
  • NSF listed for food-service, beverage and institutional applications.
Specifications
Overall length 120" (10 ft)
Overall width 24"
Inside depth 4"
Material 14 ga, type 304 stainless steel (body & grate)
Grate style Stainless steel “subway” grate, 3/16" × 1" bars
Drain outlets Two 4" Ø sleeves, 3" long
Floor pitch Creased toward each outlet
Strainer baskets Stainless steel, perforated, removable
Shipping weight Approx. 310 lb
Certifications NSF
Popular Accessories (sold separately)
  • FT-1 Anti-Splash Guard (per linear foot)
  • FT-2 Replacement strainer basket
  • FT-3 Custom trough depth (2"–6")
  • FT-4 Alternate drain outlet size (2"–8" Ø)
  • FT-5 ADA-compliant grate (7/16" gap)
Installation note: Unit is designed for recessed installation in concrete subfloor. Plumbing connections, sealants and all field rough-in materials are supplied by installer.

Need a different size or configuration? Custom lengths, widths and outlet options are available through Advance Tabco Smart Fabrication™.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

4.0in

Width

120.0in

Depth

24.0in

Shipping Weight

310.0lbs

Deep (pan depth)

4"

Trough Construction

14 ga stainless steel trough

Pan Type

non anti-splash

Grate Type

subway-style grating

Grate Construction

stainless steel grates

Width (long side)

109 - 120" (10 ft)

Depth (short side)

24"

Specifications

Floor Trough, 120"W x 24"D x 4" deep, 14 gauge 304 stainless steel, includes stainless steel subway grating constructed from 3/16" x 1" bars, 4" O.D. waste pipe 3"L, pitched towards waste (NOTE:This unit supplied with 2 drain openings), NSF
