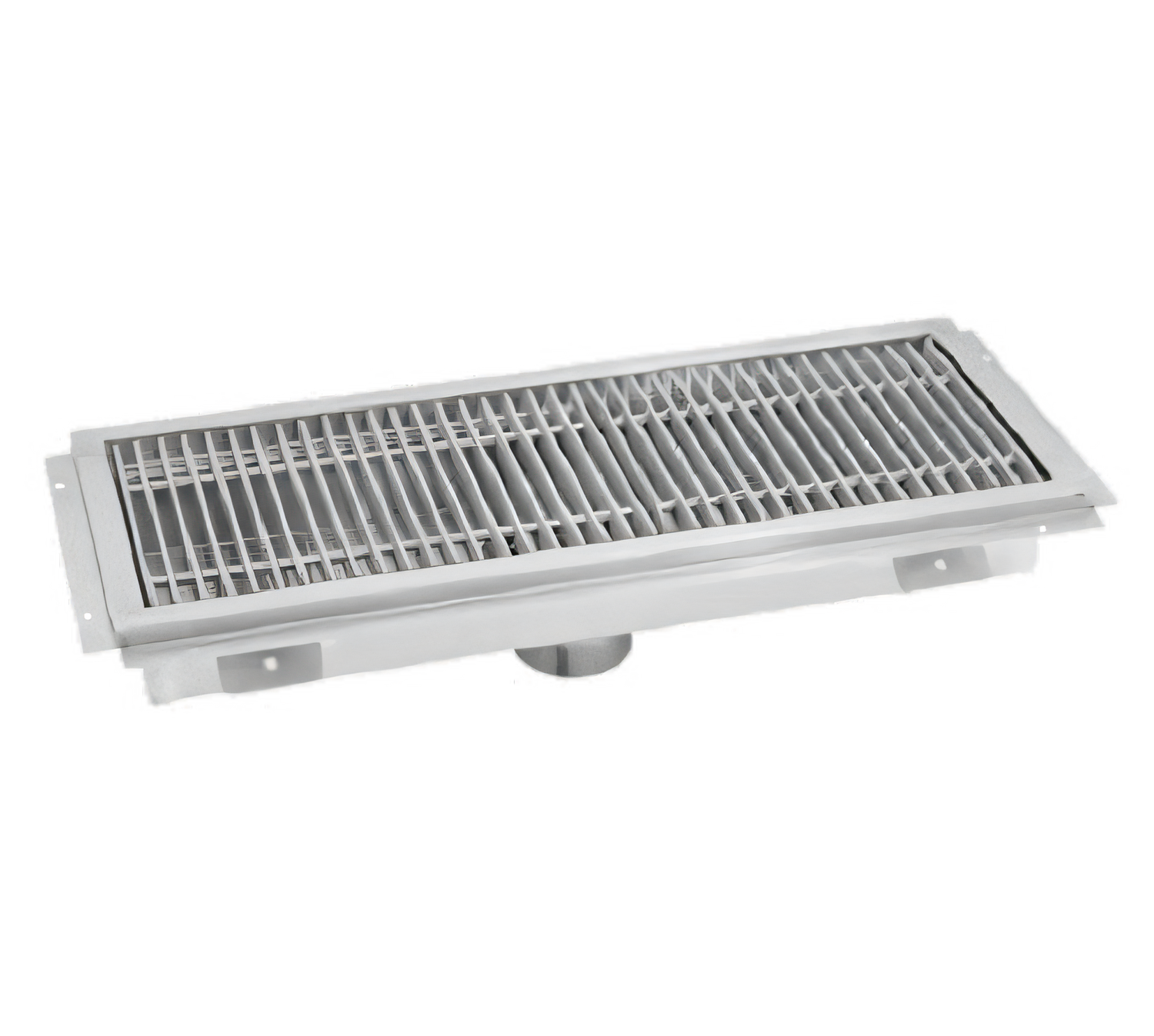

Advance Tabco FTG-1296 96-Inch x 12-Inch x 4-Inch Deep 14-Gauge 304 Stainless Steel Floor Trough with Subway-Style Grating

Double Drain Openings, Built for 4-Inch Waste Pipe Applications

Built for dependable floor drainage, this 96-inch trough combines a heavy-duty 14-gauge stainless steel body, subway-style grating, and dual drain openings for high-capacity performance.

  • 96-inch floor trough with a 12-inch width and 4-inch depth for larger drainage runs.
  • Constructed from 14-gauge 304 stainless steel for durability and corrosion resistance.
  • Includes stainless steel subway-style grating made from solid 3/16" x 1" bars.
  • 96-inch and longer troughs are supplied with two drain openings for improved flow.
  • Includes a 4" O.D. x 3" long plumbing sleeve and a removable strainer basket with handle.
  • Designed with a pitched interior, welded construction, and tile-friendly mounting details.

Overall Dimensions:

96.0"W x 12.0"D x 4.0"H

Product Weight:

146.0 lb

14-Gauge 304 Stainless Steel Construction

Heavy-duty stainless steel trough body built for long service life and corrosion resistance.

Subway-Style Stainless Steel Grating

Includes FTG-series grating made from solid 3/16" x 1" 304 stainless steel bars.

Dual Drain Openings

96-inch and longer troughs are built with two drain openings for better drainage capacity.

4-Inch Waste Pipe Capacity

Accommodates up to a 4" waste pipe and includes a 4" O.D. x 3" long plumbing sleeve.

Pitched Toward Waste

Creased interior design helps direct water toward the drain for more effective flow.

TIG-Welded Construction

All TIG welded with external corners welded and polished to a satin finish.

Tile-Friendly Installation

Perimeter flange mounts directly to the subfloor, and a 3/4" vertical step accommodates floor tile installation.

Removable Strainer Basket Included

Perforated stainless steel strainer basket with handle is provided.

Type Floor Trough
Style Subway Style
Installation Type Built-In
Pan Type Non Anti-Splash
Material 304 Stainless Steel
Trough Construction 14 Gauge 304 Stainless Steel
Grate Construction Stainless Steel
Drain Openings 2
Drain Connection Size 4 Inches O.D.
Selling Unit Each
Units Per Case 1
Shipping Width 96 Inches
Shipping Depth 12 Inches
Shipping Height 4 Inches
Shipping Weight 146 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download

Frequently Asked Questions

It measures 96 inches wide, 12 inches deep, and 4 inches high.
This 96-inch model is supplied with two drain openings.
It accommodates up to a 4-inch waste pipe and includes a 4" O.D. x 3" long plumbing sleeve.
It includes stainless steel subway-style grating made from solid 3/16" x 1" 304 stainless steel bars.
Yes, a removable perforated stainless steel strainer basket with handle is provided.
Yes, custom sizes are available; consult the factory.
