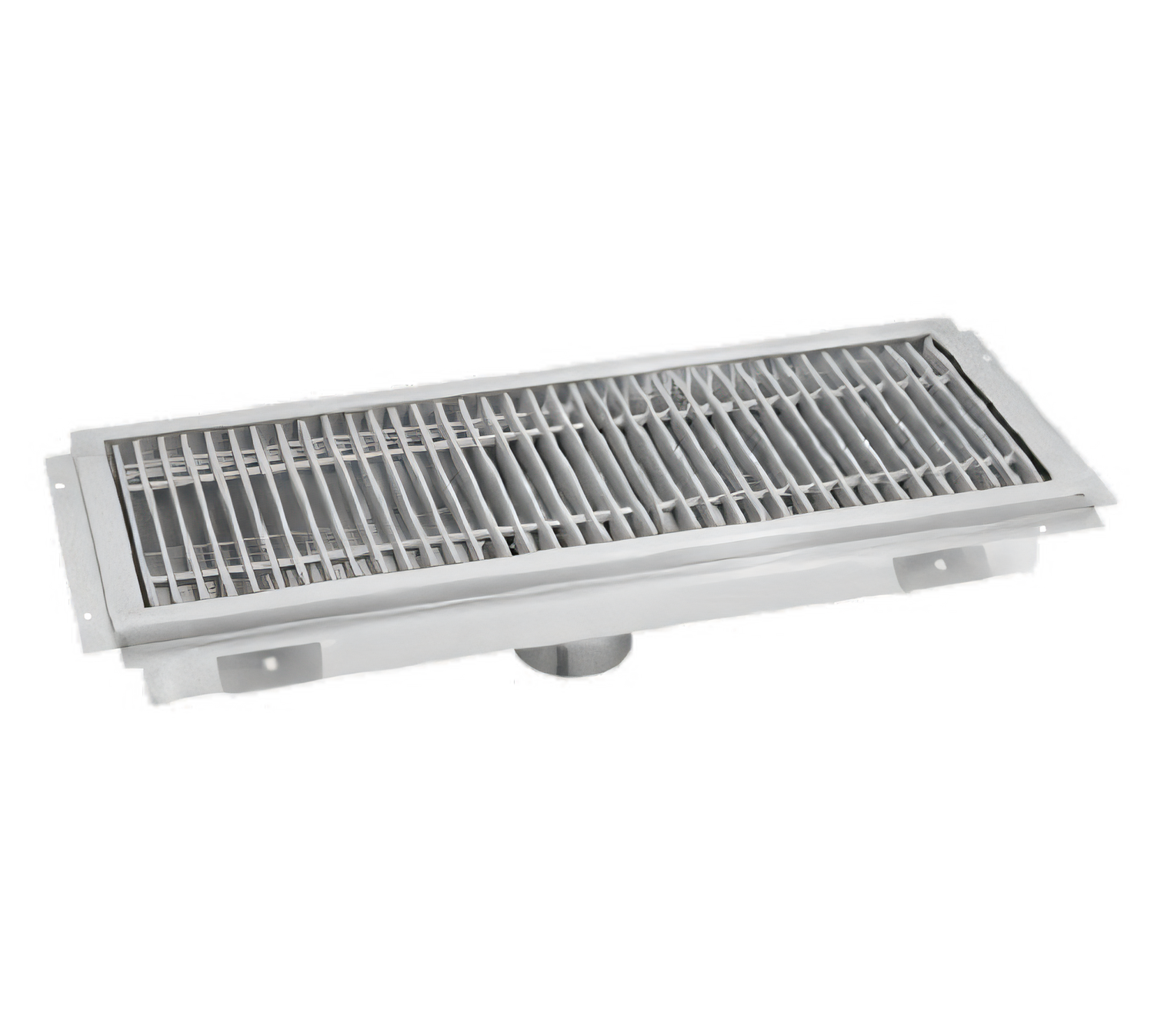

Advance Tabco FTG-1284 84-Inch Single-Drain Stainless Steel Floor Trough with Subway-Style Grating

12-Inch Wide, 4-Inch Deep, 14-Gauge 304 Stainless Steel

A durable floor trough designed for efficient drainage, with heavy-duty stainless construction and built-in subway-style grating.

  • 84-inch length, 12-inch width, and 4-inch depth for a generous drainage area.
  • 14-gauge 304 stainless steel construction for durability and corrosion resistance.
  • Includes stainless steel subway-style grating made from 3/16" x 1" solid bars.
  • Pitched toward the waste and creased for proper drainage performance.
  • Accommodates up to a 4-inch waste pipe and includes a 4-inch O.D. x 3-inch long plumbing sleeve.
  • TIG welded with polished corners and a perimeter flange for subfloor mounting.

Overall Dimensions:

84.0"W x 12.0"D x 4.0"H

Product Weight:

126.0 lb

14-Gauge 304 Stainless Steel Construction

Heavy-duty trough body built from 14-gauge 304 stainless steel for long-lasting commercial use.

Subway-Style Stainless Steel Grating

Includes 3/16" x 1" solid 304 stainless steel bar grating with 9/16" inside clearance between bars.

Single-Drain Design

84-inch length falls within the single-drain configuration used for floor troughs 95 inches and shorter.

4-Inch Waste Pipe Compatibility

Accommodates up to a 4-inch waste pipe and includes a 4-inch O.D. x 3-inch long plumbing sleeve.

Pitched Drainage Trough

Trough is pitched toward the waste to support efficient water flow.

TIG Welded Construction

All TIG welded with external corners welded and polished to a satin finish.

Tile-Friendly Mounting Flange

Perimeter flange mounts directly to the subfloor, with a 3/4-inch vertical step for tile installation.

Included Strainer Basket

Removable perforated stainless steel strainer basket with handle is provided.

Type Floor Trough
Style Single Drain
Installation Type Built-In
Material 304 Stainless Steel
Selling Unit Each
Units Per Case 1
Shipping Width 84 Inches
Shipping Depth 12 Inches
Shipping Height 4 Inches
Shipping Weight 126 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download

Frequently Asked Questions

The trough measures 84 inches wide, 12 inches deep, and 4 inches high.
It is made from 14-gauge 304 stainless steel with stainless steel grating.
Yes. It includes stainless steel subway-style grating and a removable perforated stainless steel strainer basket with handle.
It accommodates up to a 4-inch waste pipe and includes a 4-inch O.D. x 3-inch long plumbing sleeve.
Yes. Optional accessories include the FT-1 anti-splash guard, FT-3 trough depth modification, FT-4 drain hole outlet size modification, and FT-5 ADA-compliant grate upgrade.
