Advance Tabco

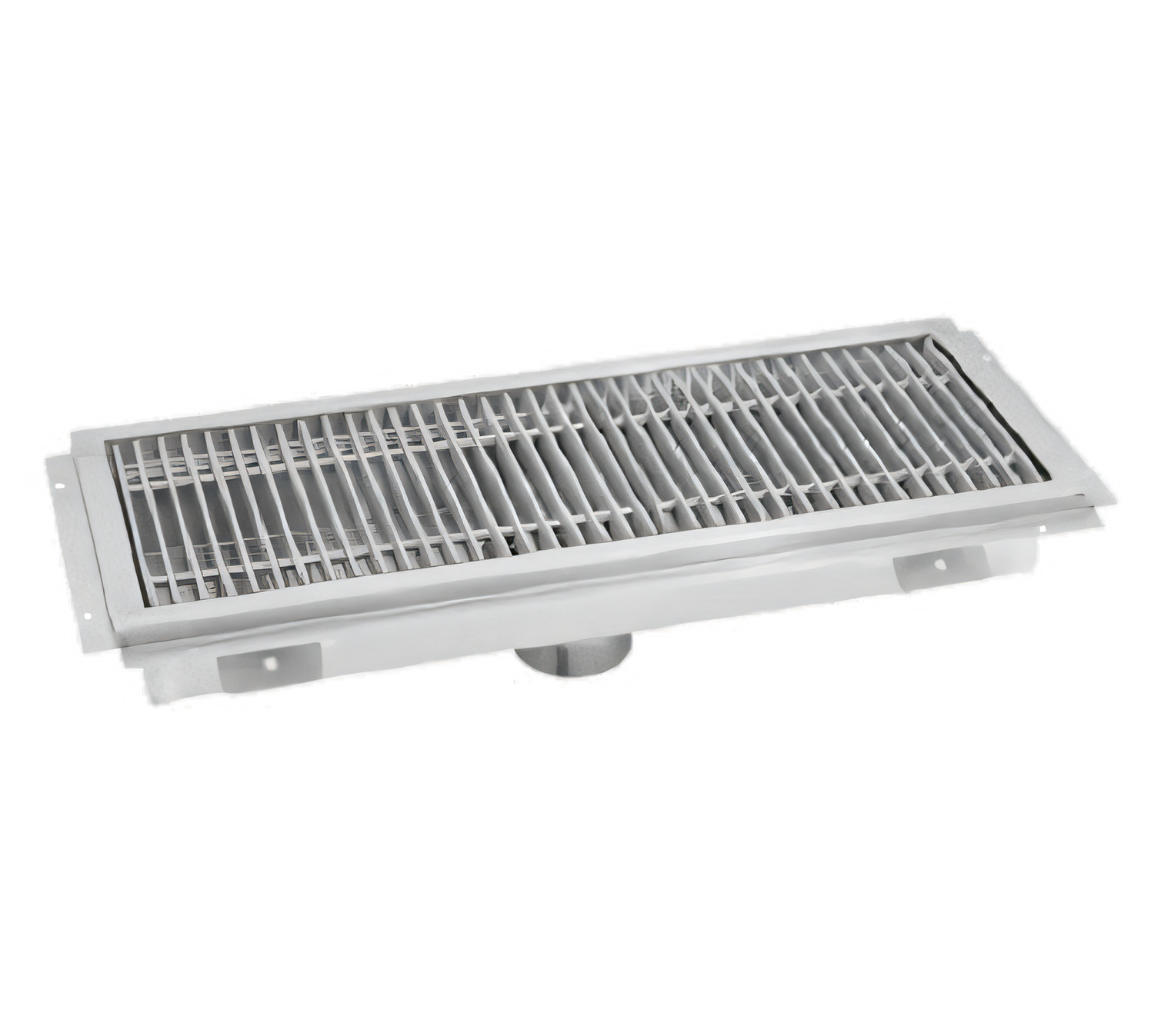

30-Inch x 12-Inch x 4-Inch Deep 304 Stainless Steel Floor Trough with Subway-Style Grating

SKU: FTG-1230
GTIN: 747545132932
$1,596.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Advance Tabco Best Sellers Cleaning & Janitorial Supplies Commercial Faucets & Plumbing Floor Drains Floor Maintenance New Arrivals Sinks & Handwashing Stations

30-Inch x 12-Inch x 4-Inch Deep 304 Stainless Steel Floor Trough with Subway-Style Grating

14 Gauge, Removable Strainer Basket, Pitched Toward Waste

A rugged stainless steel floor trough built for efficient drainage, easy cleaning, and dependable floor installation.

  • 30-inch by 12-inch floor trough with a 4-inch depth
  • 14-gauge 304 stainless steel construction for durability and corrosion resistance
  • Includes stainless steel subway-style grating
  • Removable perforated strainer basket with handle included
  • Pitched toward waste and supplied with a 4-inch O.D. x 3-inch plumbing sleeve
  • Perimeter flange and vertical step support direct subfloor mounting and floor tile installation

Overall Dimensions:

30.0"W x 12.0"D x 4.0"H

Product Weight:

56.0 lb

14-Gauge 304 Stainless Steel Construction

Durable stainless steel trough construction designed for long-term use in demanding drainage applications.

Subway-Style Stainless Steel Grating

Includes grating made from solid 3/16-inch x 1-inch stainless steel bars for a sturdy walking surface.

Removable Strainer Basket

Perforated stainless steel strainer basket with handle is included for easier cleanup and maintenance.

Pitched Toward Waste

Creased design helps promote proper drainage by directing flow toward the waste outlet.

4-Inch Waste Capacity

Accommodates up to a 4-inch waste pipe and includes a 4-inch O.D., 3-inch long plumbing sleeve.

Tile-Friendly Installation

Perimeter flange mounts directly to the subfloor and a 3/4-inch vertical step accommodates floor tile installation.

TIG-Welded Construction

All TIG welded with external corners welded and polished to a satin finish for a clean, durable build.

Type Floor Trough
Style Subway-Style Grating
Installation Type Floor Model
Material 304 Stainless Steel
Drain Connection Size 4 Inches O.D.
Selling Unit Each
Units Per Case 1
Shipping Width 30 Inches
Shipping Depth 12 Inches
Shipping Height 4 Inches
Shipping Weight 56 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download

Frequently Asked Questions

It includes stainless steel subway-style grating and a removable perforated stainless steel strainer basket with handle.
It accommodates up to a 4-inch waste pipe and includes a 4-inch O.D., 3-inch long plumbing sleeve.
The perimeter flange mounts directly to the subfloor, and the 3/4-inch vertical step is designed to accommodate floor tile installation.
Yes. The trough is pitched toward the waste outlet to help support proper drainage.
Yes. The documentation notes that custom sizes are available, and several factory options are listed.
