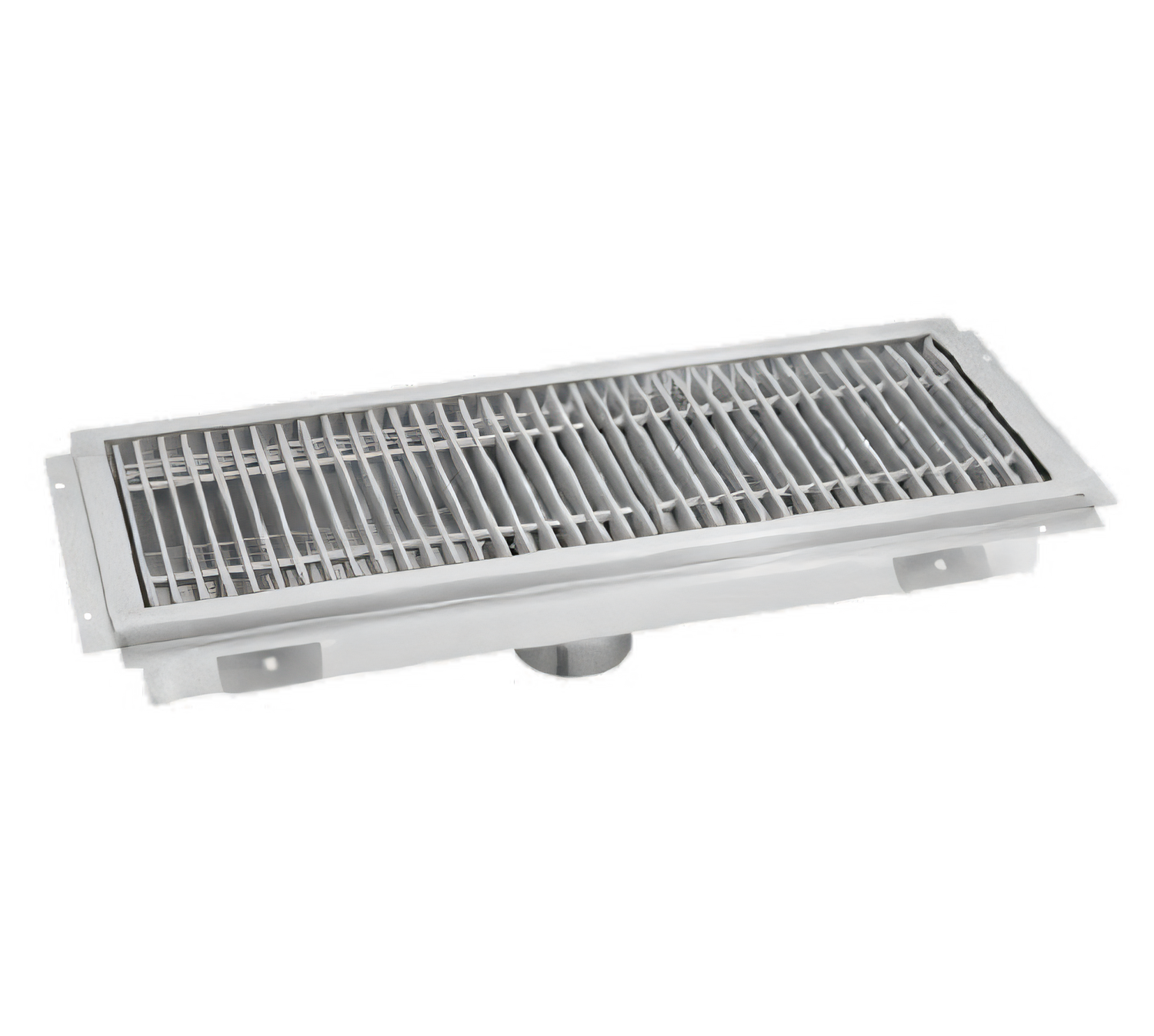

Advance Tabco FTG-1224 24 Inch x 12 Inch x 4 Inch Stainless Steel Floor Trough with Subway-Style Grating

14-Gauge 304 Stainless Steel, Removable Strainer Basket, 4-Inch Waste Pipe

Built for dependable floor drainage, this heavy-duty trough combines welded stainless steel construction with an included subway-style grate and removable strainer basket.

  • 24 inch x 12 inch x 4 inch floor trough built from 14-gauge 304 stainless steel
  • Includes stainless steel subway-style grating plus a removable perforated strainer basket
  • 4-inch O.D. x 3-inch long plumbing sleeve accommodates up to a 4-inch waste pipe
  • Pitched toward the waste outlet to promote efficient drainage
  • TIG-welded construction with polished external corners for durability
  • Perimeter flange and 3/4-inch vertical step support tile-ready installation

Overall Dimensions:

24.0"W x 12.0"D x 4.0"H

Product Weight:

46.0 lb

Heavy-Duty 14-Gauge Construction

Built from 14-gauge 304 stainless steel for durable commercial floor drainage use.

Subway-Style Stainless Steel Grating

Includes stainless steel grating made from 3/16 inch x 1 inch solid 304 stainless steel bars with 9/16 inch inside clearance between bars.

Removable Strainer Basket

A perforated stainless steel strainer basket with handle is included for easy debris removal.

4-Inch Waste Pipe Compatibility

The waste receptacle accommodates up to a 4-inch waste pipe and includes a 4 inch O.D. x 3 inch long plumbing sleeve.

Pitched Drainage Design

The trough is pitched toward the waste to help promote proper drainage.

Tile-Ready Mounting Design

Perimeter flange mounts directly to the subfloor, and the 3/4 inch vertical step accommodates floor tile installation.

TIG-Welded Satin-Finish Corners

All TIG-welded construction with external corners welded and polished to a satin finish.

Type Floor Trough
Style Subway-Style Grating
Installation Type Built-In
Material 304 Stainless Steel
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 12 Inches
Shipping Height 4 Inches
Shipping Weight 46 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download

Frequently Asked Questions

It measures 24 inches long, 12 inches wide, and 4 inches deep.
It is made from 14-gauge 304 stainless steel and includes stainless steel grating.
Yes. A removable perforated stainless steel strainer basket with handle is included.
The trough accommodates up to a 4-inch waste pipe and includes a 4 inch O.D. x 3 inch long plumbing sleeve.
Yes. The documentation notes that custom sizes are available, and troughs 96 inches or longer are made with two drains.
