Advance Tabco FSS-W-305 Stainless Steel Prep Tables
Advance Tabco FSS-W-305 Stainless Steel Prep Tables is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco FSS-W-305 Stainless Steel Prep Tables
Description

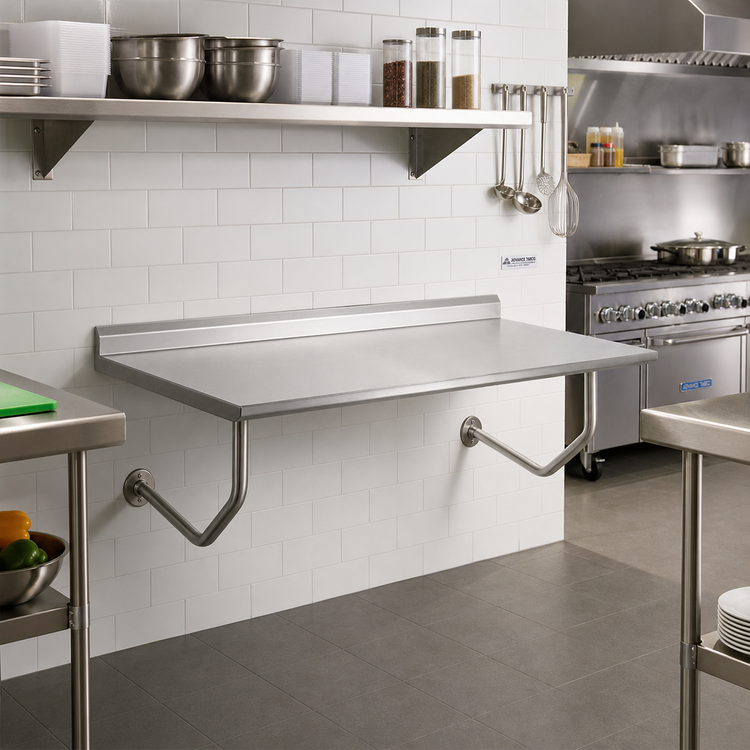

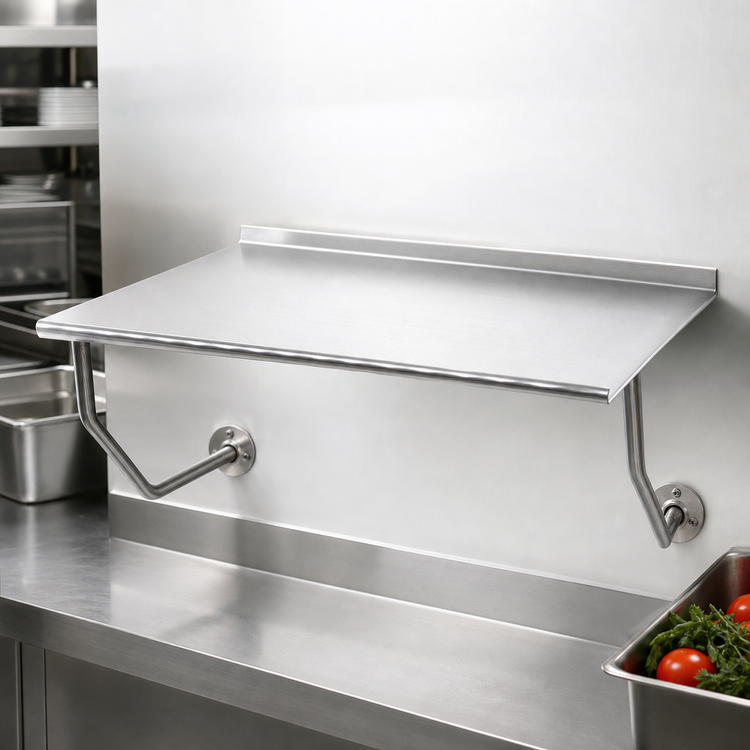

Advance Tabco FSS-W Wall-Mounted Work Table – 60" x 30"
14-gauge type 304 stainless steel with 1 ½" rear backsplashFree up floor space without sacrificing strength. Built for demanding food-service environments, this Advance Tabco wall-mounted table delivers a generous 60" × 30" sanitary work surface that is tough, easy to clean, and NSF approved for direct food contact.
Highlights

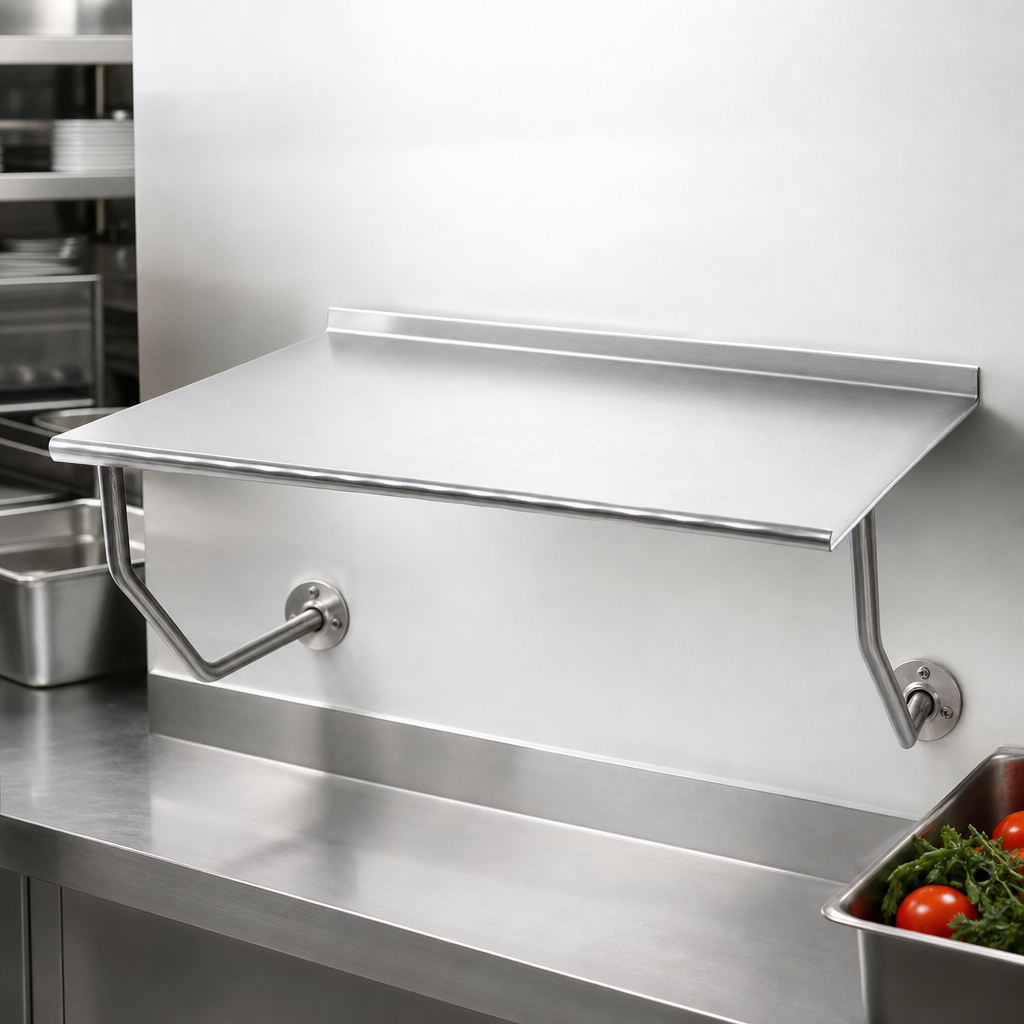

- Heavy-duty 14-gauge type 304 stainless steel top resists corrosion and impact.
- 1 ½" rear up-turn (backsplash) keeps tools & food from slipping behind the table.
- 1 ⅝" sanitary rolled rim on front & sides with smooth bull-nose corners for effortless wipe-down.
- TIG-welded construction; exposed welds are blended to a uniform satin finish.
- Sound-deadened hat channels under the top reduce vibration and noise.
- Complete wall-mount kit: 12-gauge galvanized wall angle, (2) 1 ⅝" Ø tubular 304 SS support brackets, and 5 ¾" embossed stainless wall flanges.
- Rated 25 lbs per sq. ft. – up to ≈ 312 lbs evenly distributed.
- NSF certified for safe use in food zones.
Ideal For
- Food prep & plating lines
- Dish rooms & pot-washing areas
- Packaging stations in commissaries or ghost kitchens
- Laboratories and clean rooms that require wall-hung equipment
Specifications
| Series / Model | FSS-W-305 |
|---|---|
| Overall size | 60" W × 30" D |
| Top material & gauge | 14-gauge type 304 stainless steel |
| Backsplash height | 1 ½" |
| Front / side edge | 1 ⅝" rolled rim, bull-nose corners |
| Support brackets | (2) 1 ⅝" Ø × 16-gauge 304 SS tubular brackets with adjustable flanges |
| Wall angle | 12-gauge galvanized steel |
| Load rating | 25 lbs per sq. ft. (≈ 312 lbs evenly distributed) |
| Weight (ship) | Approx. 85 lbs |
| Certifications | NSF |
Wall fasteners are not included. Choose hardware suitable for your wall type and local code requirements.
Quick Installation
- Slip tubular support brackets into the factory-welded gussets beneath the table and snug the set screws.
- With a helper, level the table against the wall and mark the wall angle and flange holes.
- Drill pilot holes, secure the galvanized wall angle, then bolt the support flanges to the wall.
- Tighten all set screws—your new prep surface is ready for service.
Elevate efficiency and sanitation in one smart move—install an Advance Tabco wall-mounted table and reclaim valuable floor space today.
