Advance Tabco FSS-W-247 Stainless Steel Prep Tables
Description

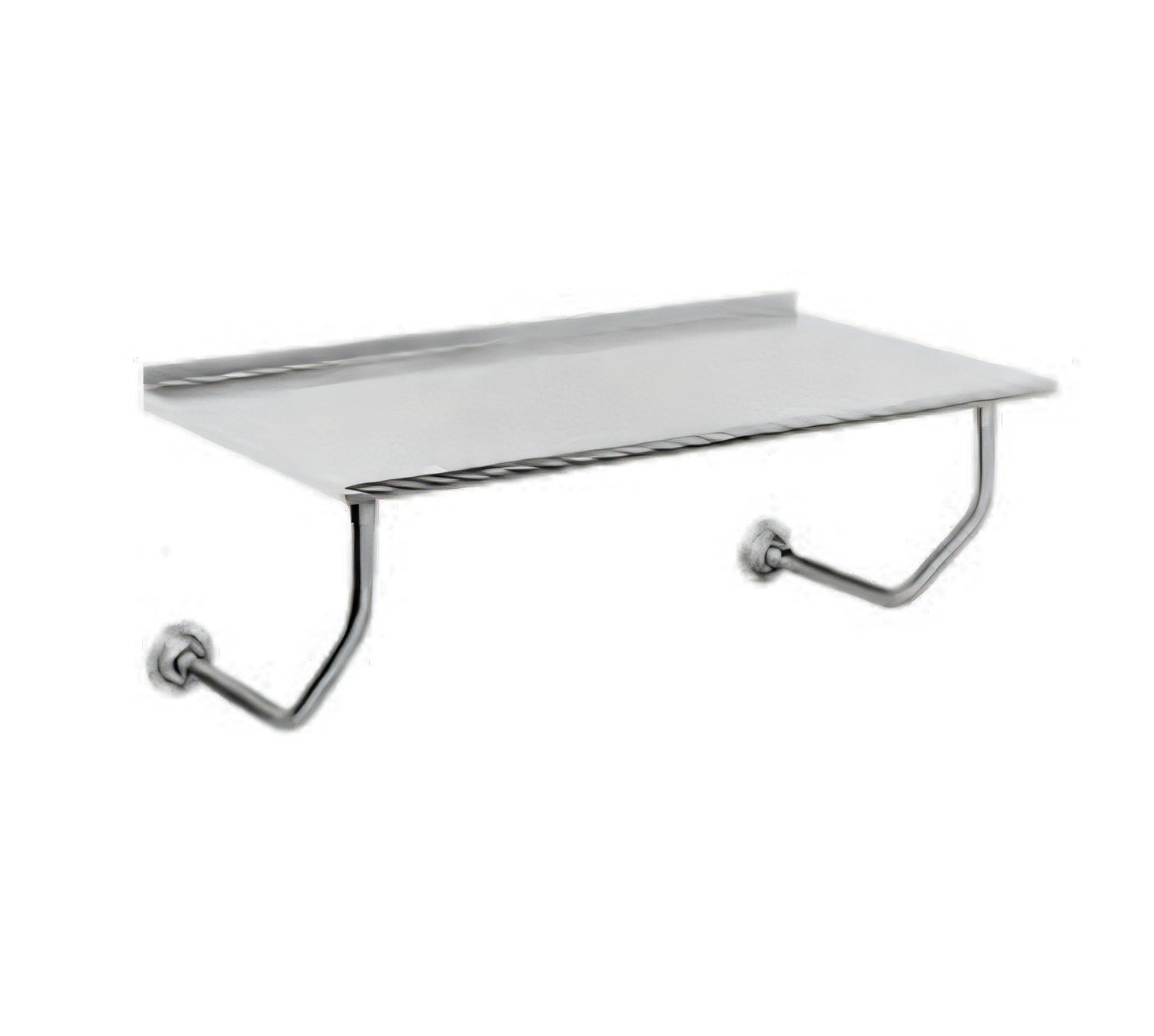

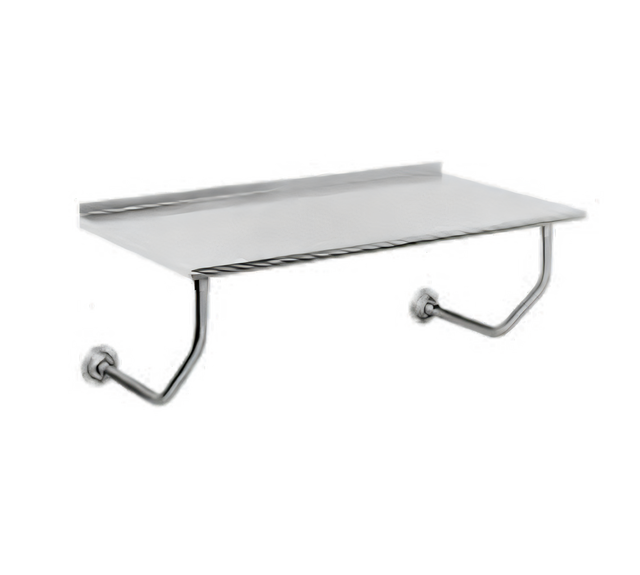

Advance Tabco FSS-W-247 Wall-Mounted Table – 84" W x 24" D

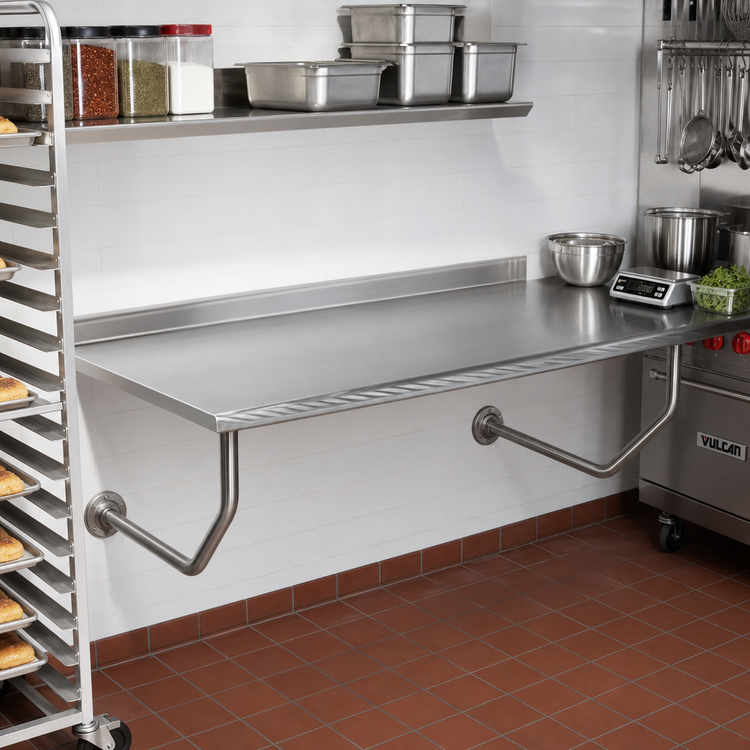

14-Gauge 304 Stainless Steel with 1-1/2" Rear Backsplash | NSF ListedFree up valuable floor space without sacrificing prep room. The Advance Tabco FSS-W-247 brings you an extra-long, heavy-duty stainless work surface that mounts directly to the wall on ultra-strong tubular brackets—perfect for food prep, plating, dish drop, or equipment staging in any commercial kitchen.
Key benefits at a glance

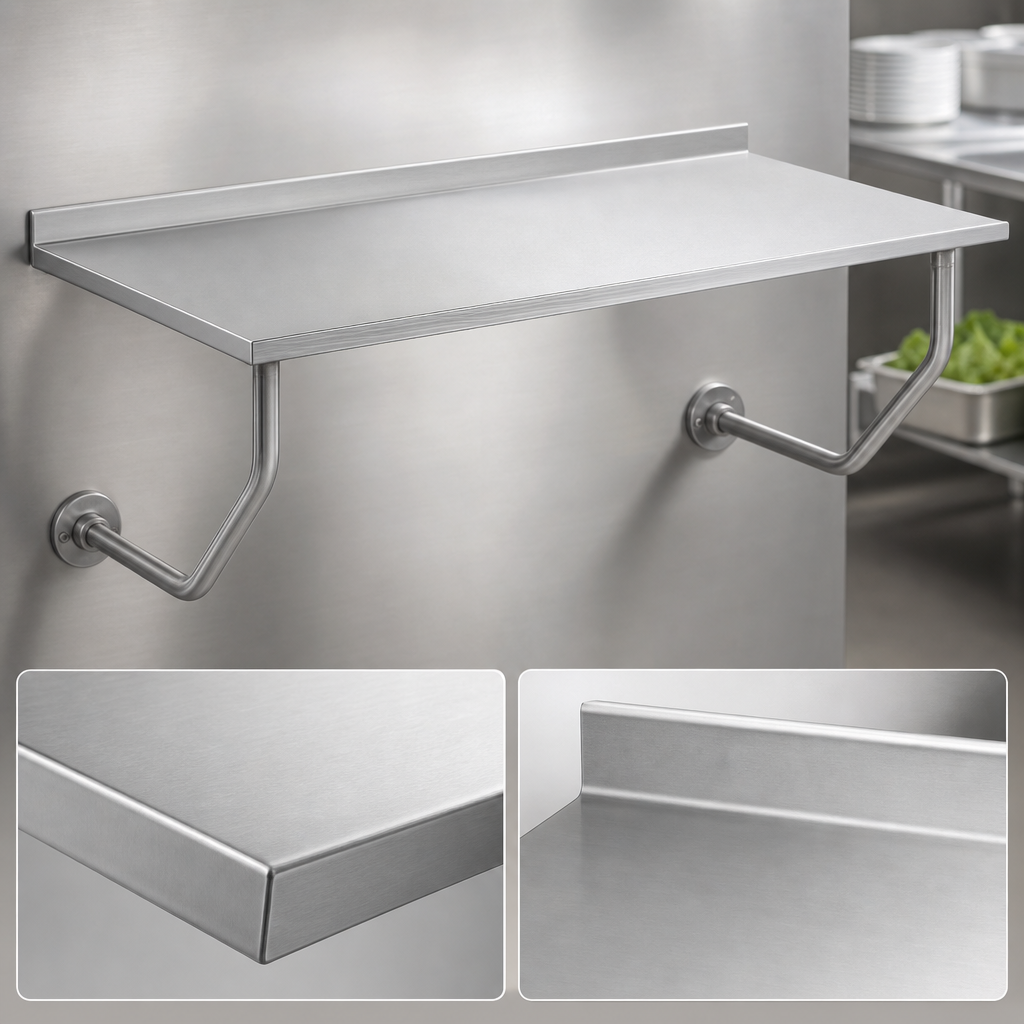

- Premium 14 ga. type 304 stainless steel top resists corrosion, rust, and staining.
- Mirror-polished 1-5/8" rolled rim on front & sides creates a safe, comfortable bull-nose edge.
- 1-1/2" rear up-turn protects walls from splashes and spills.
- Fully TIG-welded construction; exposed welds are ground & polished to match the satin finish.
- Sound-deadening underlay plus roll-formed galvanized hat channels for exceptional rigidity.
- (2) 1-5/8" Ø, 16 ga. stainless tubular support brackets with adjustable embossed wall flanges.
- Galvanized 12 ga. steel wall angle makes leveling and anchoring fast and secure.
- NSF certified for direct food-contact zones—ideal for prep or plating lines.
Technical specifications
| Model | FSS-W-247 |
|---|---|
| Overall width (L-R) | 84 in | 2134 mm |
| Overall depth (F-B) | 24 in | 610 mm |
| Backsplash height | 1.5 in | 38 mm |
| Top material | 14 ga. 304 stainless steel (satin finish) |
| Bracket material | 1-5/8" Ø, 16 ga. 304 stainless tubing |
| Load rating | 25 lb per sq ft (≈ 350 lb evenly distributed) |
| Approx. ship weight | 103 lb | 46.7 kg |
| Certifications | NSF |
Simple 4-step installation
- Attach tubular brackets to gussets and hand-tighten set screws.
- Hold table level against wall and mark bracket-flange & wall-angle holes.
- Drill pilot holes and anchor the galvanized wall angle and flanges (hardware not included).
- Tighten all set screws—your new workspace is ready for action!
A detailed instruction sheet ships in the box.
Need a different size or an integral sink bowl? Check out the complete Advance Tabco FSS-W series or contact us for custom fabrication.
