Advance Tabco  |  SKU: FS-WM-80KV  |  UPC: 747545211590

Advance Tabco FS-WM-80KV Hand Sinks

$5,070.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Optional mixing valve Installation & operation
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

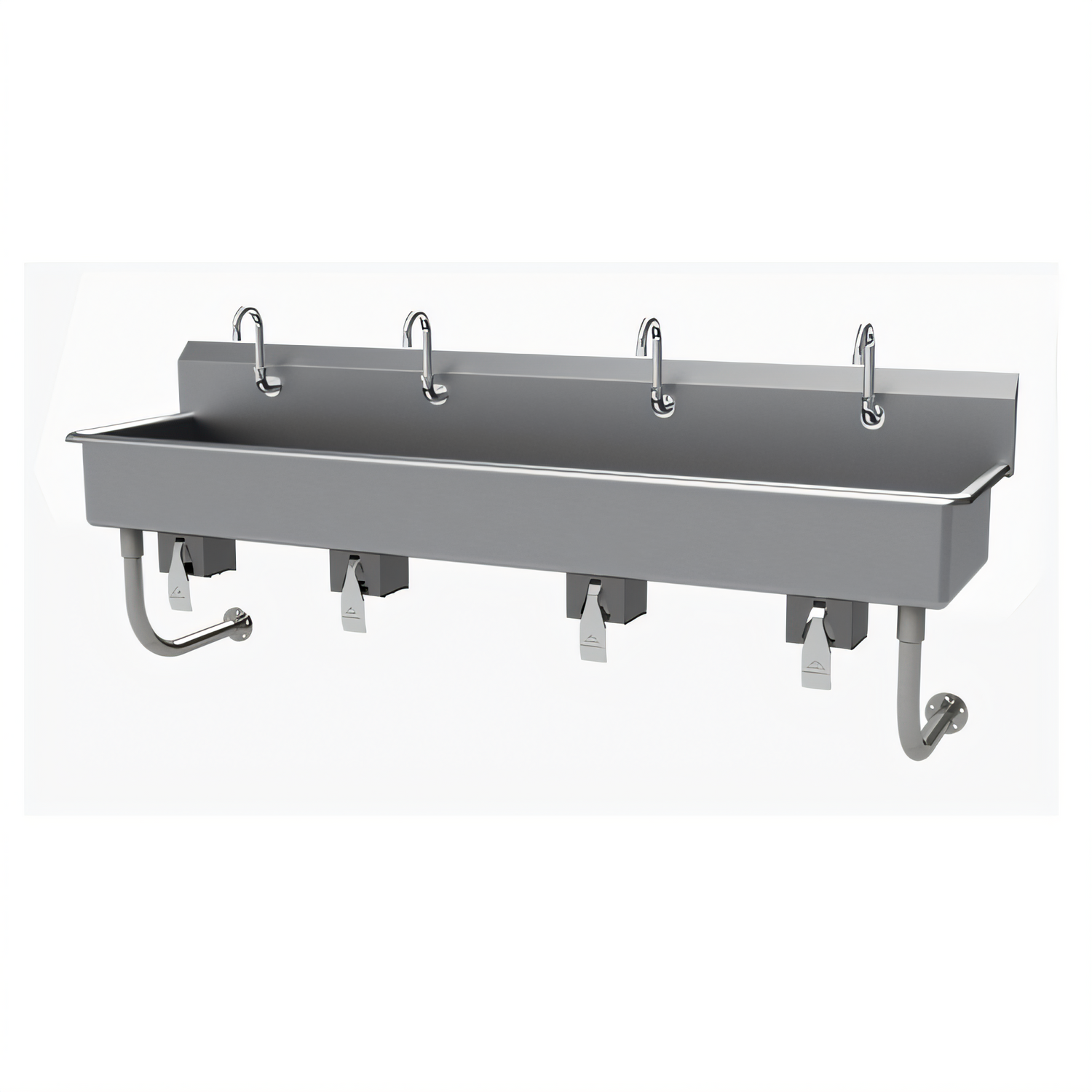

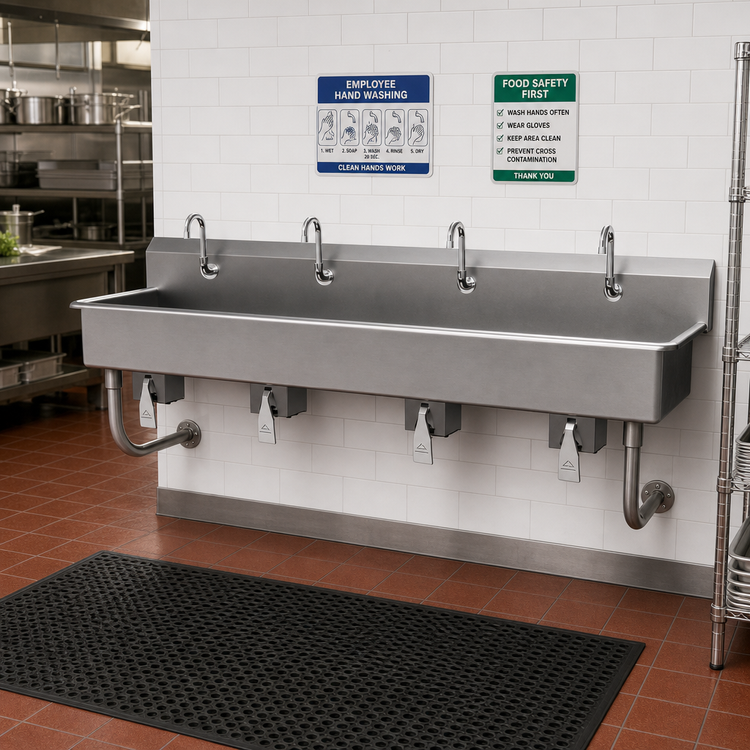

Advance Tabco 80" Multi-Wash Wall Mounted Hand Sink – 4 Station Knee Valve

Model FC-WM-80KV • NSF Certified • 14 ga 304 Stainless Steel

Built for the busiest prep areas, this 4-station Advance Tabco wall mounted sink delivers true hands-free hygiene. Heavy-duty 14-gauge type 304 stainless steel, an extra-high backsplash and knee-operated valves make it the professional choice for commercial kitchens, labs and manufacturing environments where sanitation and durability are non-negotiable.

Key Features

  • Full 80 in. wide deck with (4) individual hand-wash stations
  • Knee valves (Advance Tabco 7-PS-32) for completely hands-free operation
  • (4) 1-hole punchings with included K-121 gooseneck spouts
  • 8-½ in. high backsplash helps contain splashes and meets code
  • 16 in. front-to-back x 8 in. deep bowls – generous room for effective washing
  • TIG-welded, 14 ga type 304 stainless steel sink body with easy-clean satin finish
  • 1-⅝ in. tubular 304 stainless steel wall supports keep the floor area clear
  • Includes (2) stainless “Z” wall brackets for fast, secure installation
  • 3-½ in. K-6 rear basket drain supplied
  • NSF listed for food-service hand-washing applications

At-a-Glance Specs

Overall Width 80 in. (203 cm)
Overall Depth 19 ½ in. (49.5 cm)
Overall Height 29 ½ in. (74.9 cm) to deck
Backsplash Height 8 ½ in.
Bowl Size (each) 16 in. front-to-back × 8 in. deep
Stations / Faucets 4 stations • 4 gooseneck spouts
Operation Foot-free knee valves (1 per station)
Drain 3-½ in. rear basket drain (K-6)
Material & Gauge 14-ga type 304 stainless steel
Mounting Wall mounted – includes “Z” brackets & tubular supports
Certifications NSF, Lead-Free compliant

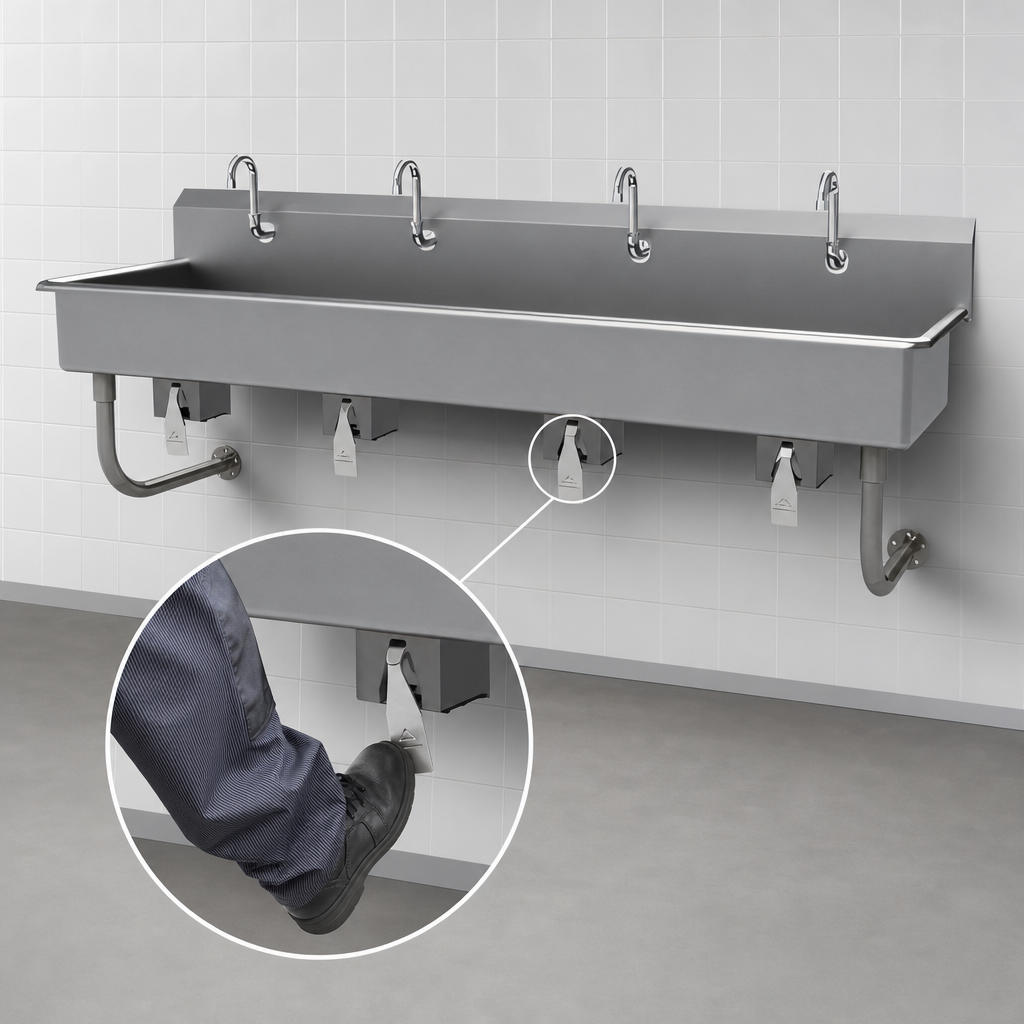

Why Choose Knee-Operated?

  • Reduces cross-contamination by eliminating faucet handles
  • Meets stringent health-department hand-wash requirements
  • Simple mechanical design – no batteries or electronics to fail

Need thermostatic mixing? This sink accepts the optional Advance Tabco K-425 mixing valve (sold separately).

California Prop 65 Notice: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

29.5in

Width

80.0in

Depth

19.5in

Shipping Weight

150.0lbs

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Faucet

faucet included

Bowl Height (rim to drain)

8" deep

Style

wall mounted

Features

multi-station

Specifications

Multiwash Hand Sink, splash mount faucet provision, wall mounted, with knee valve, 80"W x 19-1/2"D x 29-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (4) single faucet holes, gooseneck spouts, includes 3-1/2" rear basket drain, 14 gauge 304 stainless steel construction, tubular stainless steel wall supports, NSF
