Advance Tabco FS-WM-80EFADA Hand Sinks
Advance Tabco FS-WM-80EFADA Hand Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco FS-WM-80EFADA Hand Sinks
Description

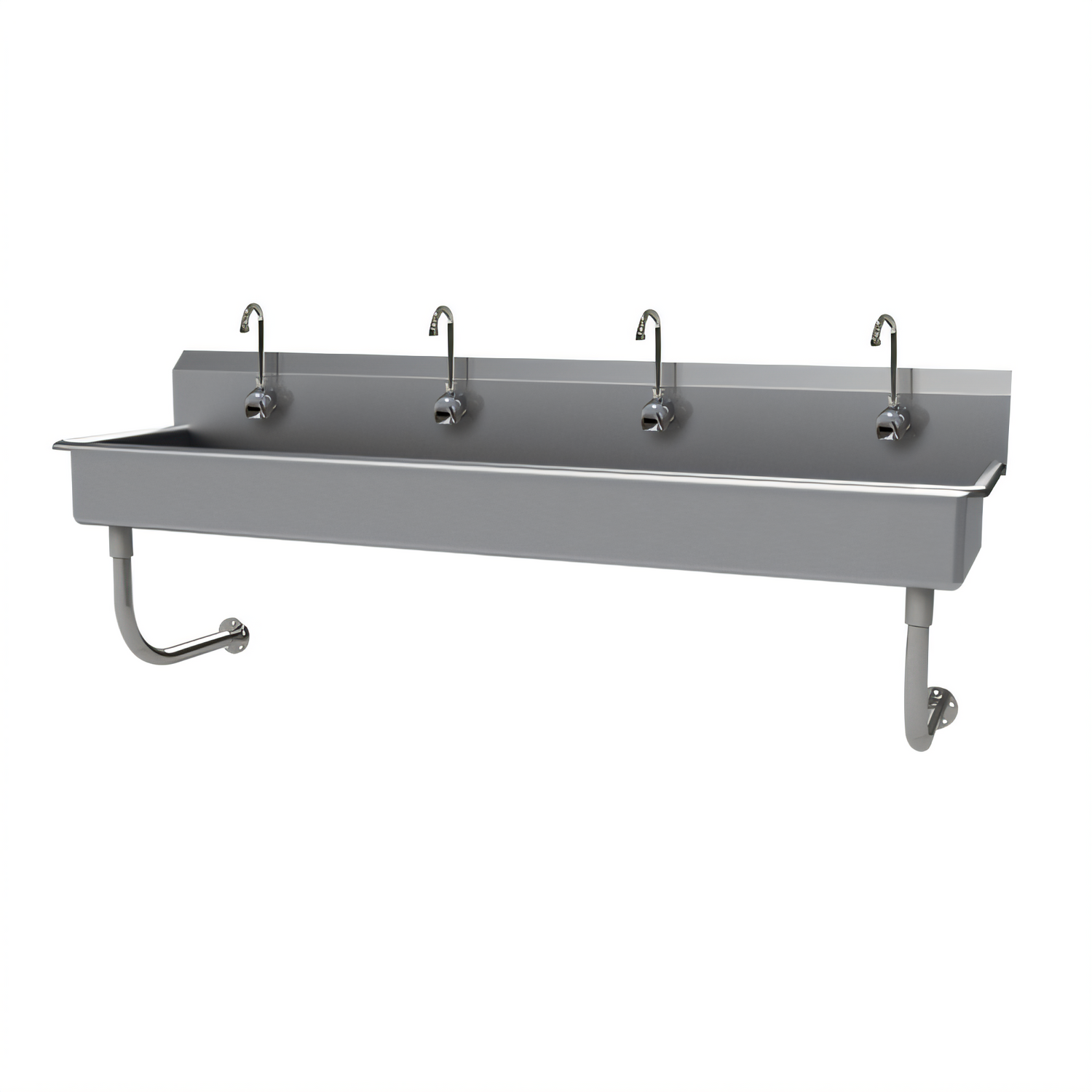

Advance Tabco FC-WM-80-EFADA Multi-Wash Hand Sink – 4 Station
ADA-compliant wall-mount sink with electronic hands-free faucetsKeep high-traffic workspaces safe, sanitary and code-compliant with this heavy-duty four-station hand-washing center. Built from 14 gauge 304 stainless steel and equipped with touch-free K-175 splash-mount faucets, the FC-WM-80-EFADA delivers reliable performance in food-service, healthcare, laboratory and industrial environments while providing the knee-clearance required by the Americans with Disabilities Act (ADA).
Why You’ll Love It
- Hands-free operation: four NSF-listed K-175 electronic faucets reduce cross-contamination.
- ADA-ready: 5 inch bowl depth and open tubular wall supports meet required knee-clearance.
- Rugged 14 ga type 304 stainless steel – TIG-welded, satin-finished and built for a lifetime of service.
- One-piece 8 1⁄2″ backsplash contains splashes and simplifies wall clean-up.
- Single rear 3 1⁄2″ basket drain streamlines plumbing while preventing debris clogs.
- Factory-punched single faucet hole at each station for fast, accurate installation.
- Supplied “Z” brackets & tubular wall supports provide rock-solid mounting with full floor clearance.
- Universal power supply (100–240 VAC) and control box included—just plug in and go.
Technical Specifications
| Overall width | 80″ (203 cm) |
|---|---|
| Overall depth × height | 19 1⁄2″ D × 25 1⁄2″ H |
| Bowl size (each station) | 16″ F-B × 5″ D |
| Number of stations | 4 |
| Backsplash height | 8 1⁄2″ |
| Material / gauge | 304 stainless steel, 14 ga |
| Faucet type | (4) K-175 splash-mount, sensor-activated, 2.2 GPM |
| Drain | Single 3 1⁄2″ K-6 rear basket drain (included) |
| Mounting | Wall mount on stainless “Z” brackets & tubular supports |
| Certifications | NSF, NSF 61/9 lead-free, ADA compliant |
| Power | 100–240 VAC adapter (UL-listed) to control box |
Package Contents
- Advance Tabco FC-WM-80-EFADA 4-station sink body
- (4) K-175 electronic splash-mount faucets with swing spouts
- UL-listed control box & multi-voltage power adapter
- (1) 3 1⁄2″ rear basket drain assembly
- Stainless steel “Z” wall brackets & tubular wall supports
- Installation and operation manual
Certifications & Compliance
- NSF listed for food-service use
- NSF 61/9 lead-free faucet components
- ADA 2010 Standards – Section 306 knee & toe clearance
Recommended mounting height: position the top of the supplied “Z” wall brackets 42 1⁄2″ above the finished floor. Always verify local plumbing and accessibility codes before installation.
