Advance Tabco FS-WM-80 Hand Sinks
Description

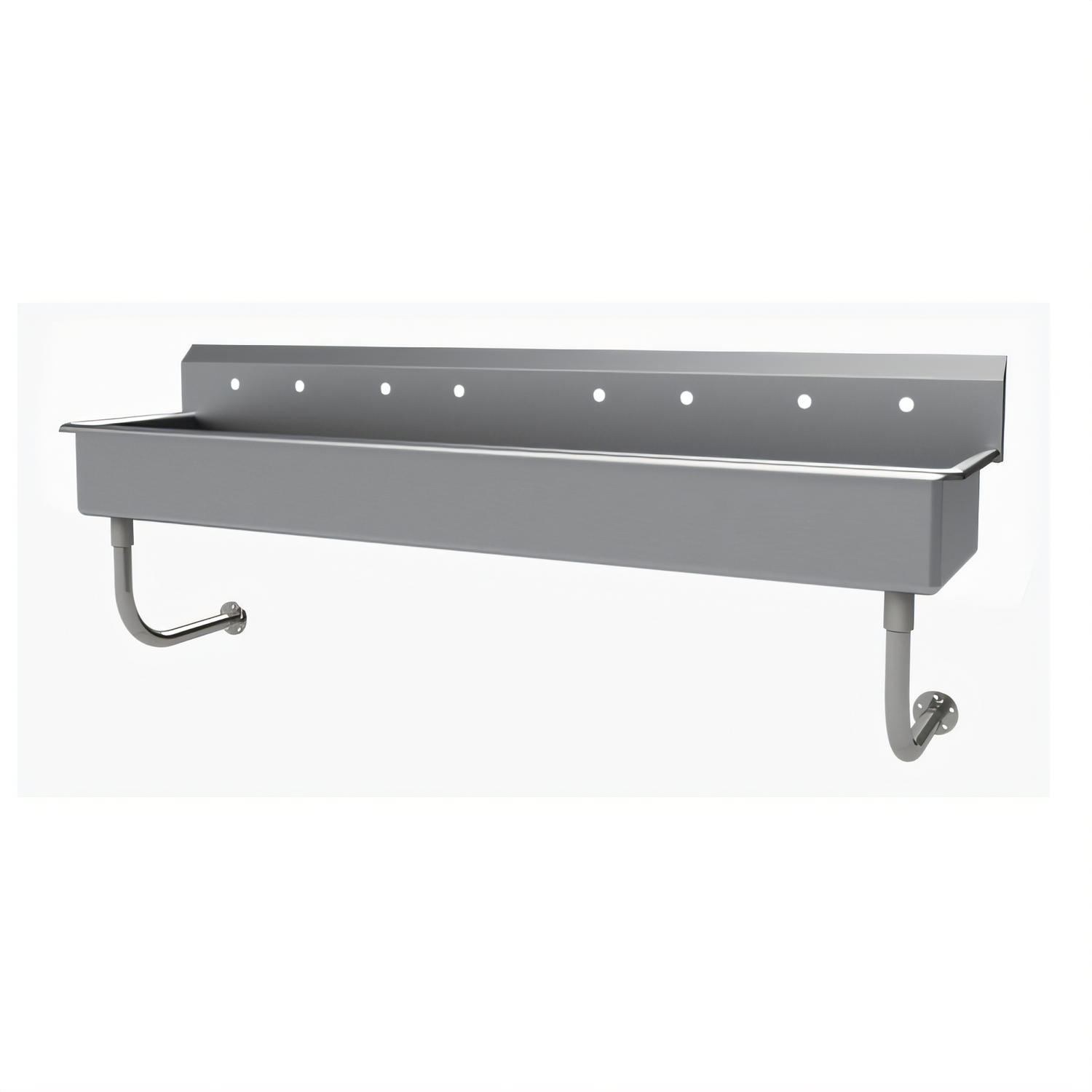

Advance Tabco FS-WM-80 Multi-Wash Hand Sink – 80" 4-Station, 14 Gauge 304 Stainless Steel
Faucets not included – ready for four 8" O.C. splash-mount faucetsEngineered for high-volume hand-washing, the Advance Tabco FS-WM-80 combines heavy-duty 14-gauge strength, open-floor clearance, and full NSF compliance. Ideal for commercial kitchens, production areas, labs, and anywhere multiple users need quick, sanitary access to a sink.
Key Features

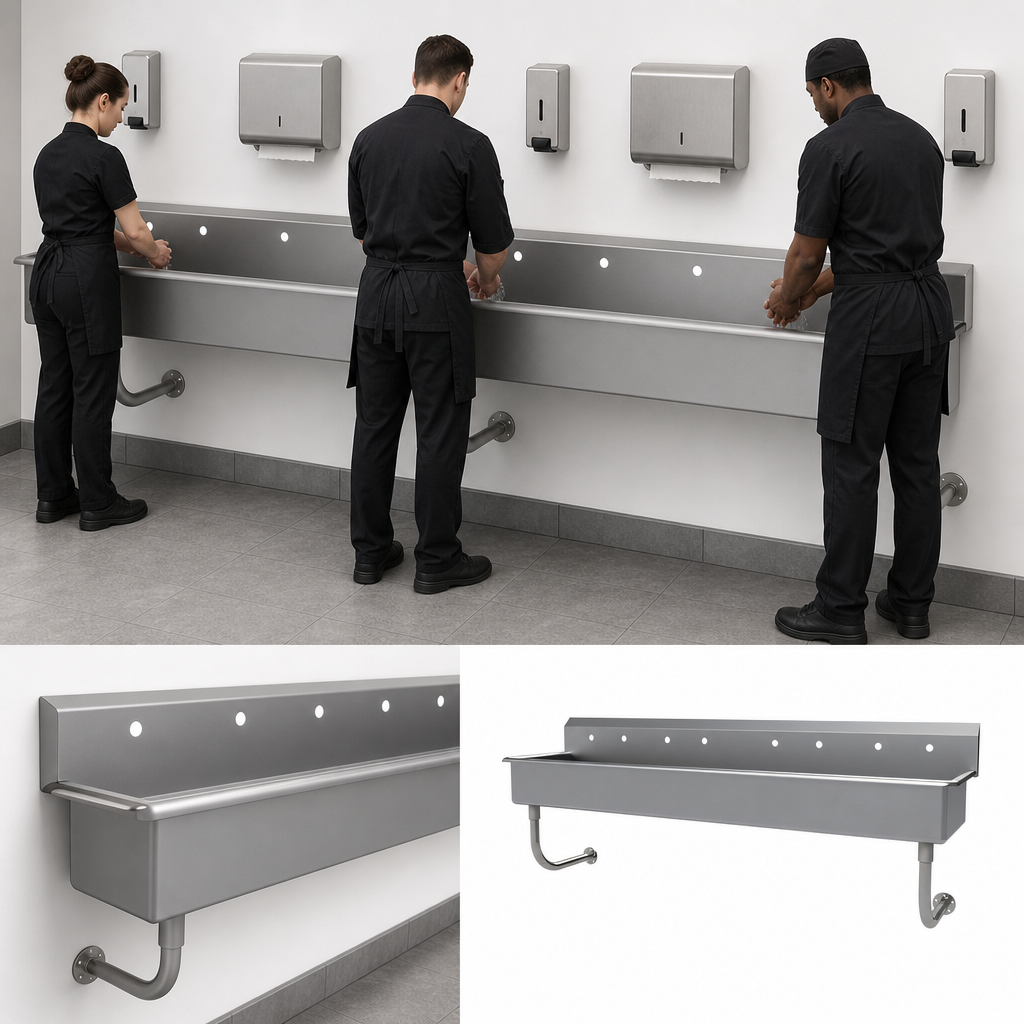

- Four user stations across an 80" wide sink—perfect for busy shift changes.
- 16" front-to-back bowl depth with an 8" water depth to contain splashes.
- 8-1/2" high integral backsplash protects surrounding walls.
- (4) sets of 8" on-center splash-mount faucet holes let you choose the faucets that fit your operation.
- Includes one 3-1/2" K-6 rear basket drain for fast water evacuation.
- 14-gauge type 304 stainless steel—TIG-welded and polished to a satin finish for superior strength and corrosion resistance.
- 1-5/8" tubular stainless steel wall supports and “Z” mounting brackets provide rock-solid installation while leaving the floor completely clear for easy cleaning.
- NSF listed for foodservice hand-sink use.
Why You’ll Love It
- Extra-heavy 14 ga. construction resists dents and everyday abuse far better than lighter sinks.
- Single rear drain simplifies plumbing and reduces installation costs.
- Wall-mount design frees up valuable floor space, improving workflow and sanitation.
- Satin finish hides scratches and wipes clean fast—keeping your facility looking professional.
Specifications
| Model | FS-WM-80 (no faucet) |
|---|---|
| Stations | 4 |
| Overall Dimensions | 80" W × 19-1/2" D × 29-1/2" H |
| Bowl Size (each) | 16" F-B × 8" Deep |
| Backsplash Height | 8-1/2" |
| Faucet Punchings | (4) sets, 8" O.C., 1-1/8" dia. |
| Drain | (1) 3-1/2" rear basket drain (included) |
| Material Thickness | 14 ga. 304 stainless steel |
| Wall Supports | 1-5/8" tubular stainless steel & “Z” brackets (included) |
| Certifications | NSF |
Installation Notes
- Mount “Z” wall brackets to solid blocking or concrete at 42-1/2" from finished floor to the top of the bracket.
- Hang the fully welded sink on the brackets, connect the single drain, and install your chosen 8" O.C. faucets.
- Plumber’s putty or silicone sealant is recommended around the drain for a watertight seal.
Need faucets or hands-free valves? Pair this sink with Advance Tabco K-159 manual gooseneck faucets, electronic, knee, or toe-operated valves (sold separately) to create the perfect hand-washing station.
