Advance Tabco  |  SKU: FS-WM-80-F  |  UPC: 747545215574

Advance Tabco FS-WM-80-F Hand Sinks

$4,057.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

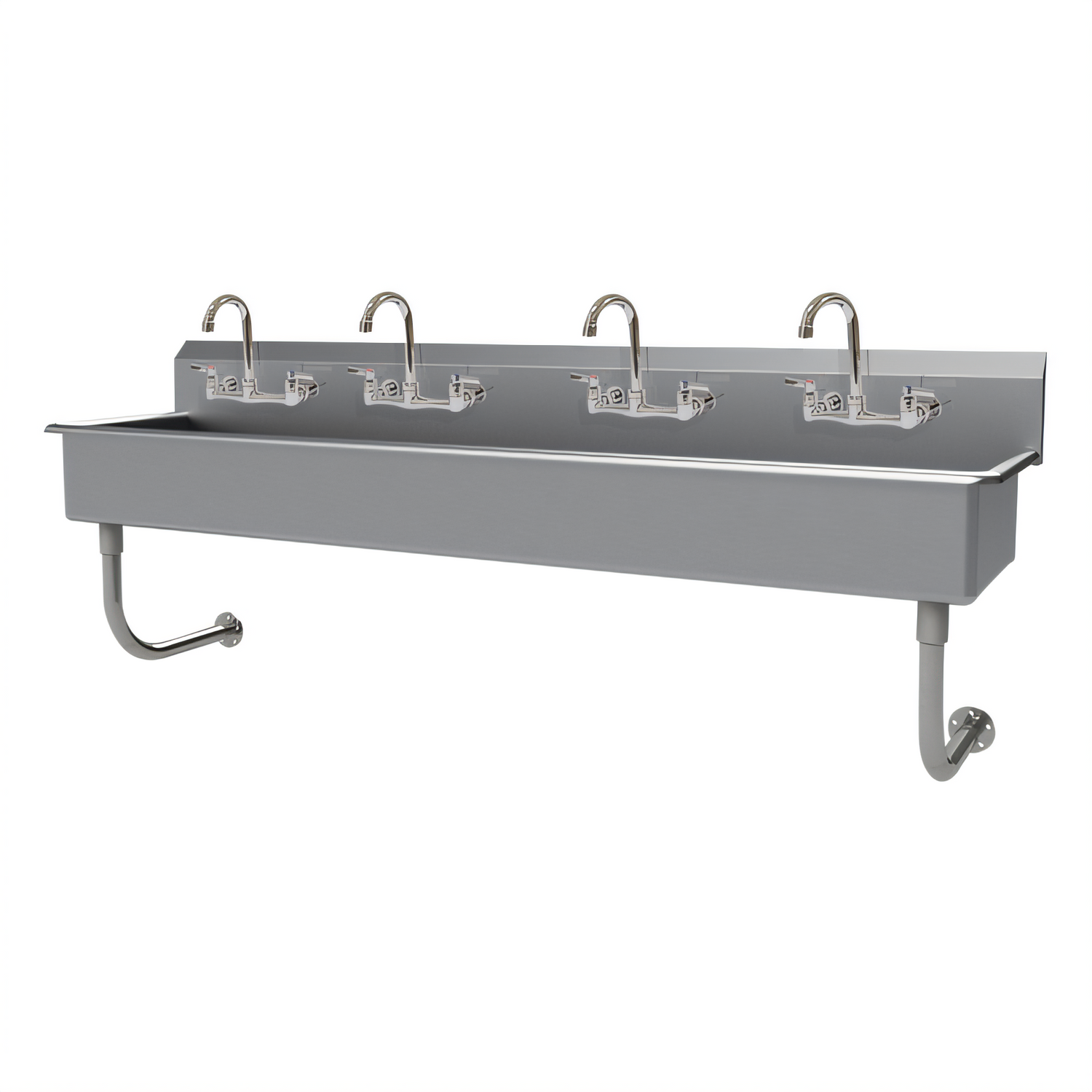

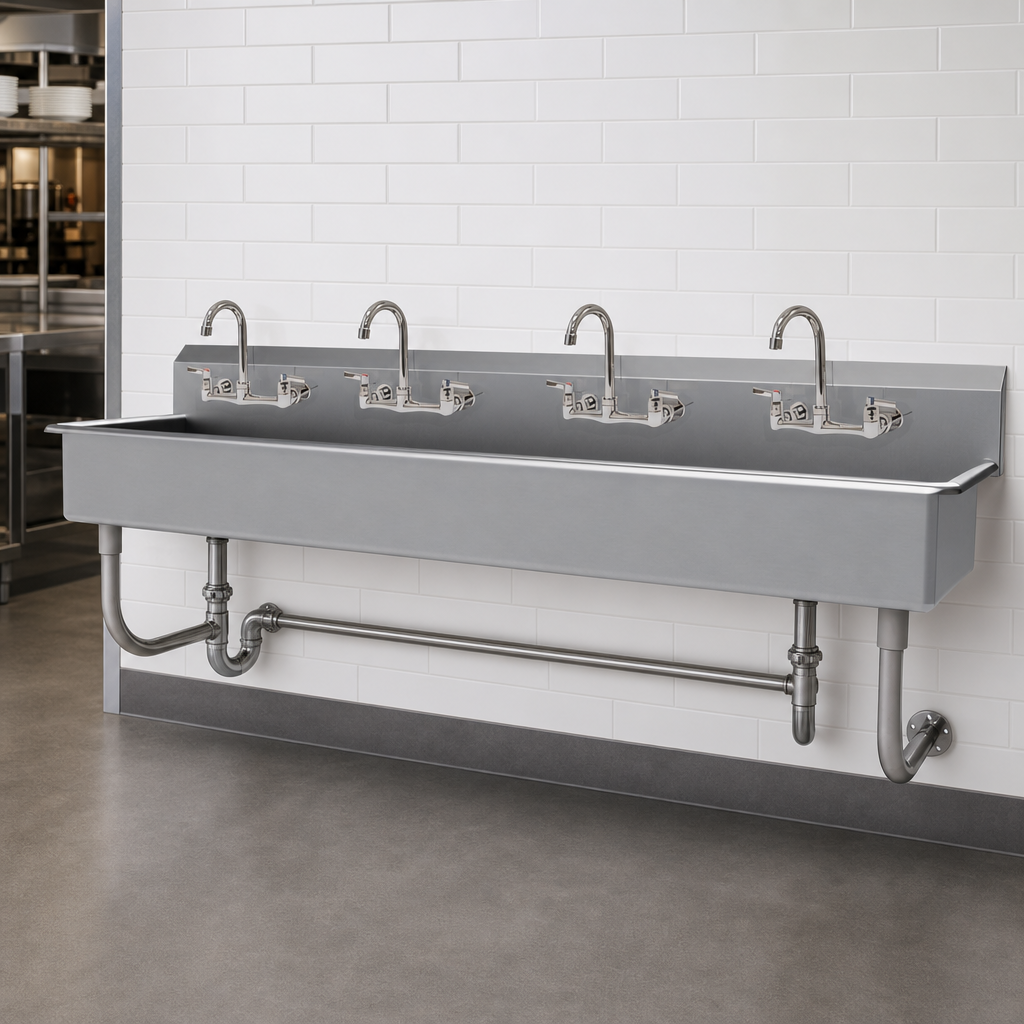

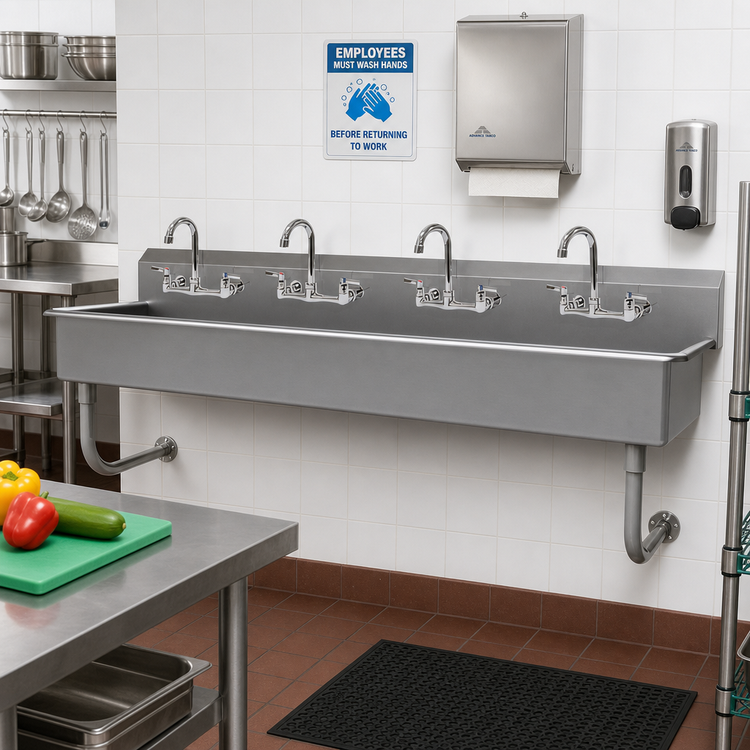

Advance Tabco 80" Wall-Mounted Multi-Wash Hand Sink — 4 Station

Model FS-WM-80-F • Includes (4) K-159 Manual Gooseneck Faucets

Engineered for the rigorous demands of commercial foodservice, manufacturing and institutional environments, this four-station Advance Tabco hand sink delivers dependable performance, superior sanitation and streamlined wall mounting that keeps valuable floor space clear.

Key Features

  • Four wash stations on 8" centers — ideal for shift changes and peak traffic.
  • (4) NSF-listed K-159 8 ½" gooseneck faucets included for a complete, ready-to-install package.
  • Fabricated from extra-heavy 14 gauge type 304 stainless steel for maximum durability and corrosion resistance.
  • One-piece TIG-welded construction; seams are blended to a satin finish for easy cleaning.
  • 16" front-to-back x 8" deep bowl offers ample room for proper hand washing.
  • 8 ½" high integral backsplash contains splashes and is pre-punched for the supplied faucets.
  • 3 ½" rear basket drain (K-6) helps trap solids and simplifies plumbing connections.
  • Includes heavy-duty stainless steel “Z” wall brackets and 1 5/8" tubular wall supports — provides full clearance under the sink.
  • NSF certified for hand-wash use in all foodservice applications.

Specifications

Overall Width 80"
Overall Depth 19 1/2"
Overall Height 29 1/2"
Bowl Size (L × F-B × Depth) Approx. 76" usable length × 16" × 8"
Number of Stations 4
Faucet Centers 8" on center  (splash-mount)
Faucets Included (4) K-159 manual gooseneck faucets, 8 ½" spout height
Drain 3 1/2" K-6 basket drain (rear outlet)
Material & Gauge 14 ga. 304 stainless steel
Mounting Hardware Stainless steel “Z” brackets & tubular supports (included)
Backsplash Height 8 1/2"
Certifications NSF

Ideal Applications

  • Food processing & packaging plants
  • Commercial kitchens, commissaries and ghost kitchens
  • Pharmaceutical, laboratory or clean-room wash areas
  • Schools, stadiums and other high-volume public facilities

Recommended rough-in height: mount “Z” brackets so the top of the bracket is 42 1/2" above finished floor. Always confirm local plumbing codes before installation.

Prop 65 Notice:  The supplied faucets can expose you to chemicals including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

29.5in

Width

80.0in

Depth

19.5in

Shipping Weight

128.0lbs

Features

multi-station

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Faucet

faucet included

Bowl Height (rim to drain)

8" deep

Style

wall mounted

Specifications

Multiwash Hand Sink, splash mount faucet provision, wall mounted, includes (4) faucets, 80"W x 19-1/2"D x 29-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (4) sets of faucet holes 8" OC, includes 3-1/2" rear basket drain, 14 gauge 304 stainless steel construction, tubular stainless steel wall supports, NSF
