Description

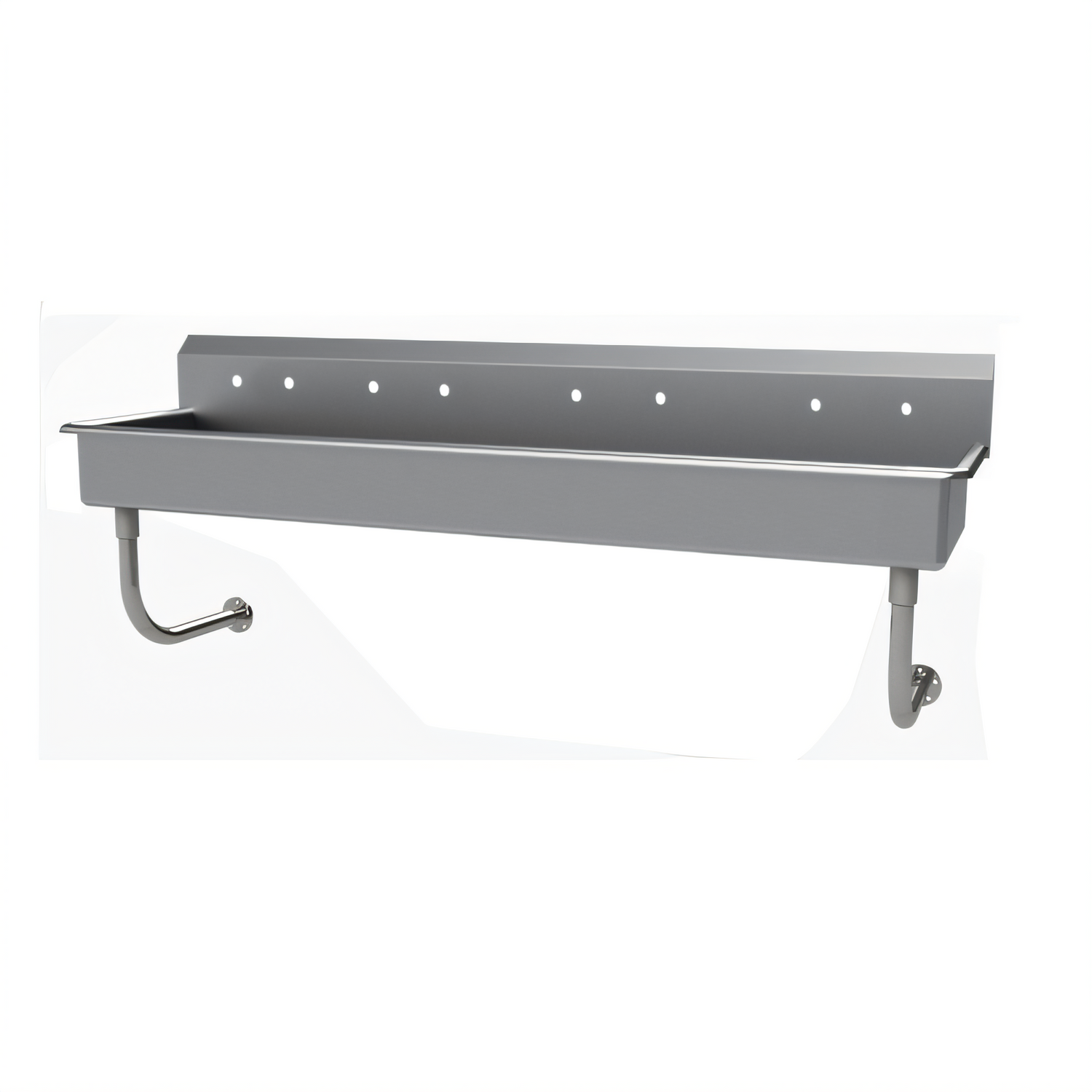

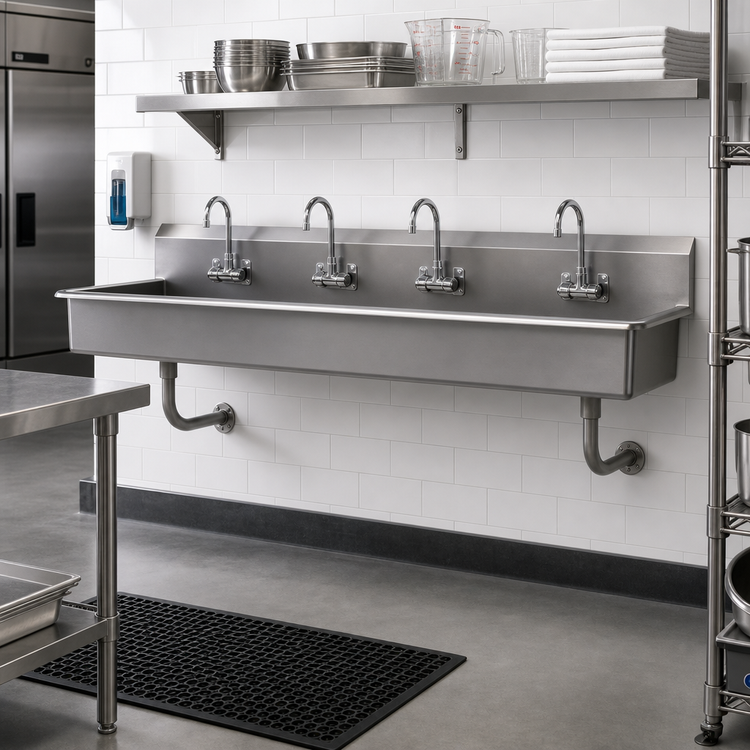

Advance Tabco FS-WM-80-ADA 4-Station Wall-Mounted Multi-Wash Hand Sink

80 in W  |  14 ga 304 Stainless Steel  |  ADA Compliant  |  NSF Listed

Built for high-traffic environments that demand absolute sanitation, this Advance Tabco multi-station sink delivers exceptional durability, user comfort and code compliance in one space-saving package.

Key Features

  • Four hand-wash stations built into a single 80 inch sink body—maximize throughput without sacrificing wall space.
  • ADA-friendly 5 inch bowl depth with 16 inch front-to-back clearance keeps water contained while meeting reach-depth requirements.
  • 8-1/2 inch integrated backsplash punched with (4) sets of 8" on-center faucet holes for splash-mount installations.

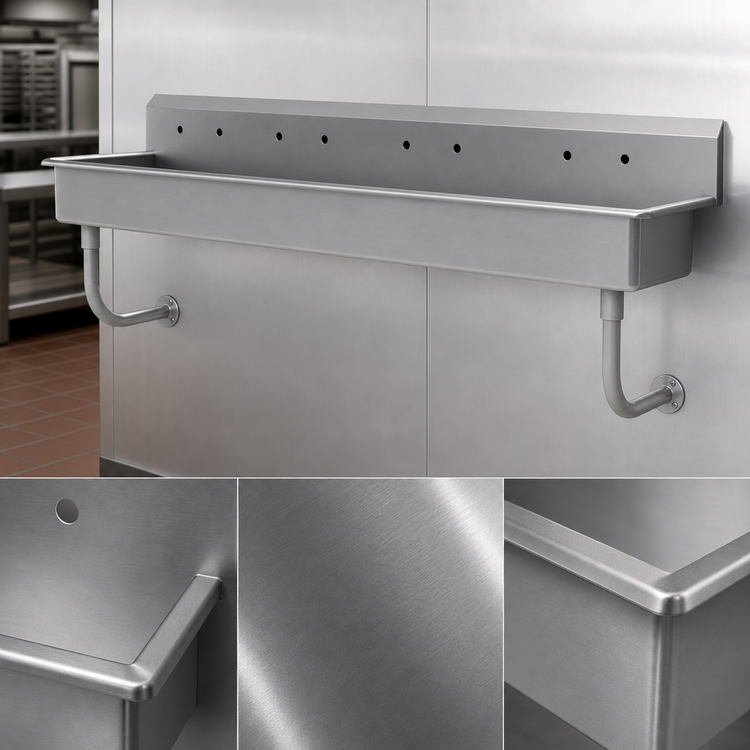

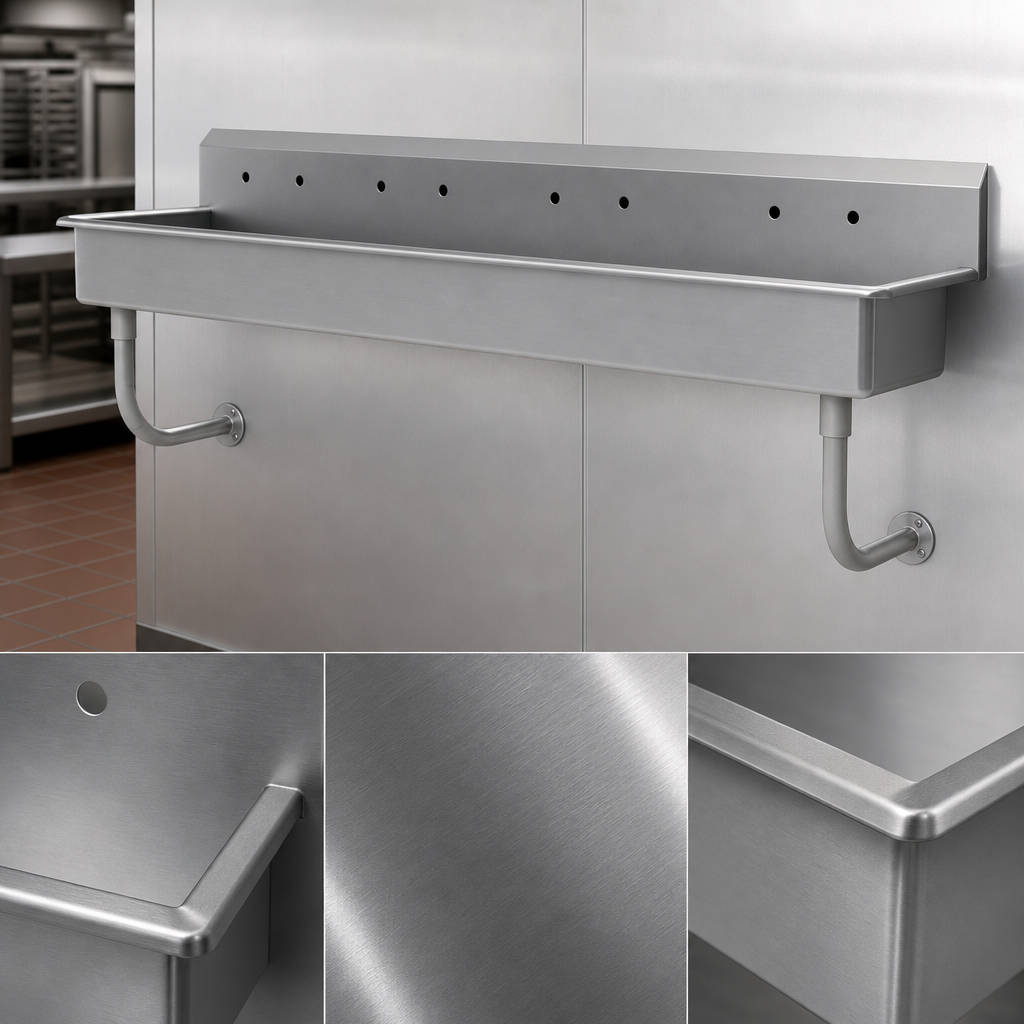

  • Extra-heavy 14 gauge Type 304 stainless steel construction—TIG welded and blended to a smooth satin finish.
  • Includes 3-1/2" rear basket drain (K-6 style) for each station.
  • 1-5/8" tubular stainless steel wall supports and “Z” mounting brackets offer full knee clearance for ADA compliance.
  • Wall-mounted design keeps floors clear for effortless cleaning and eliminates the need for legs.
  • NSF certified for food-service sanitation and fully ADA compliant for forward reach, knee & toe clearance.

Perfect For

  • Food prep & commissary areas
  • Healthcare, labs & veterinary clinics
  • School cafeterias & classrooms
  • Industrial production & packaging lines
  • Pharmaceutical & clean-pack environments

Specifications

Overall Dimensions (W × D × H) 80" × 19-1/2" × 25-1/2"
Bowl Interior (each) 16" front-to-back × 5" deep
Backsplash Height 8-1/2"
Faucet Mount (4) splash-mount sets, 8" on-center  •  Faucets sold separately
Drain 3-1/2" rear basket drain (included)
Material / Thickness 14 ga Type 304 stainless steel
Mounting Hardware Stainless “Z” wall brackets & tubular supports (included)
Certifications NSF  •  ADA compliant

Quick Installation Snapshot

  • Anchor supplied “Z” brackets to studs or masonry at 42-1/2" from finished floor to bracket top.
  • Hang sink on brackets and attach tubular wall supports.
  • Install 3-1/2" basket drain and connect to waste line.
  • Mount any 8" OC splash-mount faucets (3/8" NPT inlets) and connect water supply.

Need faucets? Pair this sink with Advance Tabco K-161-LU wrist-blade or any 8" OC splash-mount faucet set (sold separately).

California Proposition 65 Warning: Installing faucets or related plumbing components on this product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF, ADA Compliant

Height

25.5in

Width

80.0in

Depth

19.5in

Shipping Weight

100.0lbs

Style

wall mounted

Bowl Width (left to right)

20" & up

Bowl Depth (front to back)

15" - 19" front-to-back

Faucet

faucet not included

Bowl Height (rim to drain)

5" deep

Features

multi-station

Specifications

Multiwash Hand Sink, splash mount faucet provision, wall mounted, 80"W x 19-1/2"D x 25-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (4) sets of faucet holes 8" OC, includes 3-1/2" rear basket drain, 14 gauge 304 stainless steel construction, tubular stainless steel wall supports, NSF, ADA compliant
