Advance Tabco  |  SKU: FS-WM-80-ADA-F  |  UPC: 747545215628

Advance Tabco FS-WM-80-ADA-F Hand Sinks

$4,035.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

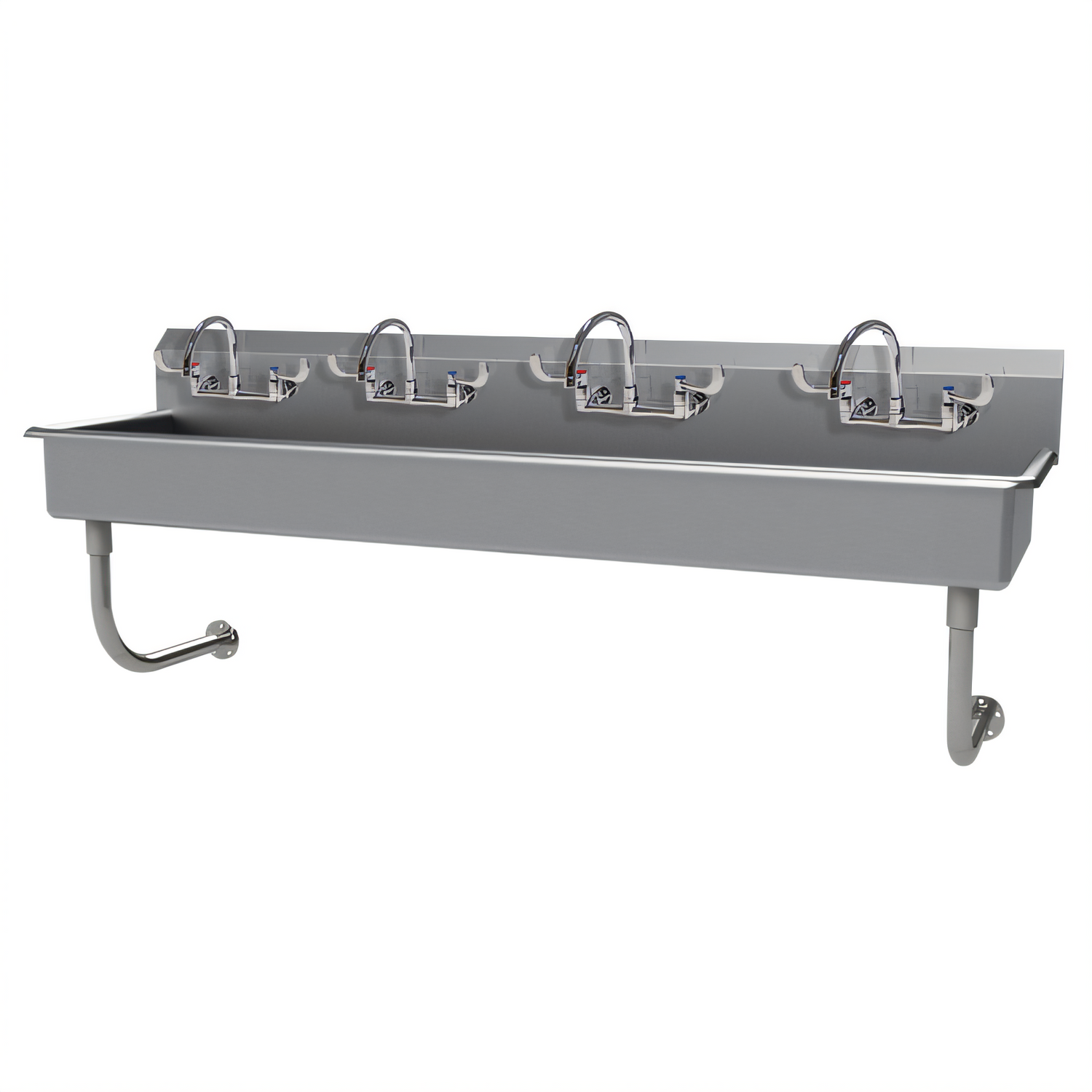

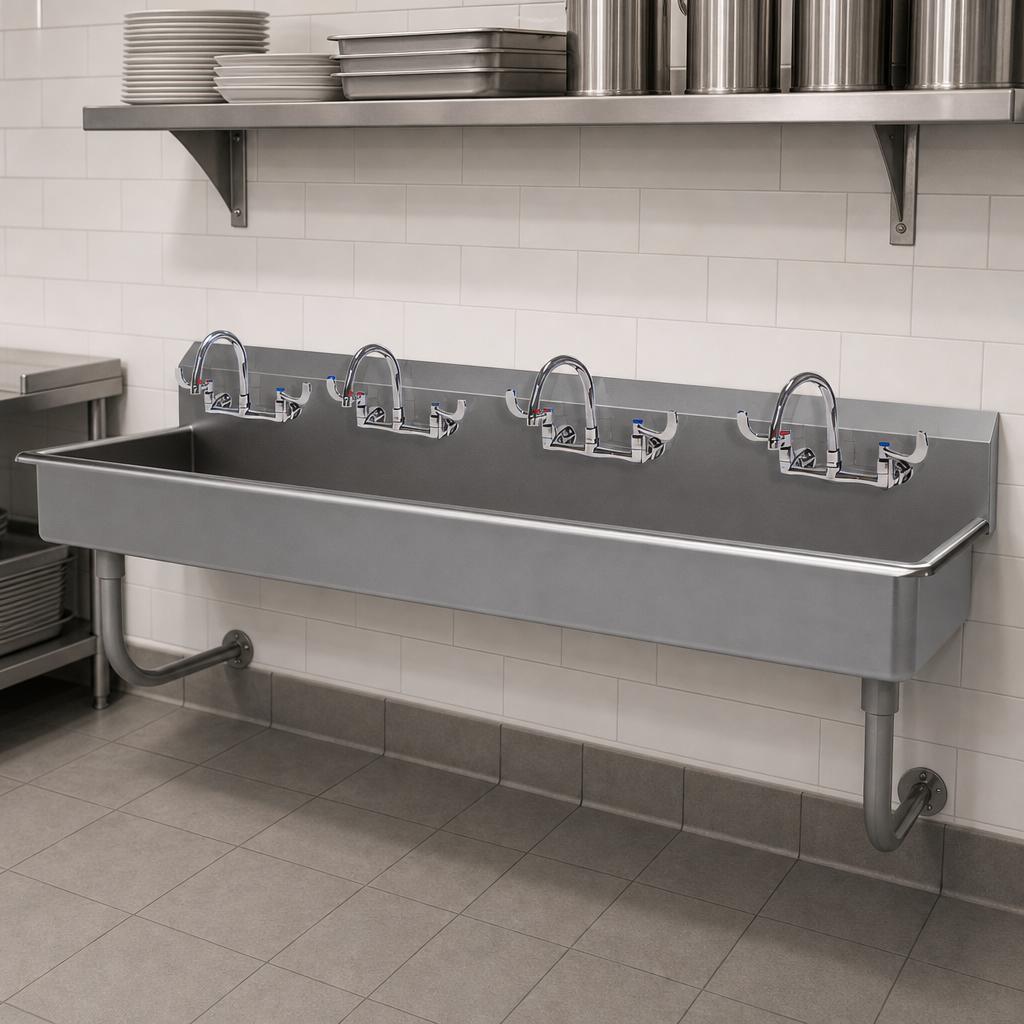

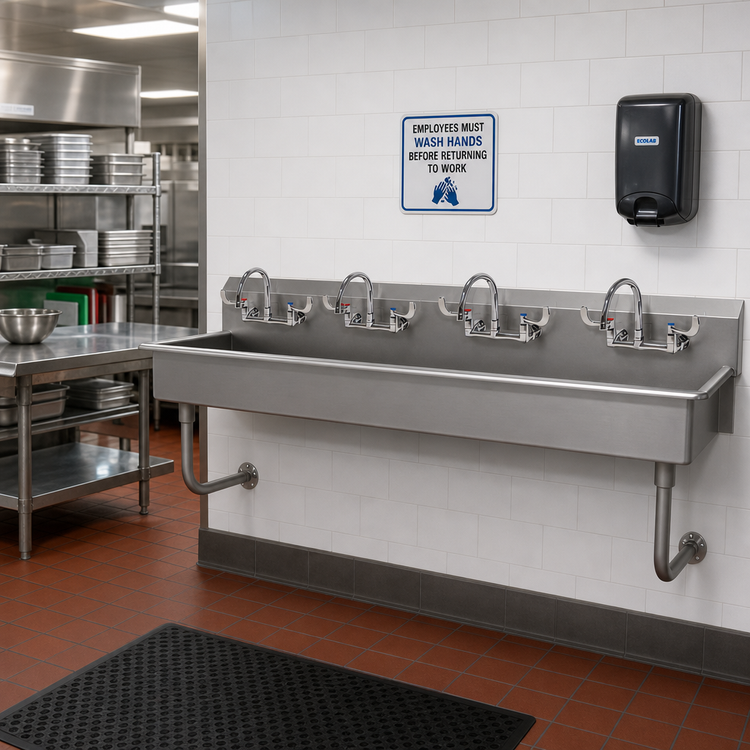

Advance Tabco 80" ADA Multi-Station Wall-Mounted Hand Sink – 4 Faucets

Model FC-WM-80-ADA-F | 4 user stations | NSF Listed

Give staff rapid, code-compliant access to hand-washing with this heavy-duty, four-station sink. Built from extra-thick 14-gauge 304 stainless steel and supplied with wrist-blade gooseneck faucets, it installs flush to the wall on tubular supports—leaving the floor completely clear for easy cleaning and full ADA knee clearance.

Why You’ll Love It

  • Four complete stations: keeps high-traffic areas moving and reduces wait times.
  • ADA compliant design: 5" deep bowl and open underspace meet accessible height & clearance requirements.
  • Built-in hygiene: 8 ½" backsplash with pre-punched 8" O.C. faucet holes contains splashes and simplifies installation.
  • Ready to plumb: includes four splash-mount gooseneck faucets with easy-to-operate wrist blades plus a 3 ½" rear basket drain.
  • All 304 stainless steel: TIG-welded, satin-finished sink and 1 5⁄8" tubular wall supports resist corrosion and harsh cleaners.
  • Space-saving wall mount: stainless “Z” brackets and support tubes create full floor clearance for carts, bins or cleaning tools.
  • NSF certified: meets the latest sanitation standards for use in commercial kitchens, labs and healthcare facilities.

Perfect For

  • Food-service prep areas & dish rooms
  • School & stadium concession stands
  • Pharmaceutical or clean-room gowning zones
  • Healthcare clinics & long-term care facilities
  • Industrial, packaging or QC work cells

Specifications

Overall Width 80"
Overall Depth 19 1⁄2"
Overall Height (to top of backsplash) 25 1⁄2"
Bowl Size (each station) 16" front-to-back x 5" deep
Backsplash Height 8 1⁄2"
Gauge / Material 14-ga 304 stainless steel
Faucets Included (4) splash-mount gooseneck faucets with wrist blades, 8" O.C.
Drain 3 1⁄2" rear basket drain (K-6)
Mounting Hardware Stainless “Z” wall brackets & 1 5⁄8" tubular supports
Compliance NSF, ADA

Recommended mounting height to top of “Z” bracket: 42 1⁄2" above finished floor. Always verify local code requirements before installation.

California Prop 65 Warning: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF, ADA Compliant

Height

25.5in

Width

80.0in

Depth

19.5in

Shipping Weight

108.0lbs

Faucet

faucet included

Features

multi-station

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Height (rim to drain)

5" deep

Style

wall mounted

Bowl Width (left to right)

20" & up

Specifications

Multiwash Hand Sink, splash mount faucet provision, wall mounted, includes (4) faucets with wrist blades, 80"W x 19-1/2"D x 25-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (4) sets of faucet holes 8" OC, includes 3-1/2" rear basket drain, 14 gauge 304 stainless steel construction, tubular stainless steel wall supports, NSF, ADA compliant
