Advance Tabco | SKU: FS-WM-60KV | UPC: 747545211538

Advance Tabco FS-WM-60KV Hand Sinks

Name: Advance Tabco FS-WM-60KV Hand Sinks
Brand: Advance Tabco
SKU: FS-WM-60KV
Price: 4252.00 USD
Availability: InStock

$4,252.00

Expected delivery date of , to your door

if ordered within hours and minutes

Not Shipping to ?

More Delivery Options

Documents

Cutsheet Optional mixing valve Parts list Installation & operation

Description

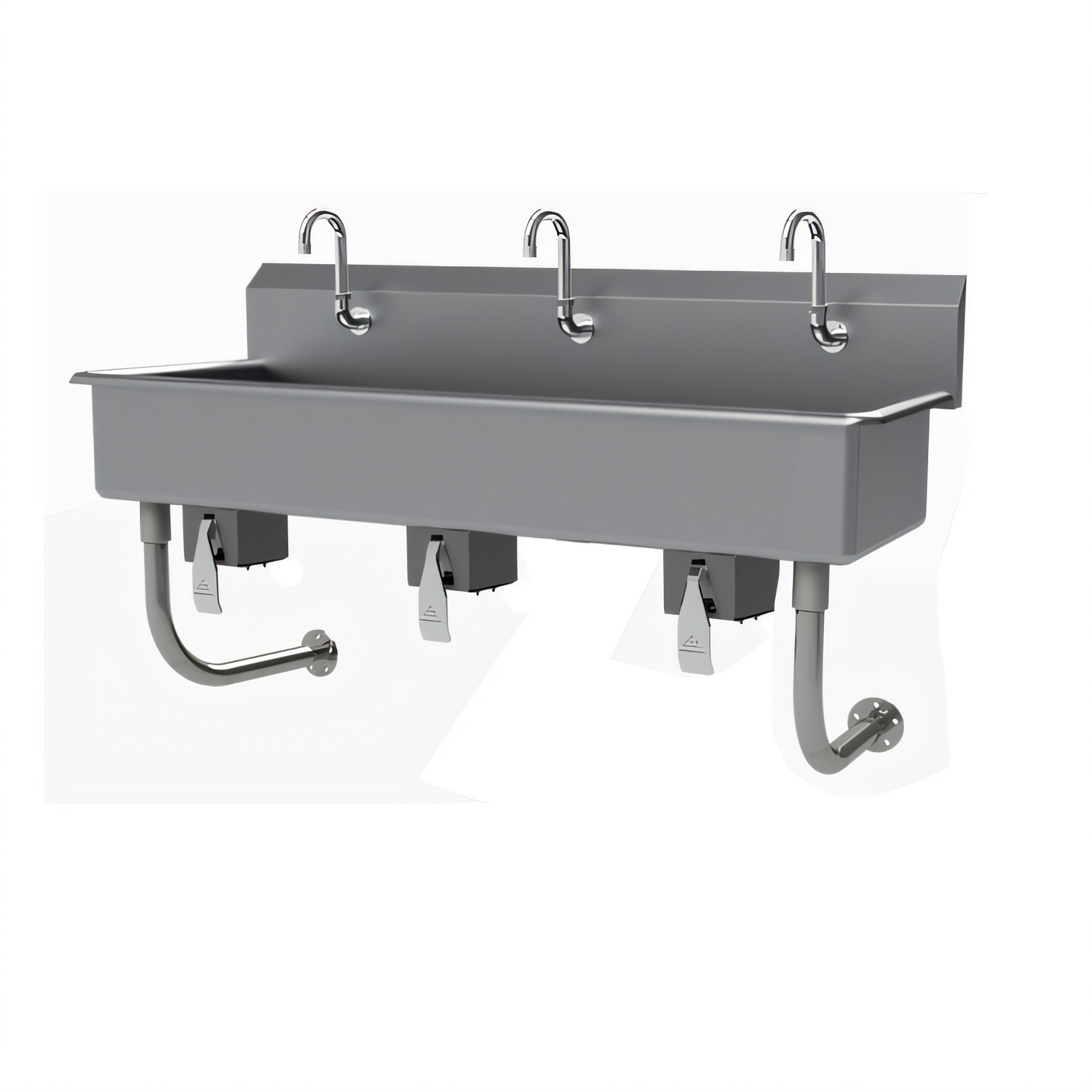

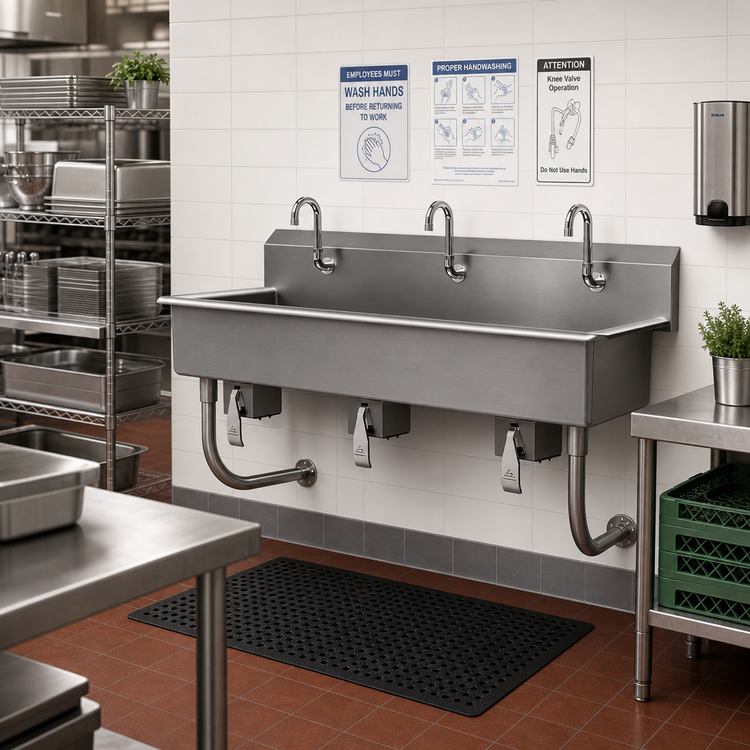

Advance Tabco 60" 3-Station Knee-Operated Multi-Wash Hand Sink

Model FS-WM-60KV | NSF Listed

Designed for high-traffic foodservice, healthcare and industrial settings, this heavy-duty three-person hand sink delivers true hands-free sanitation. 14-gauge type 304 stainless steel, knee-operated valves and an integral 8 ½" backsplash make it the professional choice for code-compliant hand washing wherever hygiene can’t be compromised.

Key Advantages

Accommodates three users simultaneously to keep lines moving.
Hands-free 7-PS-32 knee valves minimize cross-contamination.
14 ga type 304 stainless steel withstands daily abuse and harsh cleaners.
8" deep bowls with 16" front-to-back working room handle large wares and vigorous scrubbing.
Integral 8 ½" backsplash protects walls and contains splashes.
Factory-punched single-hole deck accepts the included K-121 gooseneck spouts—no field drilling required.
3 ½" rear basket drain with crumb cup speeds clean-out and prevents clogs.
Wall-mount design with stainless “Z” brackets and tubular supports keeps floors clear for easy cleaning.
NSF certified and lead-free components meet health-department requirements right out of the box.

Dimensions & Specifications

Overall width	60" (1524 mm)
Overall depth	19 ½" (495 mm)
Overall height (rim)	29 ½" (749 mm)
Backsplash height	8 ½" (216 mm)
Bowl size (each)	16" front-to-back × 8" deep
Number of stations	3
Faucet configuration	(3) single-hole deck punches with K-121 gooseneck spouts
Valve type	(3) 7-PS-32 chrome-plated knee valves
Drain	K-6 3 ½" rear basket drain, stainless steel
Mounting style	Wall mount — (2) stainless “Z” brackets & tubular supports included
Material thickness	14-gauge (0.078") type 304 stainless steel
Finish	Satin; TIG-welded and blended seams
Certifications	NSF, lead-free

What’s Included

Advance Tabco FS-WM-60KV 3-station hand sink
(3) K-121 8 ⅛" gooseneck spouts
(3) 7-PS-32 knee valves with mounting hardware
(1) K-6 3 ½" rear basket drain assembly
(2) Stainless-steel “Z” wall brackets
(2) Tubular stainless-steel support brackets

Optional Accessories (sold separately)

K-425 thermostatic mixing valve for tempered water delivery
Wall-mount soap and paper-towel dispensers
Glove or sanitizer holders

Quick Installation Tips

Mount “Z” brackets 42 ½" from finished floor to bracket top.
Slide sink onto brackets; ensure it seats securely before plumbing connections.
Seal backsplash edges with food-grade silicone to prevent moisture intrusion.
Verify local code requirements for backflow prevention and tempered-water supply.

California Prop 65 Warning: This equipment may expose you to chemicals, including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. More information ›

Specifications are subject to change without notice.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

29.5in

Width

60.0in

Depth

19.5in

Shipping Weight

125.0lbs

Features

multi-station

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Faucet

faucet included

Bowl Height (rim to drain)

8" deep

Style

wall mounted

Specifications

Multiwash Hand Sink, splash mount faucet provision, wall mounted, (3) person, with knee valves, 60"W x 19-1/2"D x 29-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (3) single faucet holes, gooseneck spouts, includes 3-1/2" rear basket drain, 14 gauge 304 stainless steel construction, tubular stainless steel wall supports, NSF
