Advance Tabco FS-WM-60EFADA Hand Sinks
Description

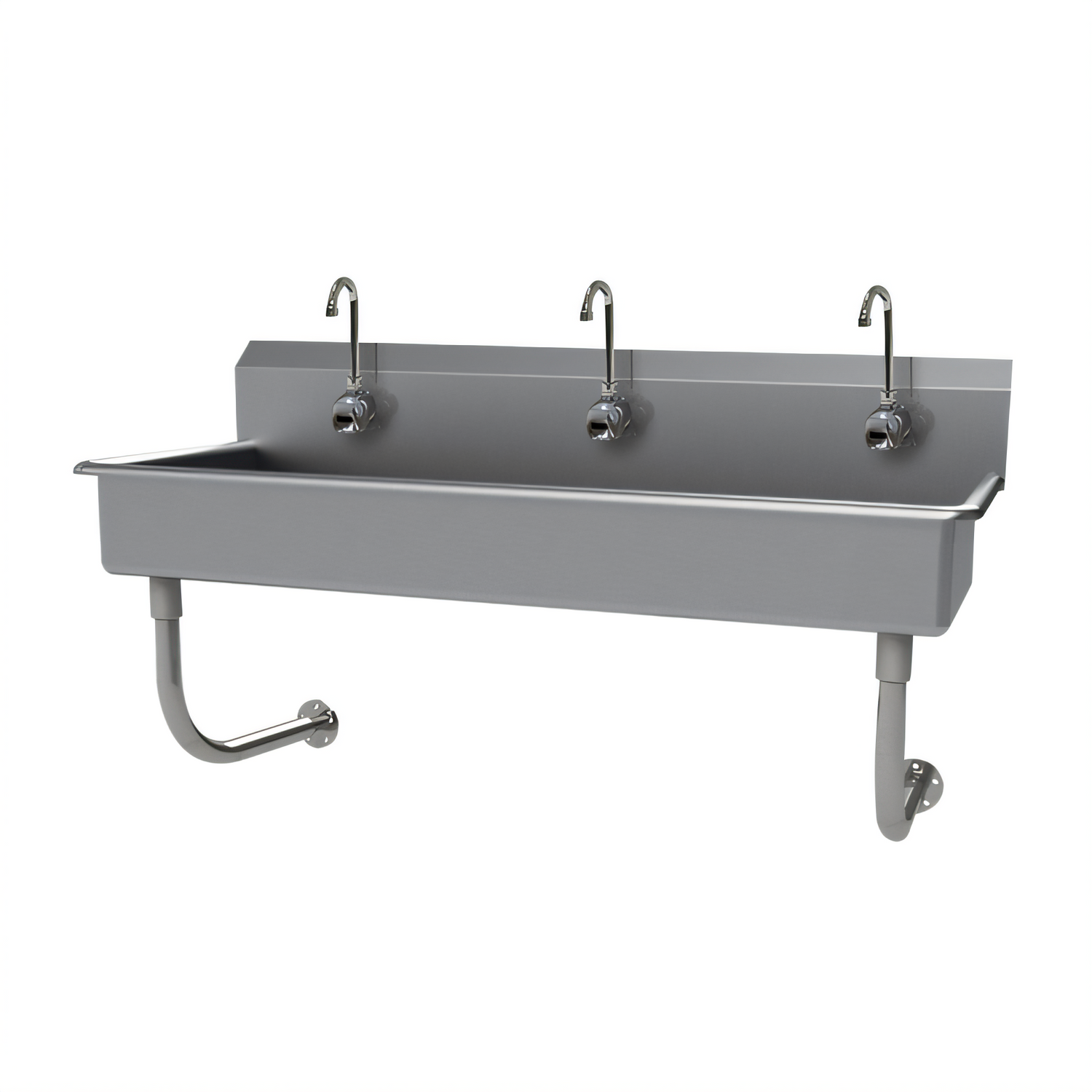

Advance Tabco 60" 3-Station ADA Electronic Multi-Wash Hand Sink
Model: FS-WM-60-EFADA (14 ga)Give three users simultaneous, fully hands-free washing in a compact 60" footprint. Engineered from heavy-duty 14 gauge type 304 stainless steel, this wall-mounted sink features Advance Tabco’s K-175 electronic faucets, ADA-compliant 5" deep bowls, and unobstructed under-sink clearance for effortless wheelchair access and floor maintenance.
Key Features
- Three splash-mounted K-175 electronic sensor faucets – 2.2 GPM aerators, lead-free & NSF 61/9 compliant
- ADA bowl depth: 5" with generous 16" front-to-back reach for reduced splash
- 8-1/2" high integral backsplash helps keep surrounding walls dry
- TIG-welded 14 ga 304 stainless steel with satin finish – corrosion-resistant & easy to sanitize
- 1 5/8" tubular 304 stainless supports & “Z” wall brackets for rock-solid installation and full knee clearance
- Single faucet hole punch at each station simplifies rough-in
- 3-1/2" K-6 rear basket drain included (one per sink)
Technical Specifications
| Stations | 3 |
|---|---|
| Overall Width | 60" (1524 mm) |
| Overall Depth | 19-1/2" (495 mm) |
| Overall Height | 25-1/2" (648 mm) |
| Bowl Size (each) | 16" front-to-back × 5" deep |
| Backsplash Height | 8-1/2" |
| Material & Finish | 14 ga type 304 stainless steel, satin finish |
| Faucets Included | (3) Advance Tabco K-175 electronic, splash mount |
| Drain | (1) 3-1/2" rear basket drain (K-6) |
| Mounting | Wall, stainless “Z” brackets & tubular supports supplied |
| Compliance | NSF, ADA, Lead-Free (NSF 61/9) |
Certifications & Compliance
- NSF certified for foodservice sanitation
- ADA compliant knee & toe clearance and 5" bowl depth
- Faucets conform to NSF/ANSI 61 Section 9 (lead-free) requirements
What’s in the Box
- 60" 3-station stainless steel sink body
- (3) K-175 electronic faucets with control boxes & power adapters
- (1) 3-1/2" K-6 rear basket drain assembly
- Stainless steel “Z” wall brackets & tubular support frame
- Installation instructions & mounting hardware
Installation Notes
Mount the top of the “Z” brackets 42-1/2" above finished floor as shown in the included rough-in diagram. Electrical outlet required for each faucet control box (100-240 VAC, <1 A). Plumber’s putty or silicone sealant recommended around drain flange.
