Advance Tabco FS-WM-60EF Hand Sinks
Description

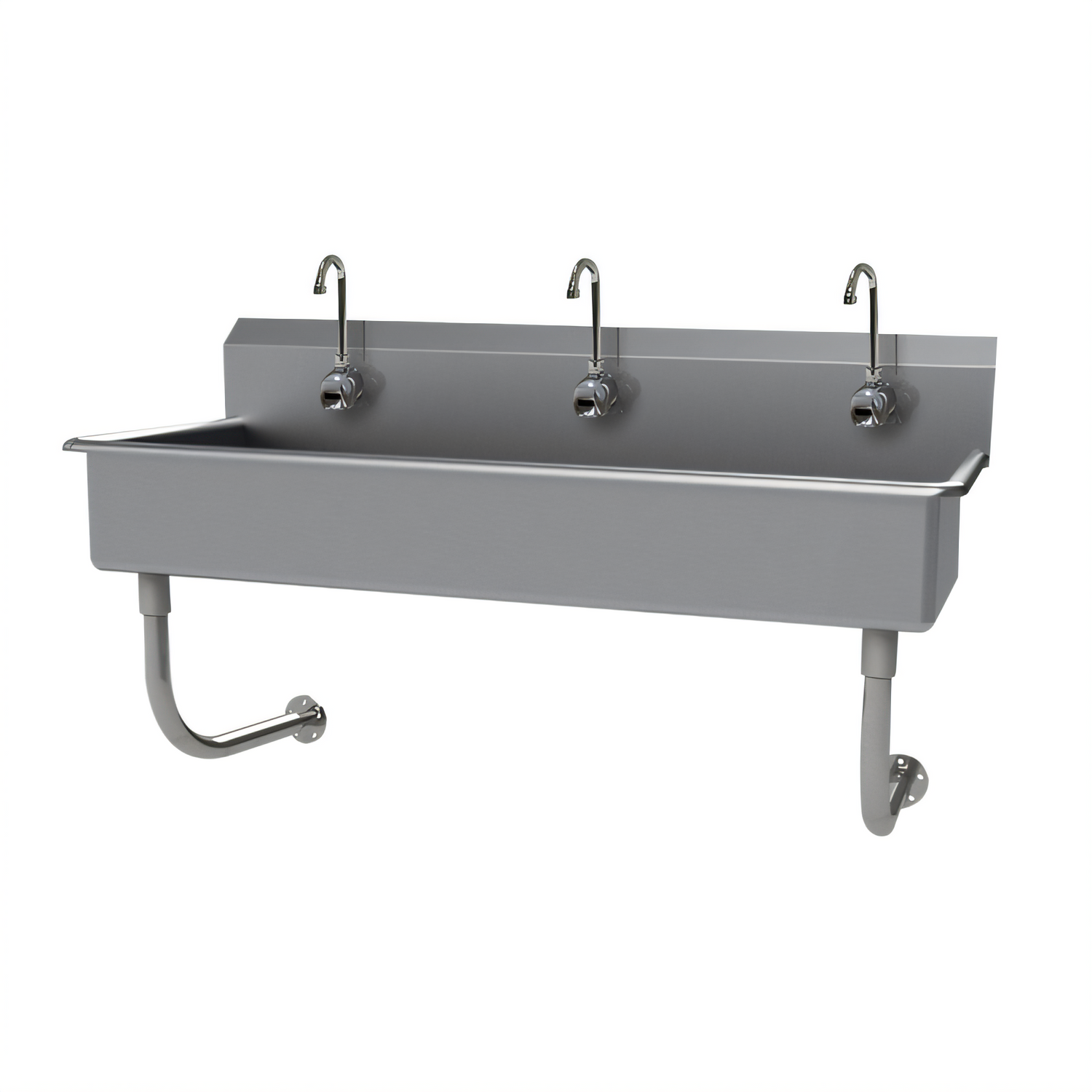

Advance Tabco 60" 3-Station Multi-Wash Hand Sink – Electronic
Wall-Mounted | 14 Ga. 304 Stainless Steel | Model FS-WM-60EFEngineered for high-volume hand-washing in commercial kitchens, laboratories, and industrial facilities, this Advance Tabco 3-person wall sink delivers rugged performance, effortless sanitation, and completely touch-free operation. 14-gauge type 304 stainless steel, all TIG-welded seams, and included K-175 electronic faucets make it the long-term choice for any code-compliant wash station.
Key Features
- Three (3) hands-free K-175 electronic faucets with swing spouts & 2.2 GPM aerators
- 60" W x 19 ½" D x 29 ½" H overall; 16" front-to-back x 8" deep bowls
- 8 ½" high integral backsplash contains splashes & mounts faucet electronics safely above the bowl
- 14-gauge type 304 stainless steel sink body with satin finish – heavier & more durable than 16-ga. alternatives
- 1 ⅝" tubular 304 SS wall supports & stainless “Z” mounting brackets provide full knee-clearance underneath
- Factory-punched single faucet hole at each station simplifies installation
- Includes one 3 ½" K-6 rear basket drain assembly
- All TIG-welded construction; welds blended to match adjacent surfaces
- NSF listed & meets NSF 61/9 lead-free requirements
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model No. | FS-WM-60EF |
| User Stations | 3 |
| Overall Dimensions | 60" W × 19 ½" D × 29 ½" H |
| Bowl Dimensions (each) | 16" front-to-back × 8" deep |
| Backsplash Height | 8 ½" |
| Material & Gauge | 14-ga. type 304 stainless steel |
| Faucet Type | (3) K-175 splash-mount electronic, hands-free |
| Drain | 3 ½" K-6 basket drain (rear) |
| Mounting | Wall mounted – stainless “Z” brackets & tubular supports included |
| Certifications | NSF, NSF 61/9 Lead Free |
| Shipping Weight | Approx. 87 lb |
Recommended wall bracket height: 42 ½" from finished floor to top of bracket (per manufacturer). Plumbing rough-ins and electrical connections should follow local code.
