Advance Tabco  |  SKU: FS-WM-60-ADA  |  UPC: 747545211798

Advance Tabco FS-WM-60-ADA Hand Sinks

$2,980.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

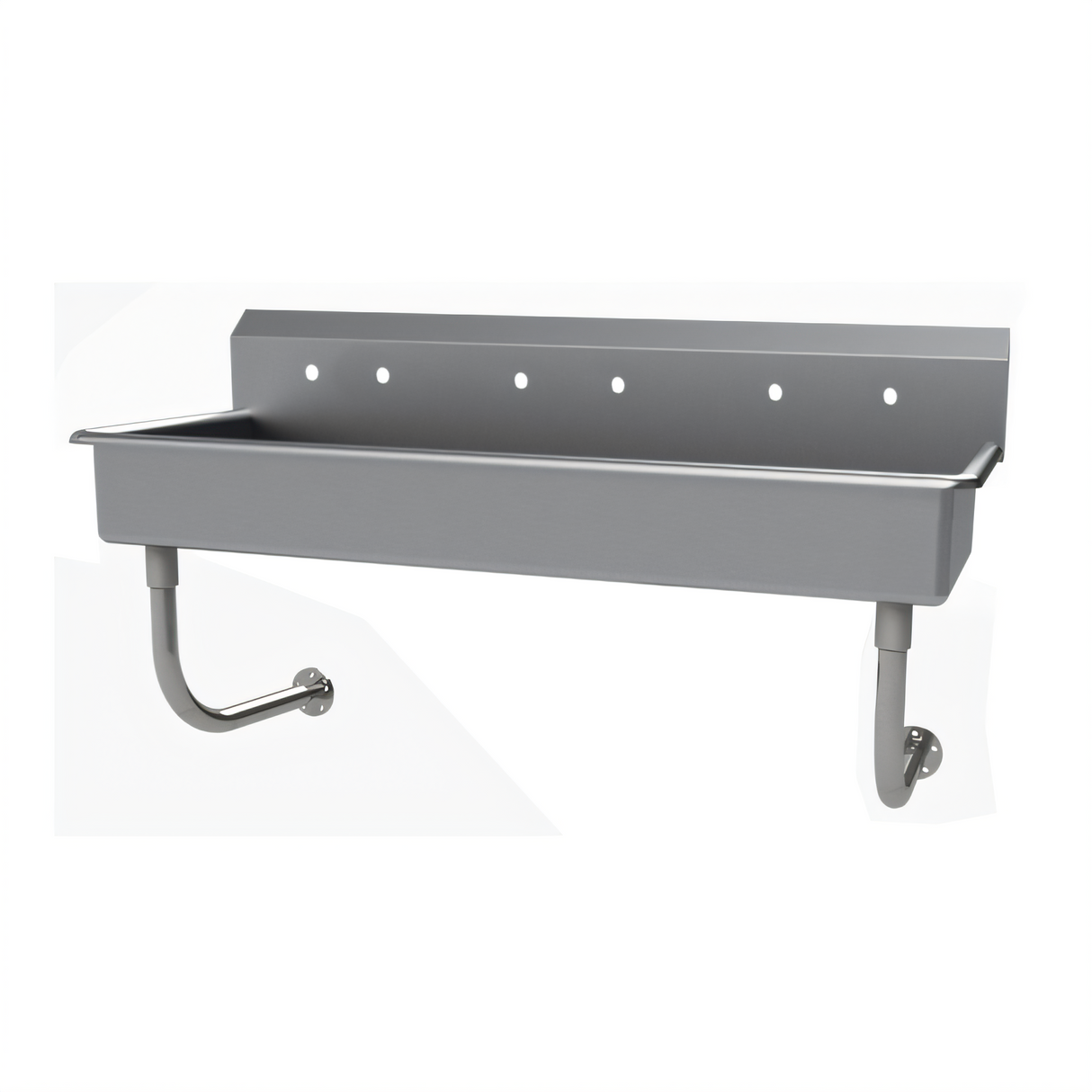

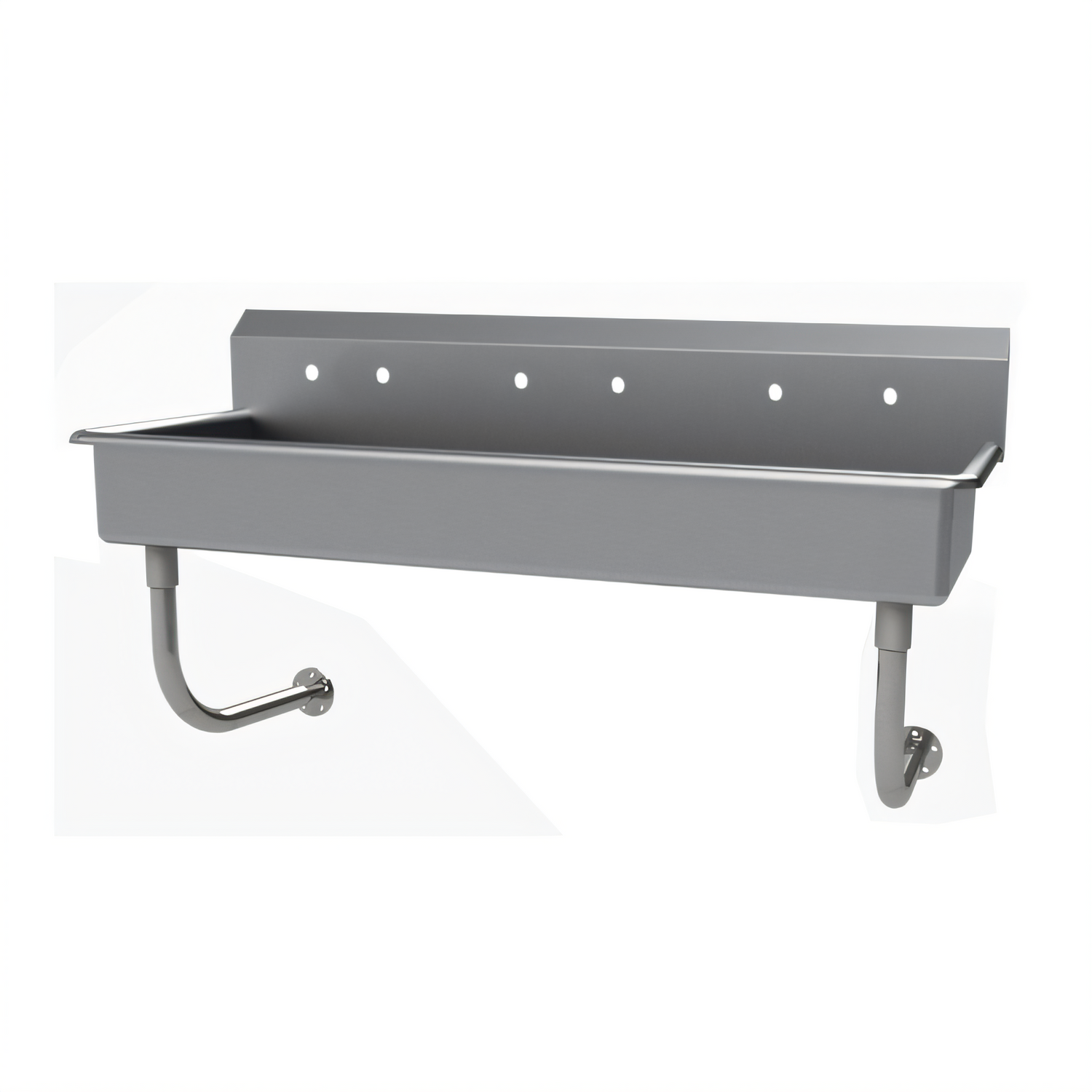

Advance Tabco 60" Wall-Mounted Multiwash Hand Sink – 3 Station, ADA

Model FS-WM-60-ADA • 14-Gauge 304 Stainless Steel • Faucets Sold Separately

Designed for high-volume hand-washing in tight footprints, this 3-person Advance Tabco Multiwash sink combines rugged 14-gauge 304 stainless steel with ADA-compliant ergonomics. Built-in wall brackets and tubular supports deliver rock-solid installation while keeping the floor completely clear for easy cleaning and wheelchair access.

Key Features

  • 3-station layout with one continuous 60" bowl – ideal for production kitchens, schools, labs, and healthcare facilities.
  • ADA compliant 5" deep bowl allows forward wheelchair approach when installed per code.
  • 8-1/2" high backsplash protects walls and comes pre-punched with (3) sets of 8" on-center faucet holes for splash-mount fittings.
  • Includes one 3-1/2" K-6 rear basket drain for efficient debris capture and clog prevention.
  • Heavy-duty 14-gauge type 304 stainless steel—TIG welded and satin-finished for superior corrosion resistance.
  • 1-5/8" tubular stainless steel wall supports and “Z” mounting brackets give full knee clearance below the sink.
  • NSF listed for food-service sanitation.
  • All welds blended to a smooth, easy-to-clean surface.

Dimensions & Specifications

Overall width 60" (1524 mm)
Overall depth 19-1/2" (495 mm)
Overall height (to top of backsplash) 25-1/2" (648 mm)
Bowl size (per continuous bowl) 16" front-to-back x 5" deep
Stations 3
Faucet holes (3) sets, 8" on center, 1-1/8" dia.
Drain outlet 3-1/2" basket drain (included)
Mounting hardware Stainless “Z” wall brackets & tubular supports (included)
Material & gauge 14-gauge type 304 stainless steel
Certifications NSF, ADA compliant

Installation Highlights

  • Mount “Z” brackets 42-1/2" from finished floor to bracket top, then slide sink into place.
  • Single rear basket drain simplifies plumbing and leaves open space under the unit.
  • Supply rough-ins: 8" on-center hot & cold lines at each station (3 total).
  • Faucets, traps, and mixing valves are sold separately—choose manual, knee, or electronic options to suit your workflow.

Ideal Applications

  • Food preparation & packaging areas
  • School & university cafeterias
  • Laboratories & clean-rooms
  • Healthcare & long-term care facilities
  • Industrial production lines

Faucets and P-trap are not included. Install to local plumbing codes for full ADA compliance.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF, ADA Compliant

Height

25.5in

Width

60.0in

Depth

19.5in

Shipping Weight

84.0lbs

Style

wall mounted

Bowl Width (left to right)

20" & up

Bowl Depth (front to back)

15" - 19" front-to-back

Faucet

faucet not included

Bowl Height (rim to drain)

5" deep

Features

multi-station

Specifications

Multiwash Hand Sink, splash mount faucet provision, wall mounted, (3) person, 60"W x 19-1/2"D x 25-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (3) sets of faucet holes 8" OC, includes 3-1/2" rear basket drain, 14 gauge 304 stainless steel construction, tubular stainless steel wall supports, NSF, ADA compliant
