Description

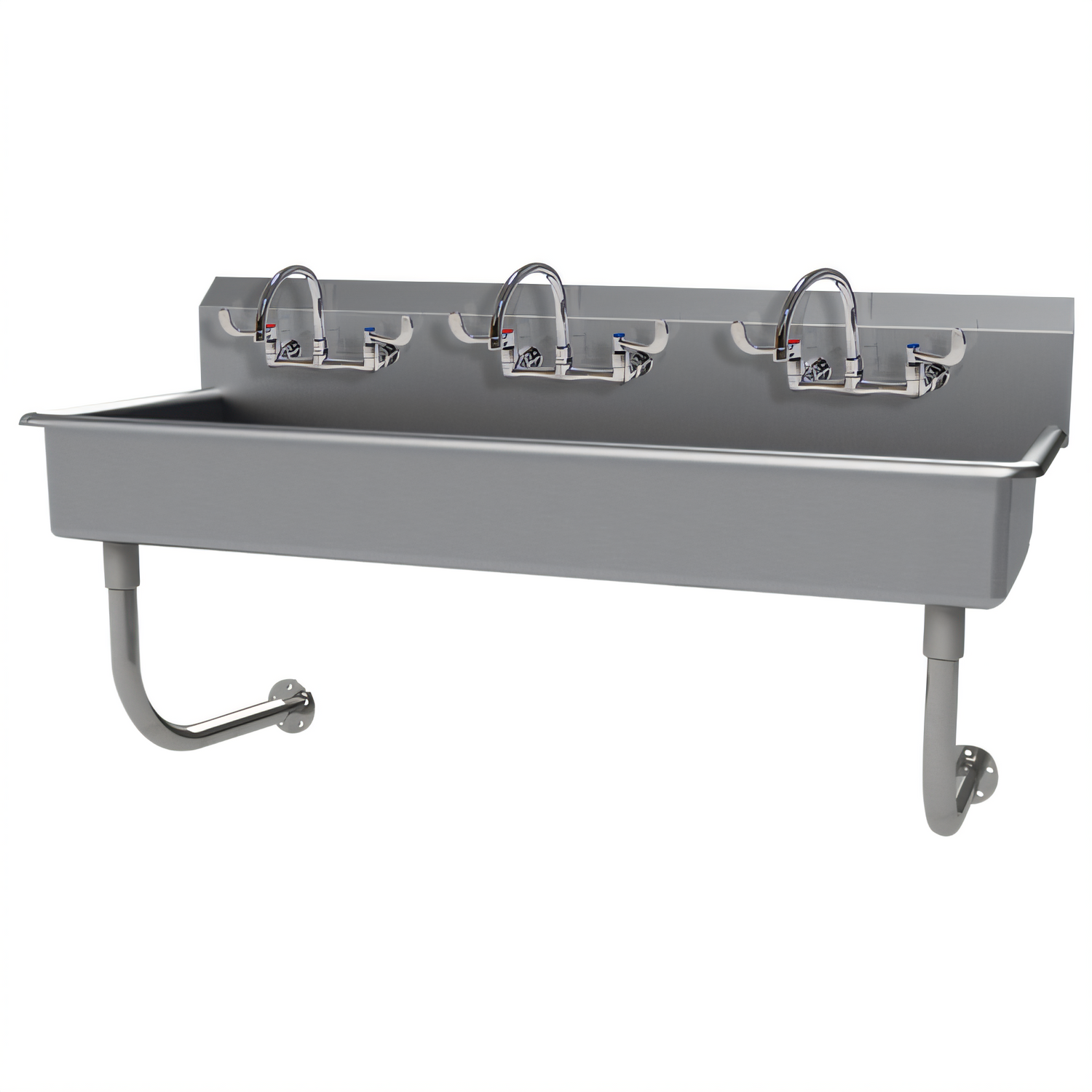

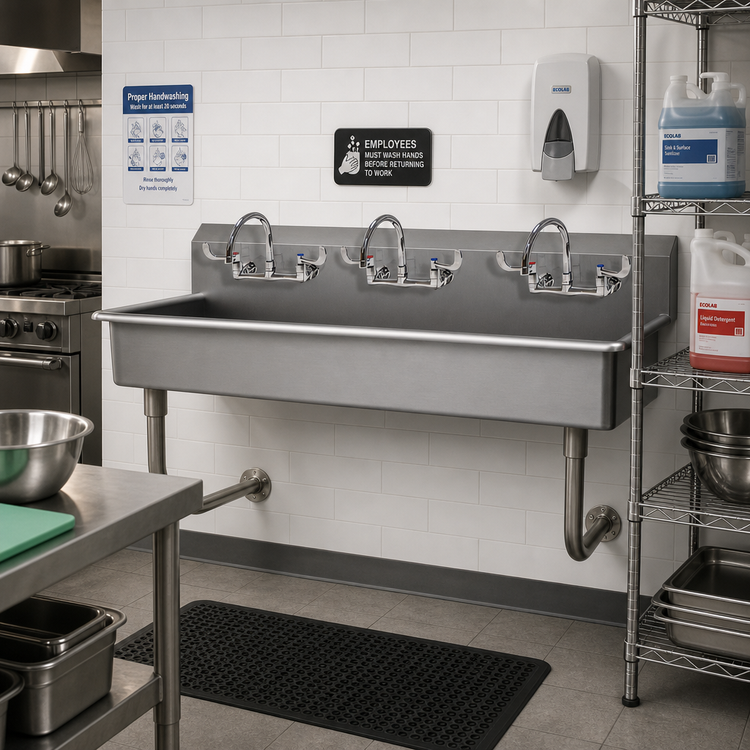

Advance Tabco 60" 3-Station ADA Wall-Mounted Hand Sink – 14 ga 304 Stainless Steel

Factory-supplied with (3) wrist-blade gooseneck faucets & basket drain

Built for high-traffic foodservice, laboratory and healthcare hand-washing areas, this multi-user sink combines rugged 14-gauge 304 stainless steel construction with full ADA clearance and NSF sanitation approval. Three users can wash simultaneously while the wall-mount design keeps the floor clear for easy cleaning and wheelchair accessibility.

Key Features

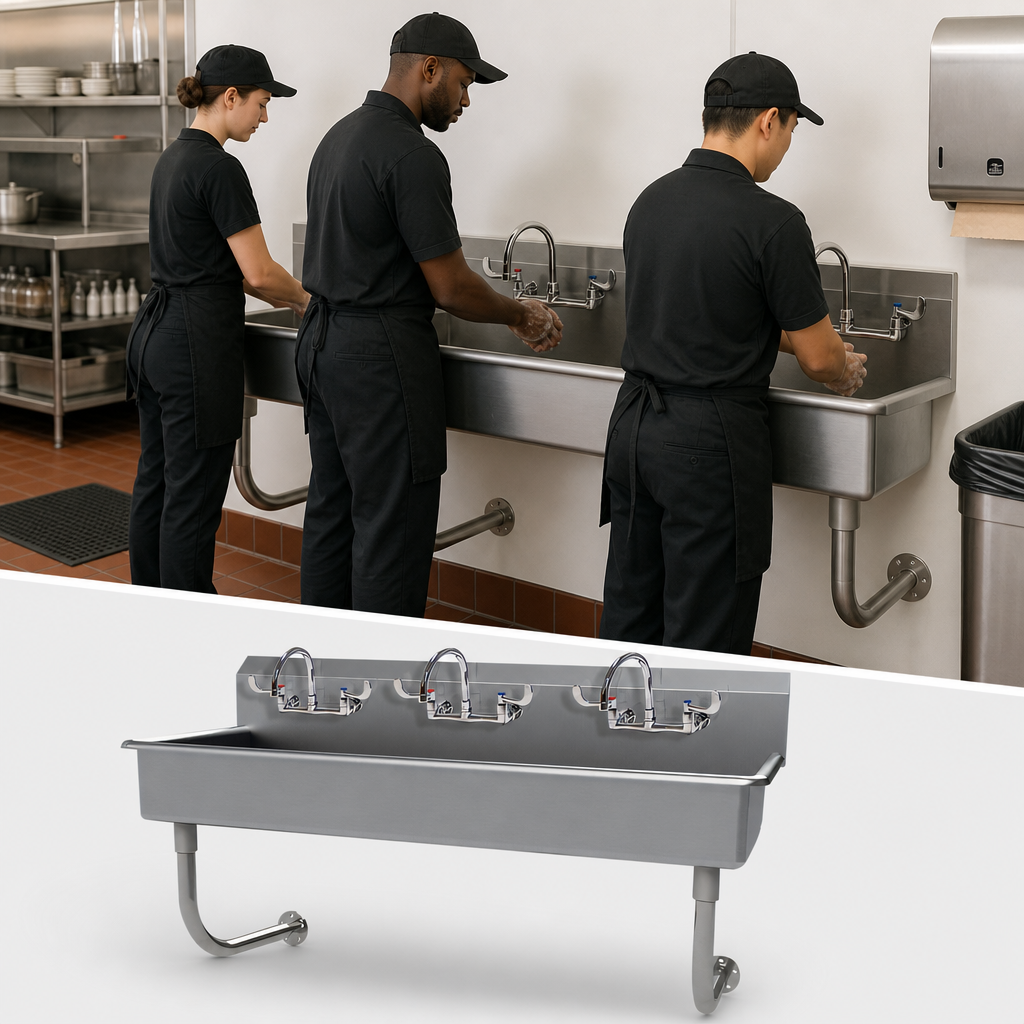

  • Serves up to 3 users at once – ideal for kitchens, labs & production facilities
  • Includes (3) K-161-LU 8 1/2" gooseneck faucets with wrist-blade handles for hygienic, hands-free operation via forearm or elbow
  • ADA 5"-deep bowl (16" front-to-back) provides required knee/foot clearance
  • 8 1/2" high integrally welded backsplash with 8" on-center splash-mount faucet holes
  • Supplied 3 1/2" rear basket drain (K-6)
  • All TIG-welded 14 ga type 304 stainless steel with satin finish—corrosion-resistant & easy to sanitize
  • 1 5/8" Ø tubular stainless steel wall supports & “Z” brackets deliver full underside clearance
  • Wall mounting keeps floor space open for carts, trash cans or wheelchair positioning
  • NSF listed & ADA compliant

Specifications

Model No. FS-WM-60-ADA-F
Number of Stations 3
Overall Dimensions 60" W × 19 1/2" D × 25 1/2" H
Bowl Size (each) 16" front-to-back × 5" deep
Backsplash Height 8 1/2"
Faucet Centers 8" O.C. splash-mount (3 sets)
Material / Gauge 304 stainless steel / 14 ga sink body
Drain 3 1/2" rear basket drain (included)
Mounting Hardware Stainless steel “Z” wall brackets & tubular supports (included)
Certifications NSF, ADA, Prop 65
Approx. Shipping Weight 90 lb (40.8 kg)

Installation Notes

  • Mount “Z” brackets at 42 1/2" from finished floor to bracket top (verify local ADA requirements).
  • Sink slides onto brackets; secure water supply & waste connections per local code.
  • Wall fasteners are field-supplied; choose hardware suitable for stud or masonry substrate.
California Prop 65 Warning: This product can expose you to chemicals, including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.p65warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF, ADA Compliant

Height

25.5in

Width

60.0in

Depth

19.5in

Shipping Weight

90.0lbs

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Faucet

faucet included

Features

multi-station

Style

wall mounted

Bowl Height (rim to drain)

5" deep

Specifications

Multiwash Hand Sink, splash mount faucet provision, wall mounted, includes (3) faucets with wrist blades, (3) person, 60"W x 19-1/2"D x 25-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (3) sets of faucet holes 8" OC, includes 3-1/2" rear basket drain, 14 gauge 304 stainless steel construction, tubular stainless steel wall supports, NSF, ADA compliant
