Advance Tabco  |  SKU: FS-WM-40KV  |  UPC: 747545211484

Advance Tabco FS-WM-40KV Hand Sinks

$3,535.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Optional mixing valve Parts list
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

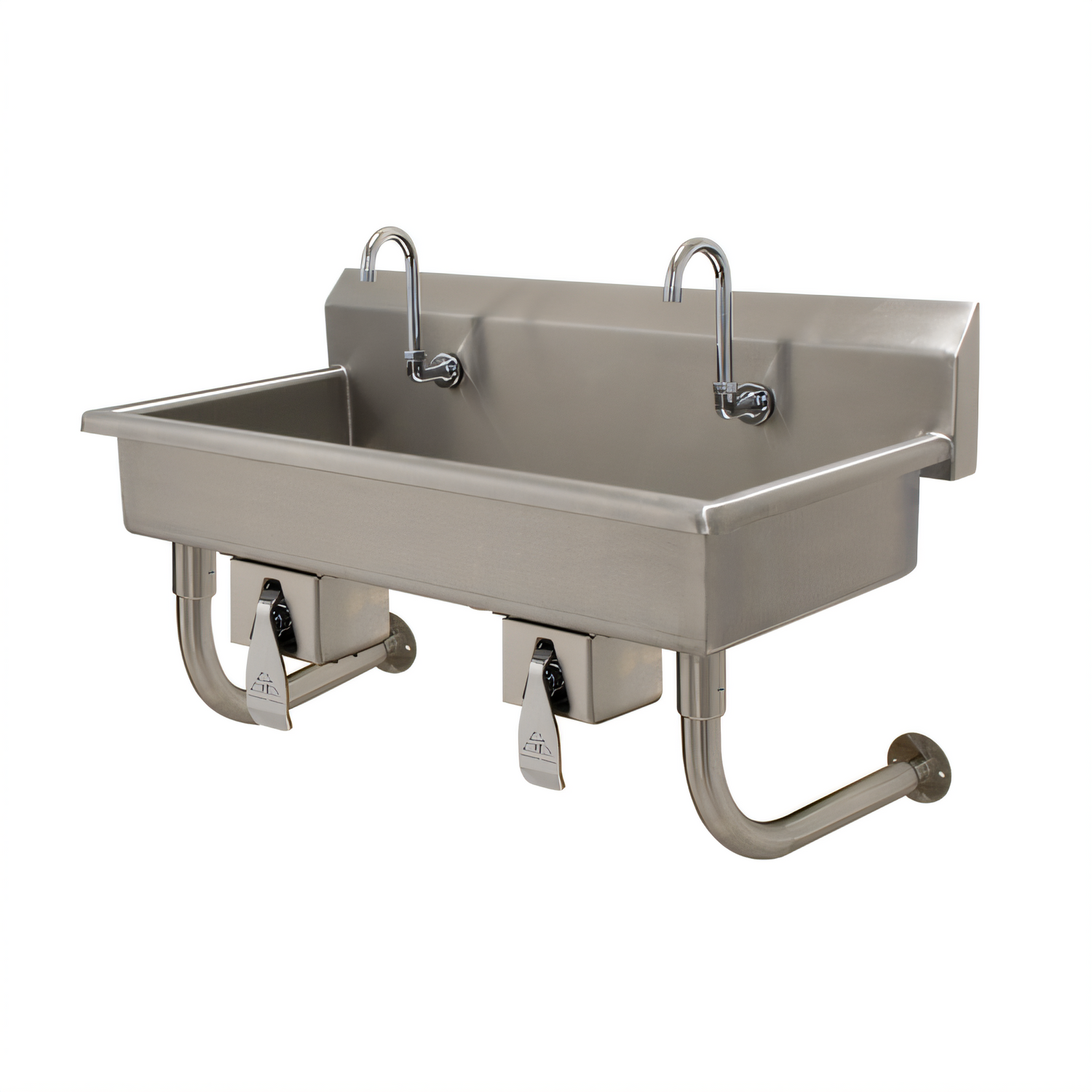

Advance Tabco FS-WM-40KV Knee-Operated Multi-Wash Hand Sink

2-Station • Wall Mounted • 14 ga Type 304 Stainless Steel

Engineered for high-traffic hand-washing areas, this NSF-listed sink combines rugged 14-gauge stainless-steel construction with hygienic knee-valve operation—keeping hands free and reducing cross-contamination in commercial kitchens, healthcare facilities, laboratories and manufacturing plants.

Why It Stands Out

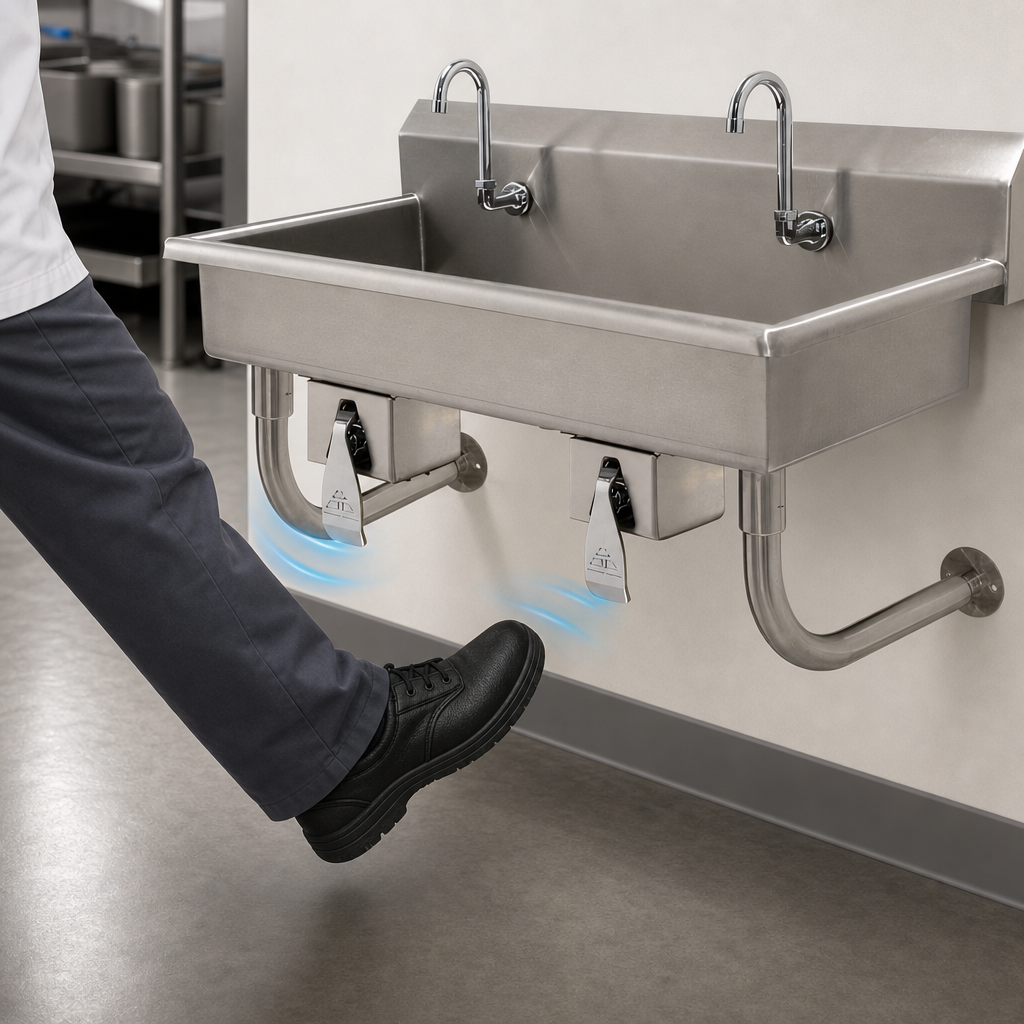

  • Hands-free knee valves (7-PS-32) activate water flow for superior hygiene.
  • Two splash-mount single faucet holes pre-punched and fitted with heavy-duty gooseneck spouts (K-121).
  • Deep 8 inch bowl (16 in front-to-back) contains splashing and meets rigorous wash-station demands.
  • 8 ½ inch high integral backsplash protects surrounding walls.
  • Wall-mount “Z” brackets plus tubular stainless supports leave the floor completely clear for easy cleaning.
  • Includes 3 ½ inch rear basket drain (K-6) with strainer for fast, clog-reducing runoff.
  • All TIG-welded seams are ground and polished to a sanitary satin finish.
  • NSF certified for food-service and healthcare compliance.

Technical Specifications

Model FS-WM-40KV
Stations 2
Overall Width 40" (1016 mm)
Overall Depth 19 1/2" (495 mm)
Overall Height 29 1/2" (749 mm) to rim
Bowl Size (each) 16" front-to-back × 8" deep
Backsplash Height 8 1/2"
Material & Gauge 14 ga Type 304 stainless steel
Faucet Holes (2) single holes, 4" OC splash mount
Operation Knee valves with built-in mixing
Drain 3 1/2" basket drain, rear
Wall Mounting (2) stainless “Z” brackets & tubular supports
Certifications NSF

Rough-in height for the top of the wall bracket is 42 1/2" above finished floor. Refer to the installation sheet included with your shipment for detailed plumbing locations.

California Proposition 65 Notice: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Perfect For

  • Food-service prep lines & commissaries
  • Hospitals, clinics & clean rooms
  • Pharmaceutical or R&D labs
  • Industrial and manufacturing wash-down stations

What’s Included

  • (1) FS-WM-40KV wall-mounted sink assembly
  • (2) Knee valves with mixing control
  • (2) Gooseneck spouts
  • (1) 3 ½" basket drain with strainer
  • (2) Stainless “Z” mounting brackets
  • (2) Tubular stainless wall supports
  • Installation instructions & hardware

Optional thermostatic mixing valve (K-425) sold separately.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

29.5in

Width

40.0in

Depth

19.5in

Shipping Weight

96.0lbs

Faucet

faucet included

Bowl Height (rim to drain)

8" deep

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Style

wall mounted

Features

multi-station

Specifications

Multiwash Hand Sink, splash mount faucet provision, wall mounted, with knee valve, 40"W x 19-1/2"D x 29-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (2) single faucet holes, gooseneck spouts, includes 3-1/2" rear basket drain, 14 gauge 304 stainless steel construction, tubular stainless steel wall supports, NSF
