Advance Tabco  |  SKU: FS-WM-40EF  |  UPC: 747545211477

Advance Tabco FS-WM-40EF Hand Sinks

$4,237.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Installation manual 2 Parts list Troubleshooting manual
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

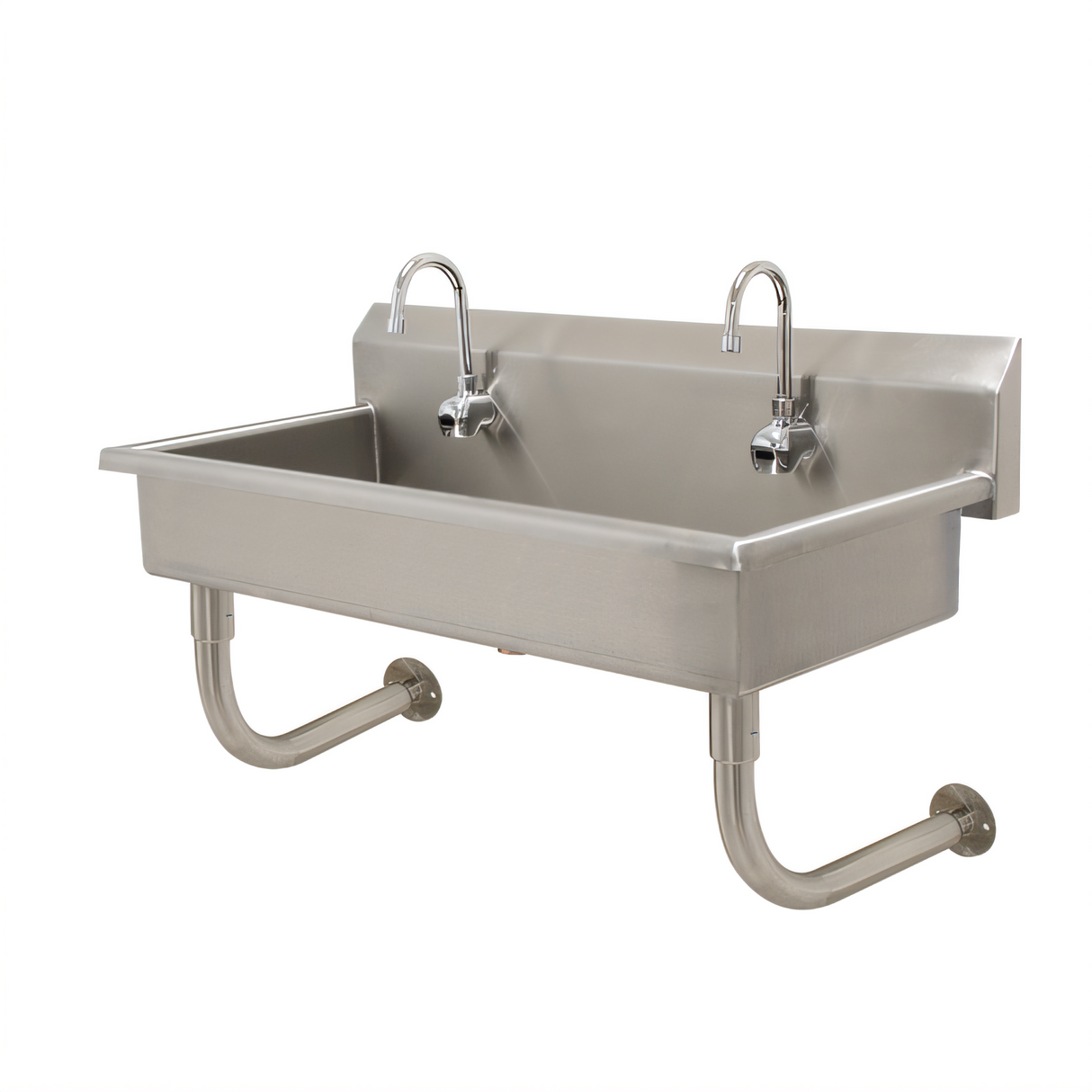

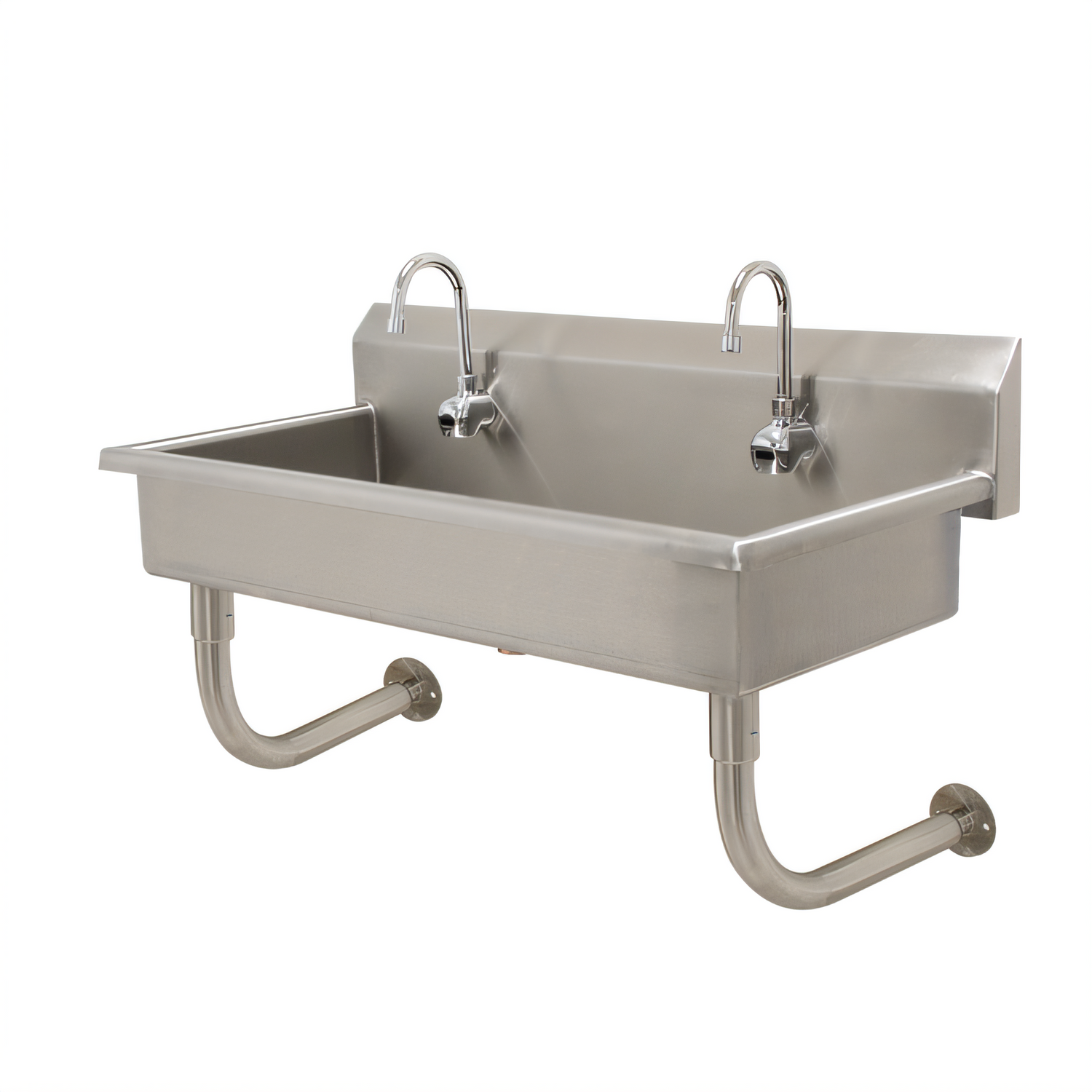

Advance Tabco FS-WM-40EF | 2-Station Wall-Mounted Electronic Hand Sink

40" W x 19 ½" D • 14-Gauge Type 304 Stainless Steel • NSF Certified

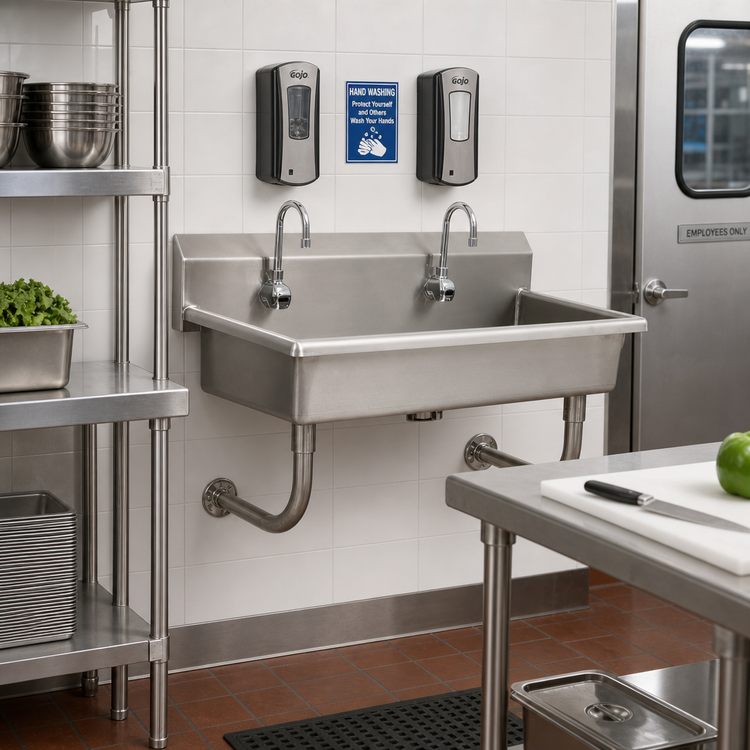

Built for busy commercial kitchens, labs, and production areas, the Advance Tabco FS-WM-40EF Multi-Wash Hand Sink delivers durable performance and effortless, touch-free handwashing in a compact 40-inch footprint.

Key Features

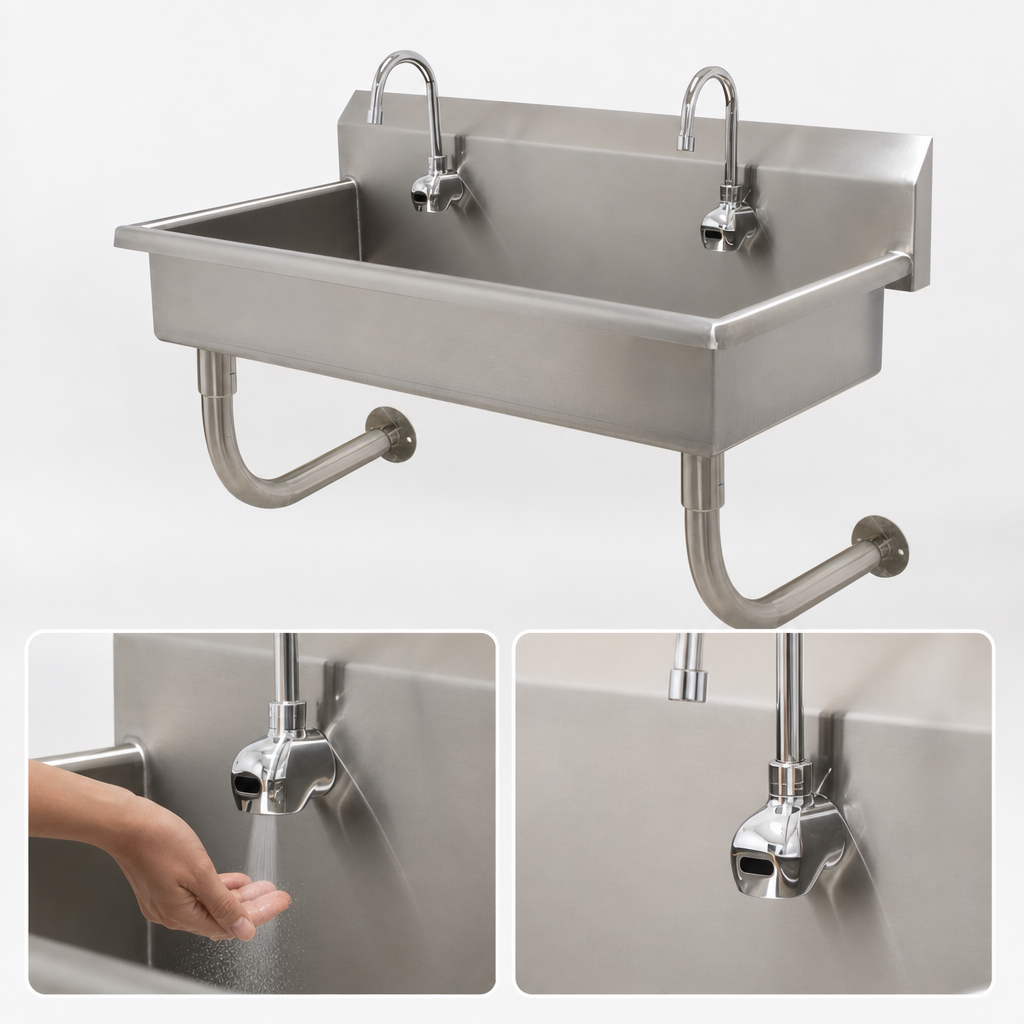

  • Hands-free operation – (2) K-175 splash-mount electronic faucets with 2.2 GPM aerators (0.5 GPM low-flow optional).
  • Heavy-duty 14-gauge, type 304 stainless steel construction with sanitary TIG-welded seams and satin finish.
  • 8 ⅛" high integral backsplash pre-punched with single faucet hole at each station.
  • Roomy 16" front-to-back x 8" deep bowl promotes proper handwashing while containing splashes.
  • 3 ½" K-6 rear basket drain included – ready for quick hook-up.
  • Stainless steel “Z” wall brackets & tubular wall supports keep the floor area completely clear.
  • NSF ® listed; faucets conform to NSF 61/9 lead-free requirements.

Specifications

Model FS-WM-40EF
Stations / Faucets 2 electronic, sensor-activated K-175 faucets
Overall Dimensions 40" W × 19 ½" D × 29 ½" H
Bowl Size (each) 16" front-to-back × 8" deep
Backsplash Height 8 ½"
Drain 3 ½" rear basket drain (K-6) – included
Material / Gauge 14-ga. type 304 stainless steel
Mounting Wall-mounted on stainless “Z” brackets; tubular wall supports
Finish Satin polish
Certifications NSF, Lead-Free, Prop 65 compliant

Recommended bracket mount height: 42 ½" from finished floor to bracket top. Supply lines & P-trap furnished by installer.

PROP 65 WARNING: This product can expose you to chemicals, including lead, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

29.5in

Width

40.0in

Depth

19.5in

Shipping Weight

68.0lbs

Bowl Width (left to right)

20" & up

Faucet

faucet included

Features

multi-station

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Height (rim to drain)

8" deep

Style

wall mounted

Specifications

Multiwash Hand Sink, splash mount faucet provision, wall mounted, with (2) electronic faucets, 40"W x 19-1/2"D x 29-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (2) single faucet holes, includes 3-1/2" rear basket drain, 14 gauge 304 stainless steel construction, tubular stainless steel wall supports, NSF
