Advance Tabco  |  SKU: FS-WM-40-F  |  UPC: 747545215550

Advance Tabco FS-WM-40-F Hand Sinks

$3,026.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

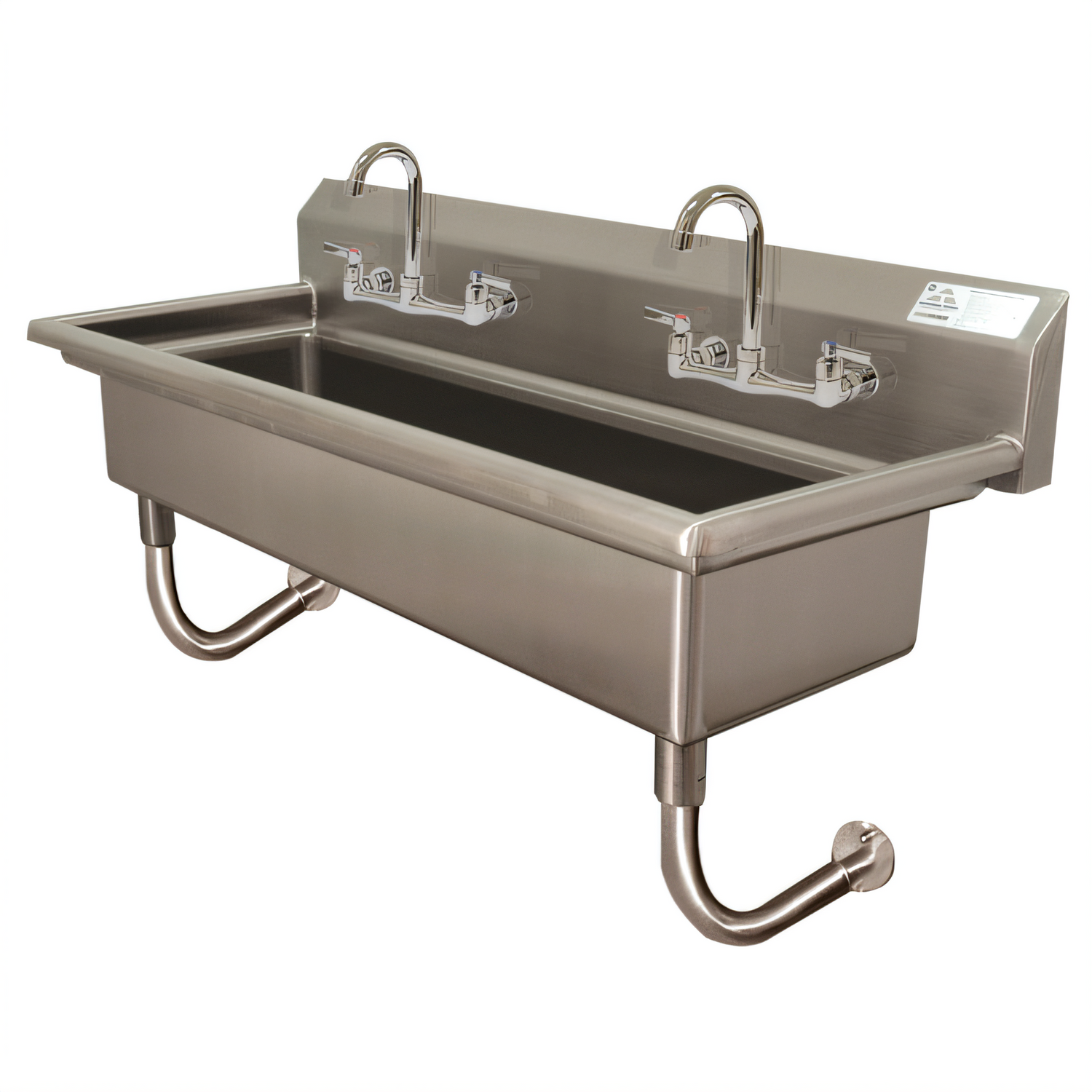

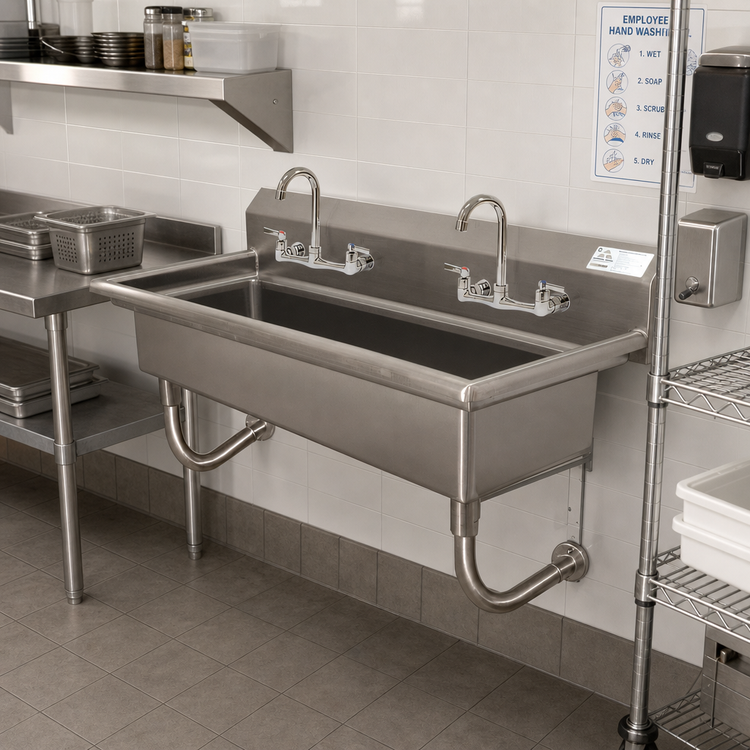

Advance Tabco 40" Multi-Wash Wall Mounted Hand Sink

Model FS-WM-40-F | 2 Stations | NSF Listed

Engineered for high-traffic hand-washing, this 40" Advance Tabco multi-station sink delivers rock-solid durability, simple installation, and full NSF compliance—making it the perfect choice for commercial kitchens, food-prep areas, and industrial workspaces.

Key Features

  • 2 × K-159 manual gooseneck faucets included (8" centers, splash-mount).
  • Wide 40" sink accommodates two users simultaneously.
  • 14 ga. type 304 stainless steel bowl & splash—TIG-welded and satin-finished.
  • 16" front-to-back bowl, 8" deep for generous hand-washing clearance.
  • 8 ½" high integrated backsplash prevents wall damage.
  • (2) sets of 8" O.C. faucet punchings for fast faucet replacement.
  • 3 ½" K-6 rear basket drain included for each bowl.
  • Heavy-duty tubular stainless steel supports and “Z” wall brackets for full underneath clearance.
  • NSF certified for hand-sink applications.

Specifications

Overall Width 40" (1016 mm)
Overall Depth 19 ½" (495 mm)
Overall Height 29 ½" (749 mm) to top of backsplash
Bowl Size (each) 16" W × 16" F/B × 8" D
Backsplash Height 8 ½"
Material / Gauge 304 stainless steel, 14 ga. sink & splash
Stations / Faucets 2 stations  |  2 included gooseneck faucets
Faucet Punchings (2) sets, 8" on-center
Drain 3 ½" K-6 rear basket drain

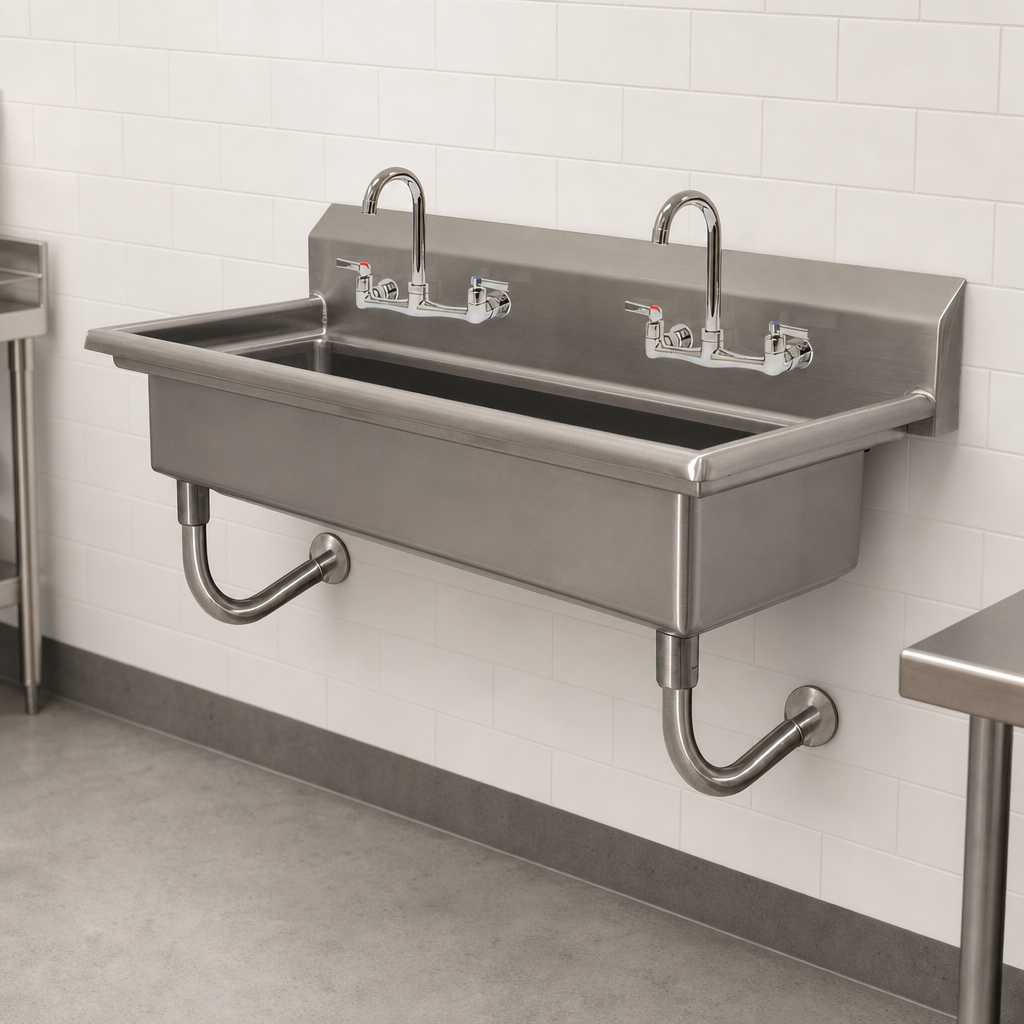

Mounting Wall-mount with tubular S/S supports & “Z” brackets (supplied)
Certifications NSF

Installation Highlights

  • Mount “Z” brackets 42 ½" above finished floor, then slide sink into place.
  • Connect hot & cold ½" supply lines to the faucets; 1 ⅞" drain outlet to waste line.
  • Full underside clearance eases ADA & janitorial access.
California Prop 65 Warning: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.P65Warnings.ca.gov.

Need a longer sink or electronic faucets? Explore other Advance Tabco multi-station models or chat with us for a custom quote.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

29.5in

Width

40.0in

Depth

19.5in

Shipping Weight

81.0lbs

Bowl Height (rim to drain)

8" deep

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Faucet

faucet included

Features

multi-station

Style

wall mounted

Specifications

Multiwash Hand Sink, splash mount faucet provision, wall mounted, includes (2) faucets, 40"W x 19-1/2"D x 29-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (2) sets of faucet holes 8" OC, includes 3-1/2" rear basket drain, 14 gauge 304 stainless steel construction, tubular stainless steel wall supports, NSF
