Advance Tabco  |  SKU: FS-WM-40-ADA  |  UPC: 747545211637

Advance Tabco FS-WM-40-ADA Hand Sinks

$2,700.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

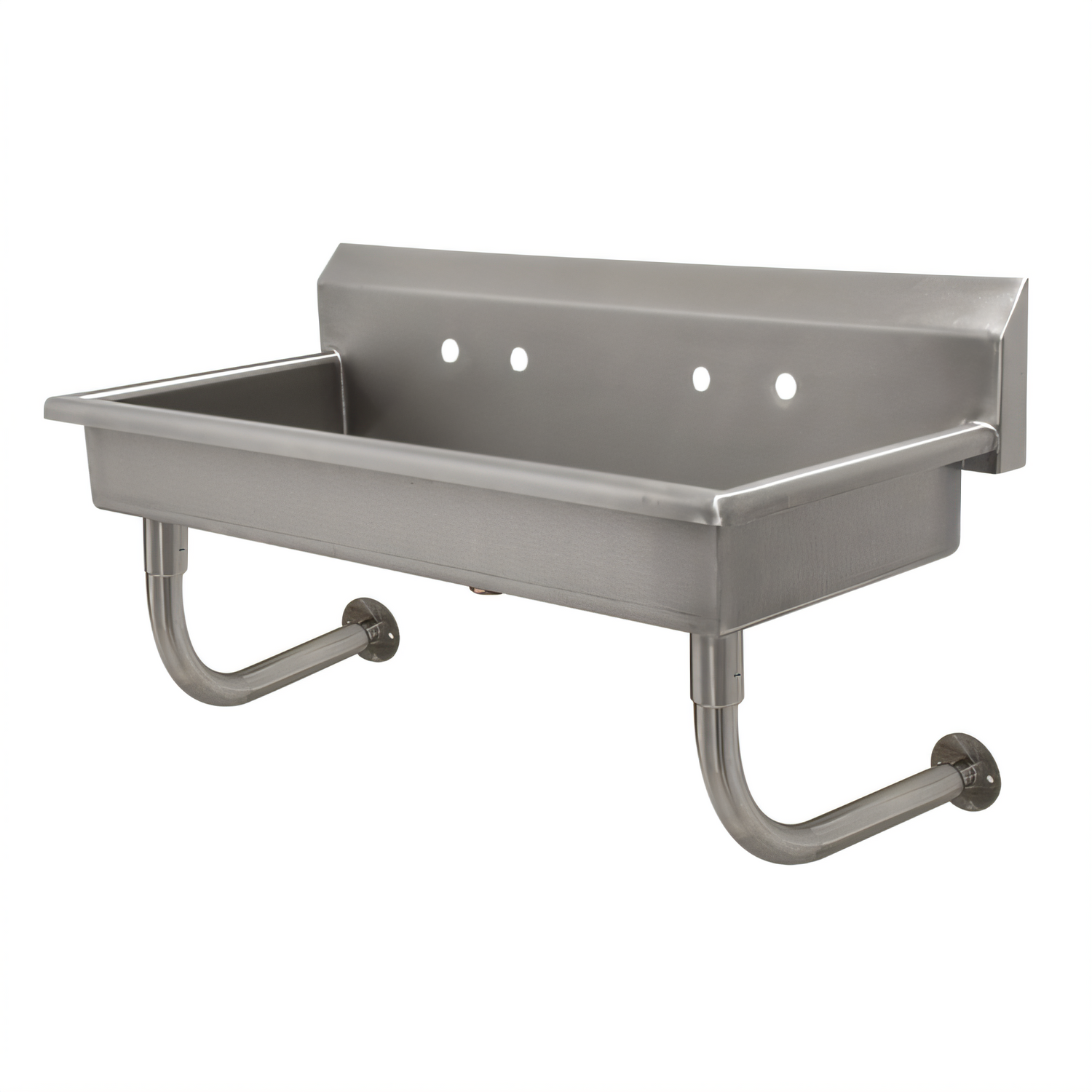

Advance Tabco 40" Wall-Mounted Multi-Wash Hand Sink – 2 Station

Model FC-WM-40-ADA | 14-Gauge Type 304 Stainless Steel

Give your team reliable, code-compliant hand-washing without sacrificing floor space. This heavy-duty Advance Tabco sink mounts directly to the wall, delivering two ADA-accessible wash stations in a single, easy-to-clean stainless steel unit that stands up to the toughest commercial environments.

Why you’ll love it
  • 2-station design packs maximum throughput into only 40" of wall space.
  • ADA compliant 5" deep bowl and open under-structure provide full wheelchair clearance.
  • 14-gauge, type 304 stainless construction with fully TIG-welded seams and satin finish resists corrosion and abuse.
  • 8-½" high integral backsplash is pre-punched with two sets of 8"-on-center faucet holes for splash-mount faucets (sold separately).
  • Includes one 3-½" K-6 rear basket drain with removable strainer.
  • Stainless “Z” mounting brackets and 1-5/8" tubular stainless supports create a rock-solid, wall-hung installation while leaving the floor clear for fast clean-up.
  • NSF listed for food-service sanitation.
Technical specifications
Overall width 40" (1016 mm)
Overall depth 19-½" (495 mm)
Overall height 25-½" (648 mm)
Bowl front-to-back 16" (406 mm)
Bowl depth 5" (127 mm)
Number of stations 2
Backsplash height 8-½" (216 mm)
Faucet holes (2) sets, 8" centers  •  1-⅛" Ø
Drain connection 3-½" rear basket drain (included)
Material / thickness 14-ga. type 304 stainless steel
Mounting hardware Stainless “Z” wall brackets & tubular supports
Certifications NSF  •  ADA compliant
Perfect for
  • Restaurant kitchen hand-wash stations
  • School cafeterias & classrooms
  • Healthcare & laboratory wash areas
  • Food-processing & packaging facilities

Faucets, supply lines and trap assemblies are sold separately, allowing you to select the activation style that best fits your workflow.

California Prop 65 Notice: This product can expose you to chemicals, including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. More info.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF, ADA Compliant

Height

25.5in

Width

40.0in

Depth

19.5in

Shipping Weight

65.0lbs

Faucet

faucet not included

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Style

wall mounted

Features

multi-station

Bowl Height (rim to drain)

5" deep

Specifications

Multiwash Hand Sink, splash mount faucet provision, wall mounted, 40"W x 19-1/2"D x 25-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (2) sets of faucet holes 8" OC, includes 3-1/2" rear basket drain, 14 gauge 304 stainless steel construction, tubular stainless steel wall supports, NSF, ADA compliant
