Advance Tabco  |  SKU: FS-WM-2219EF  |  UPC: 747545211859

Advance Tabco FS-WM-2219EF Hand Sinks

$2,226.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Troubleshooting manual Installation & operation Installation manual 2 Parts list
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

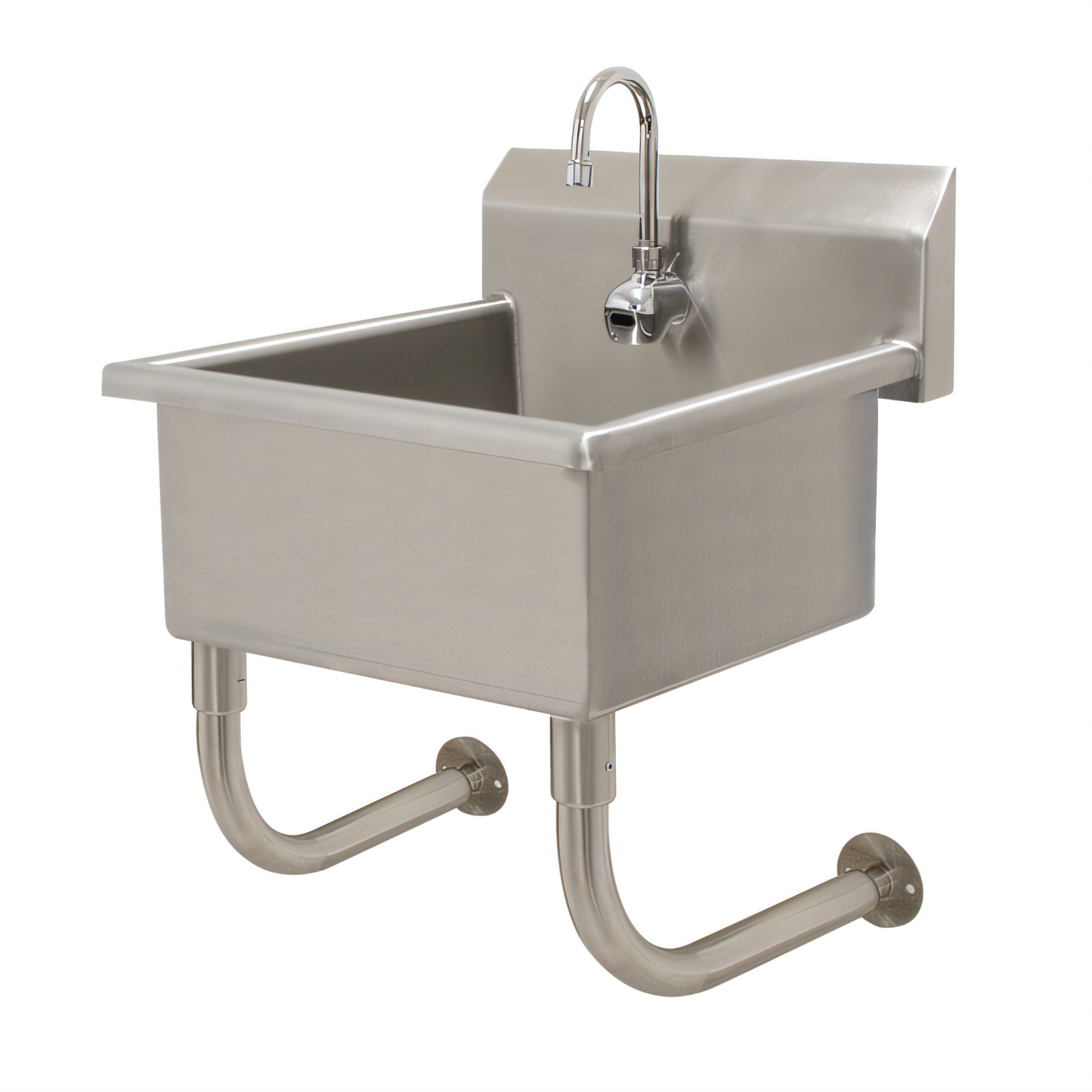

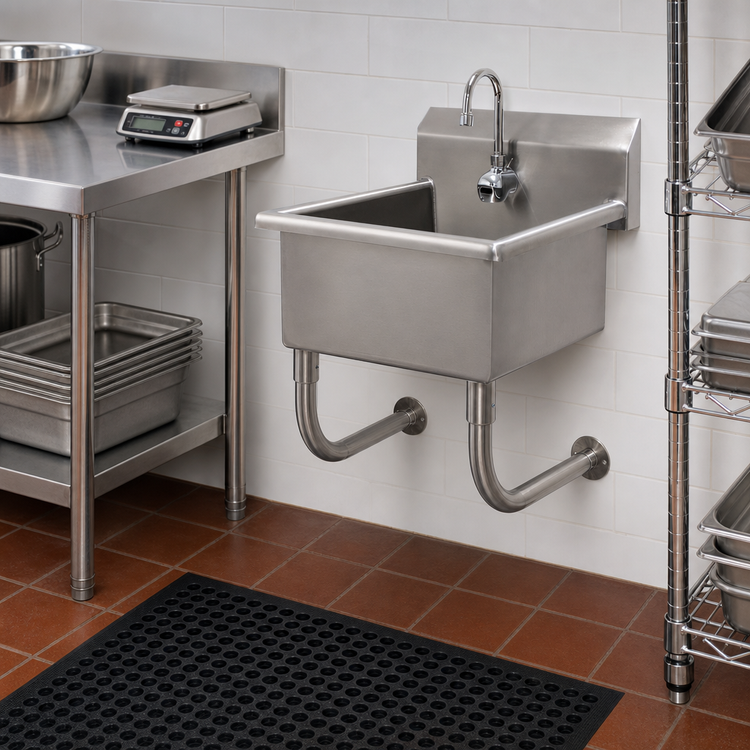

Advance Tabco FS-WM-2219EF Wall-Mounted Service Sink

One station • 14 ga 304 SS • Electronic faucet included

Built for the toughest janitorial and food-service tasks, the Advance Tabco FS-WM-2219EF delivers uncompromising strength, sanitation and hands-free convenience in a compact, wall-mounted design that keeps your floor completely clear.

Key Features
  • Heavy-duty 14 gauge, Type 304 stainless steel with satin finish
  • Spacious 20" W × 19 ½" D × 10" deep bowl accommodates large mop buckets and equipment
  • 8 ½" integral backsplash controls splashing and protects surrounding walls
  • (2) 1 5⁄8" Ø tubular stainless steel wall supports provide full open clearance below

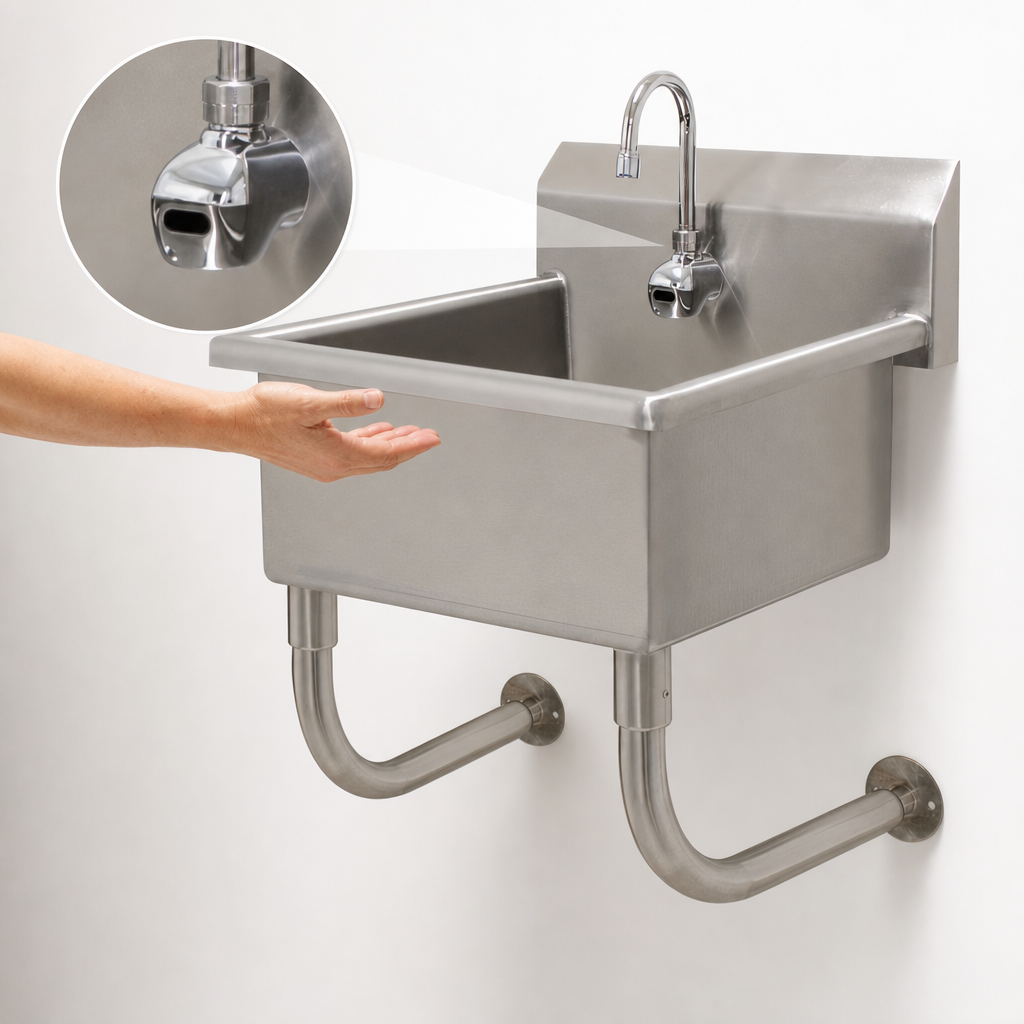

  • Factory-installed K-175 splash-mount electronic faucet with 2.2 GPM aerator, adjustable mixing valve and 100–240 VAC plug-in power supply
  • Single pre-punched faucet hole—no field drilling required
  • K-6 3 ½" rear basket drain with strainer included
  • Stainless steel “Z” wall bracket for quick, secure mounting
  • All TIG-welded seams blended to a sanitary, easy-clean finish
  • NSF listed; faucet meets NSF/ANSI 61 & AB1953 lead-free requirements
Specifications
Model FS-WM-2219EF
Stations 1
Overall width 23"
Overall depth 23"
Usable bowl size (W × D × H) 20" × 19 ½" × 10"
Backsplash height 8 ½"
Material / gauge 304 SS / 14 ga
Faucet K-175 touch-free electronic, splash-mount, 2.2 GPM
Drain K-6 3 ½" rear basket drain
Wall supports (2) tubular 304 SS brackets + SS “Z” hanger
Shipping weight 62 lb
Certifications NSF listed, NSF 61/9 lead-free, AB1953
What’s Included
  • FS-WM-2219EF service sink
  • K-175 electronic faucet with control box, power adapter & supply hoses
  • K-6 rear basket drain assembly
  • Stainless steel “Z” mounting bracket & (2) tubular wall supports
  • Installation instructions
Ideal For
  • Janitorial & mop rooms
  • Commercial kitchens & food-processing plants
  • Laboratories & healthcare facilities
  • Maintenance & manufacturing areas

Mount “Z” bracket approximately 42 ½" above finished floor to the top of the bracket (see installation guide).

California Proposition 65: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

19.0in

Width

23.0in

Depth

19.5in

Shipping Weight

62.0lbs

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Bowl Height (rim to drain)

10" deep

Faucet

faucet included

Style

wall mounted

Specifications

Service Sink, splash mount faucet provision, wall mounted, with electronic faucet, 20"W x 19-1/2"D x 10" deep bowl, 14 ga stainless steel 8-1/2"H backsplash, single faucet hole, includes 3-1/2" rear basket drain, stainless steel tubular wall supports, NSF
