Advance Tabco  |  SKU: FS-WM-120KV  |  UPC: 747545211460

Advance Tabco FS-WM-120KV Hand Sinks

$7,206.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Optional mixing valve Installation & operation
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

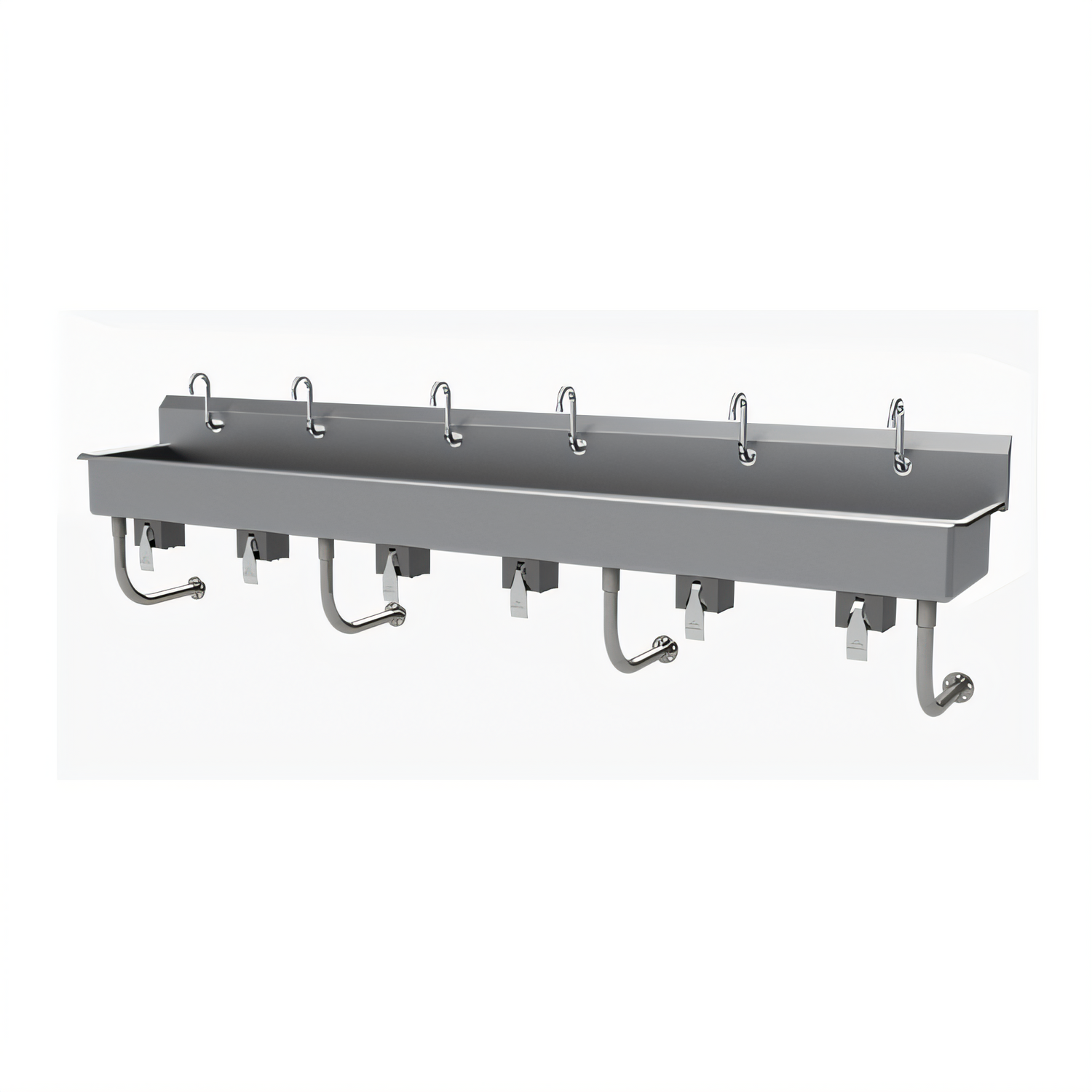

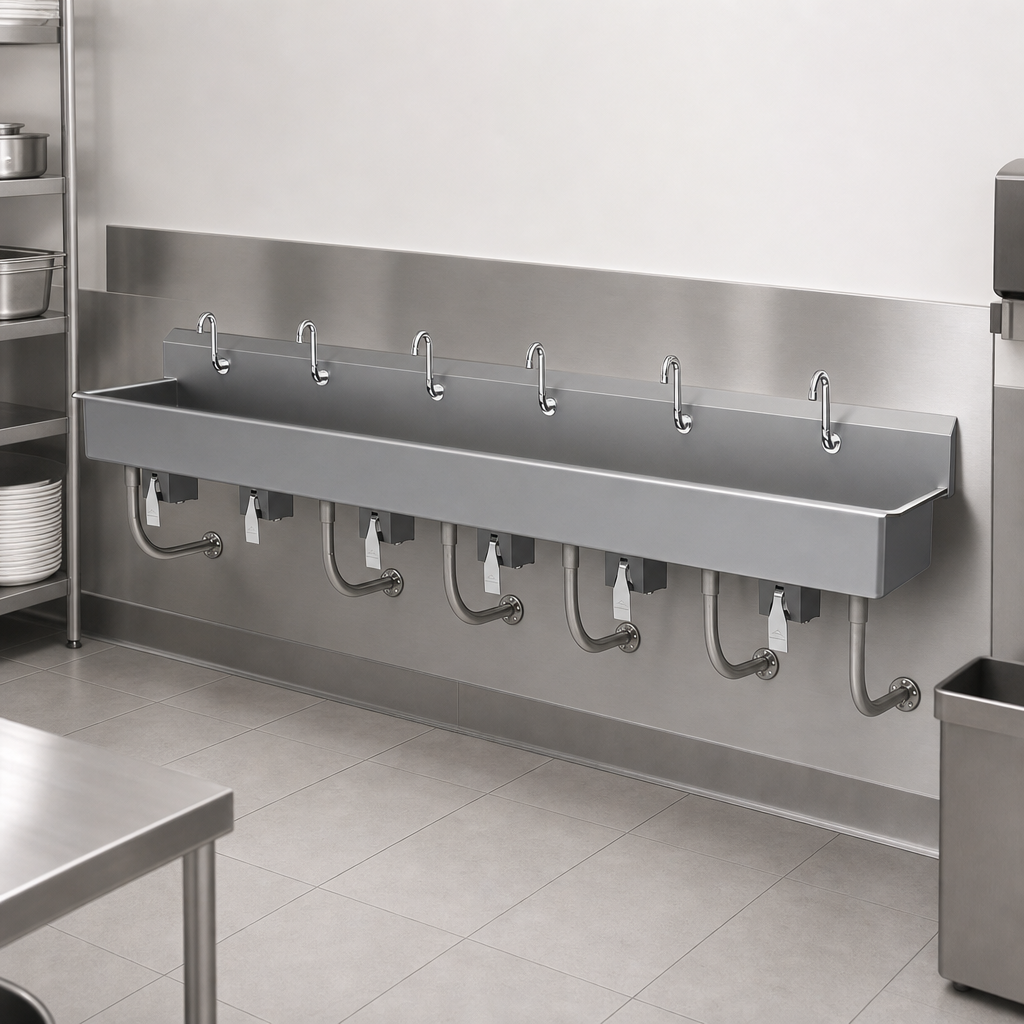

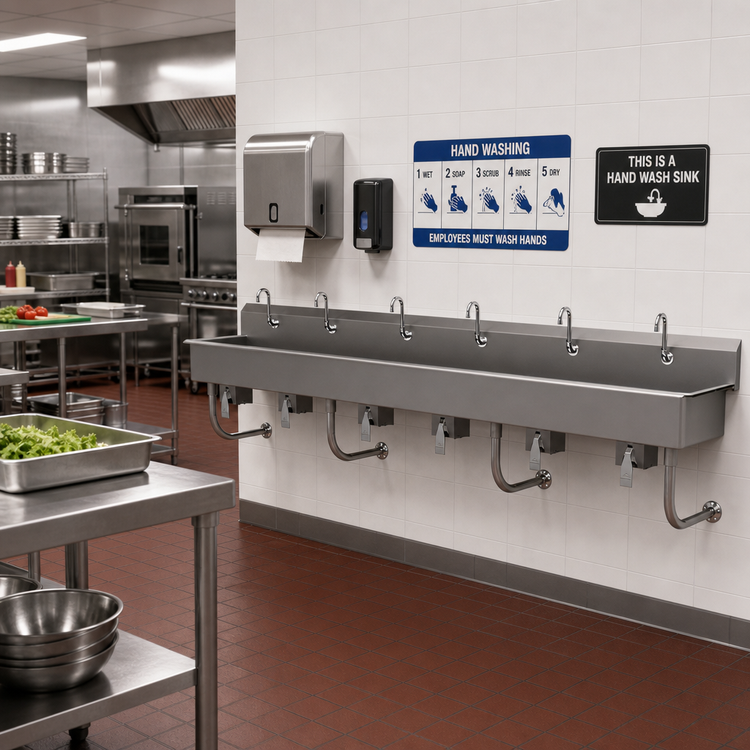

Advance Tabco FS-WM-120KV | 120" 6-Station Knee-Operated Hand-Wash Sink

Heavy-duty, wall-mounted solution for high-volume, hands-free hygiene

Built for the busiest food-service, manufacturing and laboratory environments, this 120 inch Advance Tabco multi-wash sink lets six team members wash up simultaneously—without ever touching a handle. 14-gauge 304 stainless steel, TIG-welded seams and a rock-solid wall-mount kit deliver years of worry-free service.

Key Features

  • 6 single-hole splash-mount stations with gooseneck spouts
  • Foot-free operation via (6) 7-PS-32 knee valves—ideal for HACCP compliance
  • 16" front-to-back x 8" deep bowls minimize splash while accommodating large stock pots and utensils
  • 8 ½" integral backsplash protects walls and simplifies cleanup
  • (3) factory-installed 3 ½" rear basket drains reduce field labor
  • Extra-heavy 14-gauge type 304 stainless steel with uniform satin finish
  • (4) 1 5⁄8" Ø tubular stainless supports & (2) “Z” wall brackets provide clear floor space beneath the sink
  • NSF listed – fully compliant for commercial food-service use

At-a-Glance Specifications

Model FS-WM-120KV
Stations / Valves 6 stations  |  6 knee valves
Overall Dimensions 120" W × 19 1⁄2" D × 29 1⁄2" H
Bowl Size (each) 16" F-B × 8" deep
Backsplash Height 8 1⁄2"
Faucet Mount (6) single 1 3⁄8" holes, splash mount
Drains Supplied (3) K-6 basket drains, 3 1⁄2"
Material / Gauge Type 304 stainless, 14-gauge
Wall Support (4) tubular supports & (2) “Z” brackets
Certifications NSF, lead-free components

What’s in the Box

  • 120" sink body with 8 ½" backsplash
  • (6) knee valves with adjustable mixing
  • (6) 8" S-style gooseneck spouts
  • (3) 3 ½" rear basket drains with strainers
  • (2) stainless “Z” wall brackets & (4) tubular supports
  • Mounting hardware & installation instructions
Prop 65 Notice: This product can expose you to chemicals, including lead, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov.

Looking for custom lengths, foot-pedal activation or electronic faucets? Contact us for special-order Advance Tabco configurations.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

29.5in

Width

120.0in

Depth

19.5in

Shipping Weight

228.0lbs

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Faucet

faucet included

Features

multi-station

Style

wall mounted

Bowl Height (rim to drain)

8" deep

Specifications

Multiwash Hand Sink, splash mount faucet provision, wall mounted, with knee valve, 120"W x 19-1/2"D x 29-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (6) single faucet holes, gooseneck spouts, includes (3) 3-1/2" rear basket drains, 14 gauge 304 stainless steel construction, (4) tubular stainless steel wall supports, NSF
