Advance Tabco  |  SKU: FS-WM-120EFADA  |  UPC: 747545211743

Advance Tabco FS-WM-120EFADA Hand Sinks

$9,290.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

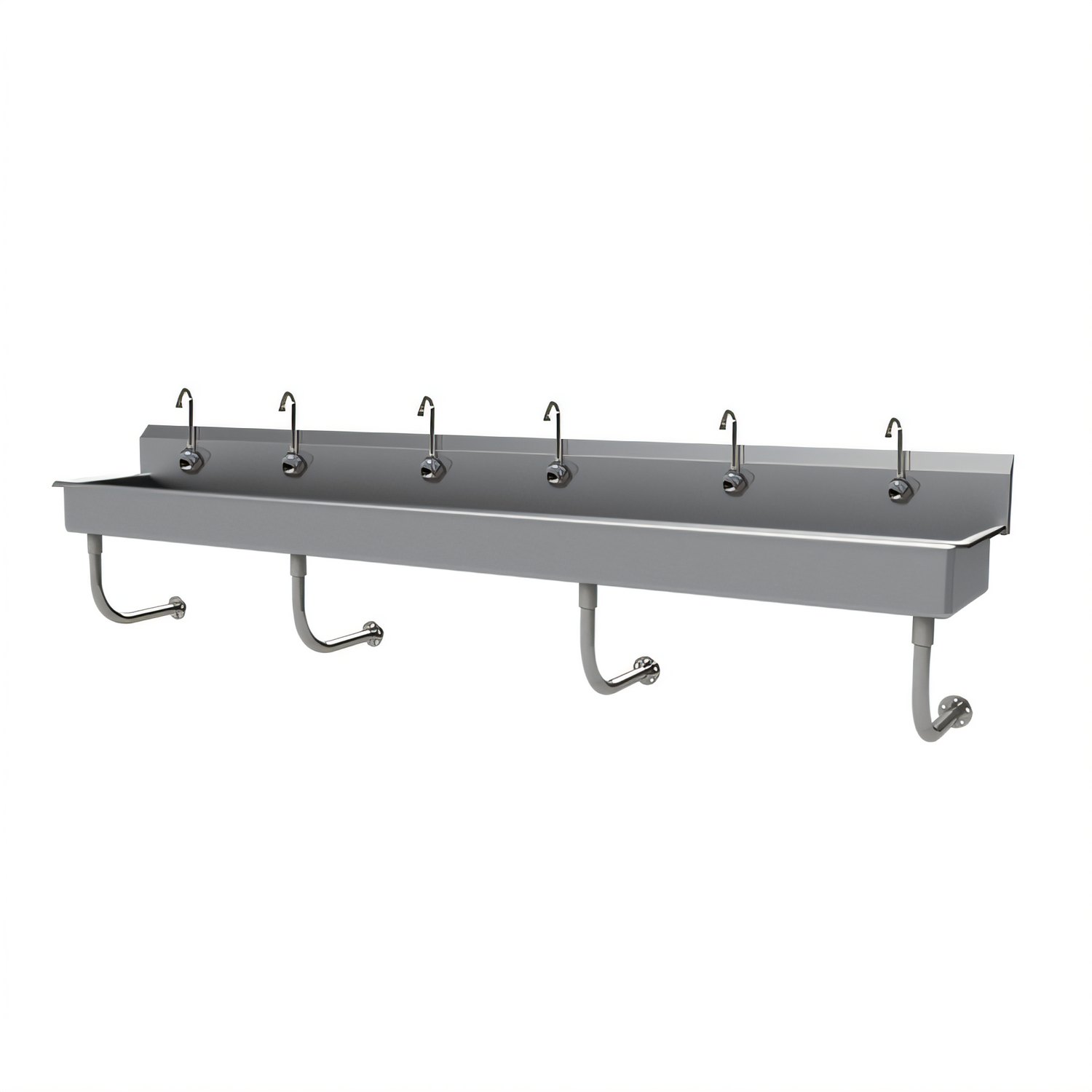

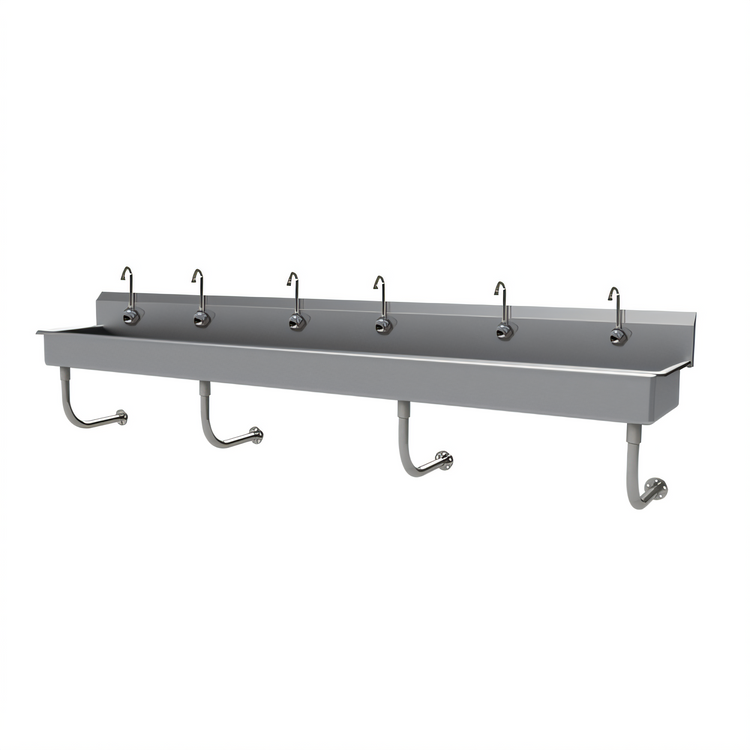

Advance Tabco 120" 6-Station Wall-Mounted Multi-Wash Hand Sink — Electronic, ADA

Model FS-WM-120EFADA • 14 Gauge 304 Stainless Steel

Built for the highest-traffic wash areas, this Advance Tabco six-station sink combines heavy-duty construction with touch-free electronic operation. The extra-wide 120" design lets multiple users wash simultaneously, improving productivity and hygiene in food-service, manufacturing and healthcare facilities.

Key Features

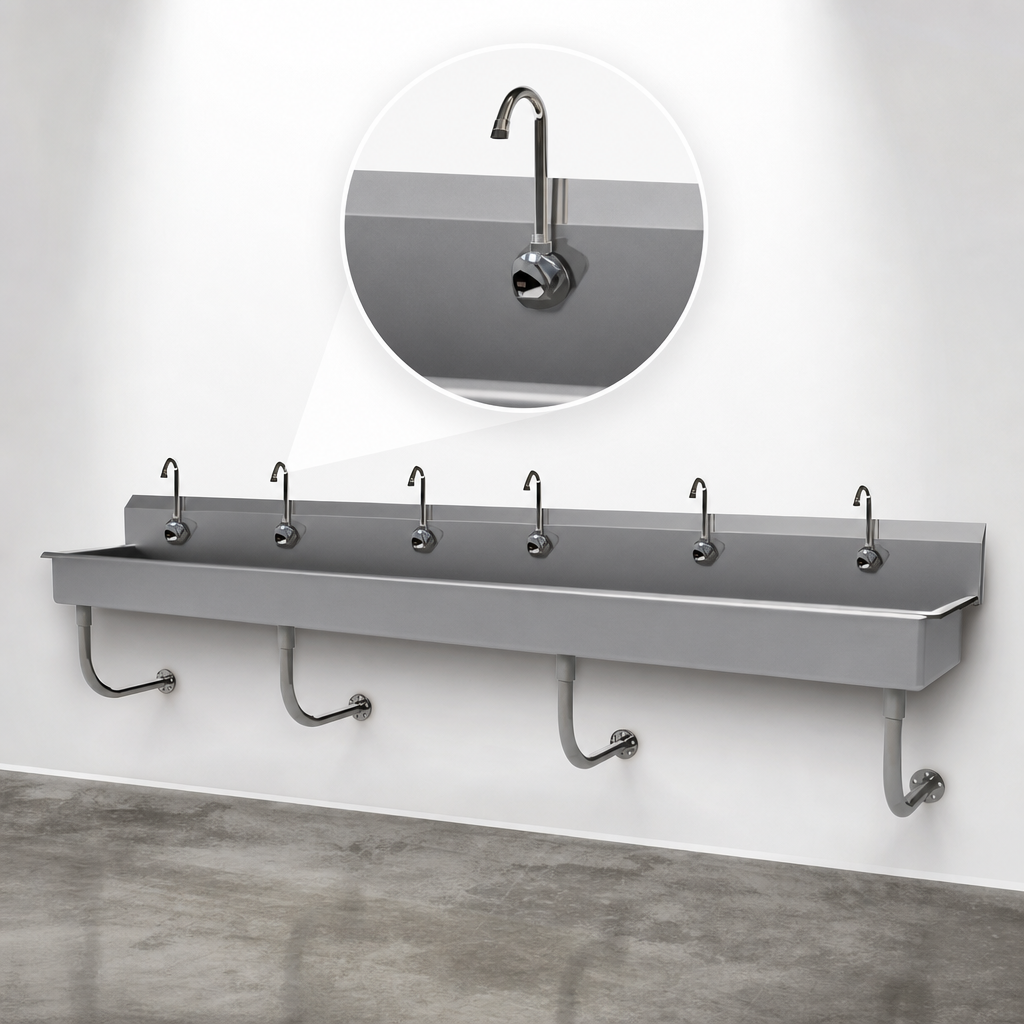

  • Six splash-mounted K-175 electronic faucets — sensor-activated to reduce cross-contamination
  • ADA-compliant 5" deep bowl provides wheelchair access without knee obstructions
  • Generous 16" front-to-back working surface with an 8-1/2" high backsplash to keep walls dry
  • All TIG-welded 14 ga. type 304 stainless steel with a sanitary satin finish
  • Three 3-1/2" K-6 rear basket drains capture debris for quick clean-out
  • Punched with one single-hole faucet opening at each station — no drilling required
  • Wall-mount “Z” bracket system with four 1-5/8" tubular stainless supports for full knee clearance
  • NSF listed, lead-free & Prop 65 compliant
Why It Stands Out
  • Hands-free activation promotes food-safety protocols and saves water with automatic shut-off.
  • Straightforward installation — simply anchor the supplied brackets, hang the sink and hook up water & waste lines.
  • 14 ga. stainless construction shrugs off heavy daily use and harsh cleaning agents.
  • Sleek, low-profile design blends effortlessly into both production spaces and public restrooms.
Specifications
Number of Stations / Faucets 6
Overall Width 120" (3048 mm)
Overall Depth 19-1/2" (495 mm)
Overall Height 25-1/2" (648 mm) to top of backsplash
Bowl Front-to-Back 16" (406 mm)
Bowl Depth 5" (127 mm) — ADA
Backsplash Height 8-1/2" (216 mm)
Material 14 ga. type 304 stainless steel
Drain Assemblies (3) 3-1/2" rear basket drains included
Mounting Hardware (4) stainless “Z” wall brackets with 1-5/8" tubular supports
Faucet Details Advance Tabco K-175, 2.2 GPM, 100-240 VAC adapter (UL Listed)
Certifications NSF, ADA, Lead-Free NSF/ANSI 61/9

Looking to conserve even more water? Optional 0.5 GPM low-flow aerators (part K-08) are available.

California Prop 65 Warning: This product can expose you to chemicals, including lead, which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF, ADA Compliant

Height

25.5in

Width

120.0in

Depth

19.5in

Shipping Weight

149.0lbs

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Faucet

faucet included

Features

multi-station

Style

wall mounted

Bowl Height (rim to drain)

5" deep

Specifications

Multiwash Hand Sink, splash mount faucet provision, wall mounted, with (6) electronic faucets, 120"W x 19-1/2"D x 25-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (6) single faucet holes, includes (3) 3-1/2" rear basket drains, 14 gauge 304 stainless steel construction, (4) tubular stainless steel wall supports, NSF, ADA compliant
