Advance Tabco FS-WM-120EF Hand Sinks

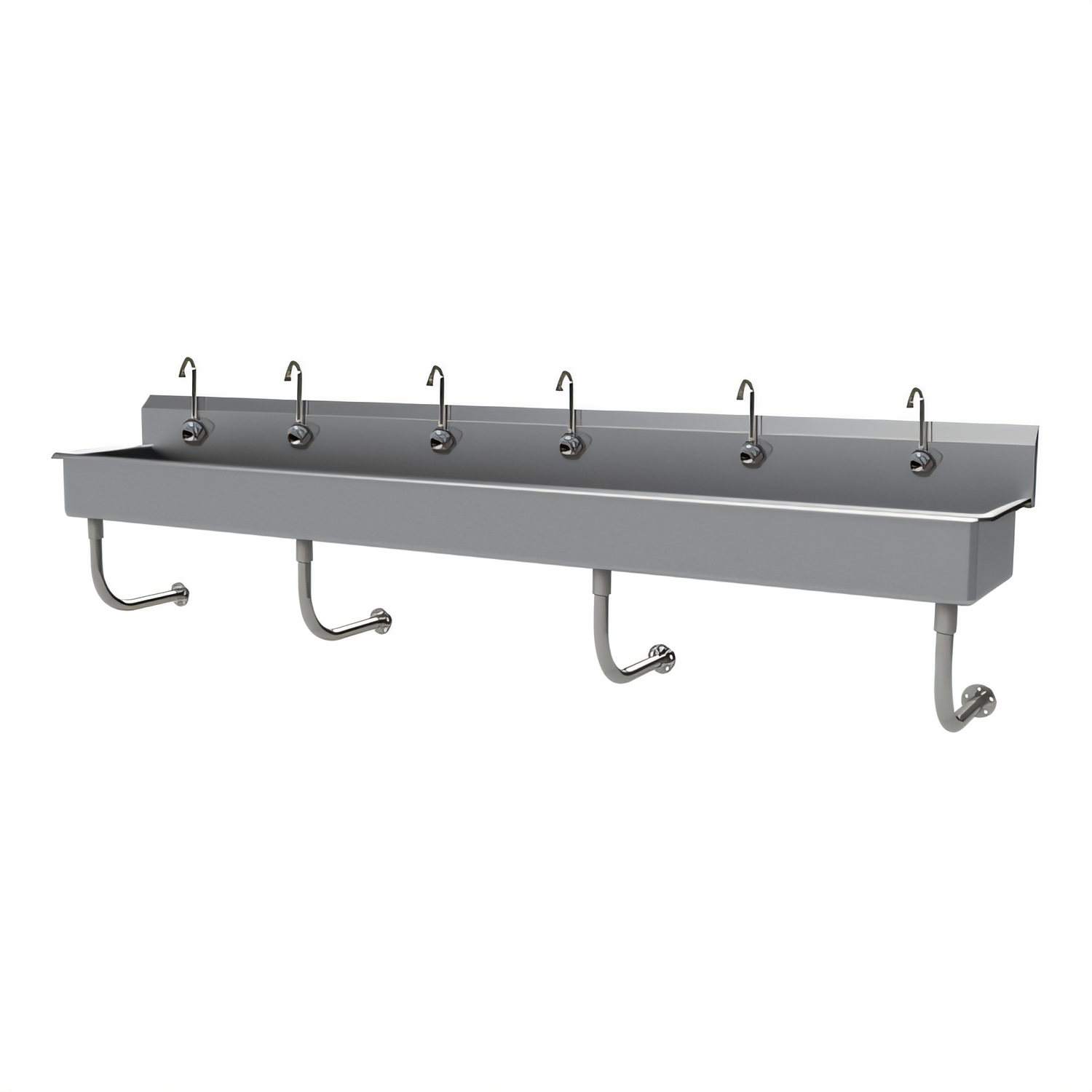

Advance Tabco FS-WM-120EF 6-Station Multi-Wash Hand Sink

Built for the busiest prep rooms, production areas, and labs, the Advance Tabco FS-WM-120EF gives six team members simultaneous, touch-free access to hygienic hand-washing while keeping the floor completely clear for carts and routine sanitation.

Key Features

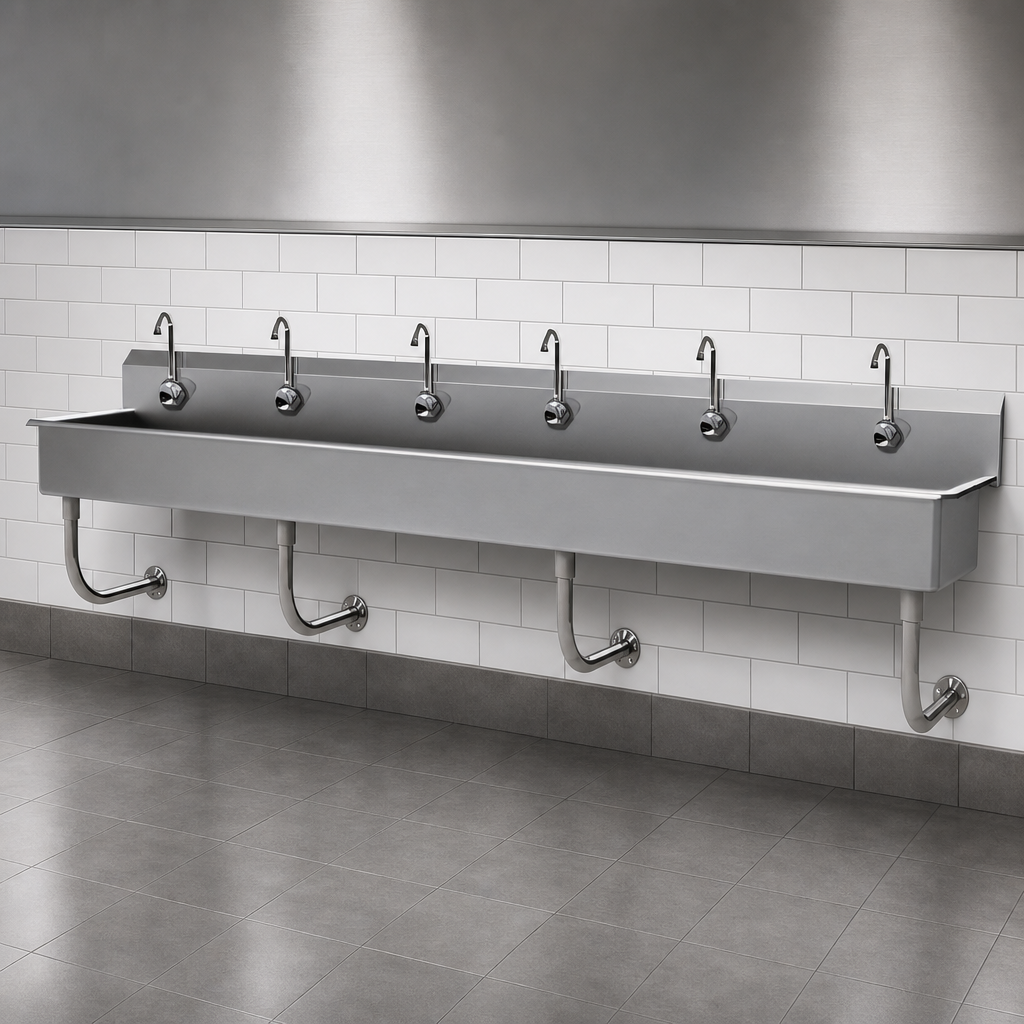

• Includes six NSF 61/9 lead-free K-175 splash-mount sensor faucets with swing spouts & control boxes (100–240 VAC adapters included).
• Spacious 120 in. W x 19 1⁄2 in. D x 29 1⁄2 in. H overall size serves high-traffic operations.
• Durable 14 ga type 304 stainless steel body with satin finish—TIG-welded and blended seams.
• Generous 16 in. front-to-back bowl, 8 in. deep to reduce splashing.
• 8 1⁄2 in. integral backsplash, factory-punched with one faucet hole per station.
• (3) 3 1⁄2 in. rear basket drains (K-6) speed water removal and trap debris.
• Four 1 5⁄8 in. tubular wall supports & stainless “Z” brackets provide rock-solid mounting and completely open floor space underneath.
• NSF certified for all food-service applications.

At-a-Glance Specifications

Why Choose This Sink

• Hands-free hygiene – IR sensors limit cross-contamination and reduce water waste.
• Heavy-duty build – 14-gauge 304 is 59 % thicker than industry-standard 18-ga sinks.
• Open base design – No legs on the floor means faster sweeping and mopping.
• Easy install – Pre-punched faucet holes and included wall hardware speed set-up.
• Expandable – Optional 0.5 GPM low-flow aerators help meet green-building targets.

Typical Applications

• Food-service prep & packaging rooms
• Meat & poultry processing plants
• Laboratories & clean rooms
• School cafeterias & commissaries
• Brewery & beverage production lines

Recommended mounting height to top of “Z” bracket: 42 1⁄2 in. above finished floor. Always verify local codes for final rough-in dimensions and backflow requirements.
