Advance Tabco FS-WM-120-F Hand Sinks
Description

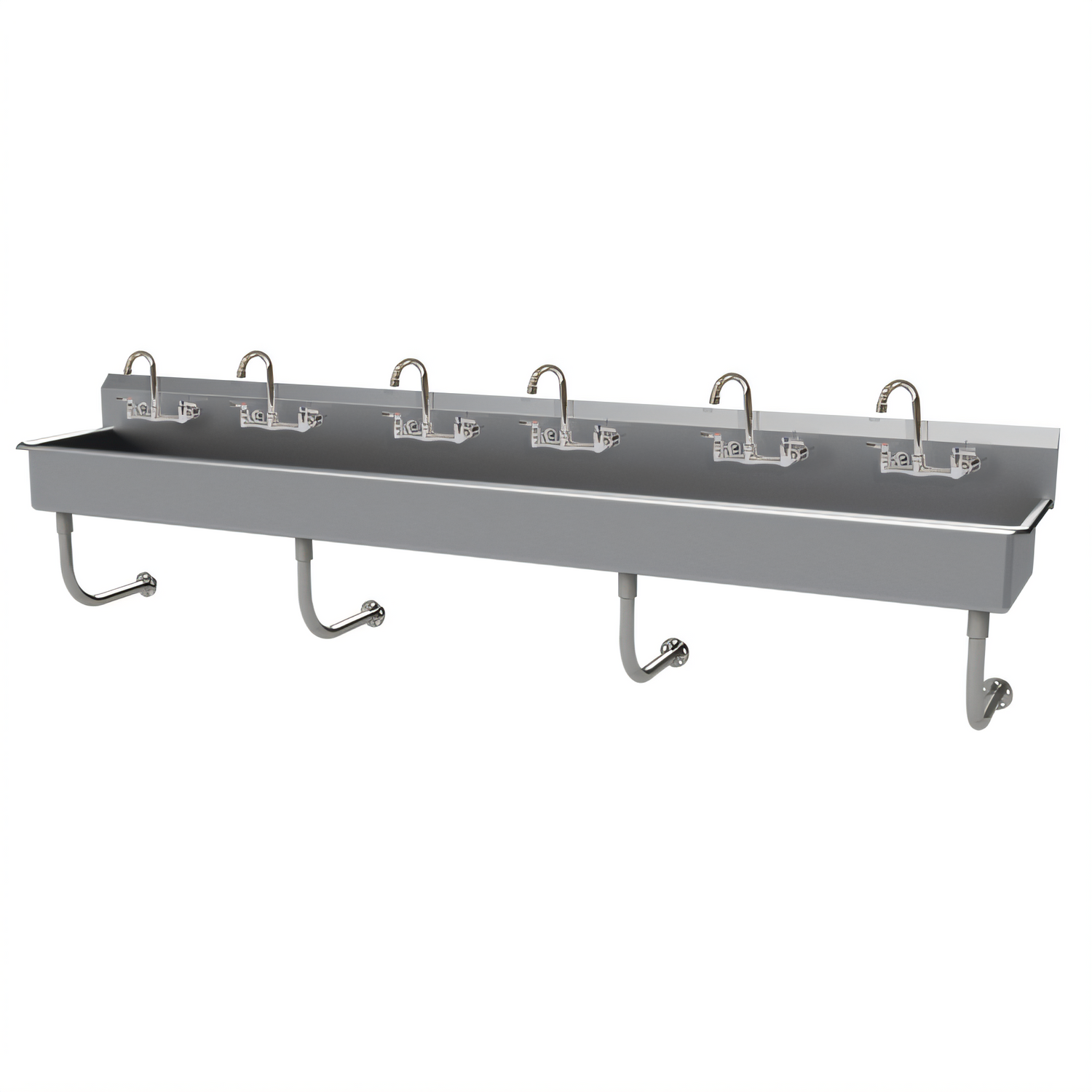

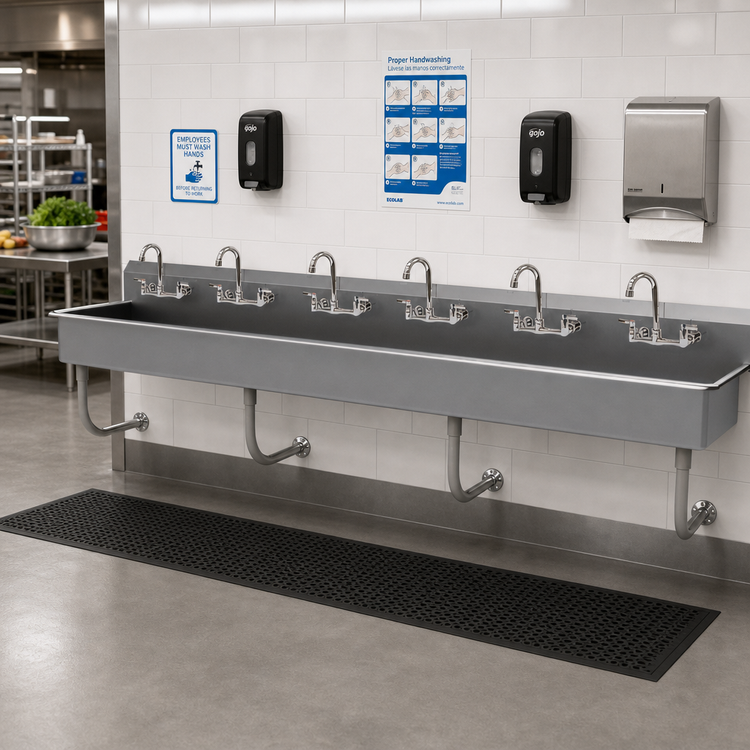

Advance Tabco 120" 6-Station Wall-Mounted Multi-Wash Hand Sink
14 ga Type 304 Stainless Steel • Includes (6) Splash-Mount Gooseneck Faucets • NSF ListedEngineered for the highest-volume kitchens, labs and manufacturing wash-areas, this 6-station Advance Tabco wall sink delivers rugged durability, fast installation and decades of worry-free sanitation. Full TIG-welded 14 gauge stainless steel, an extra-tall backsplash and integral basket drains keep water where it belongs while the included faucets get your crew washing the moment the sink is on the wall.
Key Features & Benefits

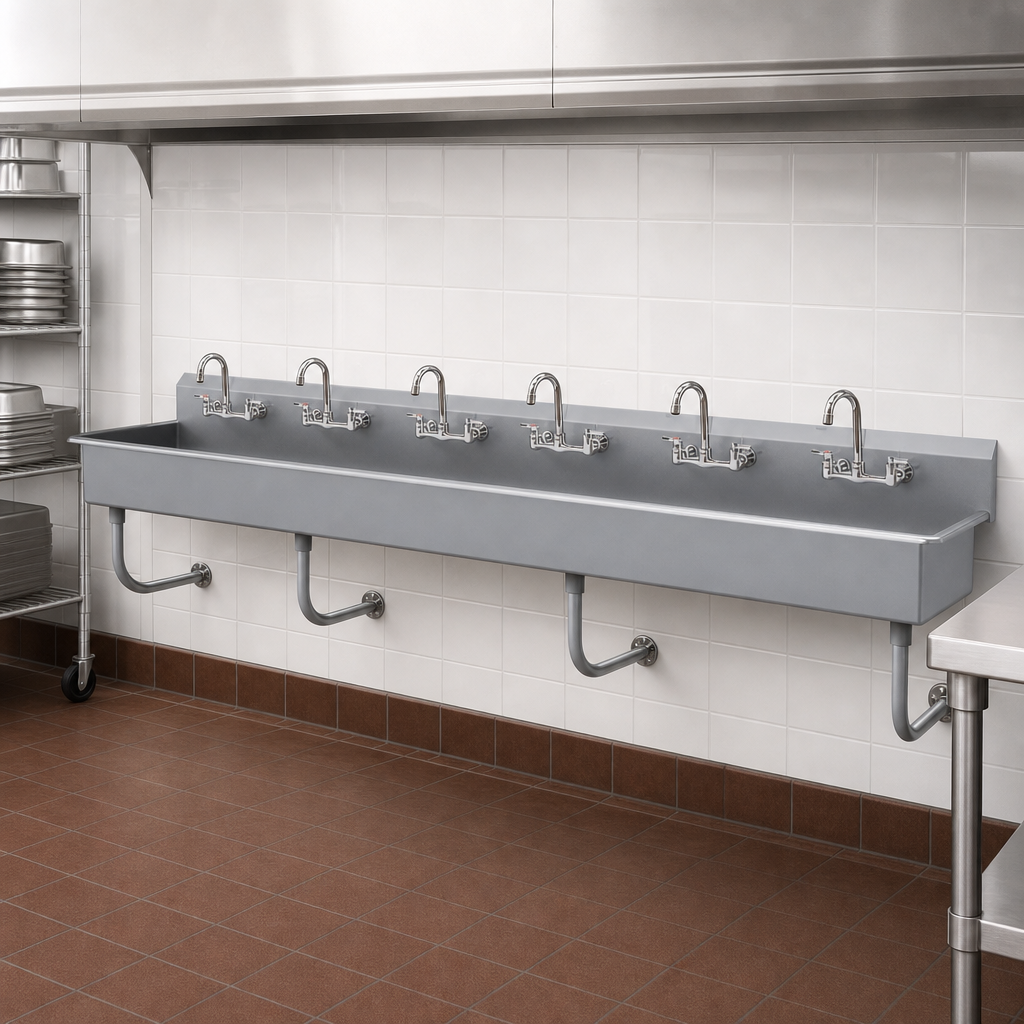

- 6 individual hand-wash stations across a 120" (10 ft.) wide sink – ideal for peak-hour traffic.
- Includes (6) K-159 8½" gooseneck faucets (splash-mount, manual) factory-installed.
- 14 ga, Type 304 stainless steel body resists corrosion, dents and harsh cleaners.
- 16" front-to-back x 8" deep bowl provides plenty of clearance for thorough hand washing.
- 8½" high integral backsplash with pre-punched 8" O.C. faucet holes for precise alignment.
- (3) 3½" rear basket drains with stainless strainers speed up water evacuation and catch debris.
- (4) 1⅝" tubular stainless steel wall supports and heavy-duty “Z” brackets supply rock-solid mounting and full knee clearance.
- Satin-finished welds are blended for a smooth, easy-to-sanitize surface.
- NSF certified for commercial food-service hygiene compliance.
At-a-Glance Specifications
| Overall Width | 120" (3048 mm) |
|---|---|
| Overall Depth | 19 ½" (495 mm) |
| Overall Height | 29 ½" (749 mm) to rim |
| Bowl Size (per station) | 16" front-to-back x 8" deep |
| Backsplash Height | 8 ½" |
| Faucets Included | (6) K-159 manual gooseneck, splash mount, 8" O.C. |
| Drain Assemblies | (3) K-6 3 ½" rear basket drains |
| Material & Gauge | 14 gauge, Type 304 stainless steel |
| Wall Support | (4) 1 ⅝" tubular stainless supports + “Z” wall brackets |
| Mounting Style | Splash-mount, wall-hung |
| Compliance | NSF Listed |
Recommended install height: top of “Z” bracket at 42½" above finished floor. All rough-in dimensions are typical; verify with local plumbing codes.
Included in the Box
- One 120" 6-station stainless sink assembly
- (6) K-159 splash-mount gooseneck faucets
- (3) K-6 basket drain kits (strainer, washer & nut)
- (4) Tubular wall supports & “Z” mounting brackets
- Installation hardware & instructions
