Advance Tabco FS-WM-120-ADA Hand Sinks
Advance Tabco FS-WM-120-ADA Hand Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco FS-WM-120-ADA Hand Sinks
Description

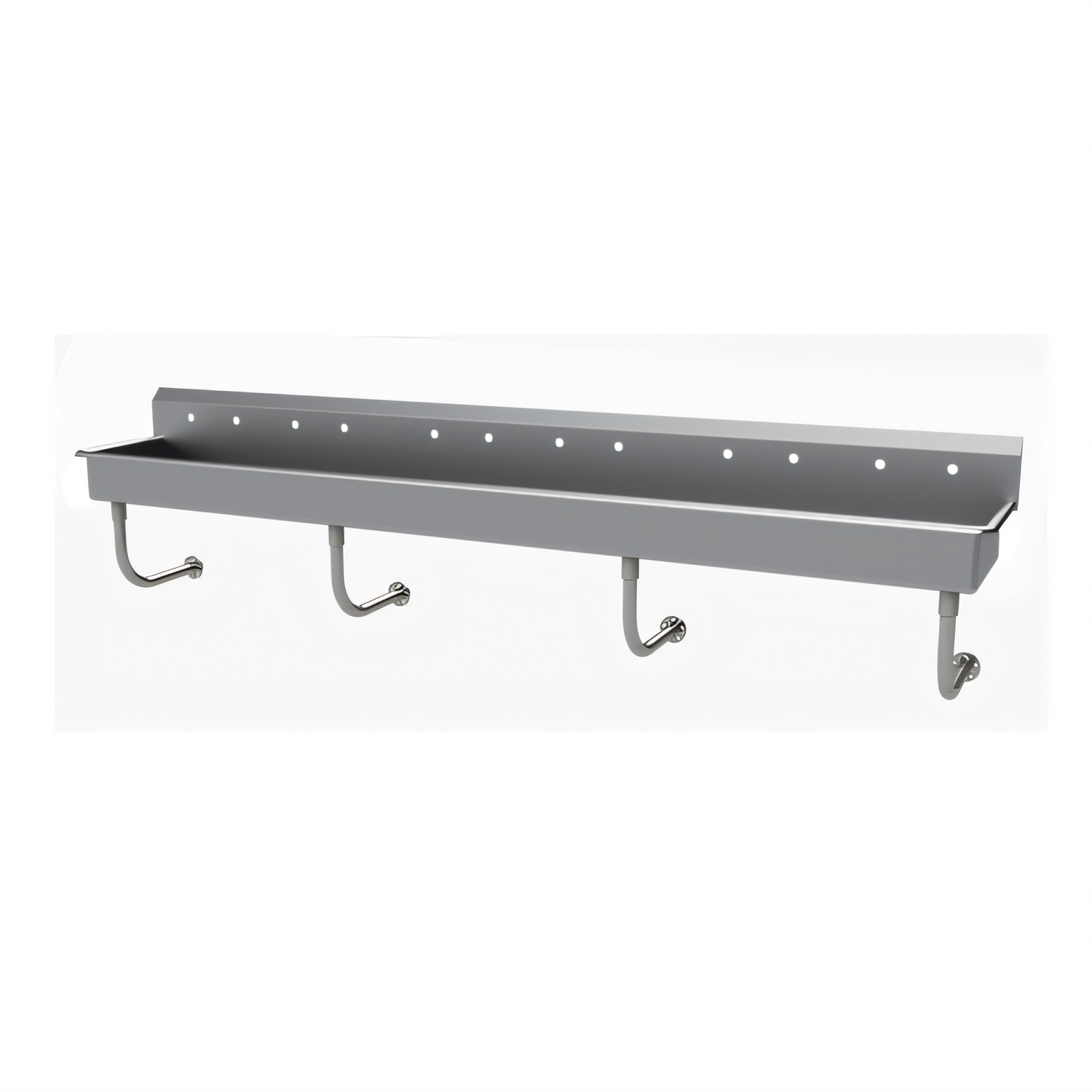

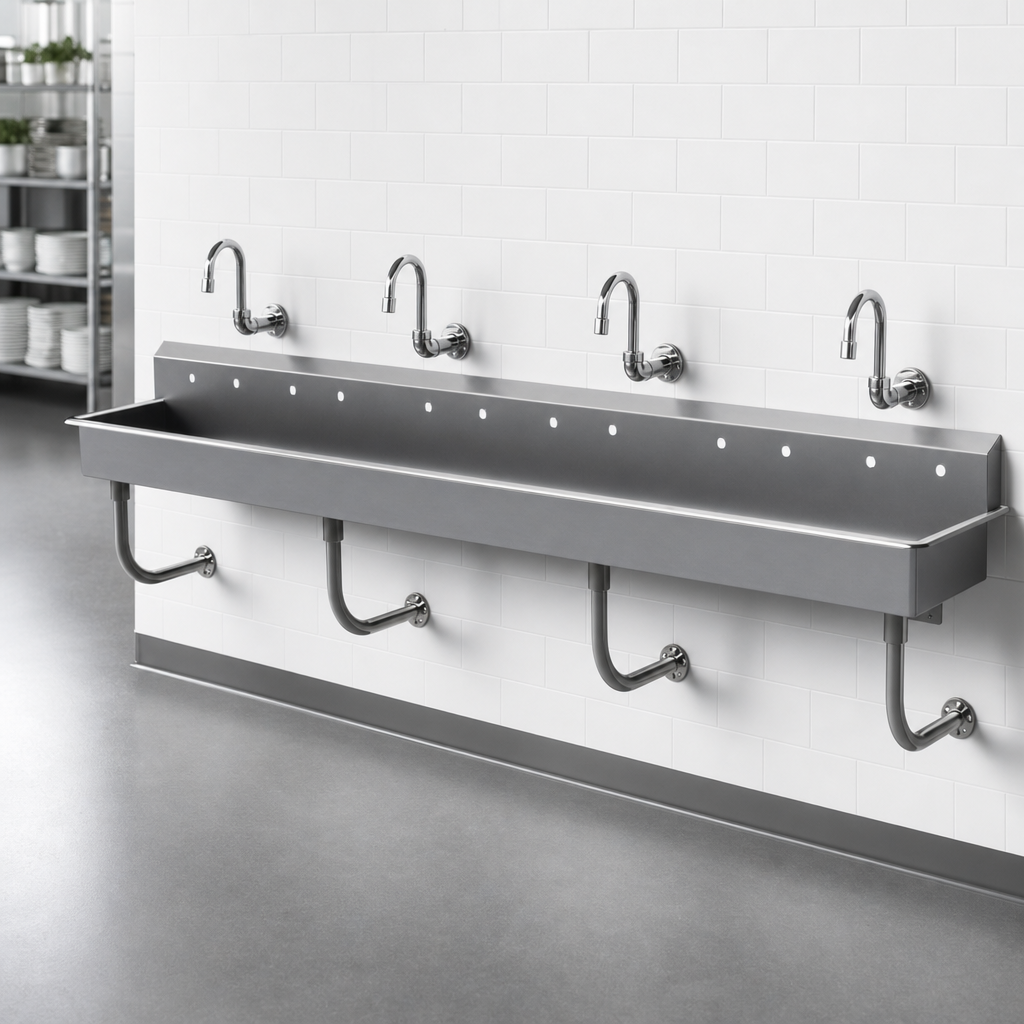

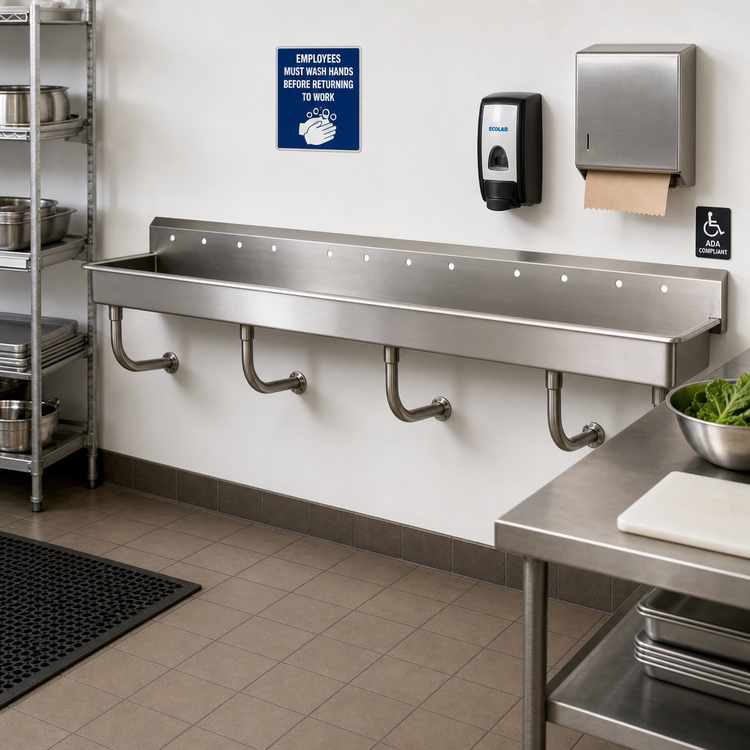

Advance Tabco 120" ADA Multi-Station Wall Mounted Hand Sink
Model FS-WM-120-ADA | 14-Gauge 304 Stainless Steel | No Faucets IncludedBuilt for the busiest wash areas, this six-station Advance Tabco hand sink pairs heavy-duty 14-gauge stainless steel with true ADA accessibility. A full-length backsplash, factory-punched faucet holes, and open-underbody wall mounting make it the smart, space-saving solution for high-volume hygiene.
Why You’ll Love It
- Extra-long 120" width provides six comfortable hand-washing stations.
- 14-gauge type 304 stainless steel resists corrosion, dents, and harsh cleaners.
- ADA-compliant 5" deep bowl and open knee-space for wheelchair access.
- 8 ½" high backsplash with (6) sets of 8" O.C. splash-mount faucet holes.
- (3) 3 ½" K-6 rear basket drains with strainers included.
- (4) 1 ⅝" tubular stainless steel wall supports keep floors clear for easy cleaning.
- Fully TIG-welded, satin-blended seams for a smooth, sanitary surface.
- NSF listed and ready for code-compliant commercial installation.
At-a-Glance Specs
| Overall Width | 120" (3048 mm) |
|---|---|
| Overall Depth | 19 1⁄2" (495 mm) |
| Overall Height | 25 1⁄2" (648 mm) to top of backsplash |
| Bowl Size (each) | 16" front-to-back × 5" deep |
| Backsplash Height | 8 1⁄2" |
| Faucet Mounting | (6) sets – 8" centers, 1 1⁄8" dia. holes |
| Drain Openings | (3) 3 1⁄2" rear basket drains (included) |
| Material / Gauge | 14 ga. Type 304 stainless steel, satin finish |
| Wall Supports | (4) tubular supports + stainless “Z” brackets |
| Certifications | NSF, ADA |
What’s in the Box
- One (1) 120" multi-station hand sink assembly
- Three (3) K-6 style 3 1⁄2" basket drains with strainers
- Four (4) tubular wall-mount supports & “Z” mounting brackets
- Comprehensive installation instructions
Add-On Options (Sold Separately)
- 8" O.C. splash-mount gooseneck faucets (manual, electronic, knee or foot operated)
- Backsplash-mount soap dispensers & paper-towel holders
- Mixing valves and thermostatic controls
Need help pairing faucets or touch-free accessories? Call 800-555-1234 and our product experts will assist you.
Perfect For
- High-volume commercial kitchens & commissaries
- Food-processing & packaging facilities
- Healthcare, laboratory, and pharmaceutical wash areas
- Schools, stadiums, and event venues
