Advance Tabco FS-WM-120-ADA-F Hand Sinks
Description

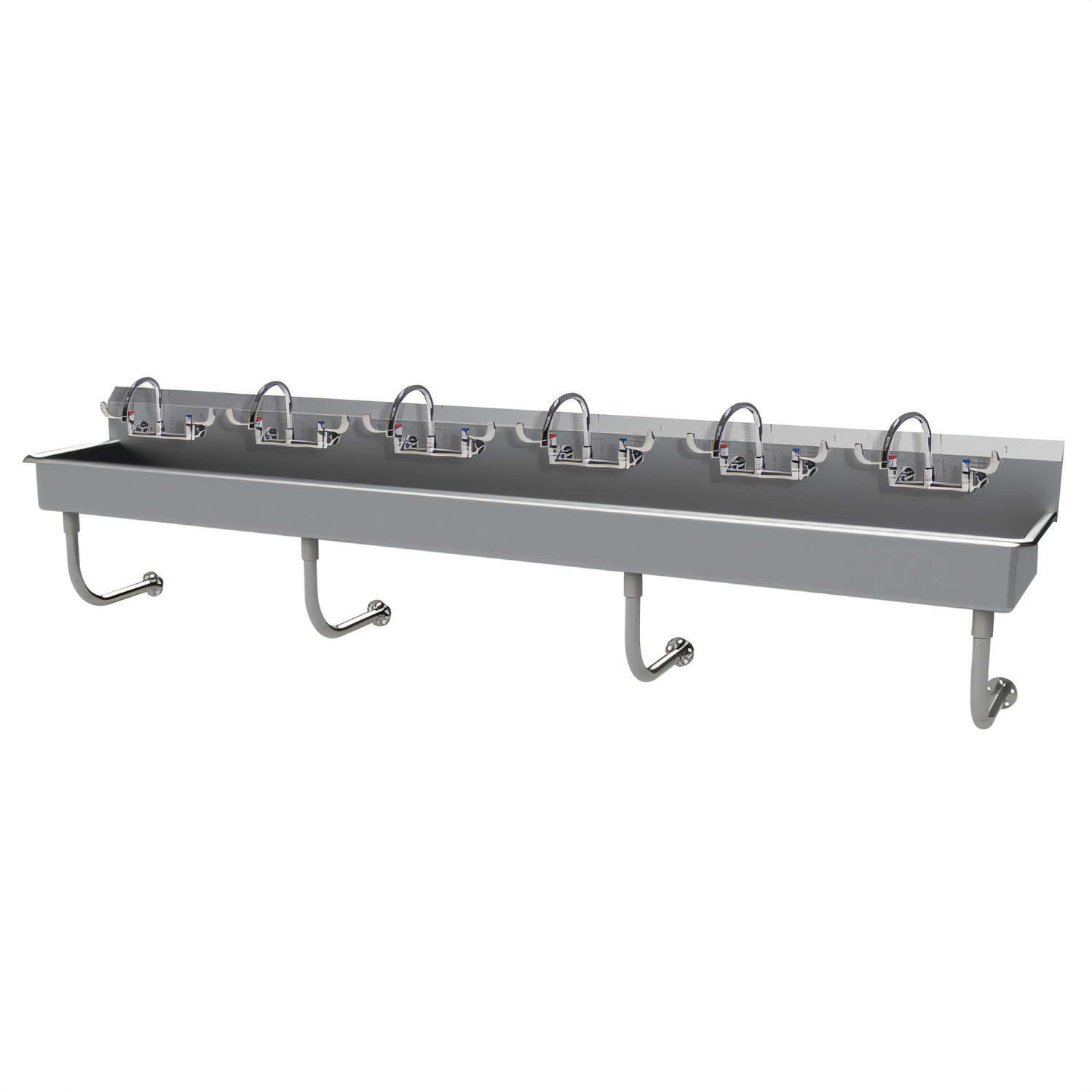

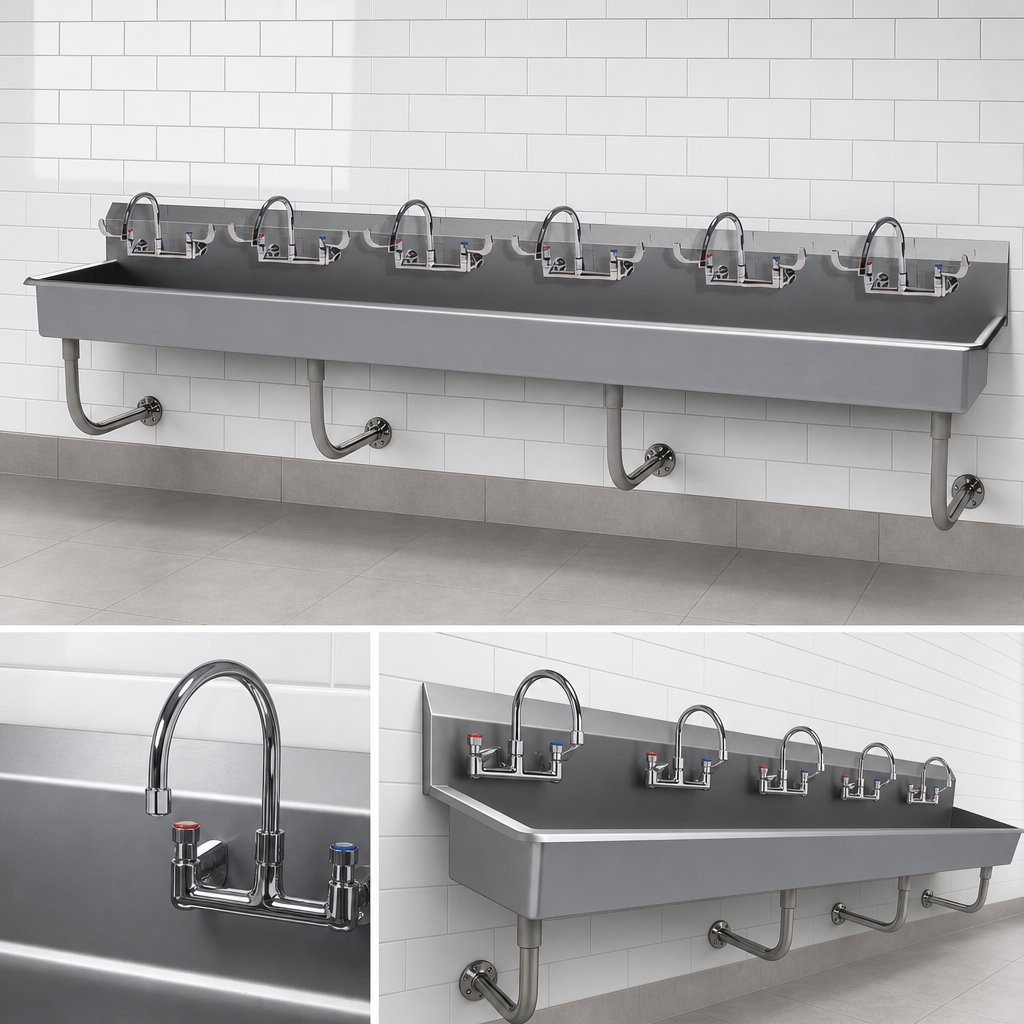

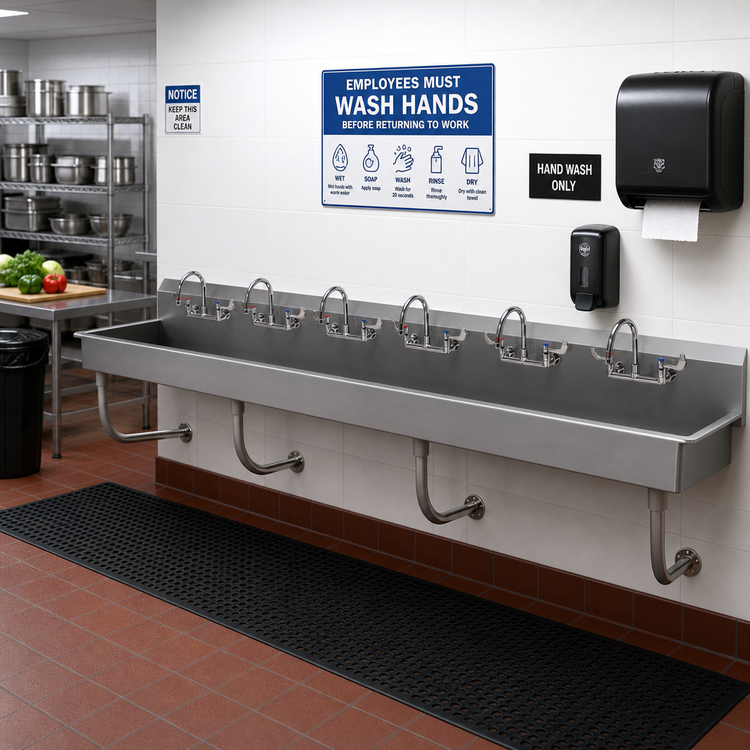

Advance Tabco 120" 6-Station ADA Wall-Mounted Multi-Wash Hand Sink
Model: FS-WM-120-ADA-F | 14-Gauge 304 Stainless SteelBuilt for heavy-duty traffic and strict hygiene standards, this 6-station Advance Tabco multi-wash sink delivers spacious hand-washing capacity in a sleek, wall-mounted design that meets both NSF and ADA requirements. Factory-supplied wrist-action faucets and rear basket drains arrive ready for quick installation so your team can focus on what matters most—sanitation and workflow efficiency.
Why You’ll Love It
- 6 easy-access stations keep high-volume lines moving.
- ADA-compliant 5" deep bowls with 16" front-to-back clearance allow comfortable wheelchair approach.
- Factory-installed K-161-LU gooseneck faucets with wrist blades promote hands-free operation.
- 14-gauge type 304 stainless steel resists corrosion and everyday abuse.
- Full 8½" backsplash contains splashes and is pre-punched 8" on-center for the included faucets.
- (3) 3½" rear basket drains speed water evacuation and capture debris.
- Wall “Z” brackets plus (4) tubular stainless supports create an open, easy-to-clean floor area.
- Satin-blended TIG welds deliver a professional look that’s built to last.
Technical Specifications
| Overall width | 120" (3048 mm) |
|---|---|
| Overall depth | 19 1⁄2" (495 mm) |
| Overall height | 25 1⁄2" (648 mm) to top of backsplash |
| Bowl size (each) | 16" front-to-back × 5" deep |
| Backsplash height | 8 1⁄2" |
| Stations / faucets | 6 stations | 6 K-161-LU wrist-blade faucets included |
| Drain openings | (3) 3 1⁄2" basket drains (rear mounted) |
| Faucet hole pattern | 6 sets, 8" on-center, splash-mount |
| Material | 14-gauge 304 stainless steel sink & 1 5/8" Ø tubular 304 supports |
| Mounting hardware | Stainless “Z” wall brackets & (4) tubular wall supports (included) |
| Certifications | NSF Listed, ADA Compliant |
Quick Installation Overview
- Mount “Z” brackets 42 1⁄2" from finished floor to bracket top, secure to studs or masonry.
- Slide sink onto brackets, then fasten tubular supports for full stability and clear floor space.
- Connect 3⁄8" NPT water lines to each faucet and plumb drains to waste line per local code.
Complete installation instructions ship with the unit and are available from Advance Tabco customer service at 800-645-3166.
Compliance Made Simple
- NSF Certified – engineered for food-service sanitation.
- ADA Accessible – 5" bowl depth and open knee clearance meet 2010 ADA guidelines.
- Lead-free components meet Safe Drinking Water Act requirements.
