Advance Tabco  |  SKU: FS-WM-100KV  |  UPC: 747545211453

Advance Tabco FS-WM-100KV Hand Sinks

$5,816.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Optional mixing valve Parts list
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

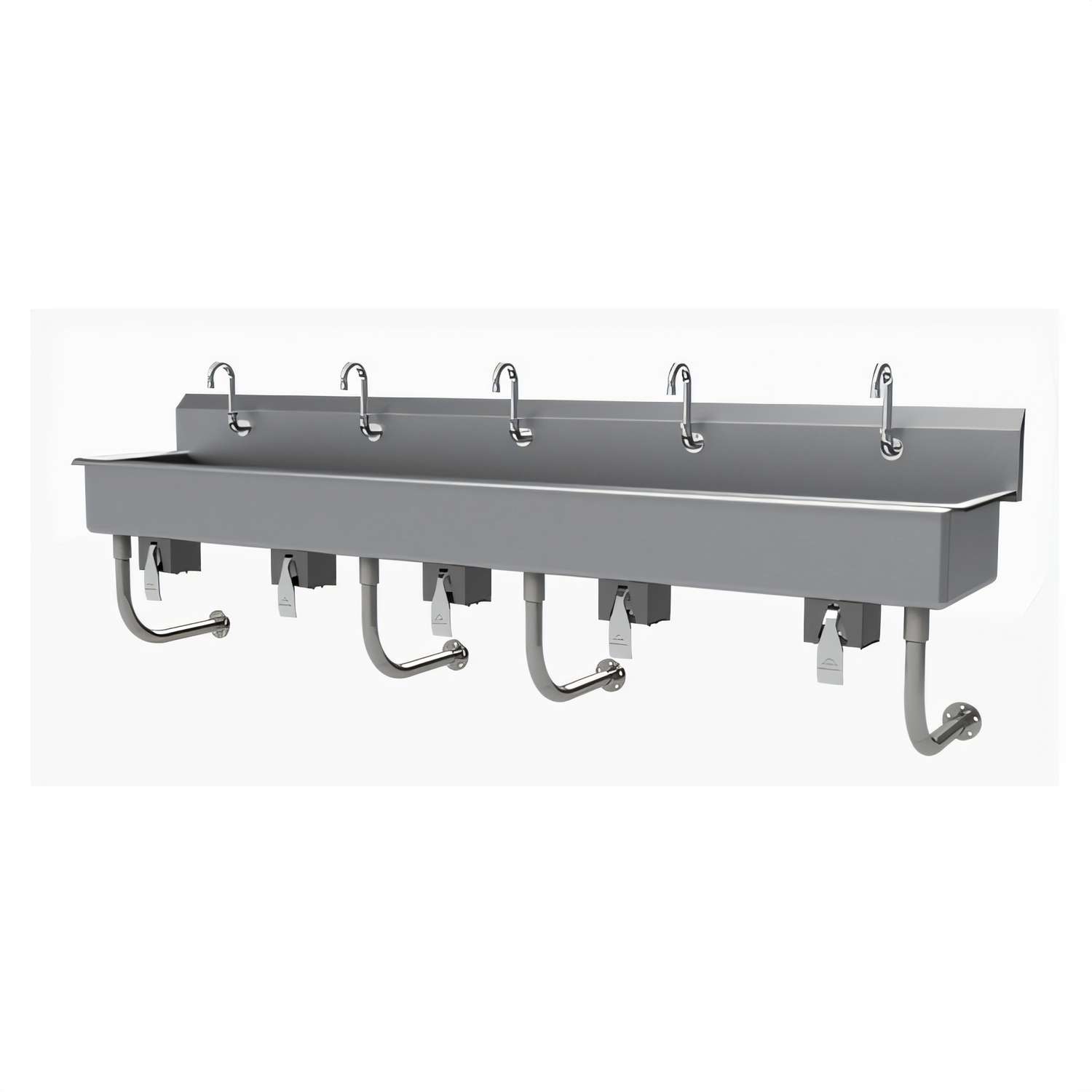

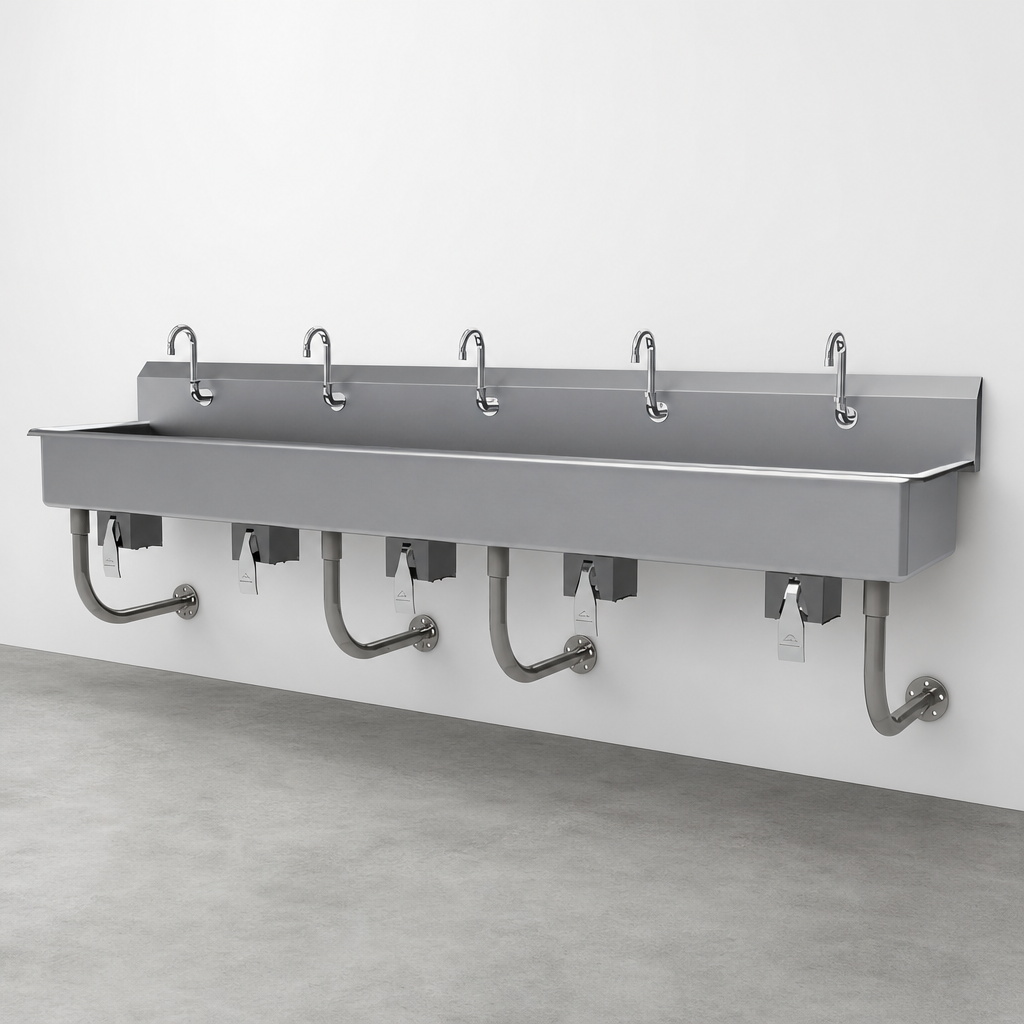

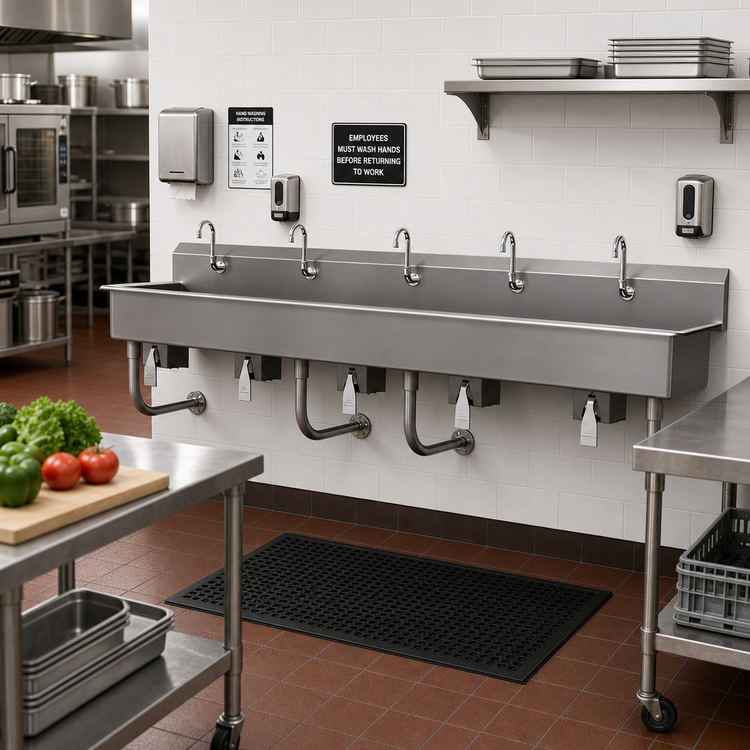

100" 5-Station Knee-Operated Multi-Wash Hand Sink

Advance Tabco model FS-WM-100KV | 14 ga. Type 304 Stainless Steel

Built for the busiest back-of-house environments, this wall-mounted, multi-user hand sink combines rugged 14-gauge stainless steel with completely hands-free knee valve operation. A full 100 inch length delivers five individual wash stations while keeping floors clear for carts, racks and foot traffic.

Why You’ll Love It

  • Five single-hole stations with 8 in. deep x 16 in. front-to-back bowls.
  • Hands-free knee pedals (5 × 7-PS-32 valves) promote hygiene & conserve water.
  • 5 ¾ in. gooseneck spouts (K-121) for precise, splash-mount delivery.
  • 8 ½ in. integrated backsplash stops overspray and meets food-service codes.
  • TIG-welded 14 ga. 304 stainless steel with a satin finish — built to outlast lighter sinks.
  • Twin “Z” wall brackets & 1 5⁄8 in. tubular wall supports leave the floor completely open.
  • (2) 3 ½ in. rear basket drains included for fast, clog-resistant drainage.
  • NSF listed & conforms to NSF/ANSI 61 lead-free requirements.

Perfect For

  • Food-prep & production lines
  • Meat & seafood processing rooms
  • Packaging areas & commissaries
  • Laboratories & clean rooms needing multi-user hand-washing

At-a-Glance Specs

Overall width (L) 100 in. (2540 mm)
Overall depth 19 ½ in. (495 mm)
Overall height 29 ½ in. (749 mm)
Backsplash height 8 ½ in. (216 mm)
Bowl size (each) 16 in. F-B × 8 in. deep
Number of stations 5
Gauge / material 14 ga. type 304 stainless steel
Faucet holes (5) single-hole, 1 ⅛ in. dia.
Valves 5 knee-operated mixing valves (included)
Drains (2) 3 ½ in. rear basket drains (K-6)
Mounting hardware (2) stainless “Z” brackets & tubular supports (included)
Certifications NSF, NSF/ANSI 61 lead-free

Optional K-425 thermostatic mixing valve is available for applications that require factory-preset water temperatures (sold separately).

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

29.5in

Width

100.0in

Depth

19.5in

Shipping Weight

192.0lbs

Faucet

faucet included

Bowl Width (left to right)

20" & up

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Height (rim to drain)

8" deep

Style

wall mounted

Features

multi-station

Specifications

Multiwash Hand Sink, splash mount faucet provision, wall mounted, with knee valve, 100"W x 19-1/2"D x 29-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (5) single faucet holes, gooseneck spouts, includes 3-1/2" rear basket drain, 14 gauge 304 stainless steel construction, tubular stainless steel wall supports, NSF
