Advance Tabco  |  SKU: FS-WM-100EFADA  |  UPC: 747545211729

Advance Tabco FS-WM-100EFADA Hand Sinks

$7,459.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Installation & operation Troubleshooting manual Installation manual 2
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

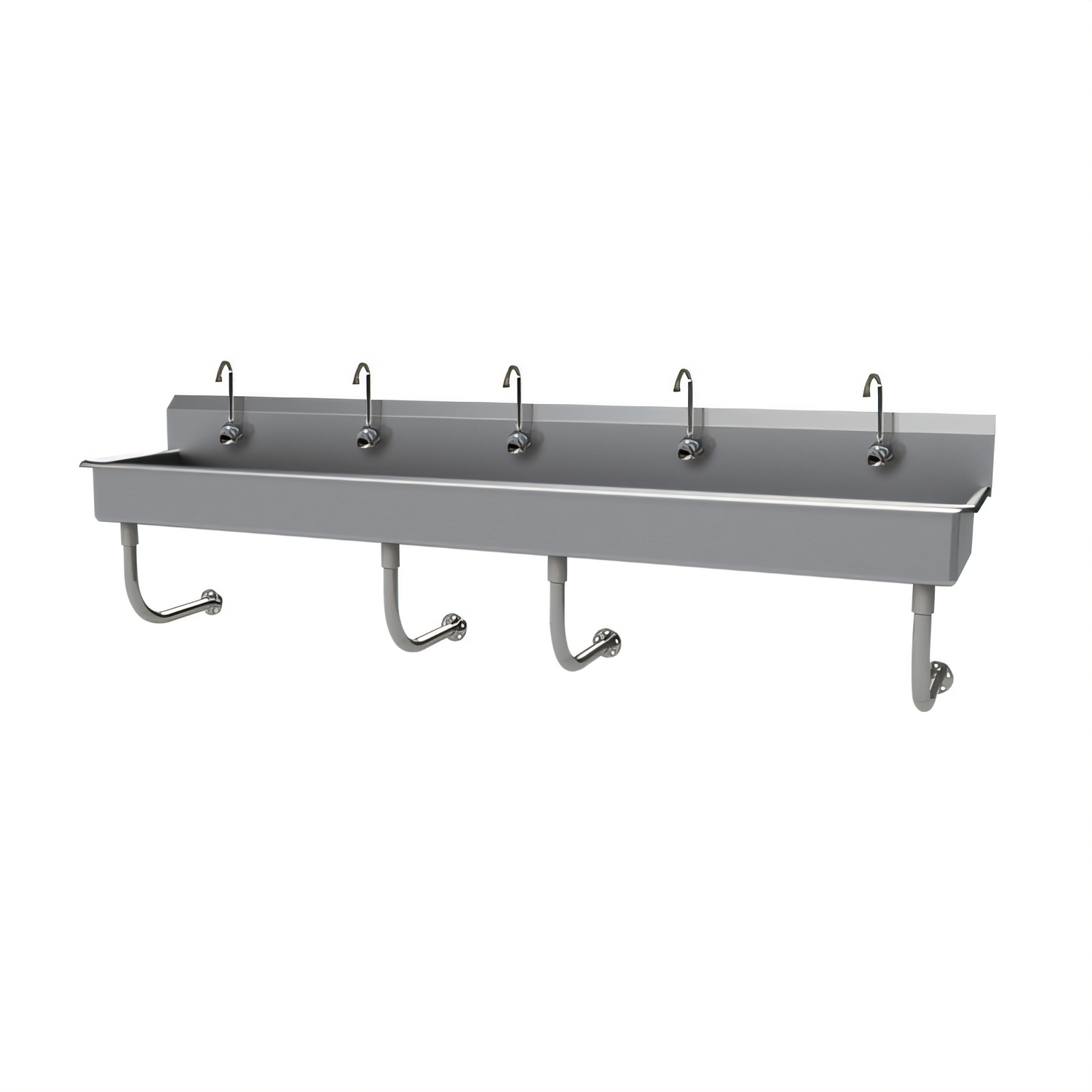

Advance Tabco 100" ADA Wall-Mounted Multi-Station Hand Sink

Model FS-WM-100-EFADA | 5 Hands-Free Electronic Faucets | 14 ga Type 304 Stainless Steel

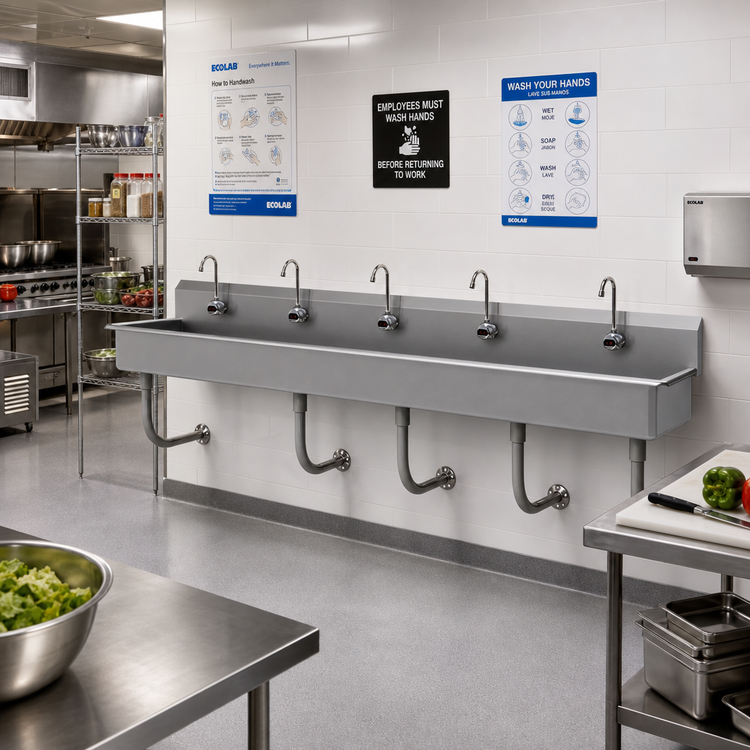

Designed for high-volume hand-washing in schools, food-service kitchens, labs and healthcare settings, this five-station Advance Tabco sink delivers superior hygiene, rugged durability and full ADA compliance. The integrated K-175 touch-free faucets reduce cross-contamination while the low-profile 5" deep bowl provides wheelchair accessibility without sacrificing basin capacity.

Why You’ll Love It

  • Five complete wash stations in one space-saving 100" unit.

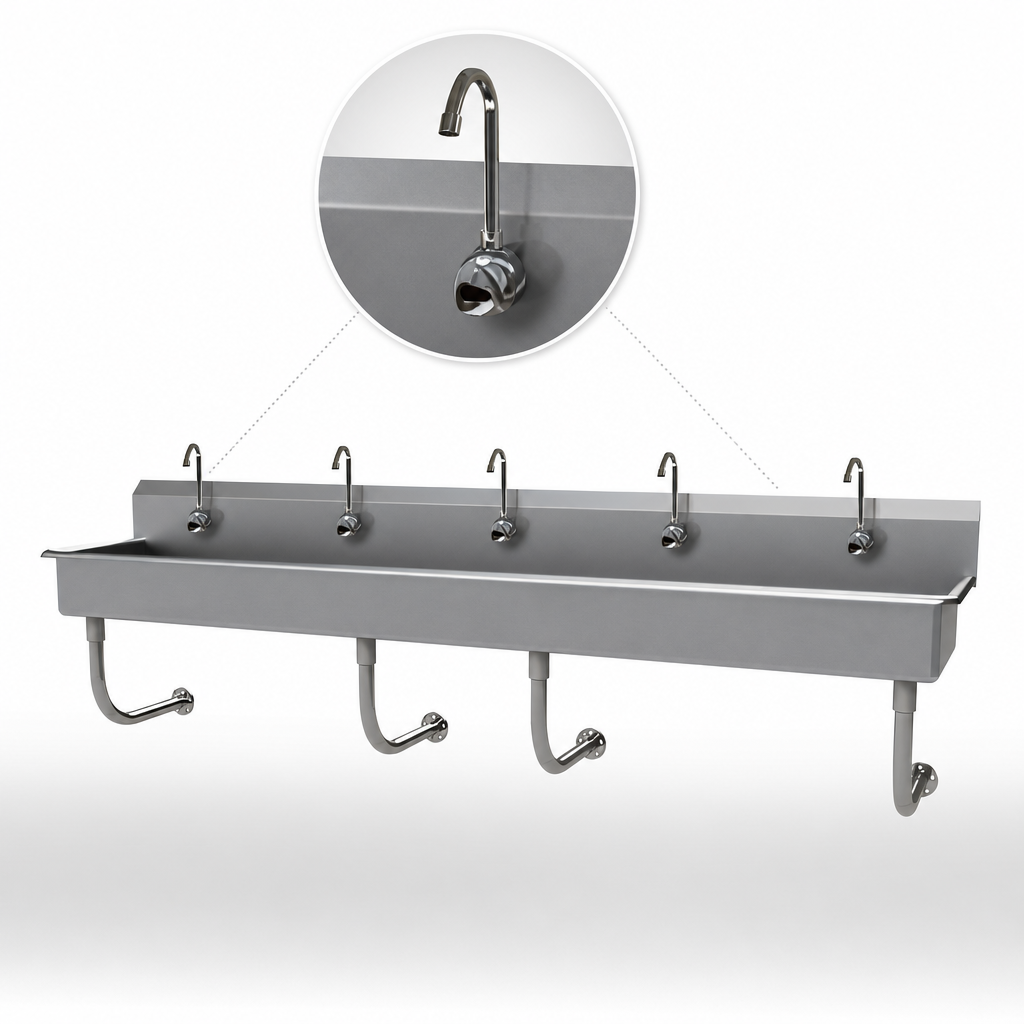

  • K-175 splash-mount electronic faucets activate via infrared sensor—no handles to touch.
  • 14 gauge, type 304 stainless steel resists corrosion, dents and harsh cleaners.
  • 5" deep x 16" front-to-back bowl meets ADA knee-clearance requirements.
  • 8-1/2" high backsplash contains splashes and simplifies wall clean-up.
  • TIG-welded construction with satin finish for easy wipe-down.
  • Factory-punched single faucet hole at each station for fast installation.
  • Includes one 3-1/2" rear basket drain and tubular stainless steel wall “Z” brackets for unobstructed floor space.
  • NSF listed for food-service sanitation.

What’s in the Box

  • (1) 100" wall-mounted sink assembly
  • (5) K-175 infrared, splash-mount faucets (2.2 GPM aerators pre-installed)
  • (1) 3-1/2" basket drain with strainer
  • (2) Stainless steel “Z” wall brackets & tubular front supports
  • (5) UL-listed control boxes & AC adapters (100-240 VAC input)
  • Mounting hardware & installation instructions

Technical Specifications

Overall dimensions (W × D × H) 100" W × 19-1/2" D × 25-1/2" H*
Bowl size (each) 16" front-to-back × 5" deep
Number of stations 5
Backsplash height 8-1/2"
Material / thickness 14 ga (0.078") type 304 stainless steel
Drain 3-1/2" rear basket drain (included)
Faucet type K-175 electronic, splash-mount, 2.2 GPM, lead-free
Power 100–240 VAC adapter per faucet (UL listed)
Mounting Wall-mounted via stainless steel “Z” brackets & tubular supports
Compliance & listings NSF, ADA, NSF/ANSI 61-9 lead-free
Shipping weight Approx. 124 lb

*Height measured from bottom of bowl to top of backsplash.

Installation at a Glance

  • Recommended bracket height: 42-1/2" from finished floor to top of “Z” bracket.
  • 3/8" NPT hot & cold supplies required behind each control box.
  • One waste connection behind center of unit (match local code).
  • Unit ships fully welded—simply anchor brackets, hang sink and connect plumbing.

Certifications & Warranty

  • NSF certified for splash & food zone use.
  • Meets current ADA accessibility guidelines.
  • Lead-free components conform to NSF 61/9.
  • 1-year limited manufacturer’s warranty.
California Proposition 65 Warning: This product may expose you to chemicals, including lead, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF, ADA Compliant

Height

25.5in

Width

100.0in

Depth

19.5in

Shipping Weight

124.0lbs

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Height (rim to drain)

5" deep

Faucet

faucet included

Features

multi-station

Style

wall mounted

Bowl Width (left to right)

20" & up

Specifications

Multiwash Hand Sink, splash mount faucet provision, wall mounted, with (5) electronic faucets, 100"W x 19-1/2"D x 25-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (5) single faucet holes, includes 3-1/2" rear basket drain, 14 gauge 304 stainless steel construction, tubular stainless steel wall supports, NSF, ADA compliant
